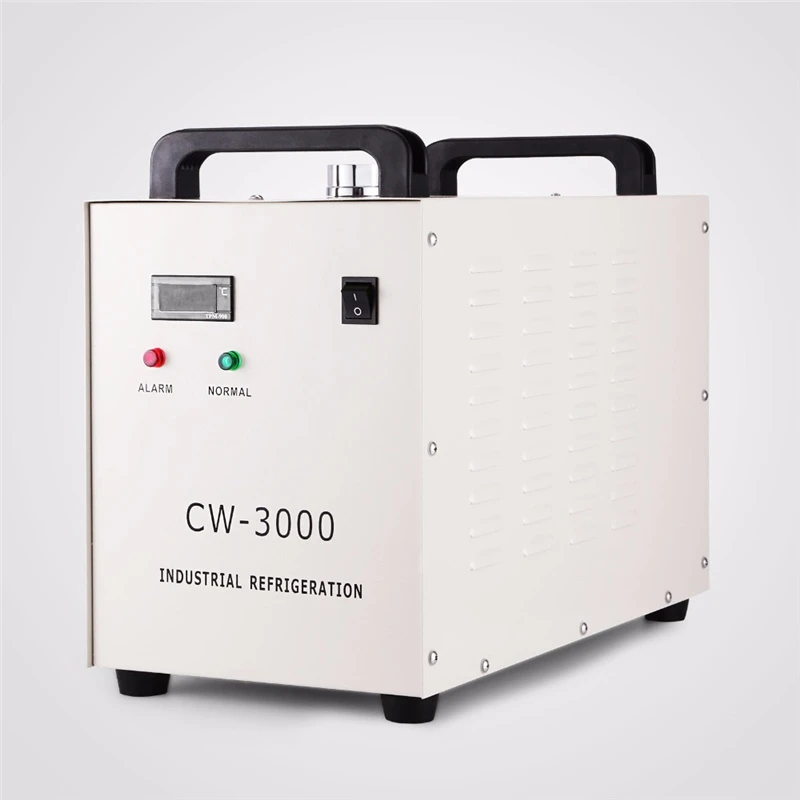

220V 110V CW-3000 Thermolysis Industrial Water Cooler
Chiller for Laser Engraver Engraving Machines 60W/80W

CW-3000 Series is professional cooling machine referring to
international, advanced thermolysis cooling system design, suitable for small
water-cooled cooling devices requested machinery. The  Industrial Water Chiller has a patent Certificate, CE and RoHS Certificate. It has
been sold largely to Europe, South America, Asia and other markets. Economic
cooling equipment, easy to install and operate, compact and easily movable.
It is designed for cooling the one CO2 glass
laser tube under 60W/80W of the laser engraving and cutting machine.

Install steps:

1. Open the package to check if the machine is intact and all the
necessary accessories are completed.
2. Open the mouth screw on the top of machine,
add cooling water (Please don’t power the machine without water).

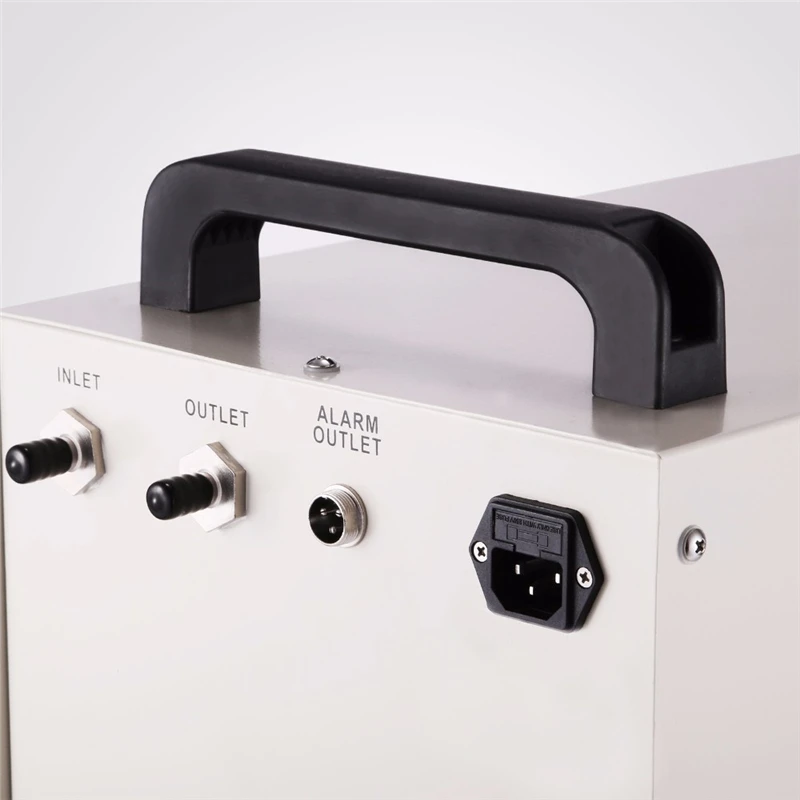

3. According to system conditions, connect the
water isnlet and outlet pipe well.
4. Connect the power cable, turn the power
switch (Note: Don’t let the water overflow).
5. Check the radiator water level again (Keep
the distance between water level and mouth is 80–150mm).

Notice:

·Cooling
machine no use for long time or in transport must keep emptying the cooling
water.

·It
is designed for cooling the UV lamp under 300W of the UV printer machine.

·It
is strictly forbidden to plug and run the cooler without feeding water.

·Cooler
should be placed in a well-ventilated, dry environment place and away from heat
sources. Please keep at least 30cm from obstructions to the air outlet which is
in the back of the cooler, and should leave at least 10cm between obstructions
and air inlets of two sides.

·To
protect laser tubes , the radiator fan of cooler will suspend to work when
water temperature is lower (about 10℃) , and it will restart to run when water temperature rises to
higher (about 20℃).

·To
ensure good heat dissipating, please open the lid to clean the dirt after the
cooler used in long-term.

·Working
in cold north area, it is better to use noncorrosive.

Remarks: CW3000
water chillers are equipped high speed fans inside, NOT able to control the
water temperature.

Features

·Comprehensive
reference to the international radiator - type cooling system.

·It
can control the water temperature, precision is ±0.1°C.

·Forces
circulation, 9L cooling tank capacity.

·Small
thermolysis water cooler, energy saving, long working life and simple
operation.

·You
can choose different models according to local voltage and frequency.

·With
completed water flow and over high temperature alarm functions.

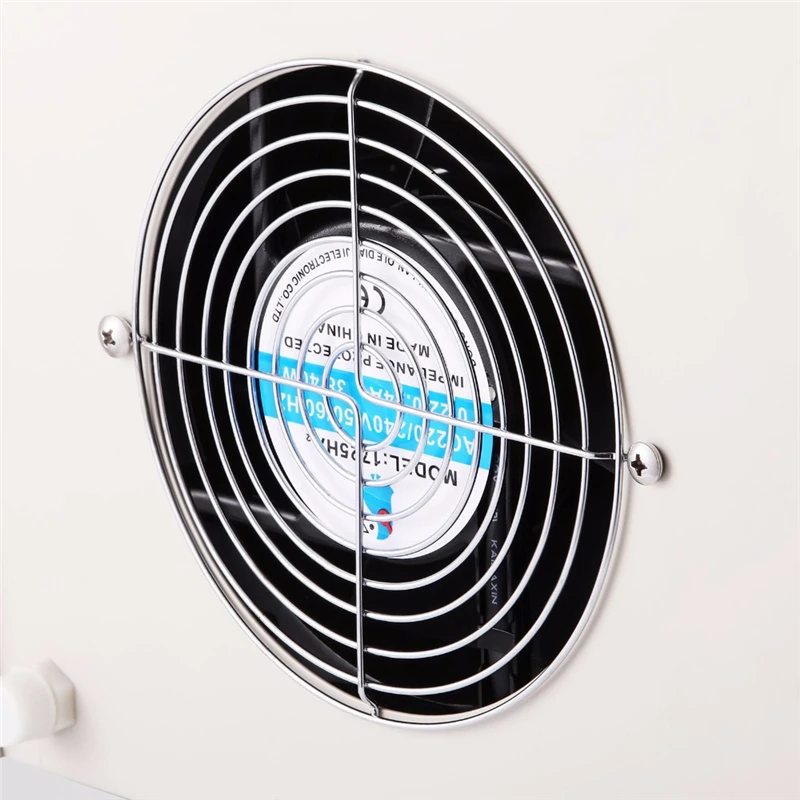

·Professional
forced air-cooled radiator, high heat dissipating capacity and not easy to be
blocked.

·Equipped
with alarm output port, can quickly protect sensitive components.

·Multiple
power specifications; CE approval; RoHS approval.

·Hermetic
type water tank, water is available for a long time used.

·Real-time
temperature monitoring, accurate knowledge of heating devices working
condition.

·High
cost performance, low failure rate.

Technical

·MODEL:
CW-3000AG/DG

·Voltage:220V
/ 110V

·Frequence:
60HZ

·Current:
0.45A

·Cooling:
50W/℃

·Capacity:
9L

·Max
.Lift: 10M

·Max.Flow:
10L/Min

·N.W:
9.5kg

·G.W:
12kg

·Protection:
Flow Alarm

·Package:
Carton Box

·Way
Of Circulation: Water Pump Forces Circulation

·Dimensions:
470mm*270*370mm (L*W*H)

·Packing
Dimensions: 590*380*470mm (L*W*H)

·Inlet
And Outlet Hold: Outside Dimensions 10mm Brass Connector
