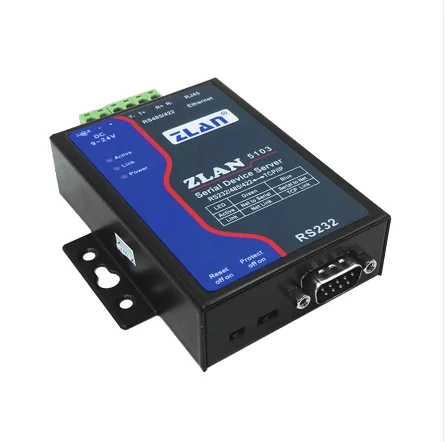

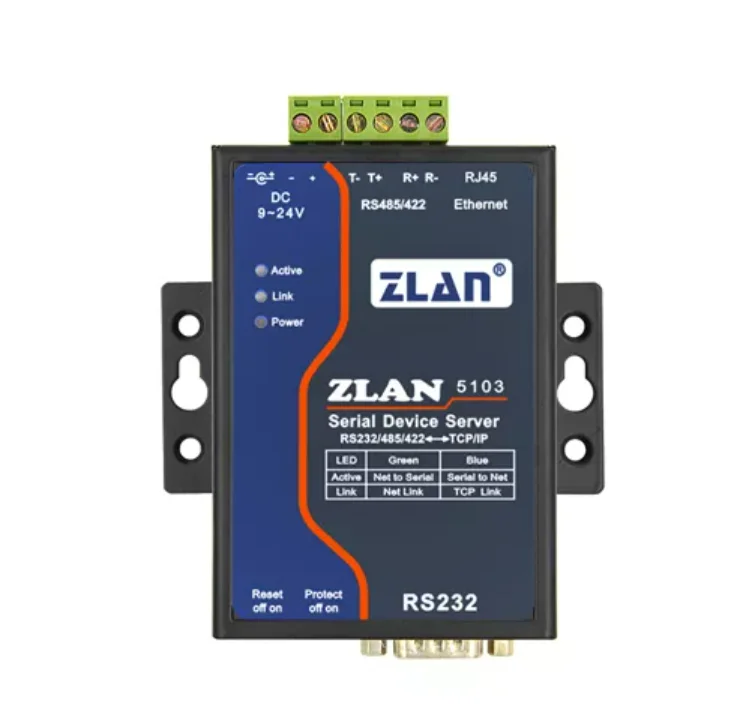

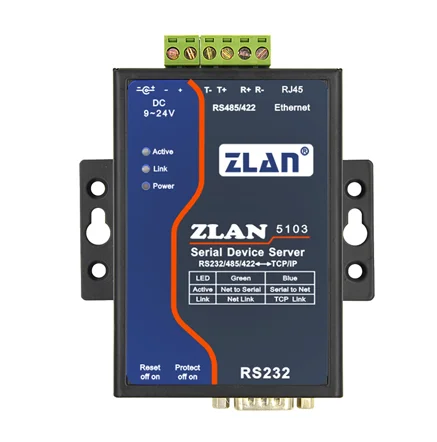

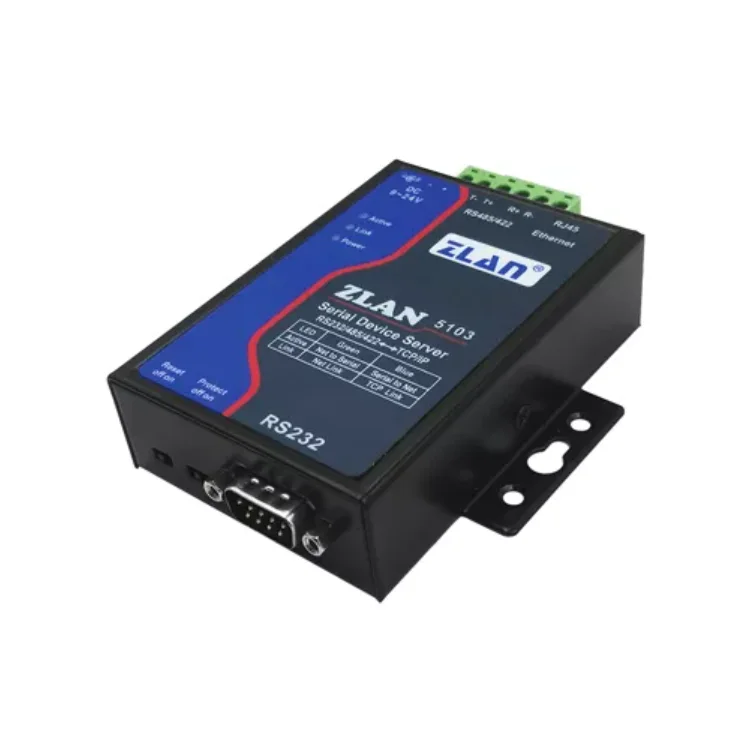

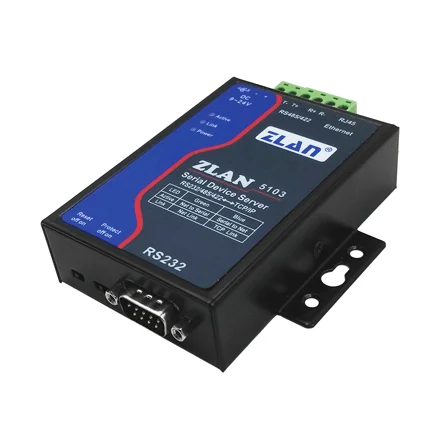

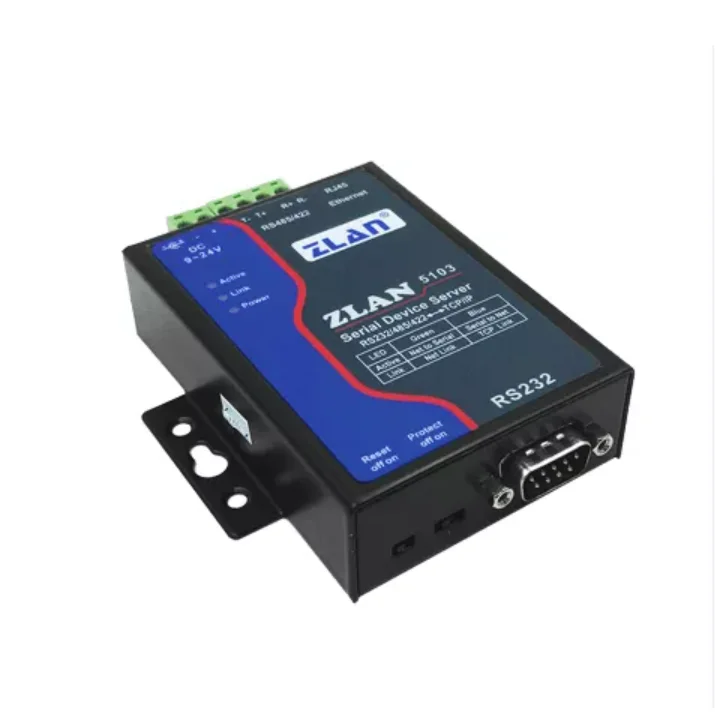

ZLAN5103

ZLAN5103 is a high performance serial device server developed by Shanghai ZLAN on the basis of ZLAN1003. It has the character of functional and cost-effective.

Power supply have 2 type: DC plug or Terminal. Input voltage is 9~24V, power consumption is 800mW.

RS485 can drive 32 load.

Three interface form: RS232/485/422

Can be equipped with guide installation accessories.

Summary

ZLAN5103 can realize the data transparent transmit between RS232/485/422 and TCP/IP, easily make serial devices connected to Ethernet and Internet, achieving the network upgrading for serial devices. Support full duplex and uninterrupted communication of RS232/485/422 port; RS485/422 are embedded with lightning protection; RS485/422 and RS232 can be used at the same time without switch. Support DHCP, DNS. Support virtual serial port, the original serial PC software no need any modifying.

Features

Support full duplex, high speed converting, and no packet lost.

High cost performance.

Support TCP Server, TCP Client, UDP model, UDP multicast.

Support baud rate 1200~115200bps, data size 5~9bits, parity of None, Odd, Even, Mark, Space. Support CTS/RTS hardware flow control.

Embedded 485/422 lightning protection function, suitable for outdoor 485/422 communication.

Equipped freely with our Windows Virtual Serial & Device Management Tool ZLVirCom. It supports virtual serial and can one-key searProvide device management library (Windows DLL library). It’s convenient for user to develop program with VC, VB, Delphi, C++ Builder. User need only use read or write function to communicate with ZLAN5103.

The innovative disconnecting detecting method, whether ZLAN5103 work in TCP Server mode or TCP Client mode it can automatically reestablishing connection after network broken, to ensure the data real-time accessibility.

With build-in Web server, its parameters can be modified by web browser.

Support DHCP, easy for IP management and solve IP confliction.

Support DNS. It fulfills the need of access data server through domain name.

Support 100 TCP connections communicate with network modules at the same time.

As a TCP client, can connect to 8 destination IP.

Flexible serial data framing setting. It fulfills all kinds of serial data frame requirement.

UDP mode support dynamic destination address mode. It helps for multi-user mange one serial server.

Real Com Driver mode support using the 9-th bit to facilitate communication with milt-device. (the 9-th bit being 0 means data frame and 1 means address frame).

Support searching serial servers and modifying parameters through Internet remotely.

Support parameter modifying protection, preventing modifying by accident. Support running with default parameters.

Build-in 2 KV electrical plus protection in RJ45.

High protection of electromagnetic interference. With its high electromagnetic interference protection SECC external shell.

Technical Parameters

Figure

· Interface

· 485/422: Terminal; 232: DB9

· Power Supply

· 5.5mm, Inside positive outside negative, standard outlet

· Size

· L x W x H=9.4cm×6.5cm×2.5cm

Communicate Interface

· Ethernet

· 10M/100M, 2KV surge protection

· Serial

· RS232/485/422×1：RXD，TXD，GND， CTS，RTS

Serial Parameters

· Baud rate

· 1200~115200bps

· Data bits

· 5～9

Software

· Protocol

· ETHERNET、IP、TCP、UDP、HTTP、ARP、ICMP、DHCP、DNS

· Setting method

· ZLVirCom, WEB browser, device management library

· Net communication method

· Socket, Virtual serial , device management library

Power Requirement

· Power

· 9～24V DC，145mA@9V

Environment

· Running temperature

· -40~85℃

· Storage temp

· -45~165℃

· Humidity

· 5~95%RH
