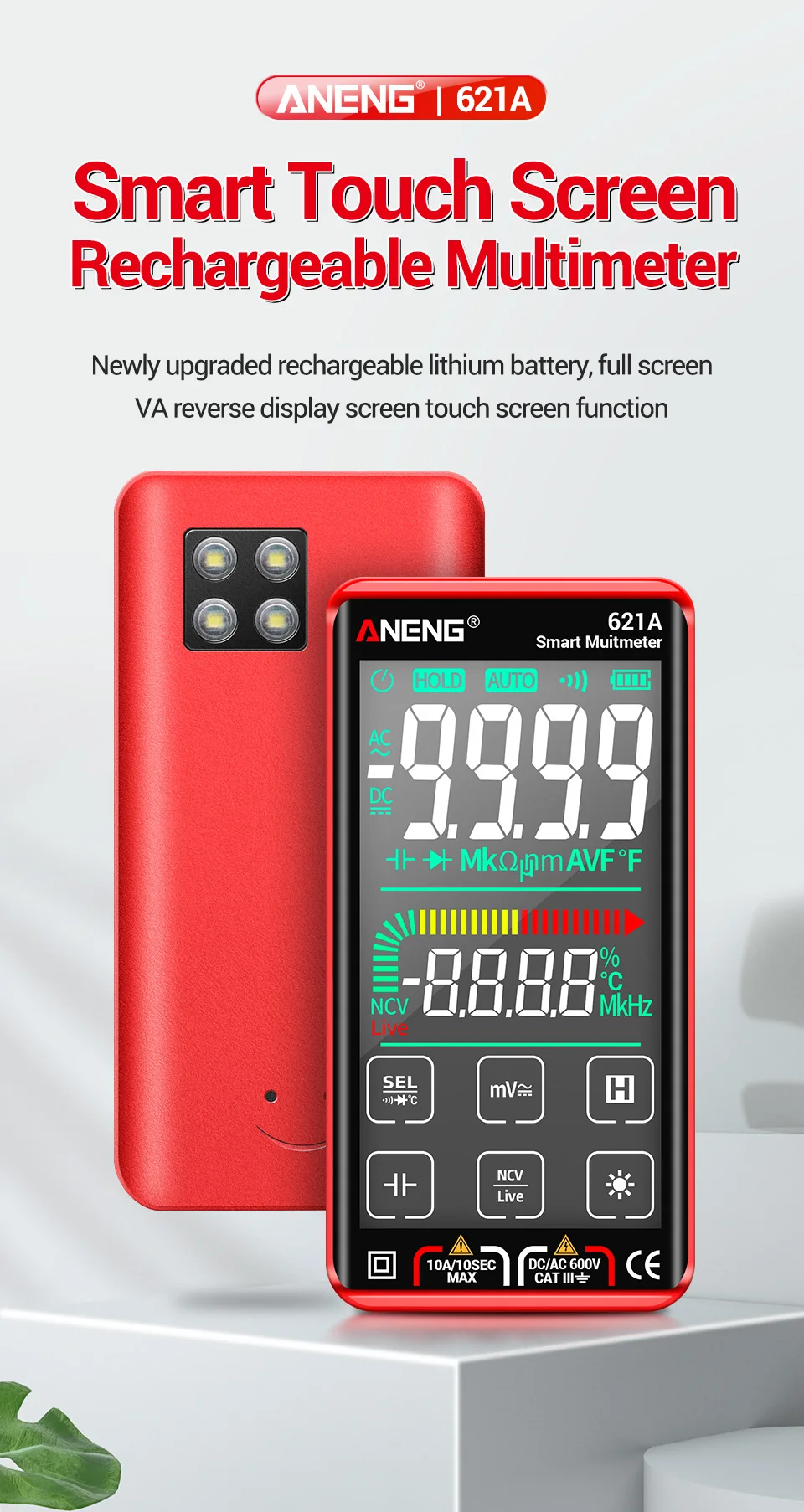

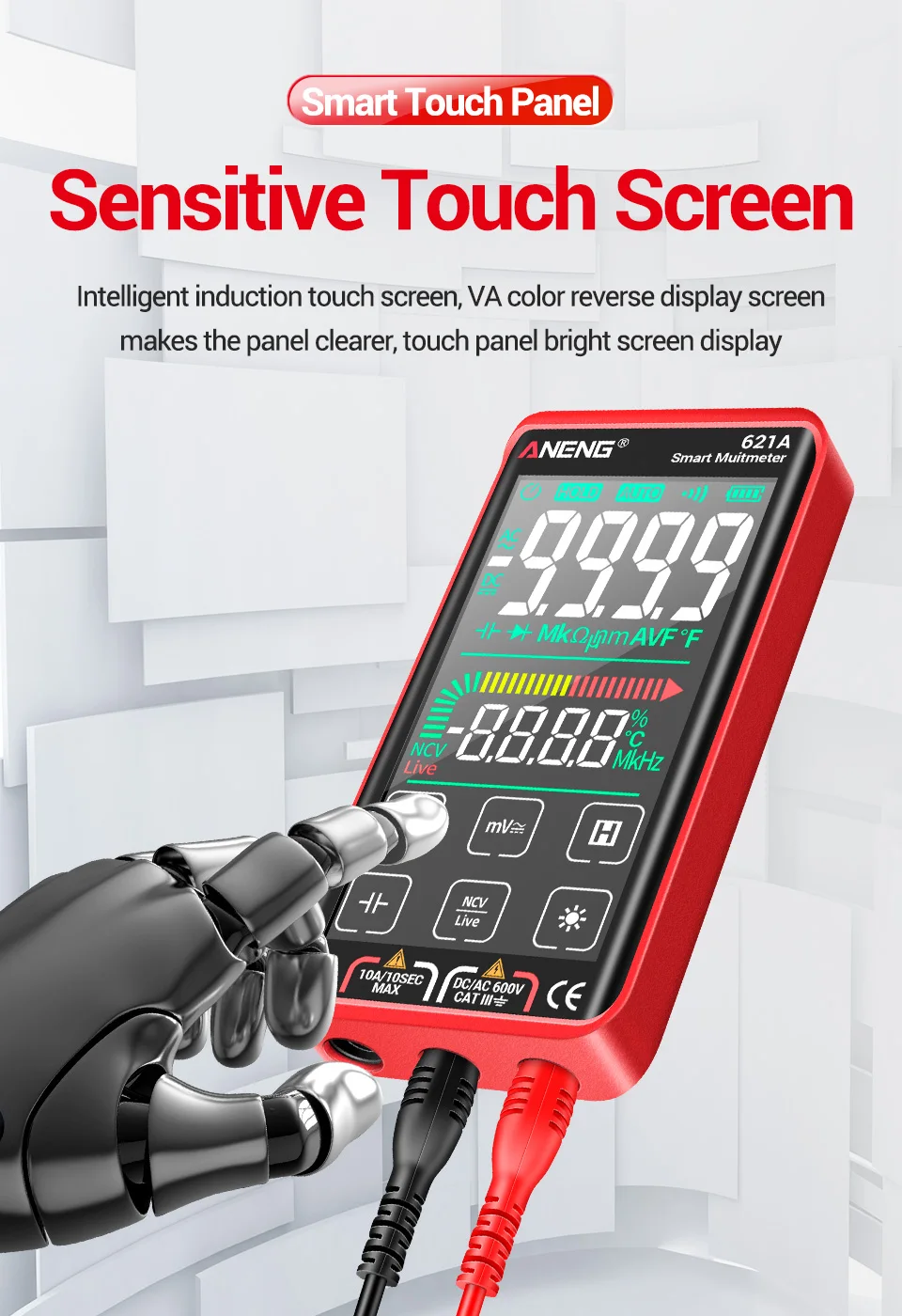

ANENG 621A Smart Digital Multimeter Touch Screen Multimetro Tester transistor 9999 Counts True RMS Auto Range DC/AC 10A Meter |

ANENG 621A Smart Digital Multimeter Touch Screen Multimetro Tester transistor 9999 Counts True RMS Auto Range DC/AC 10A Meter |

Notice:
This product is pre-sold for 30 days and will be shipped after 30 days. At the same time, this is a pre-sale product, and the product is sold informally. There will be certain errors in the picture and product, please pay attention.

A.Overview:
Automatic selection of measurement functions and ranges.
Full-scale overload protection.
The maximum voltage allowed between the measuring terminal and the earth is 1000V DC or 750V AC

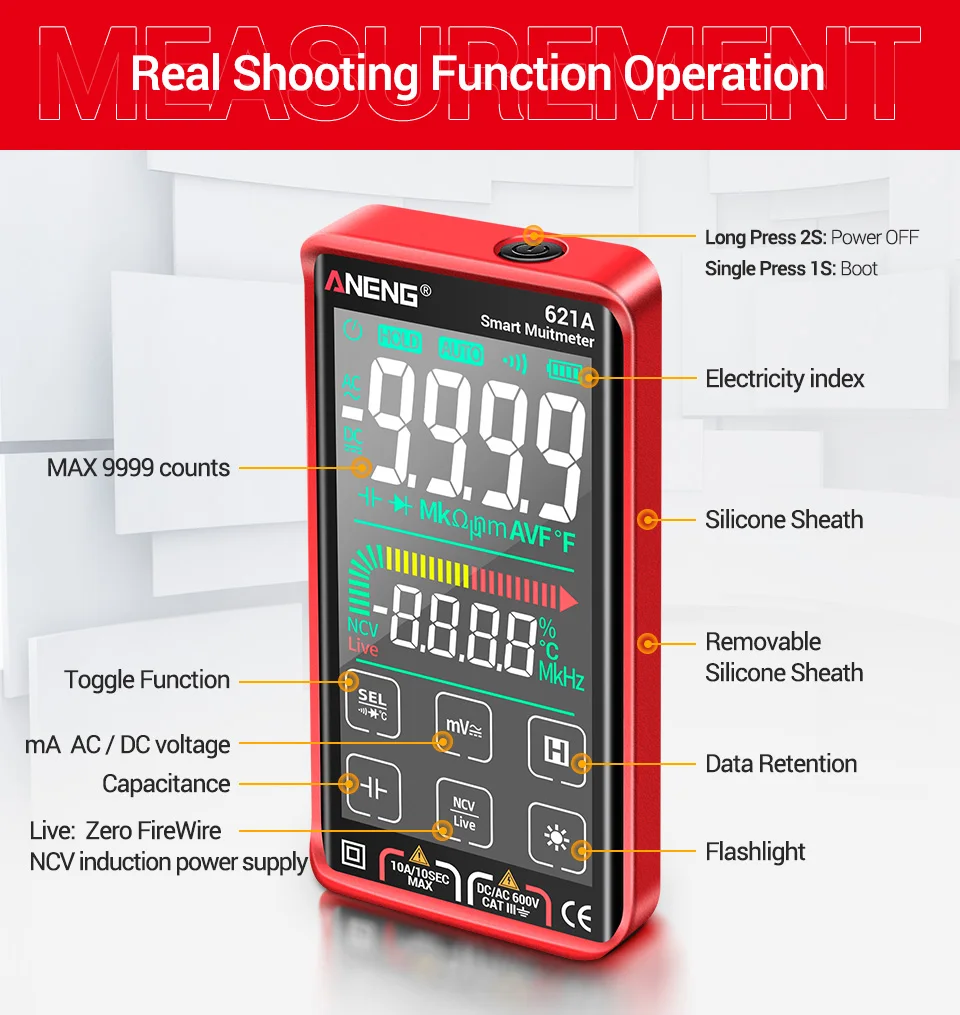

The maximum LCD display value is 9999 digits.
Polarity indication: Automatic indication, '－' means negative polarity.
Overrange display: 'OL' or '-OL' .
Sampling time about: 3 times / second

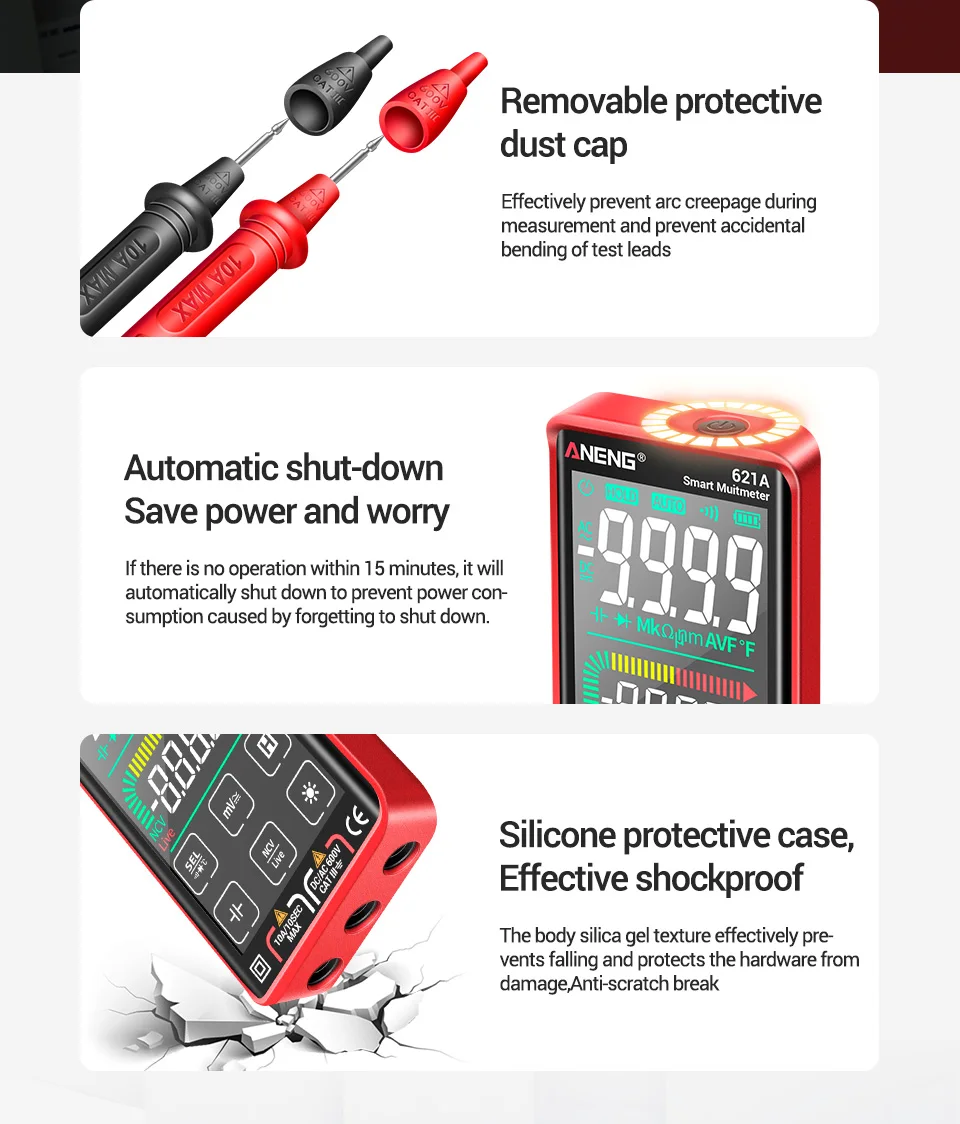

Auto shutdown time: 15 minutes

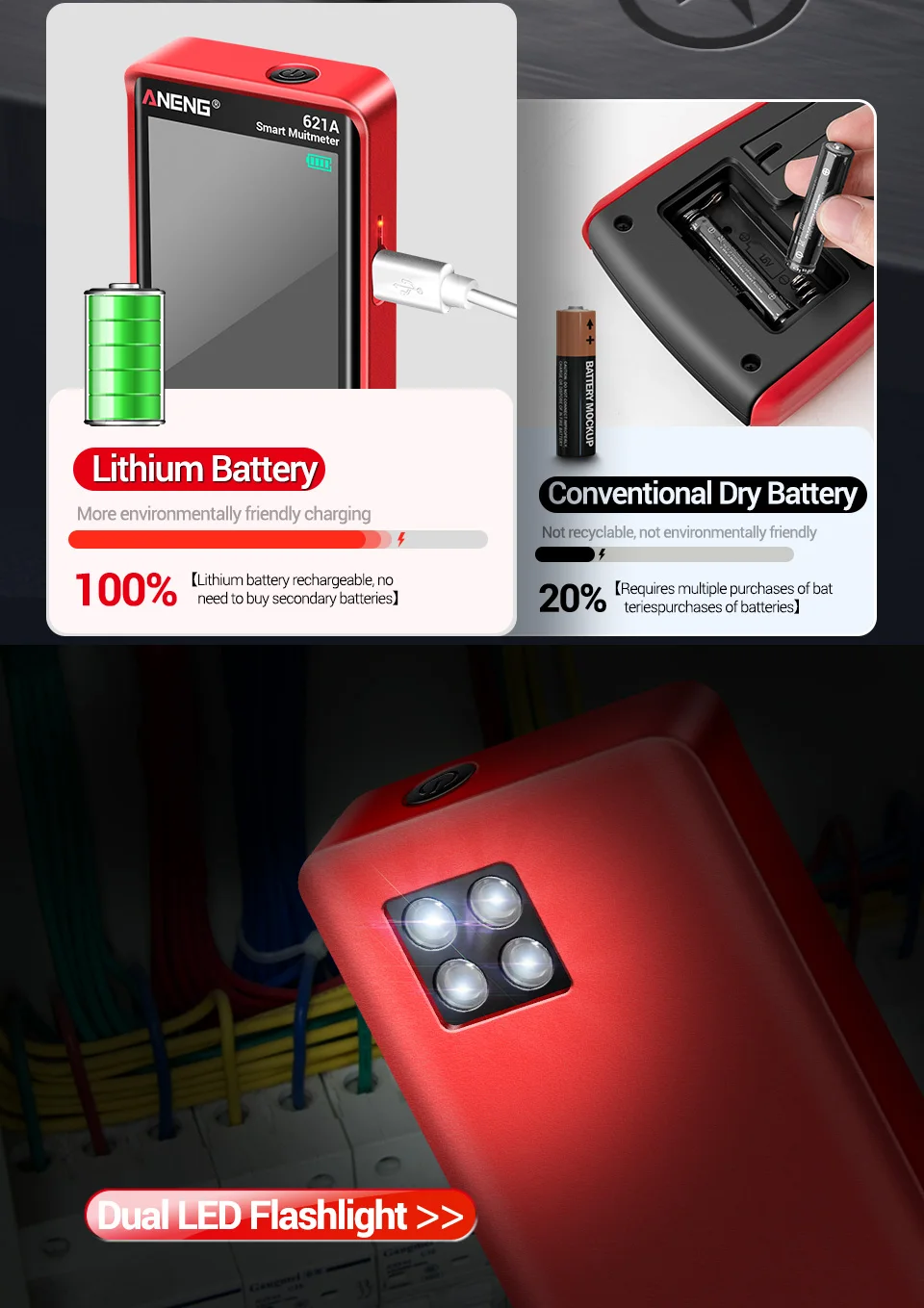

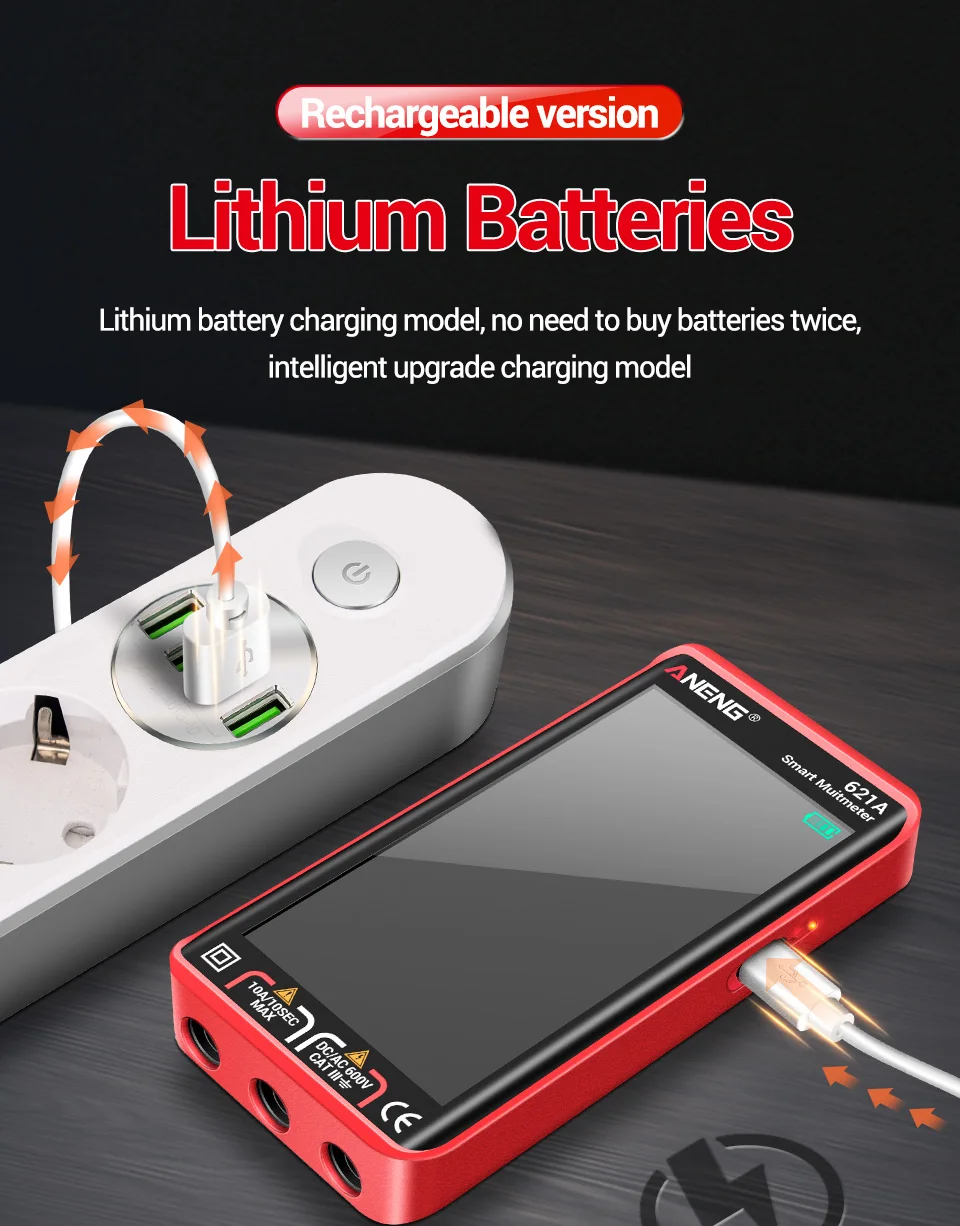

Power supply: 3.7V/600mAh lithium battery
Operating temperature: 0°c - 40°c

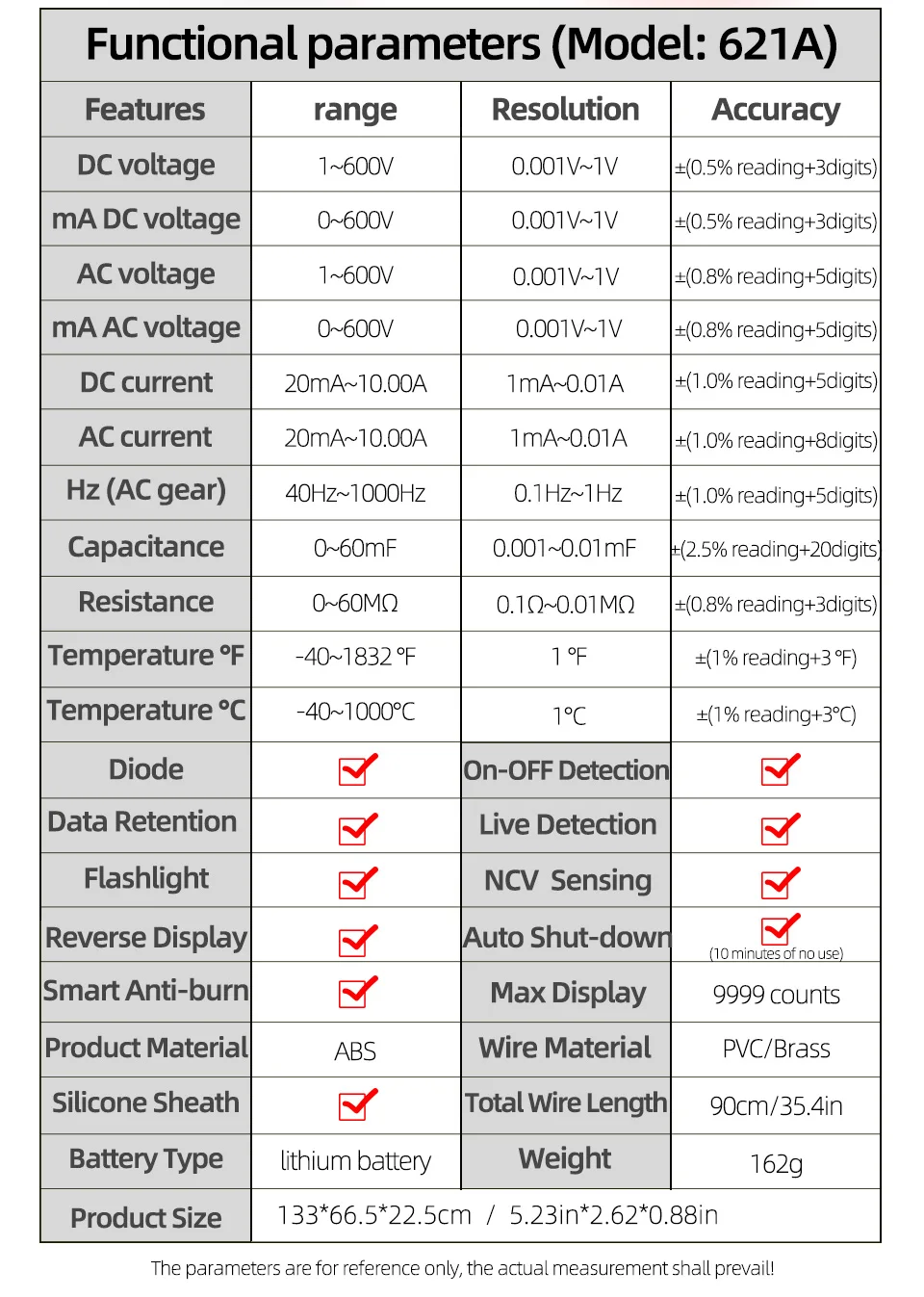

B.Specification:

Function

Range

Accuracy

AC Current

999.9mA/10A(Min 20mA/Max 10A)

+-(1.0%reading+8 digits)

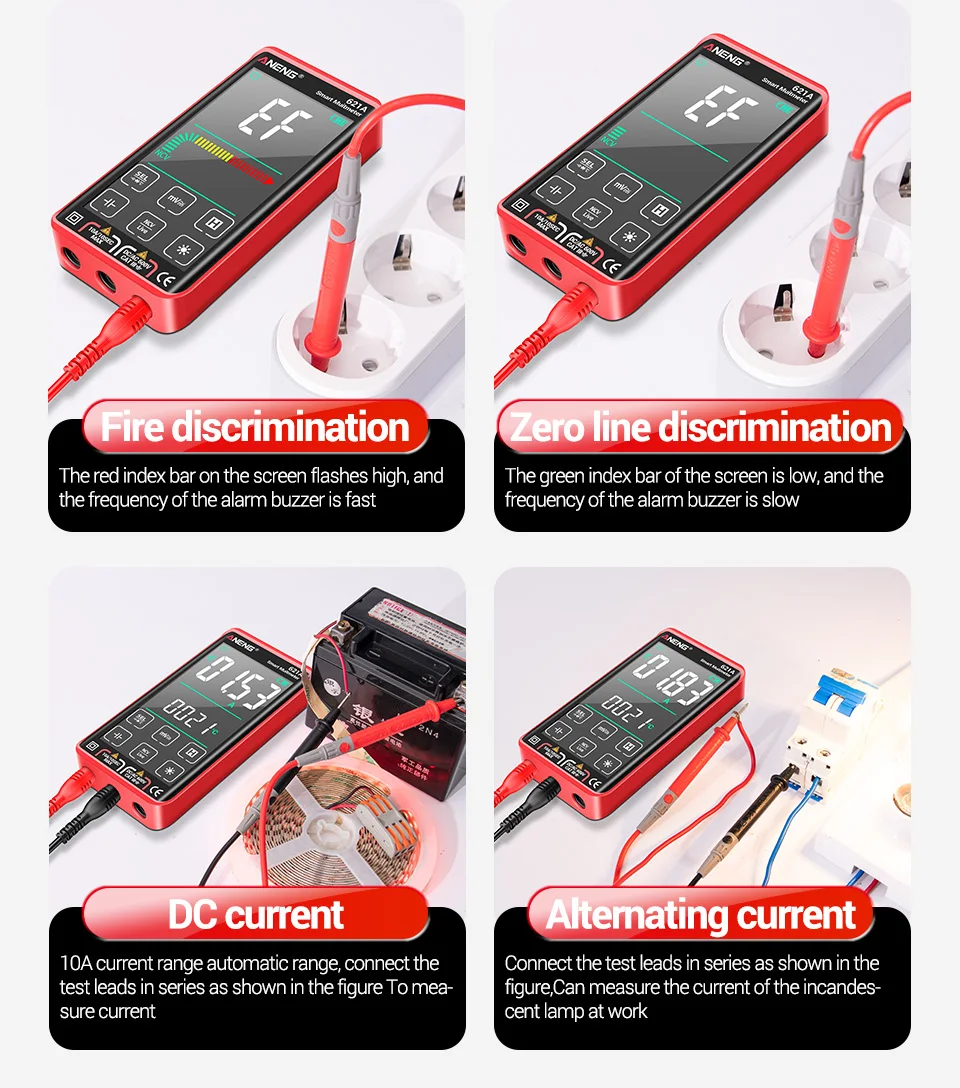

DC Current

999.9mA/10A(Min 20mA/Max 10A)

+-(1.0%reading+5 digits)

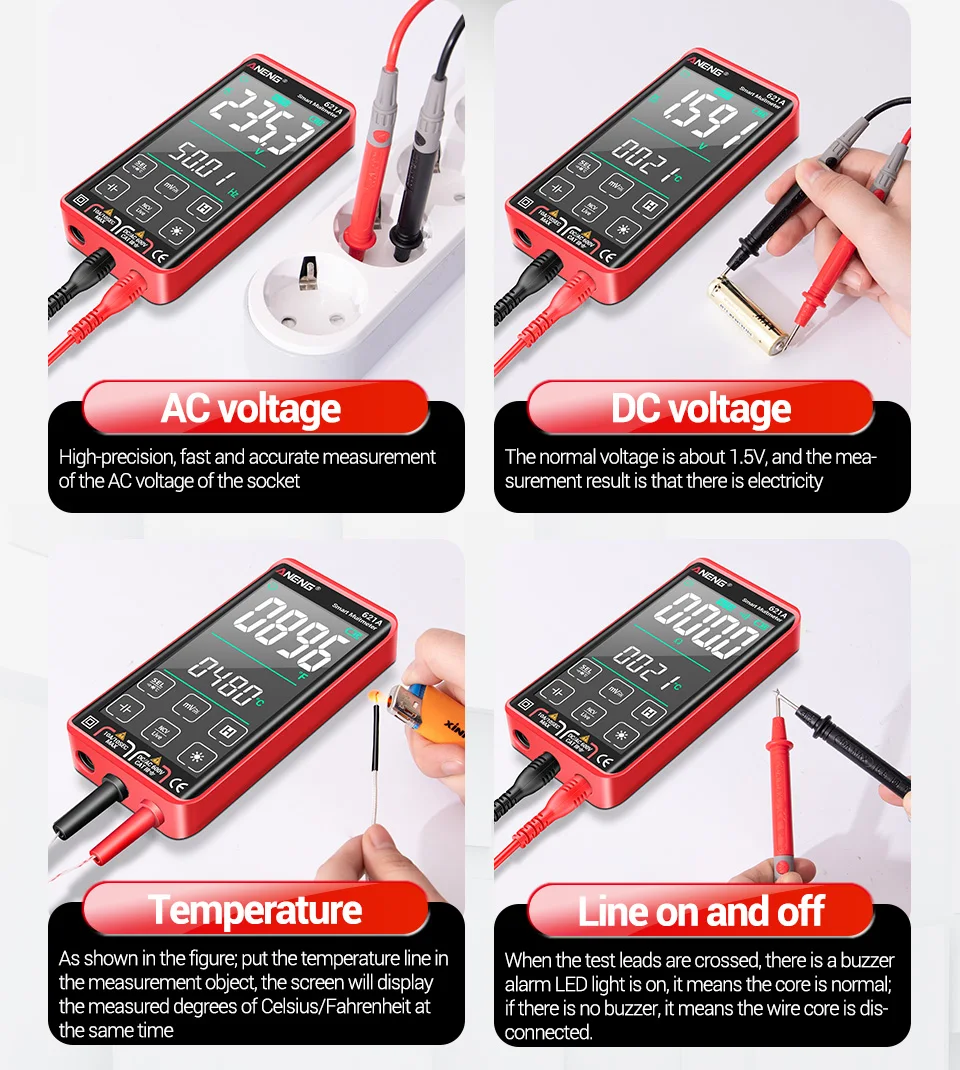

DC Voltage

999.9mV/9.999V/99.99V/999.9V

+-(0.5%reading+3 digits)

AC Voltage

999.9mV/9.999V/99.99V/999.9V

+-(0.8%reading+5 digits)

Line on-off Test

--

0.1Ω

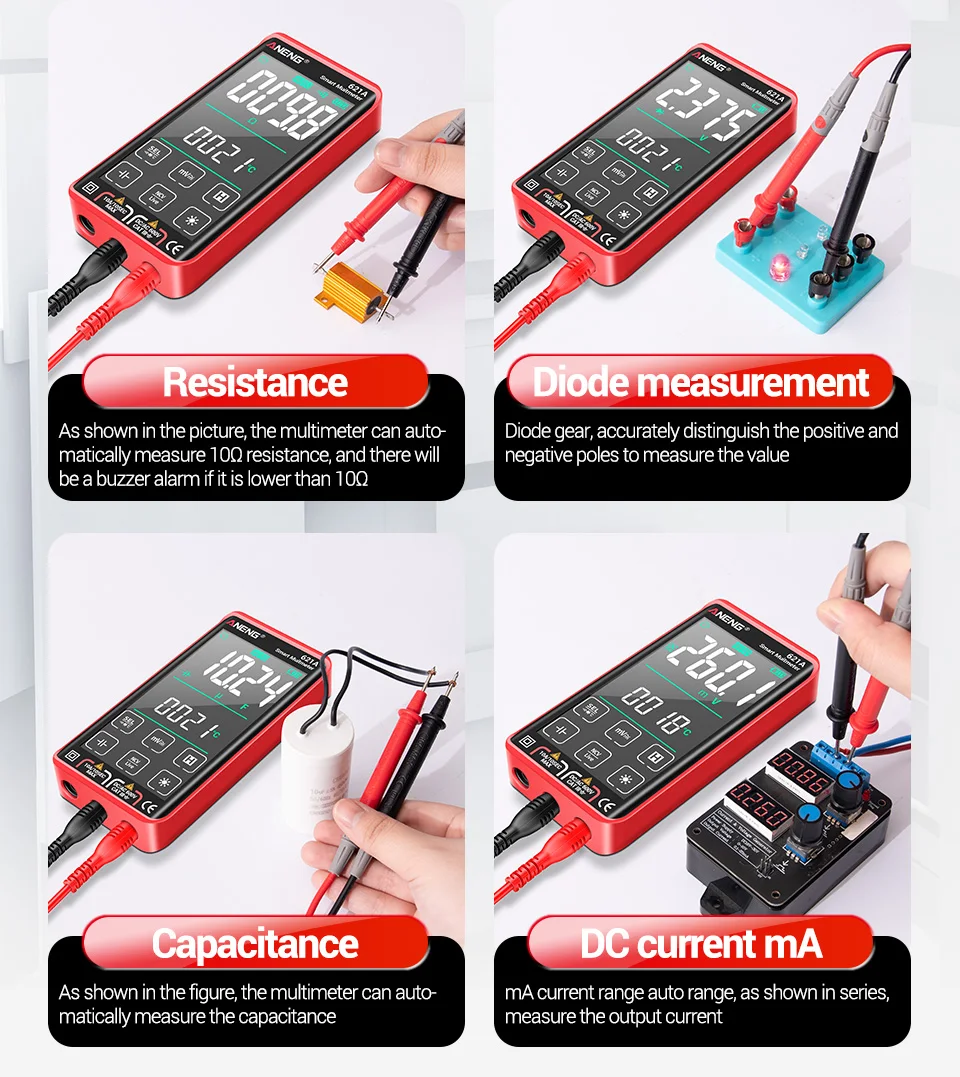

Resistance

999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ

+-(0.8%reading+3 digits)

Diode Test

--

1V

Capacitor

9.999nF

+-(10%reading+40 digits)

999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF

+-(2.5%reading+20 digits)

Temperature

-40~1000℃

+-(1%reading+3℃)

-40~1832℉

+-(1%reading+3℉)

Frequency

100Hz/1000Hz

+-(1.0%reading+5 digits)

100Hz/1000Hz

+-(1.0%reading+5 digits)

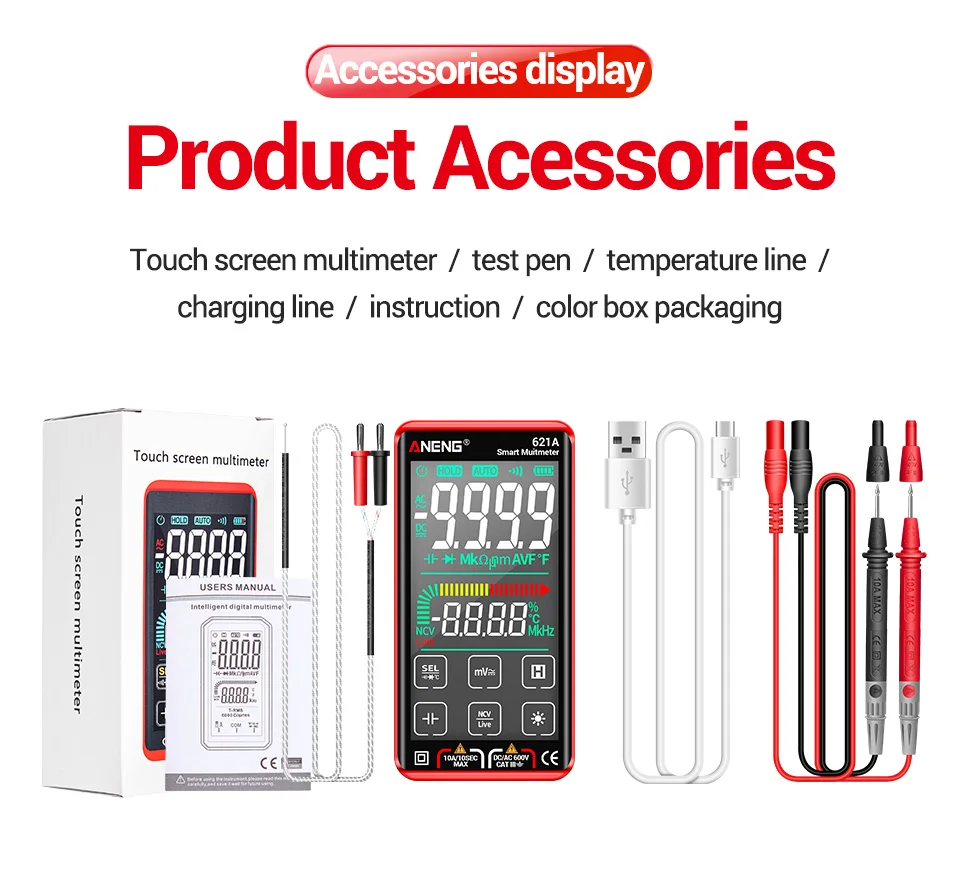

C.Package Include:
According to your choice
