Cree XLamp XM-L2 XML2 T6 10W Cool White 6500K High Power LED Light Emitter Diode for flashlight on 16mm Black or PCB |

Cree XLamp XM-L2 XML2 T6 10W Cool White 6500K High Power LED Light Emitter Diode for flashlight on 16mm Black or PCB |

1 PCS CREE XML LED T6 U2 10W WHITE High Power LED Emitter with 12mm 14mm 16mm 20mm PCB for DIY

Delivering breakthrough lumen output and efficacy in the XM package, the XLamp XM-L2 LED is the highest-performing, commercially available, single-die LED. Built on the SC³ Technology Platform, the XLamp XM-L2 LED delivers up to 20% more lumens and lumens-per-watt and double the lumens-per-dollar of the original XM-L. The XM-L2 LED offers the unique combination of high efficacy and high lumen output at high drive currents, delivering an unprecedented 1198 lumens at 116 lumens-per-watt efficacy at 3 A, 25°C.

Features:
Maximam drive current: 3000mA
Low thermal resistance: 2.5C/W
Maximum junction temperature: 150C
Viewing angle: 125'
ANSI-compatible chromaticity bins
Unlimited floor life at <30C/85% RH
Reflow solderable-JEDES J-STD-020C
Electrically neutral thermal path

Technical Parameters:
Quantity:1pcs
Model Type: Cree XML-T6
Emitted Color :White
Color Temperature: 6500-7000K
Viewing Angle: 110 Degree
DC Forward Voltage (VF): 2.9-4Vdc
DC Forward Current (IF): 3.0A
Power: 10W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°

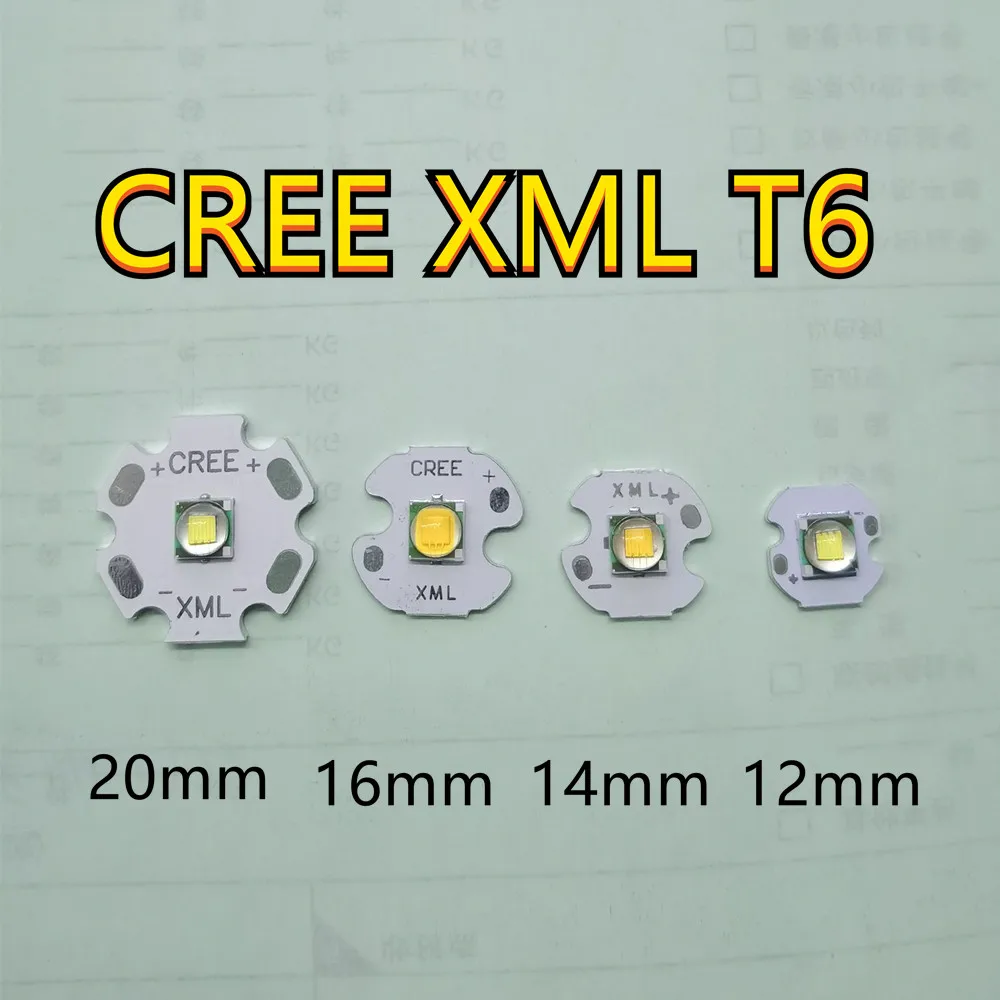

Diameter :12 14 16 20mm
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH
Reflow solderable - JEDEC J-STD-020C
Electrically neutral thermal path

Package:

1pcs led
