6040 CNC Frame Kit Ball Screw Aluminum 3040 Spindle Clamp 65mm 80mm for Diy CNC 3020 Router Engraver Engraving Milling Machine

Parameters:

Machine Dimensions：

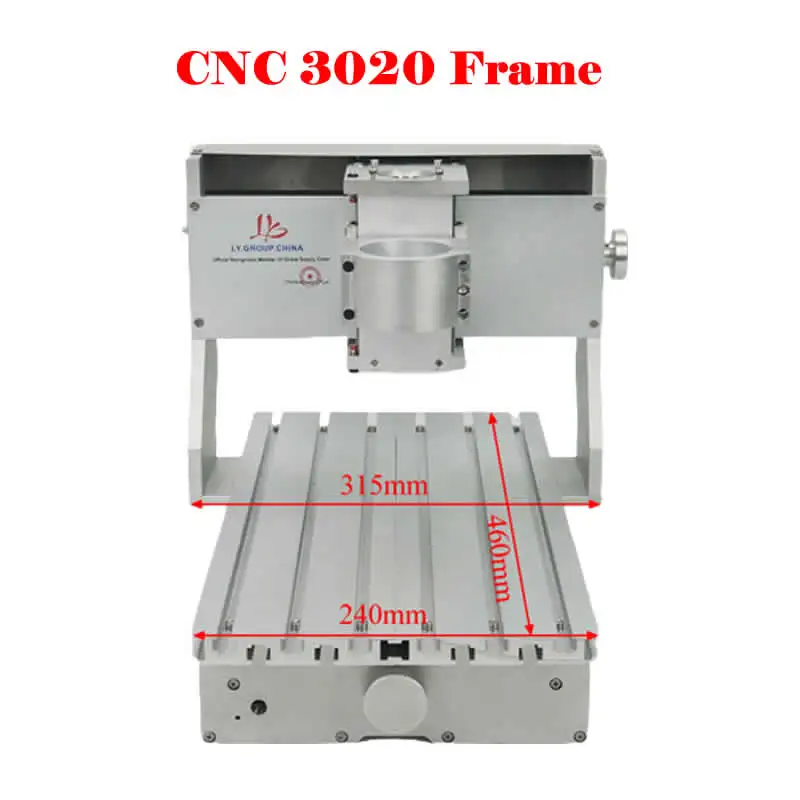

3020 frame:510×400×370mm

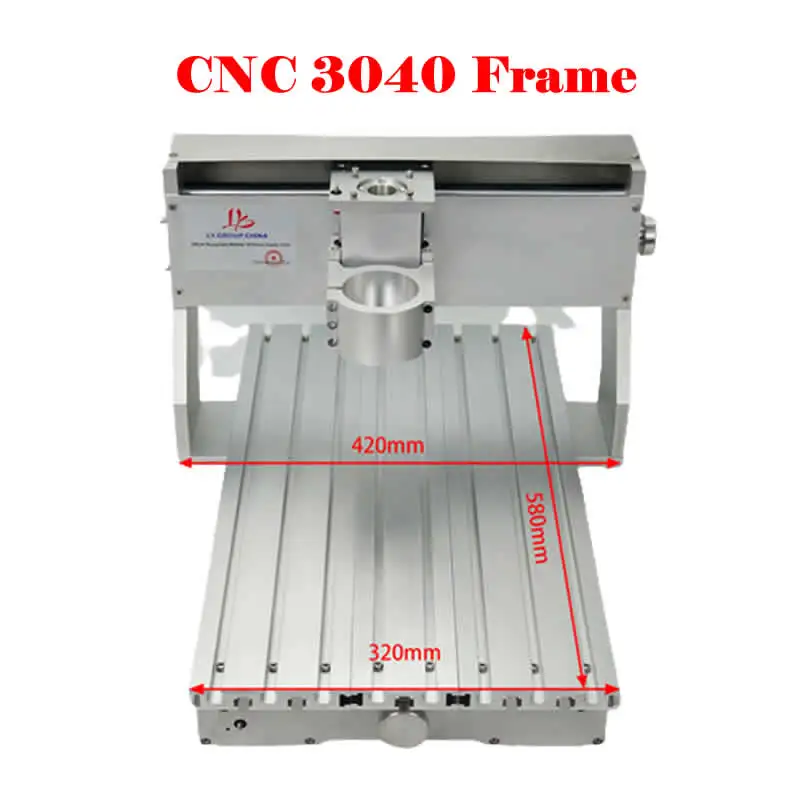

3040 frame:650×520×420mm

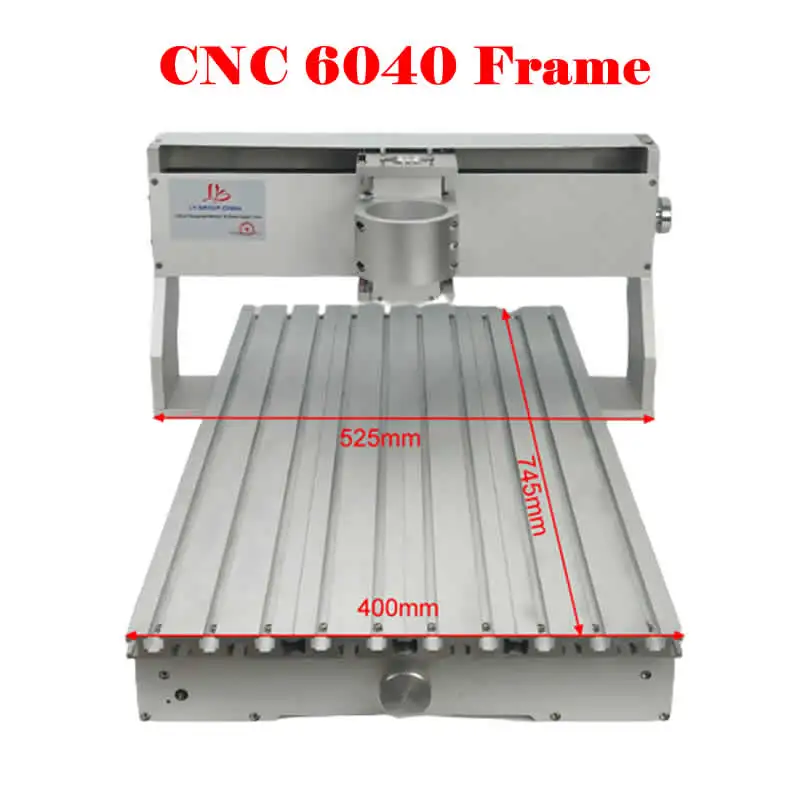

6040 frame:850×620×405mm

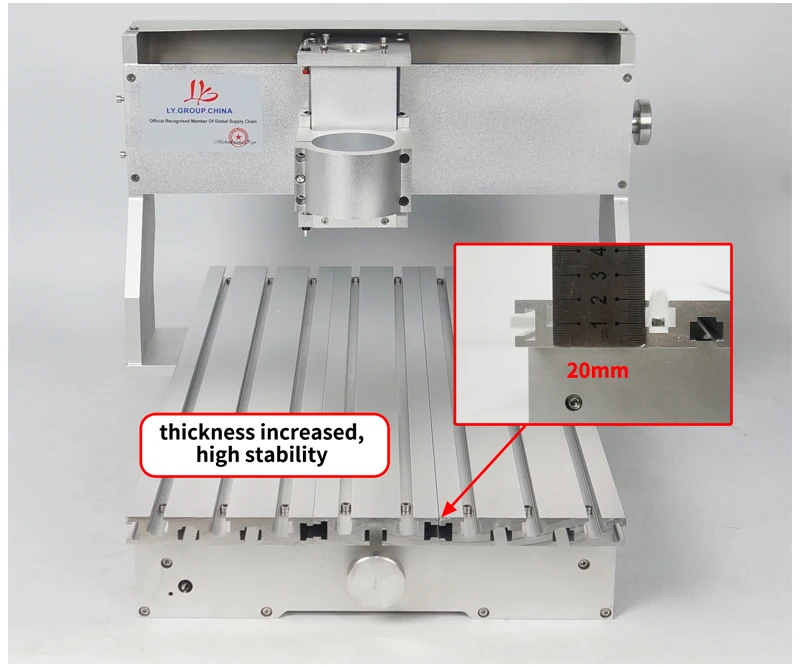

Rack material：

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area：

3020 frame:300x200mm

3040 frame:400x300mm

6040 frame:600X400mm

Z-Axis Stroke：

60mm Engraving depth depends on the length of the tool edge

Acceptable material thickness：

3020 frame ≤ 70mm

3040 frame ≤ 90mm

6040 frame ≤ 90mm

Rail type：

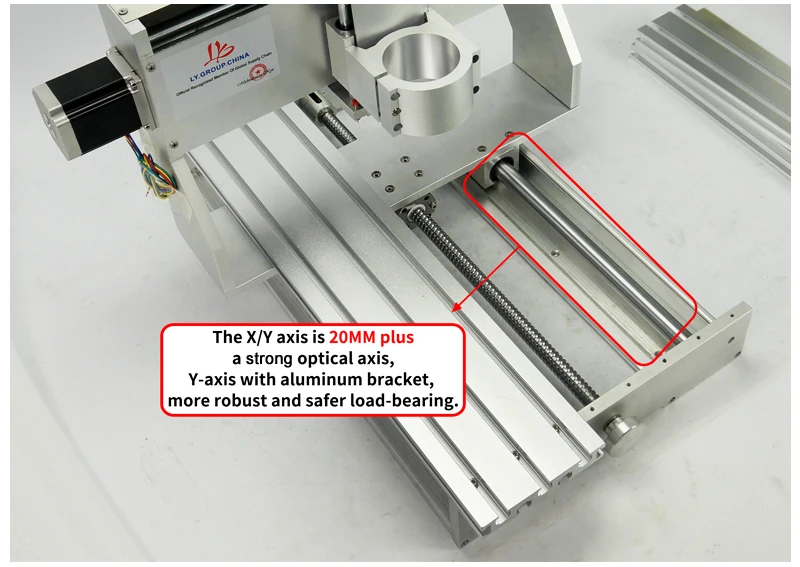

Chromeplate shaft + Supported guide rail

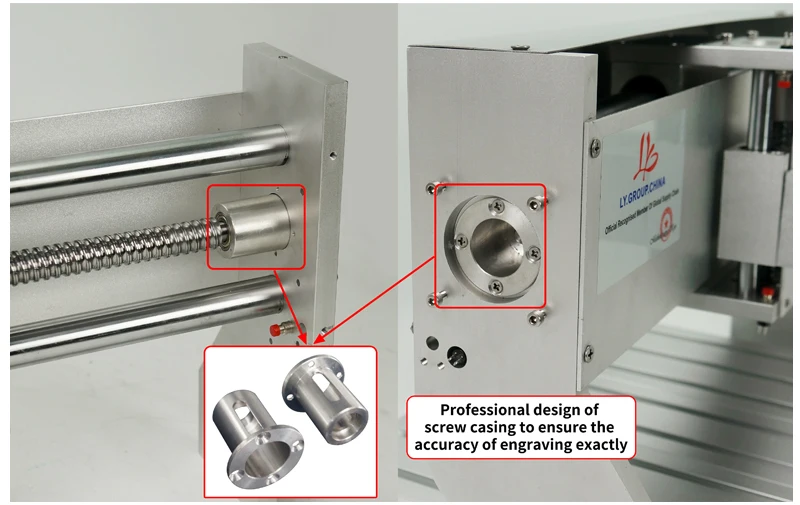

Type of screw：

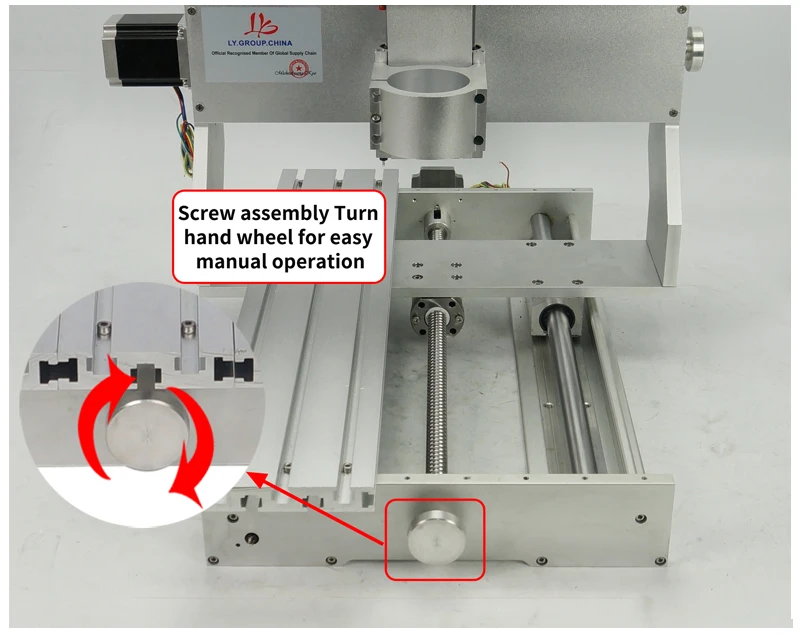

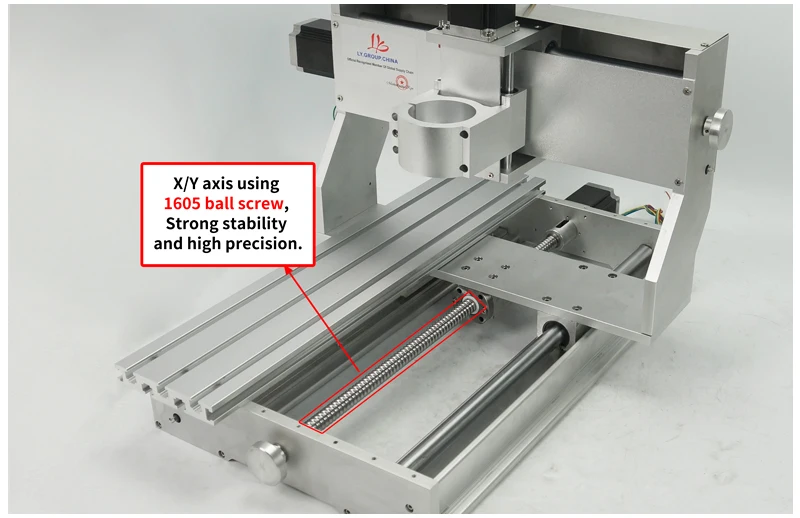

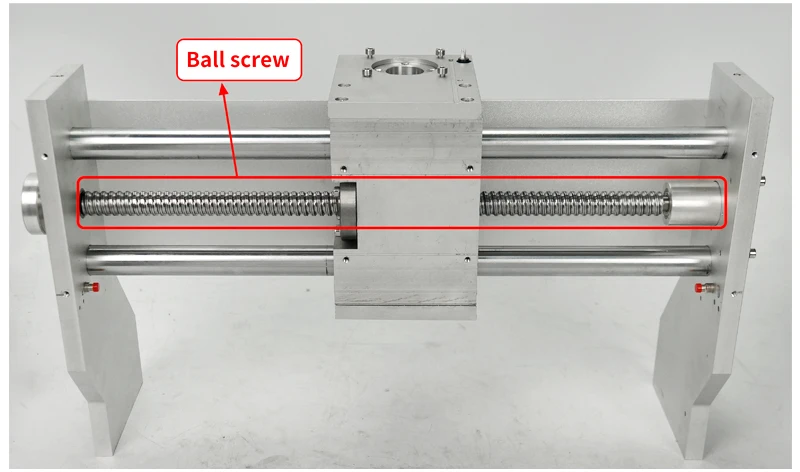

XY is 1605 ball screw, Z is 1204 ball screw

Diameter of Spindle motor

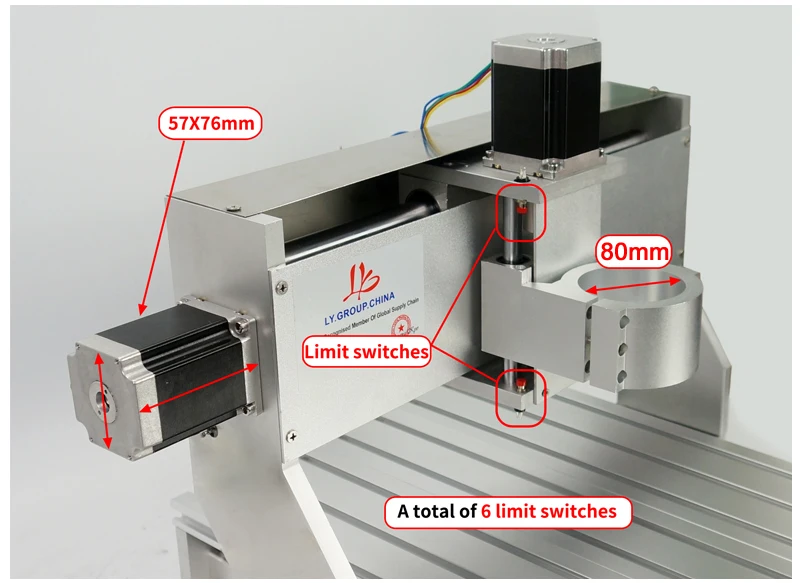

3020 frame :65mm

3040 frame :65mm

6040 frame :80mm

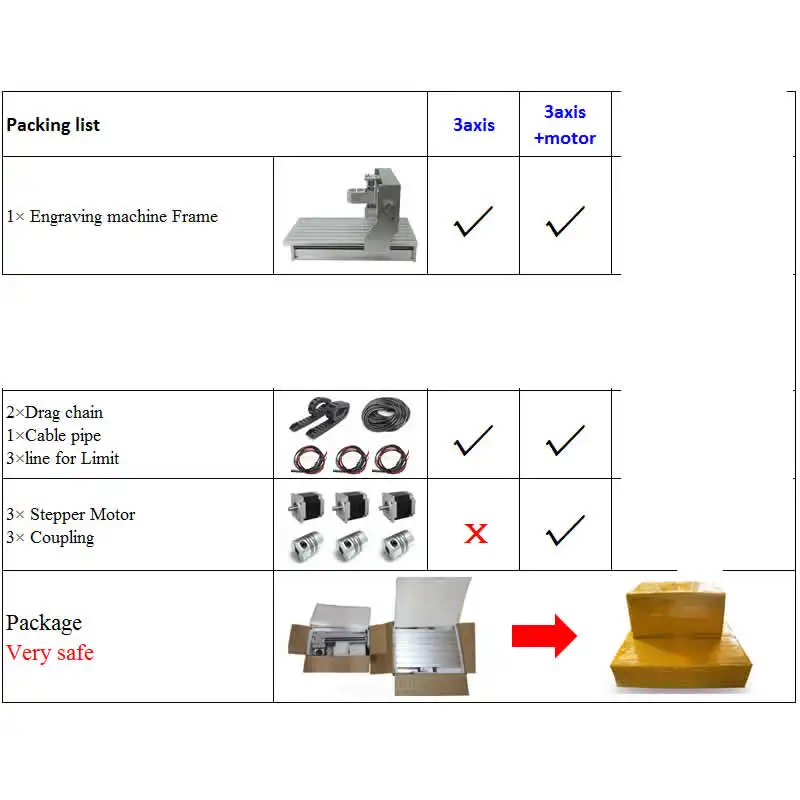

Stepper motor size

57mm without motor orwith motor

Repeat positioning Accuracy：

0.02mm

Net weight：

37kg

With package

43kg

Stepper Motors Parameter for 3020 frame:

Model: 57BYGH56

Current: 3A

Step Angle:1.8

Output torque: 1.2Nm

Motor length : 56mm （Manual measurement, possible error）

Length of output shaft: 22mm

Diameter of output shaft : 8mm

Output shaft mode: single output shaft

Wiring method: two phase four lead wires ( red A, green C, yellow B, blue D)

Stepper Motors Parameter for 3040/6040frame:

Model: 57BYGH76

Current: 3A

Output torque: 1.5Nm

Motor length : 76mm （Manual measurement, possible error）

Length of output shaft: 23mm

Diameter of output shaft : 8mm

Output shaft mode: single output shaft

Wiring method: two phase four lead wires ( red A, green C, yellow B, blue D)
