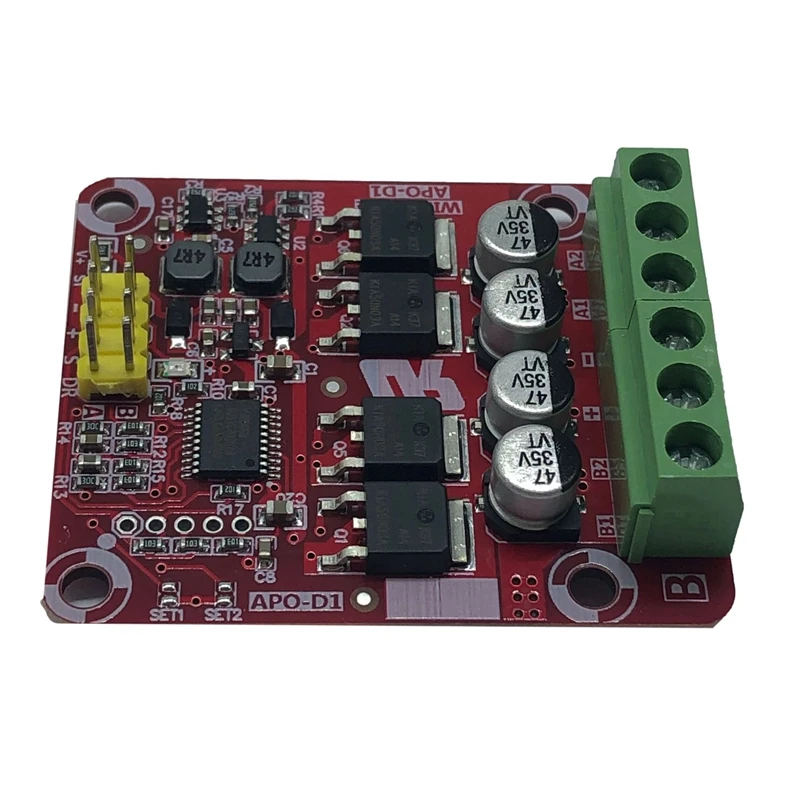

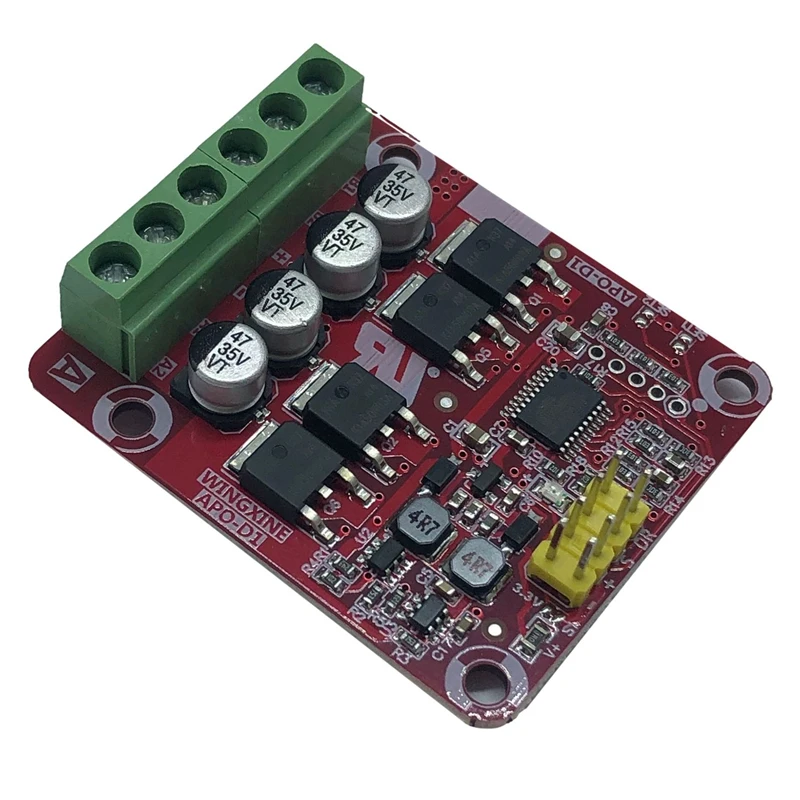

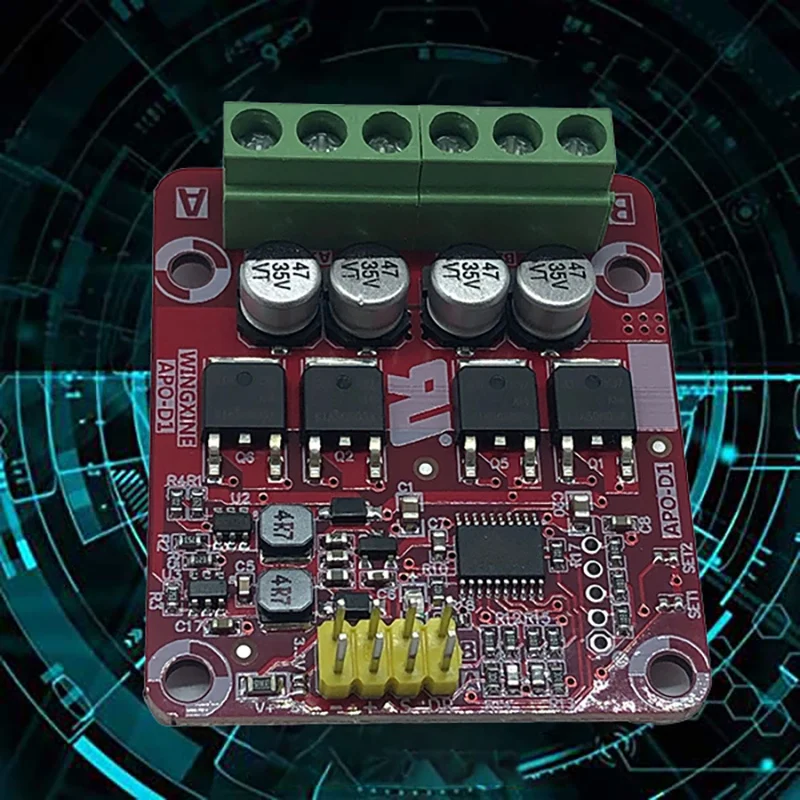

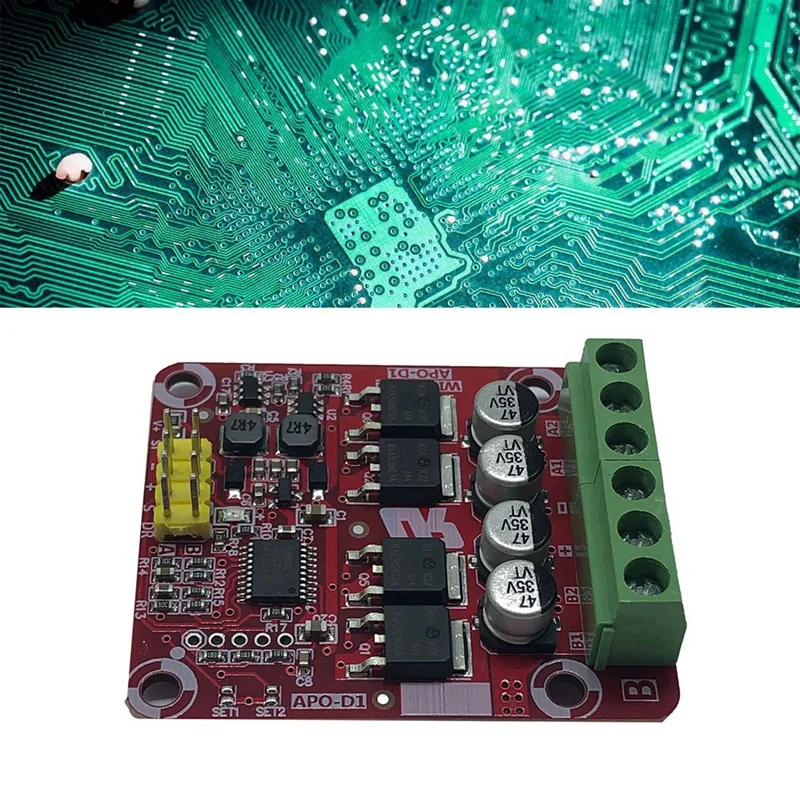

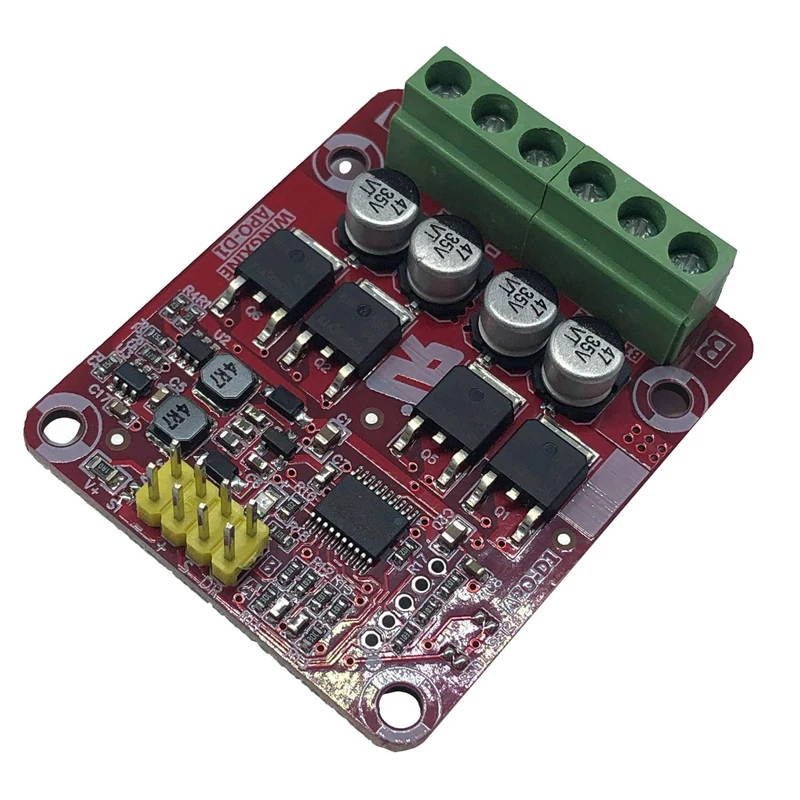

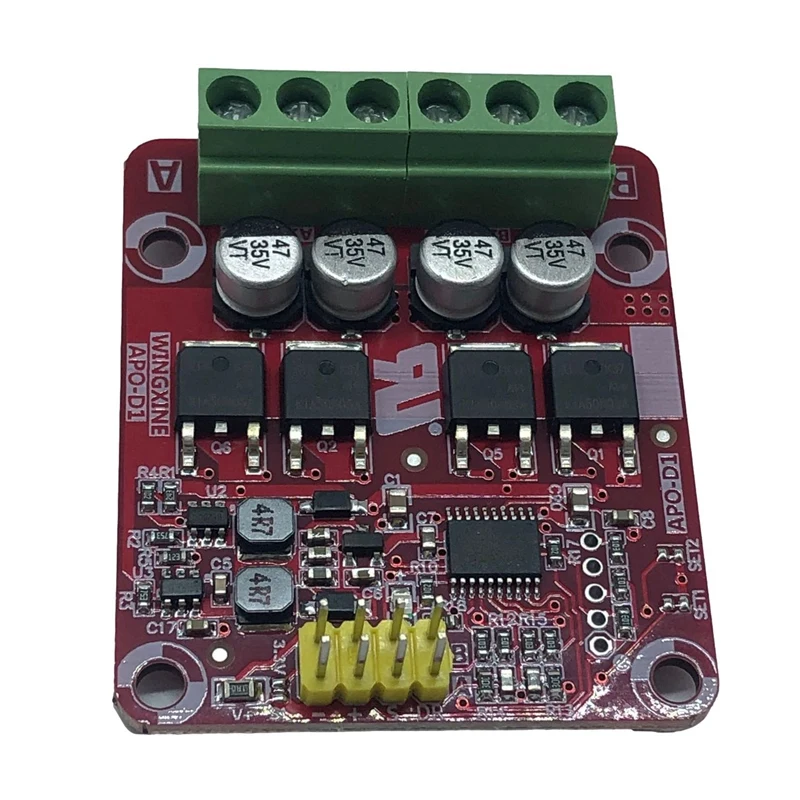

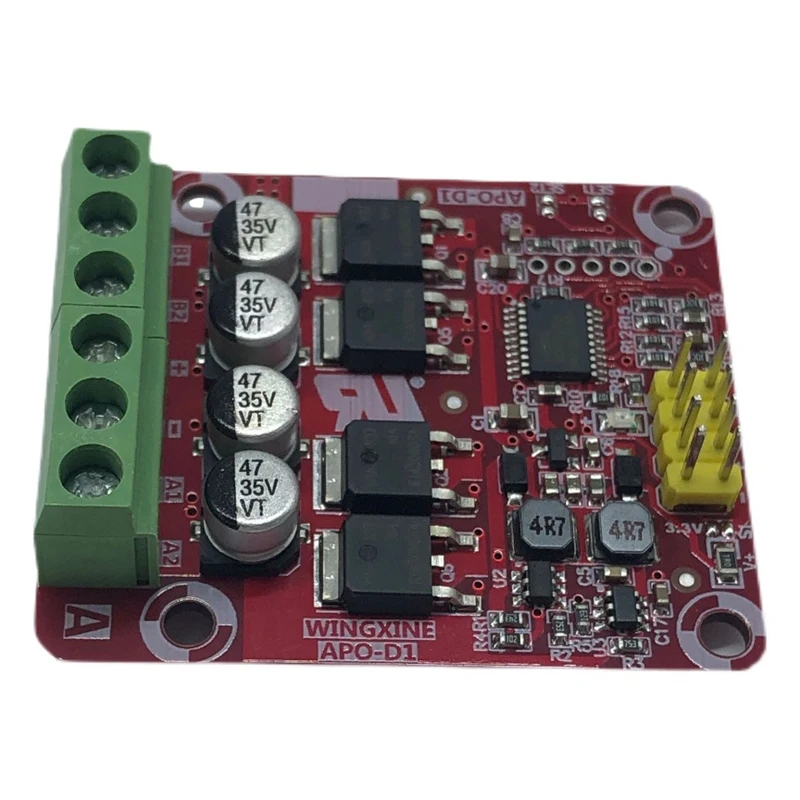

Promotion! APO-D1 Dual-Channel Speed Controller 10Ax2 Three-Function DC Brushed Motor ESC Speed Controller 5V-24V Dual Drive Slo

Motor speed control. Motor forward and reverse control. Adjustable current limit
Electronic adjustable potentiometer single chip microcomputer can control wide voltage input range in any way
Speed ​​control and commutation control of DC brush motor. Potentiometer controls the motor forward and reverse rotation and commutation
Single-chip microcomputer controls the forward and reverse rotation and commutation of the motor
Semiconductor refrigerator temperature adjustment and commutation control. Speed ​​regulation and commutation control of coreless motor

Product Name: Motor Speed ​​Controller
Rated input voltage: 5V-24V/DC
Standby current: Less than 20mA
Average use current: 10Ax2 10A per channel
ESC mode: model airplane remote control: 1ms-2ms (pulse width)/50HZ
MCU mode: 0%-100% ratio/rate: 500Hz~16kHz
Potentiometer mode: 0v-5V input voltage (2.45V-2.55V motor stops)
Limit parameters:
Limit input voltage range: 5V-24V/DC (MAX)
Pulse peak current: 50Ax2(MAX)
Application scope: model ESC, smart car, motor speed and commutation control, fighting robot production, hollow cup motor control
size:48.5x41.5x15mm
Material:PCB+metal
colour:red

Package Contents:
1 x APO-D1 dual channel motor speed controller

Only the above package content, other products are not included.
