2.15-5.5V SHT30 Temperature and Humidity Sensor HY2.0-4P Interface IIC Digital Signal Output Cable length 28cm

Features:

1: Wide range of applications

2: Simple to use

3: Small appearance

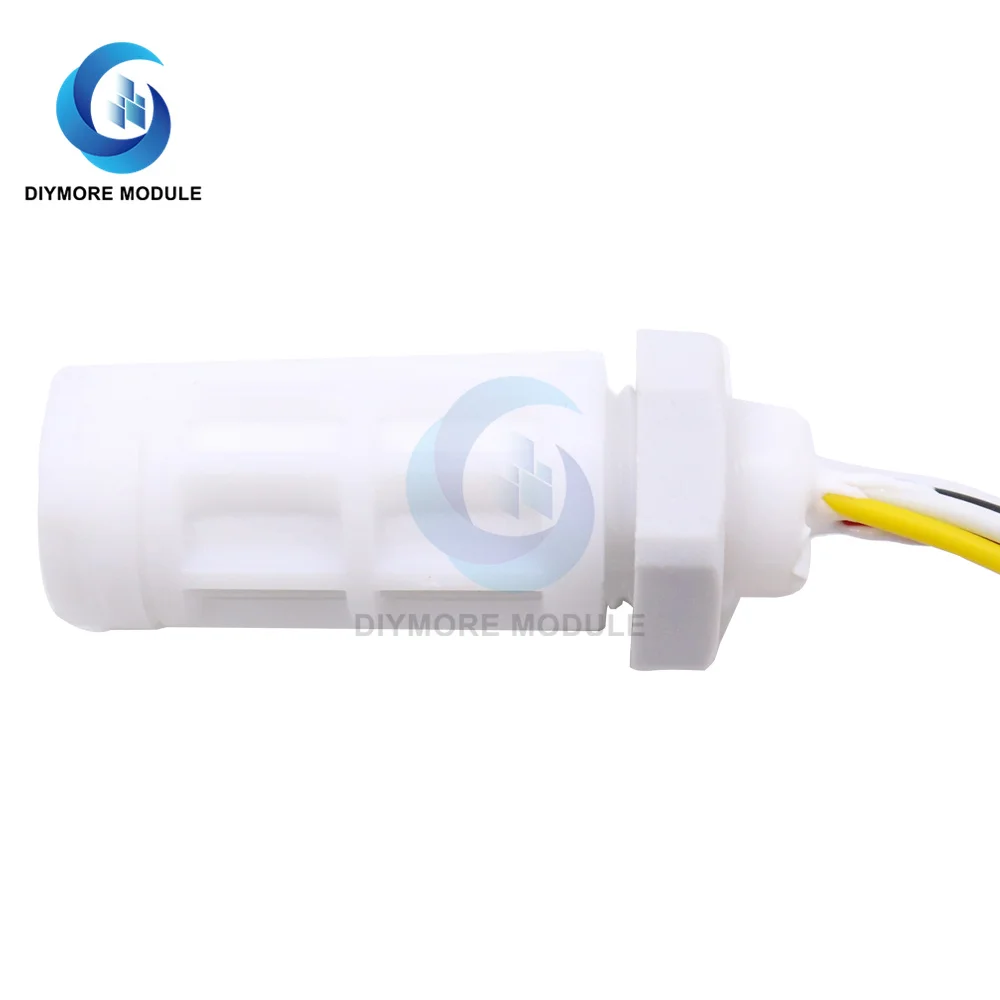

4: PE cylinder protective sleeve

5: Working voltage: 2.15-5.5V

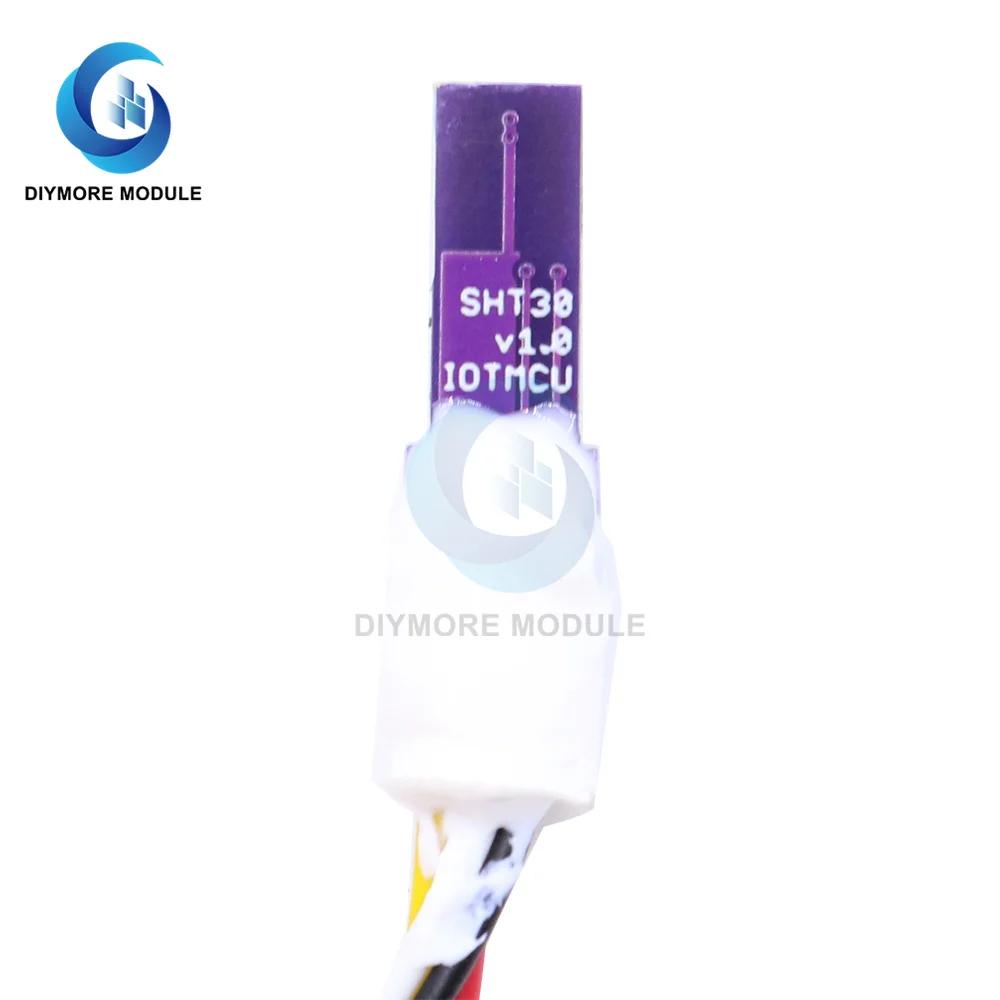

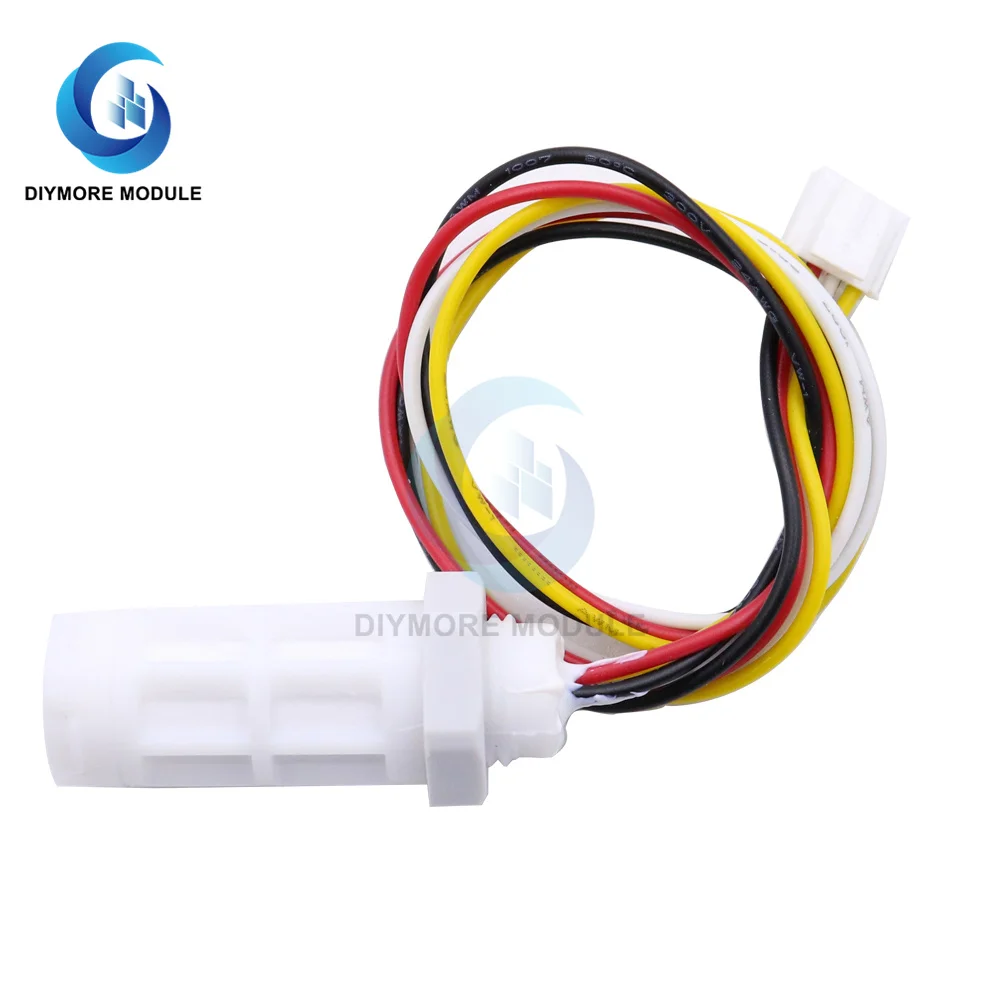

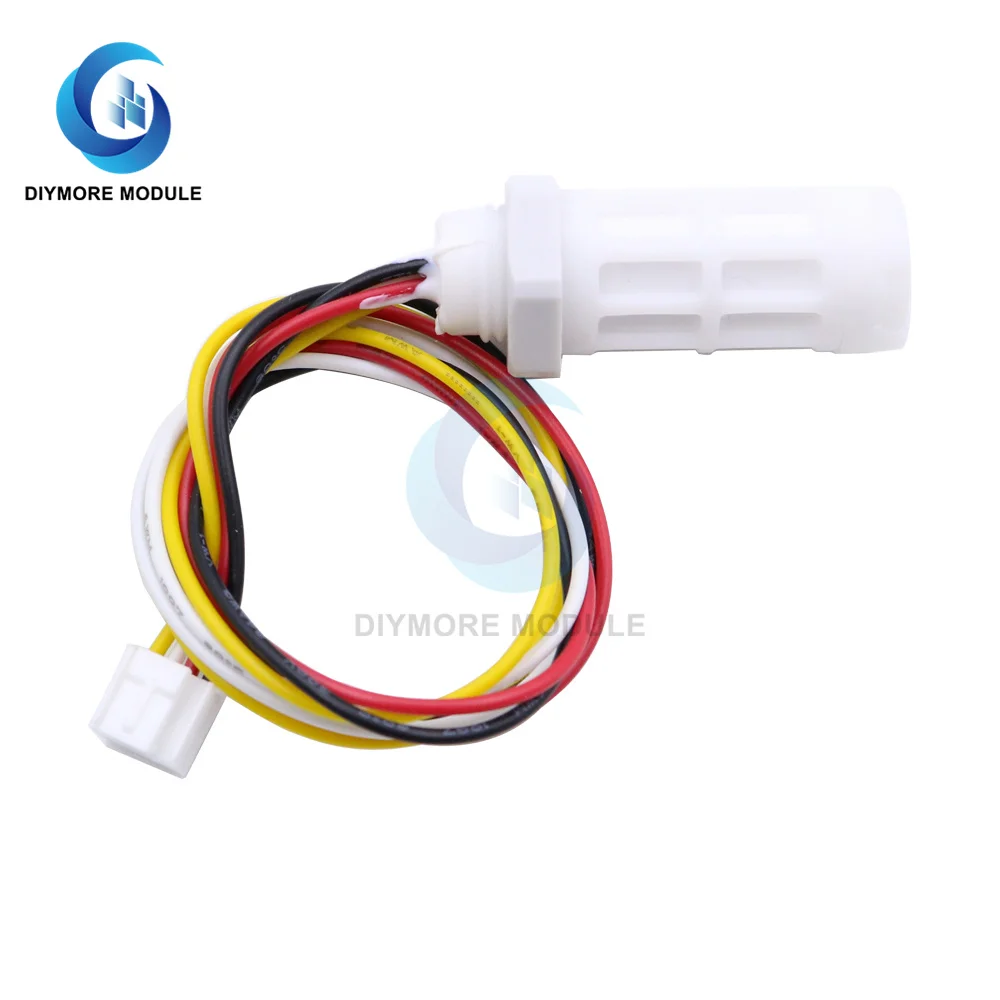

SHT30, the whole is made of glue and waterproof treatment, to prevent condensation and cause short circuit damage to the sensor. Onboard 10K pull-up resistor and 100nF filter capacitor. The sensor PCB board is encapsulated in the protective cover of the PE cylinder, and it is led out through a 30cm 4PIN 24 electronic wire, and the interface is HY2.0-4P (2.0 with lock)

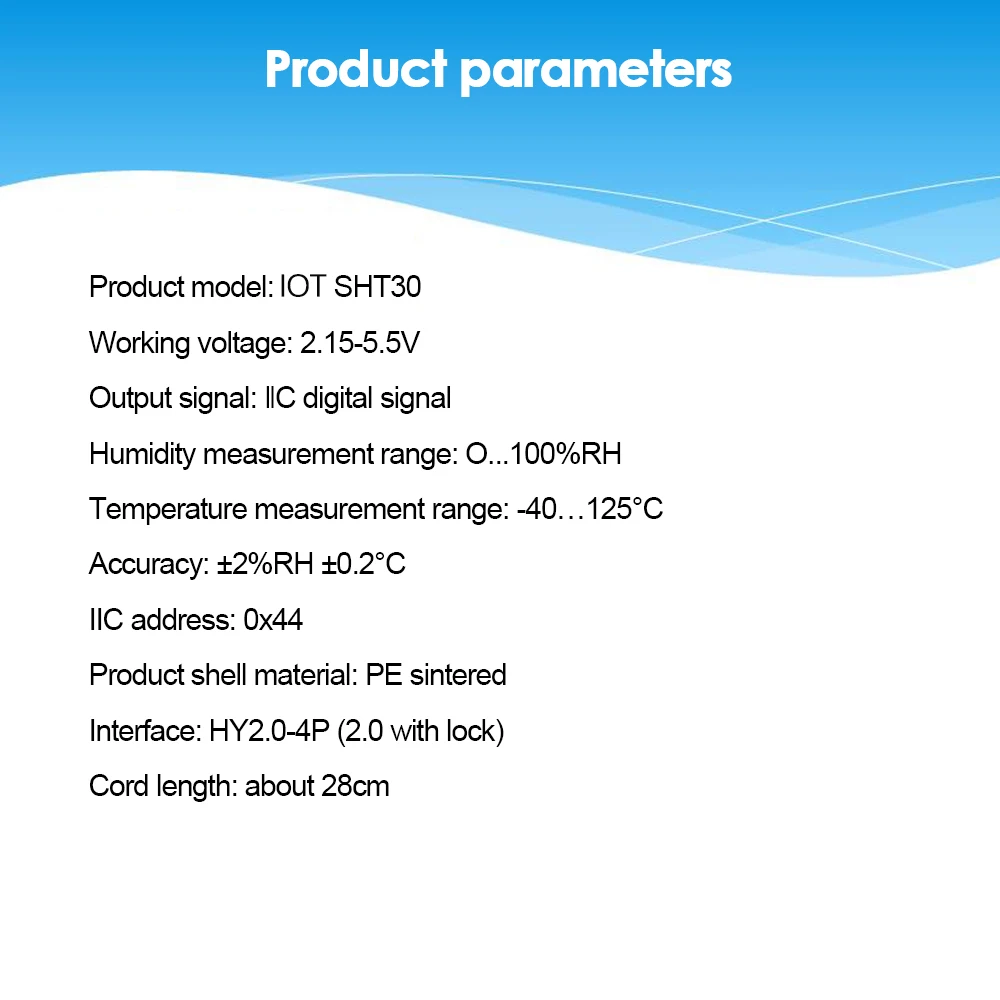

Product model: IOT SHT30

Working voltage: 2.15-5.5V

Output signal: IIC digital signal

Humidity measurement range: 0...100%RH

Temperature measurement range: -40...125℃

Accuracy: ±2%RH ±0.2℃

IIC address: 0X44

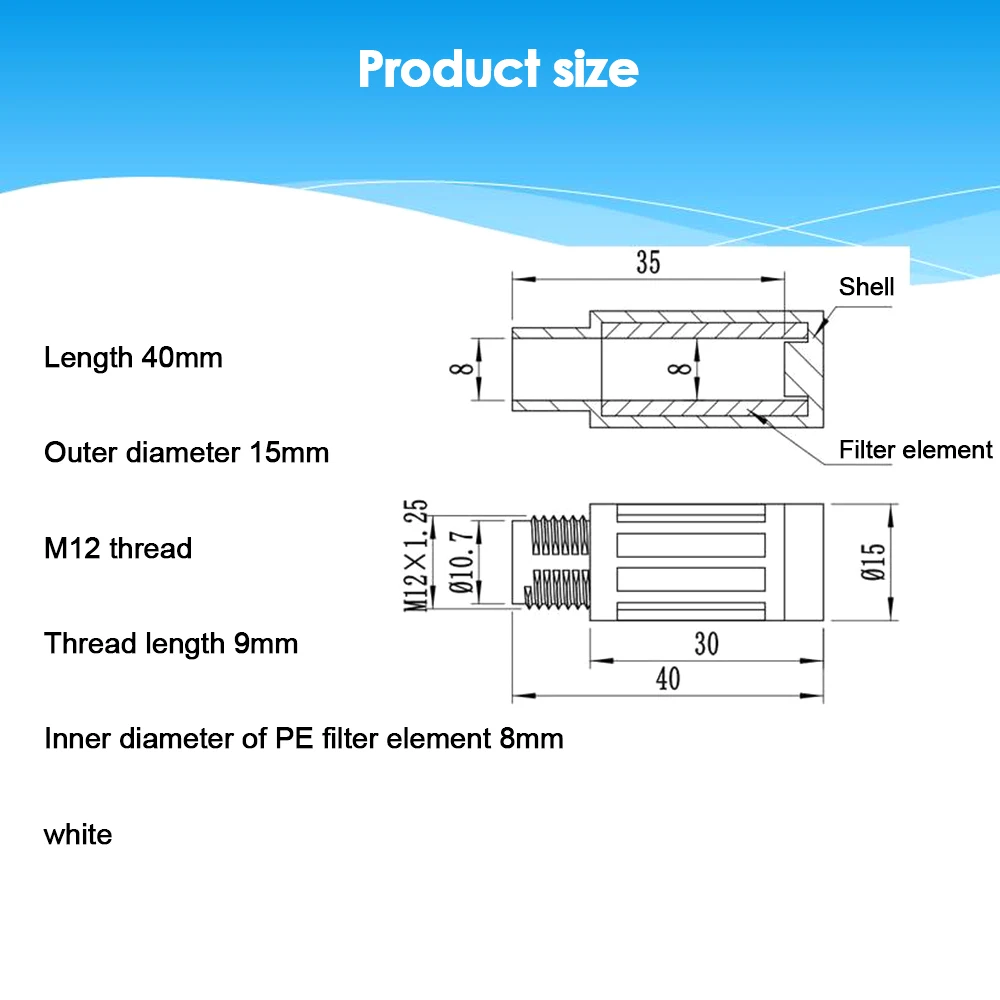

Product shell material: PE sintered

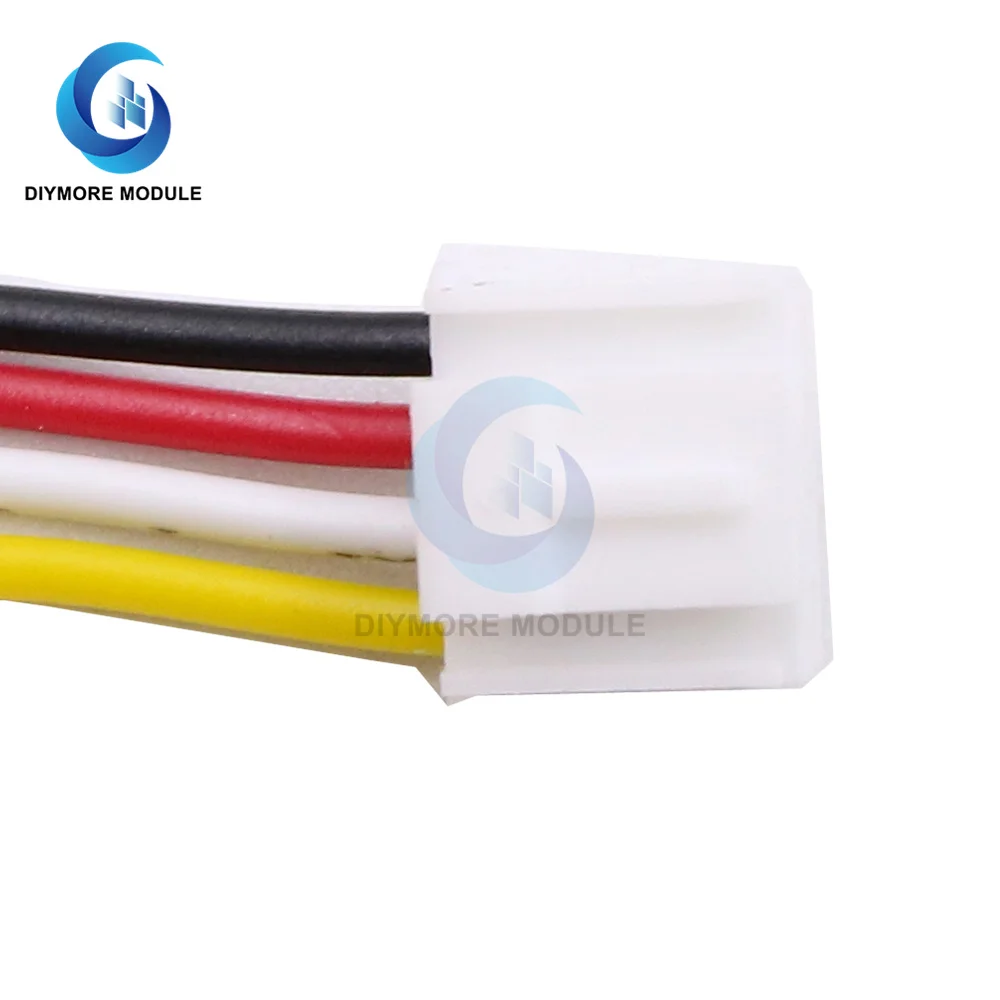

Interface: HY2.0-4P (2.0 with lock)

Line length: about 28cm

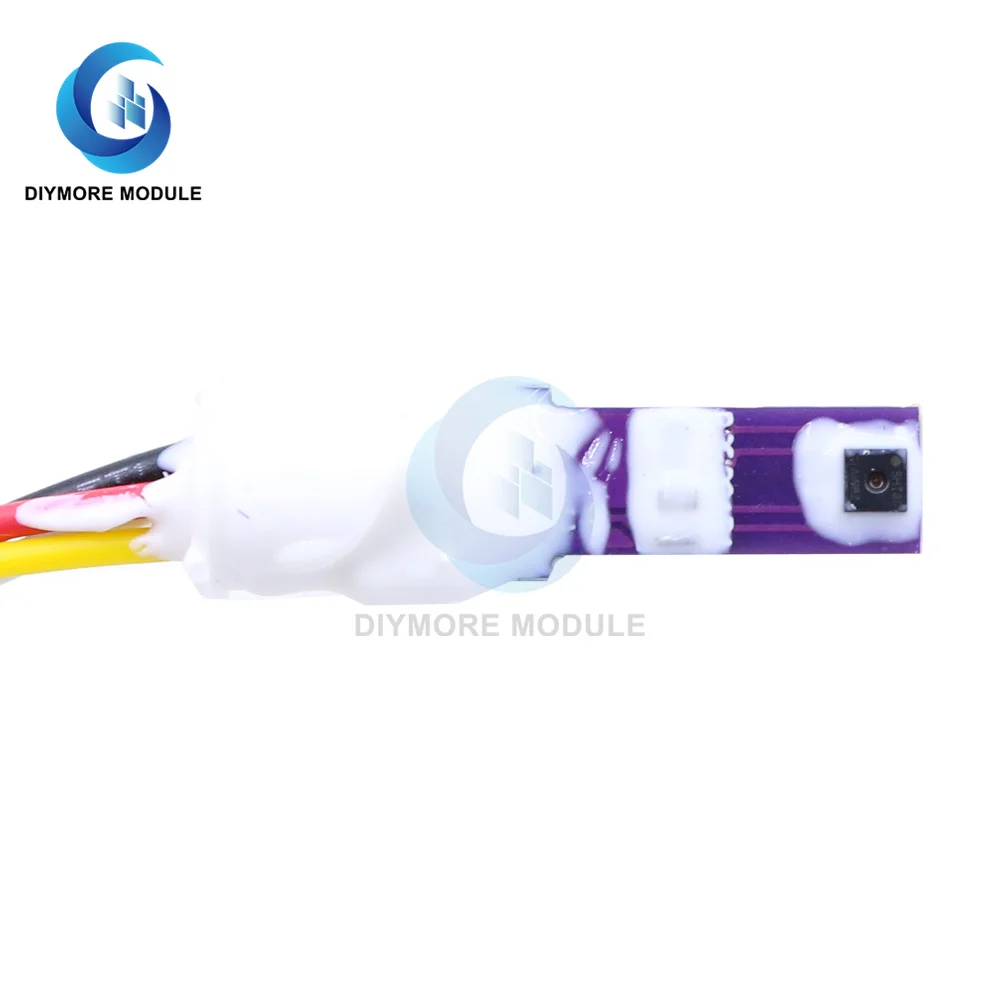

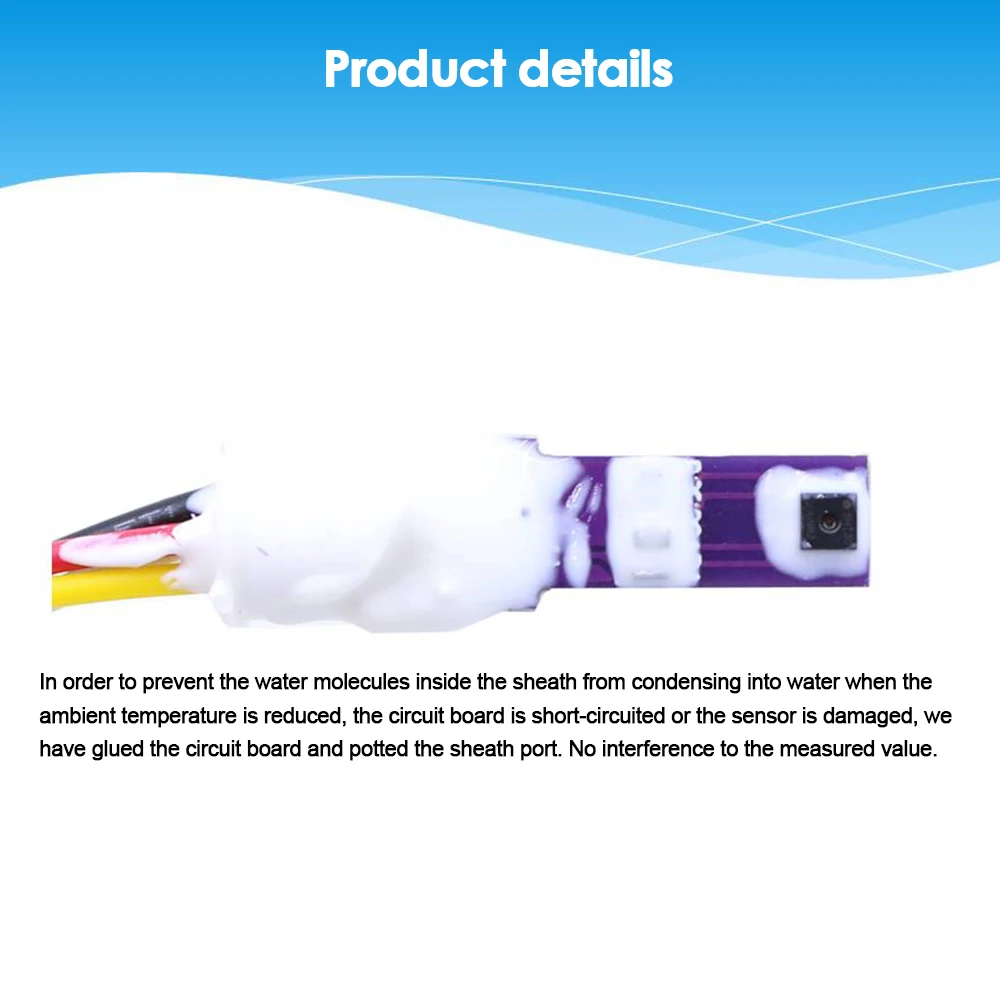

In order to prevent the water molecules inside the sheath from condensing into water when the ambient temperature is lowered, which causes the circuit board to be short-circuited or the sensor is damaged, we have applied glue to the circuit board and potted the mouth of the sheath. No interference to the measured value.

Package Included:

1*Temperature and humidity sensor
