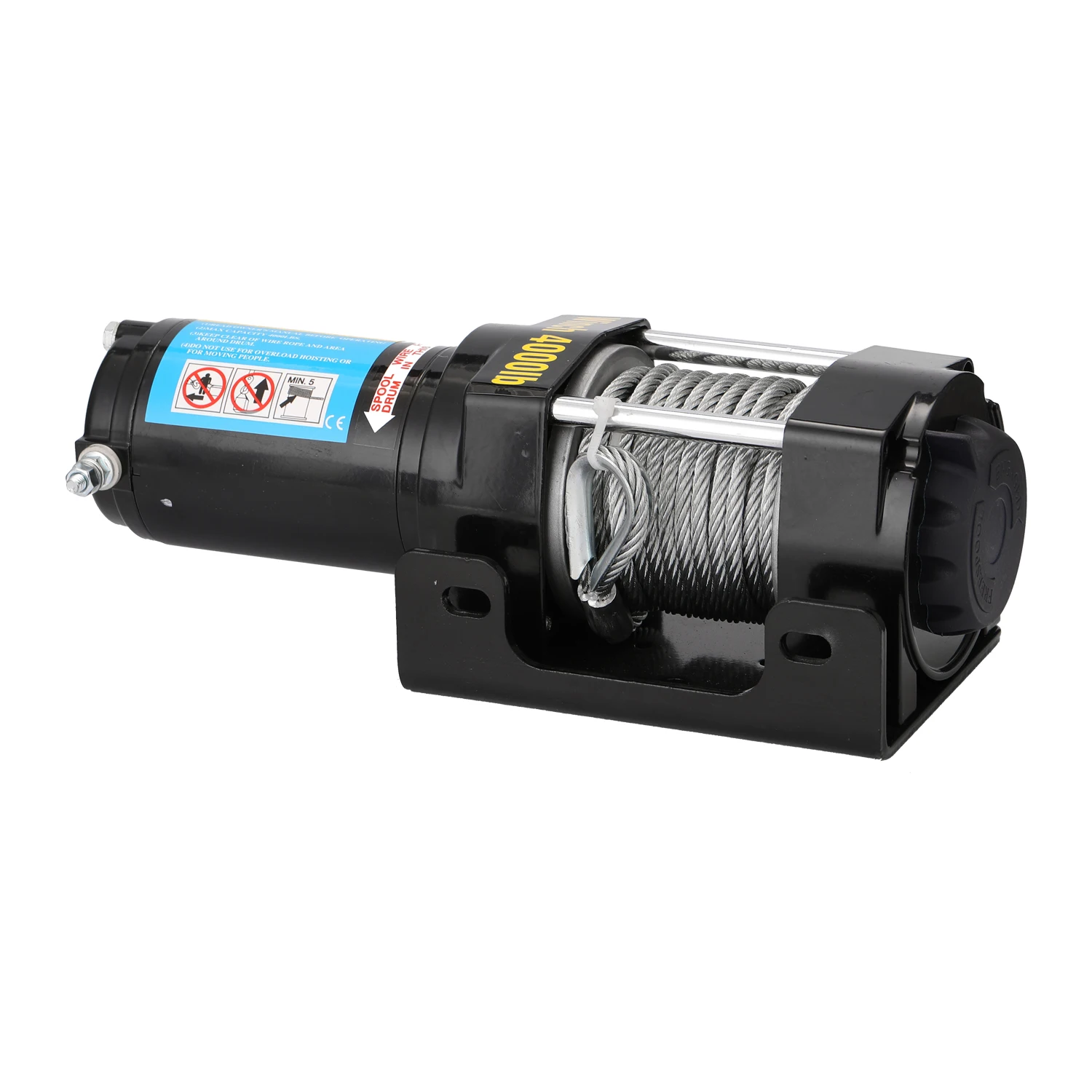

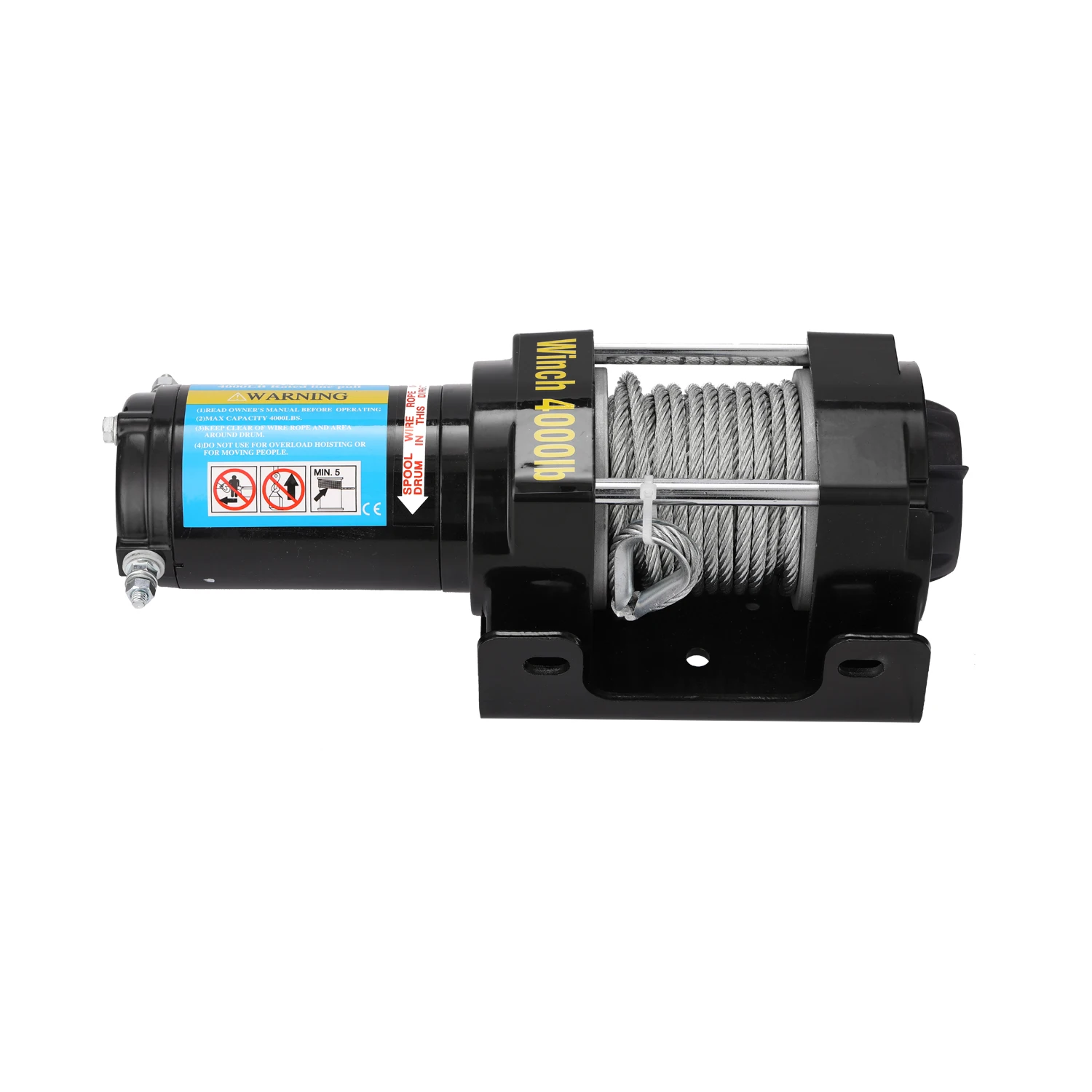

This is a kind of fine quality electric recovery winch, Adopt anti-twist wire rope, it can provide strong pulling force by using anti-twist wire rope. Adopts quality motor, which has low noise and stable operation and can provide 4000LB pull force. Suitable for ATV sports car self-protection and traction, provide self-help in snow, swamp, desert, beach, muddy mountain roads and other harsh environments. You can have a try.

Features:
Adopt anti-twist wire rope, it can provide strong pulling force by using anti-twist wire rope.
The motor adopts quality motor, which has low noise and stable operation and can provide 4000LB pull force.
Planetary gear system for fastline speed and sure holds stable and with fine durability.
The brakes are stable and reliable.
Strong power conversion.
Metal clutch hands can quickly release the rope under no-load conditions, efficient.
It can be controlled by remote controller, simple and convenient, and can provides  superior winching control.
Easy to install, easy to operate, and easy to maintain.
Application: Used in ATV sports car, agricultural light vehicle, yachts, water recreation equipment, wild adventure vehicle, self-protection and traction, provide self-help in snow, swamp, desert, beach, muddy mountain roads and other harsh environments.

Usage:
Ensure that the towing vehicle and the towed vehicle are in a straight line.
The angled traction will offset the traction force, and the second will cause the winch cable to be wound around one end.
If you cannot adjust the angle, you can use the directional pulley.
When dragging heavy objects or vehicle that are difficult to drag, the pulley block can be used to form a loop to increase traction.
In the process of dragging, a reasonable method should be used to fix the traction points, such as tires, eye-fixing, fixed body, skilled use of tools such as hold trees and spears.
Ensure the reliability of the clutch switch to avoids meet danger while using.
​

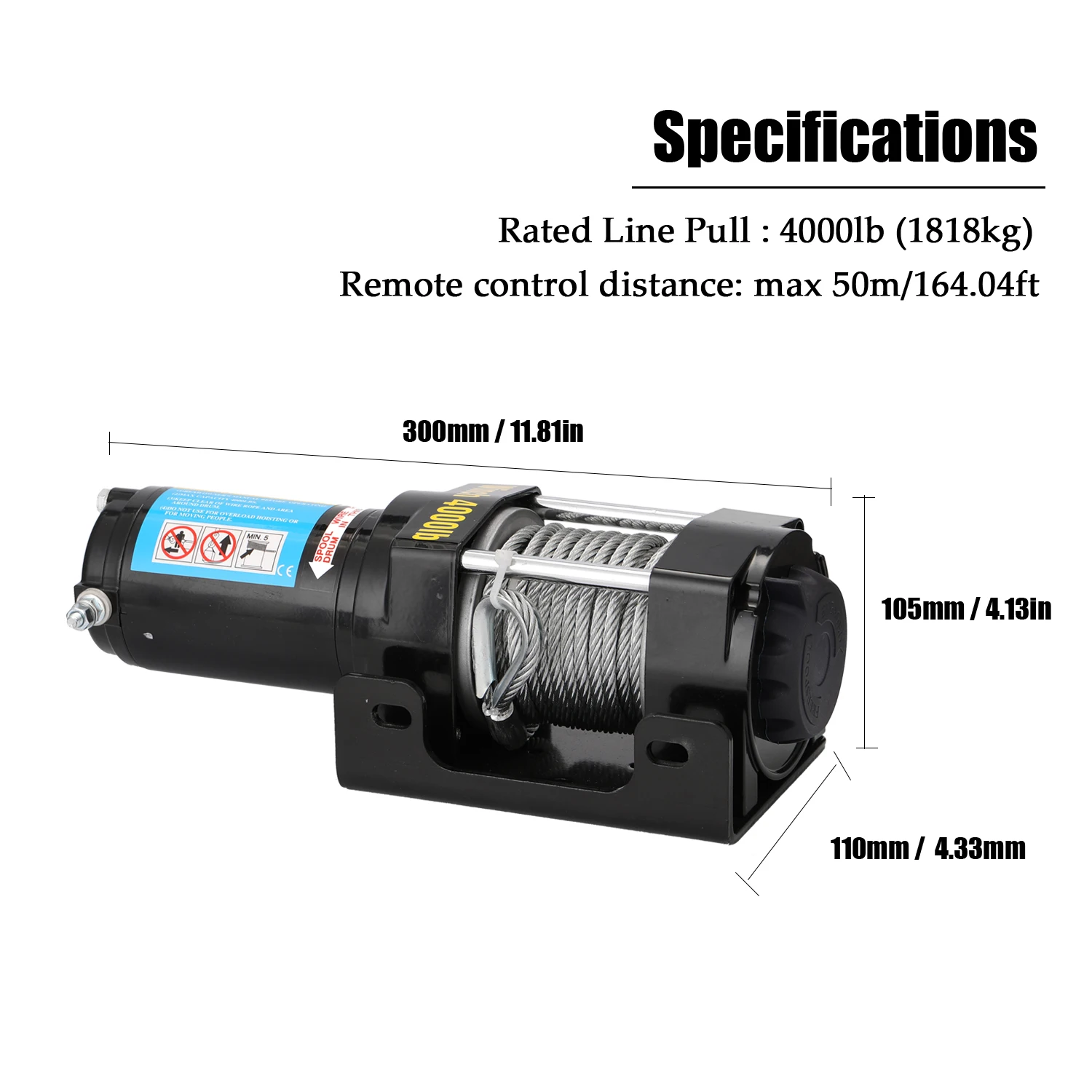

Specifications:
Rated Line Pull : 4000lb (1818kg)
Wire Rope: Wb5.5mm*15m 7/32"X 50'
Motor: 1.2kw, 1.66HP 12VDC Permanent Magnet
Gearing: Differential Planetary
Battery: 1 * 12 V, 2300mAh (included)
Gear ratio: 153:1
Braking action: Dynamic
Remote controlling distance: max 50m/164.04ft
Drum diameter: 1.45"(37mm)
Drum length: 2.9"(72mm)
Item size: 300 * 110 * 105mm / 11.81 * 4.33 * 4.13ince
Package size: 330 * 230 * 190mm / 12.99 * 9.06 * 7.48in
Package weight: 8000g / 17.64lb

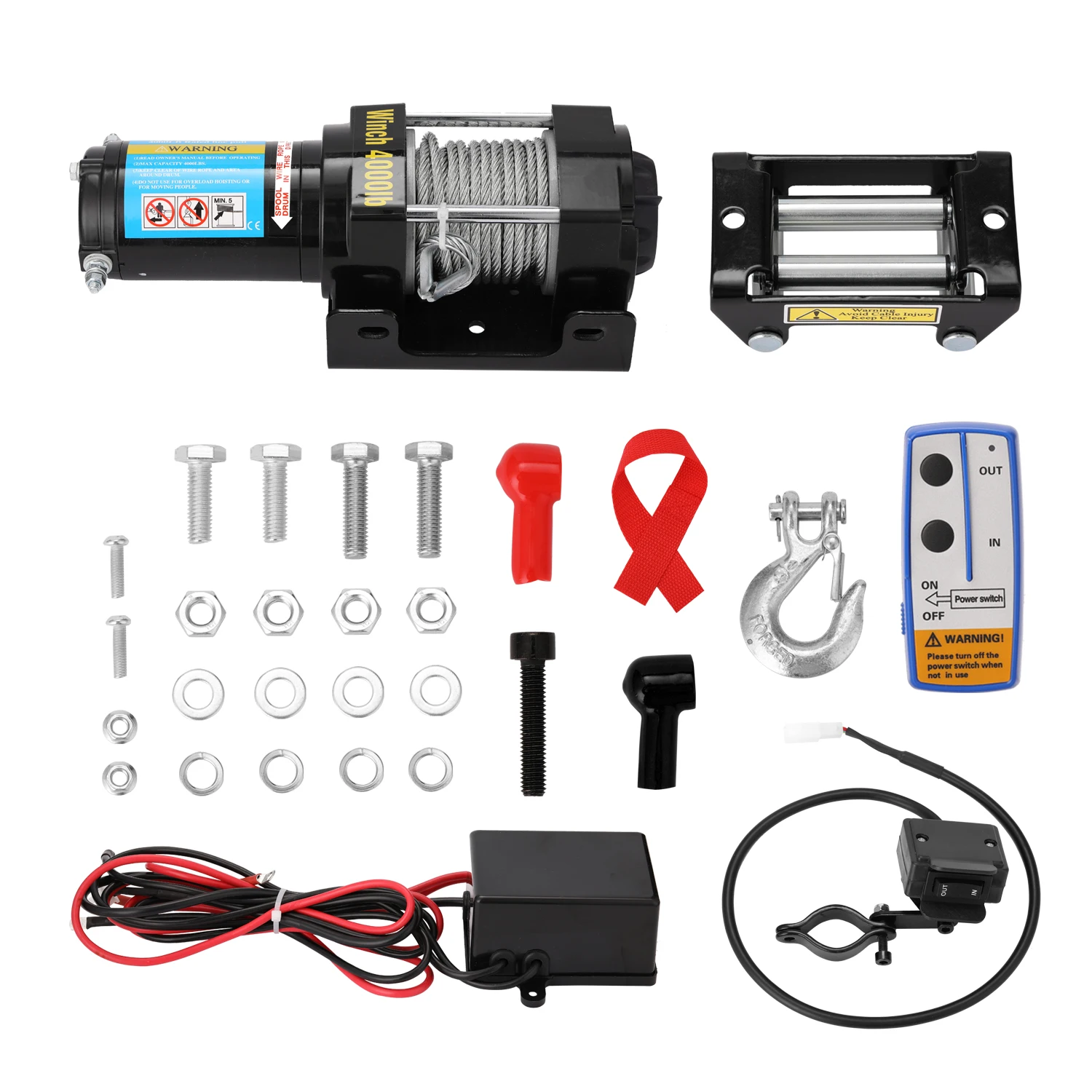

Packing List:

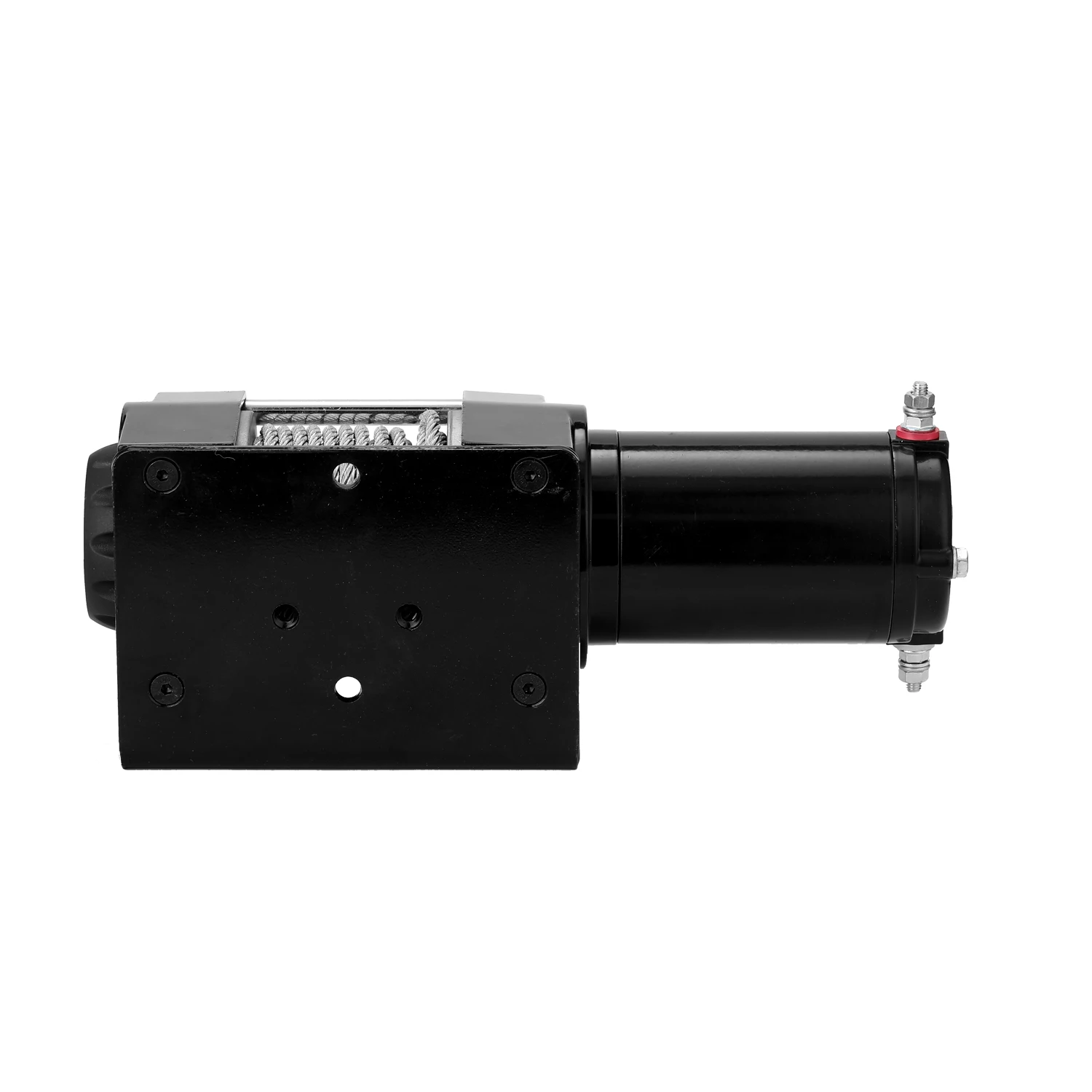

1 * Winch

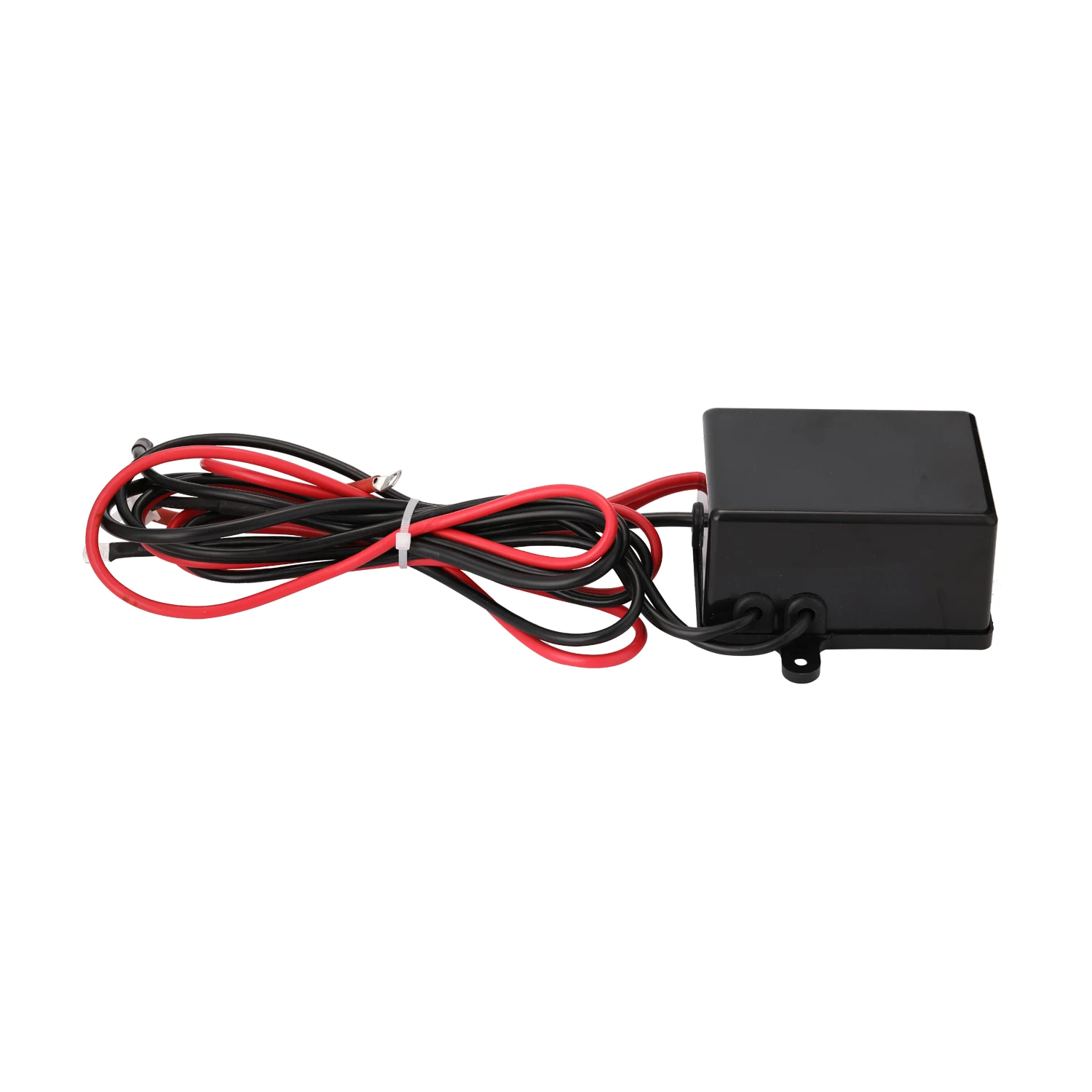

1 * Control box

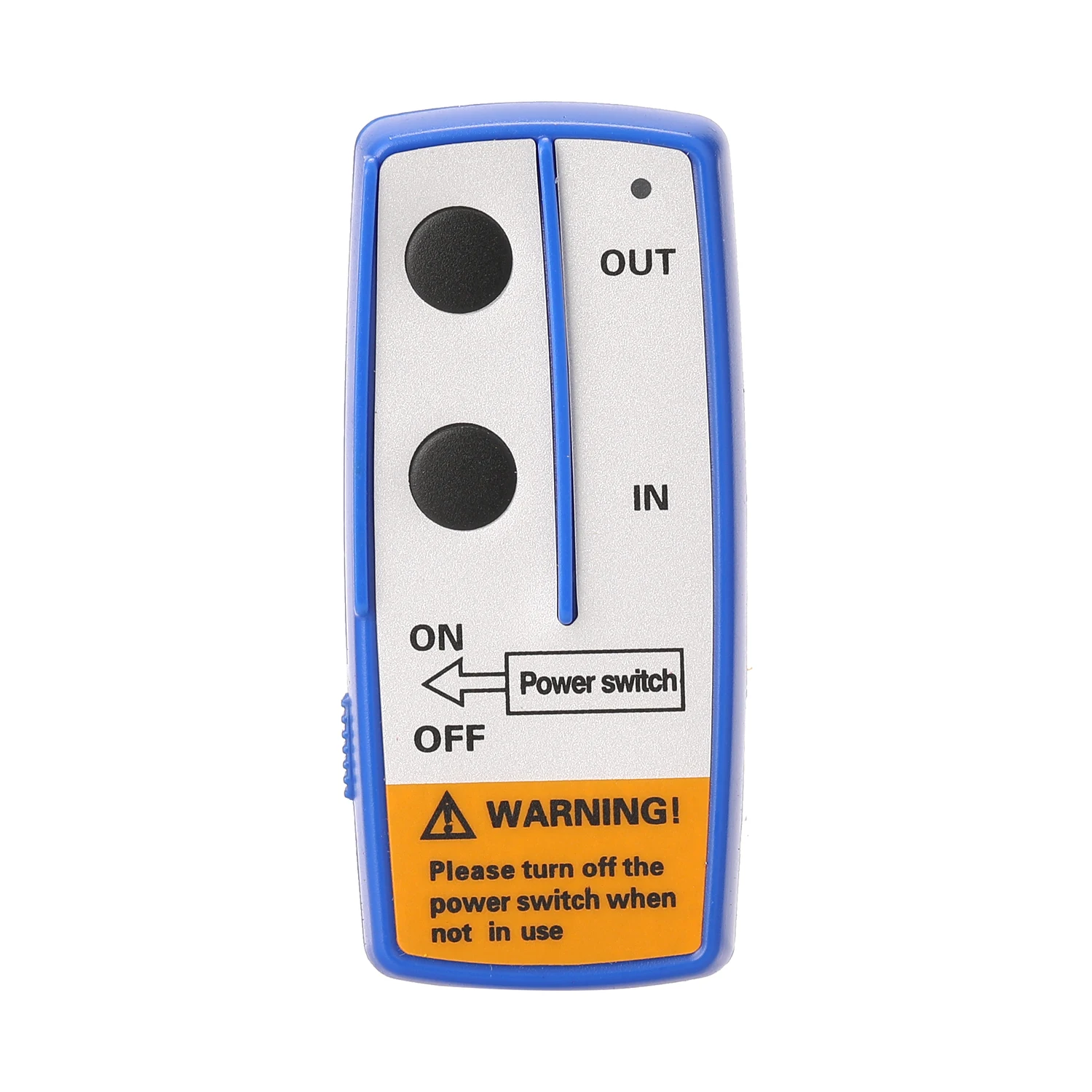

1 * Remote Controller
1 * Screw
1 * Hook

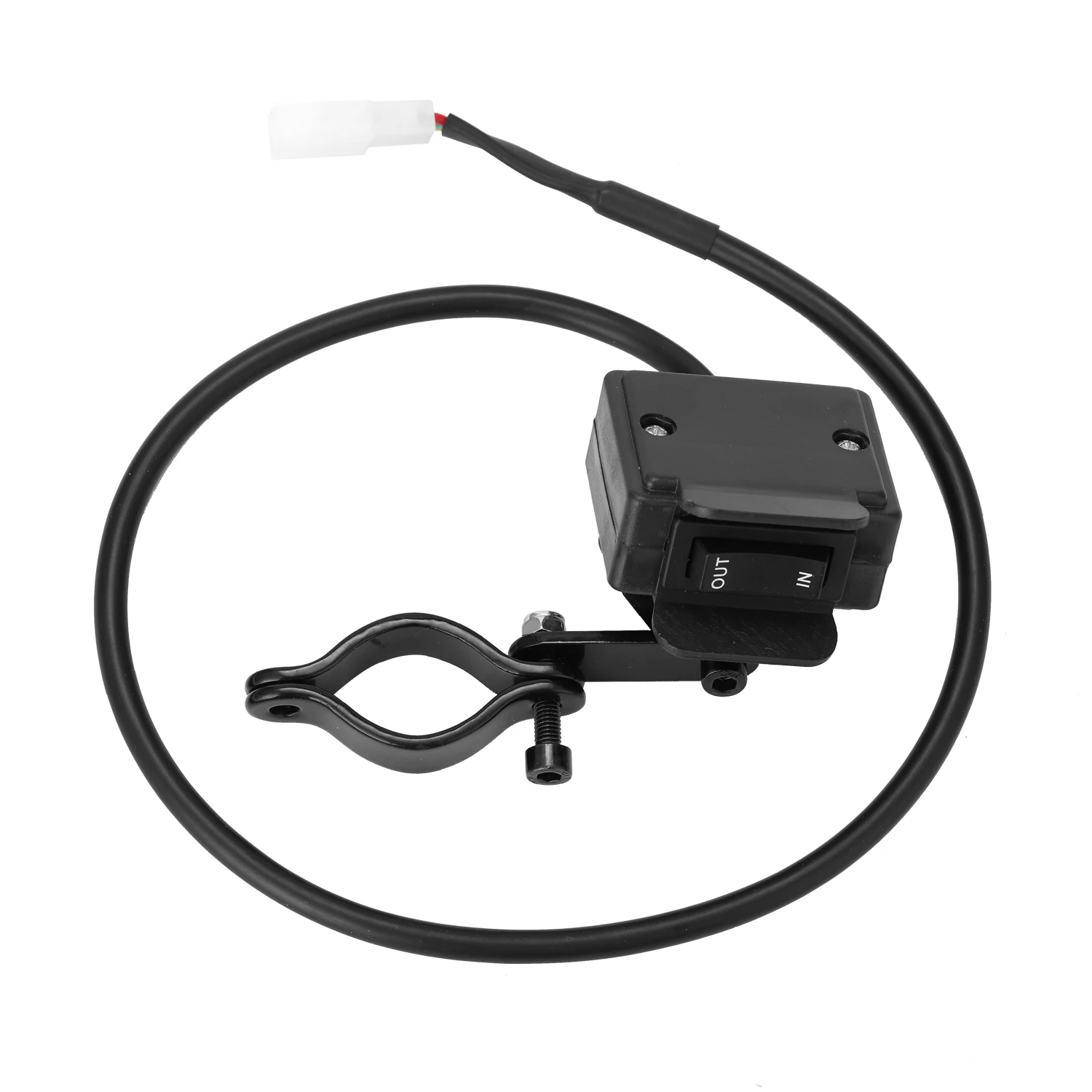

1 * Handle Control
1 * Ribbon

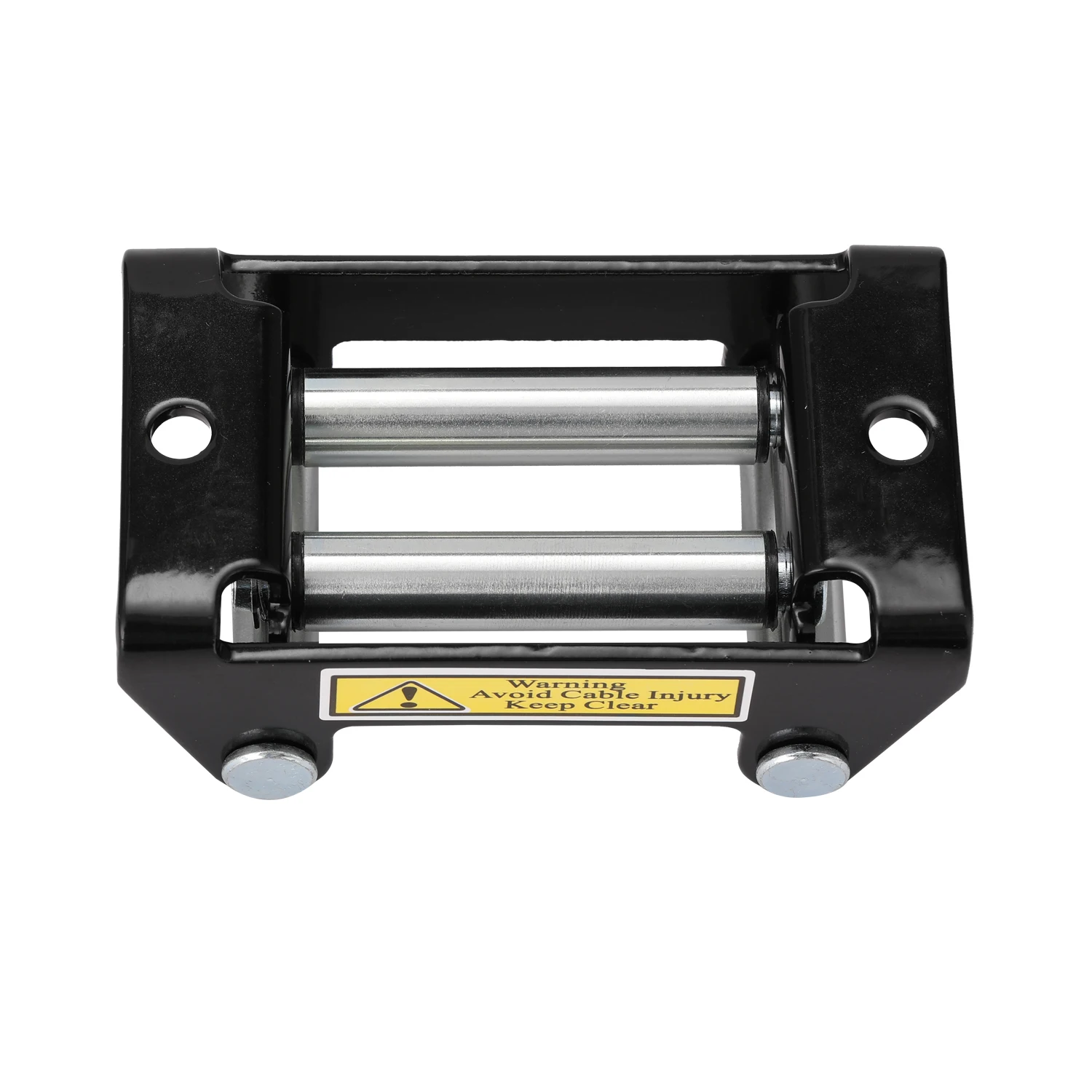

1 * Roller Fairlead
1 * Guideline
