100W ETFE Flexible Solar Panel Monocrystalline Cell Panels Kit 12V Battery Charger For Home RVs Car Boat Camping | Электроника

100W ETFE Flexible Solar Panel Monocrystalline Cell Panels Kit 12V Battery Charger For Home RVs Car Boat Camping | Электроника

Maximum power(Pmax)                           100W

Output tolerance                                      ± 3%

Maximum system voltage                       700V DC

Open circuit voltage(Voc)                         19.2V

Short circuit current(Isc)                          6.87 A

Maximum power voltage(Vmp)               16V

Maximum power current(Imp)                 6.25A

Cell efficiency                                           19.5%

Operating temperature（NOCT）          45±2℃

Temperature range                                 -40℃～+80℃

Number of cells                                       32pcs

Weight                                                     1730g

Size                                                          1050*540*3 mm

Color                                                        Black

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Features:

a.
Select high-efficiency monocrystalline silicon solar cells, the power
generation efficiency is about 1.2 times that of conventional
polysilicon, and the overall area is smaller at the same power.

b. Using the latest component packaging technology, thinner, lighter, softer and longer life.

c.
The surface is made of ETFE and treated with a special process, which
is more wear-resistant and improves the absorption efficiency of
sunlight.

d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

e.
The junction box adopts IP67 waterproof design, contains bypass diode,
and the circuit adopts overcharge and reverse current protection design.

f.
This product is a solar module. It is recommended to be used with
controllers and batteries. It can be used in various scenarios such as
households, camping, RVs, yachts, street lights and solar power
stations.

Packing list

1 x 100W Solar Panel (100W)

or

2 x 100W Solar Panel (200W)

or

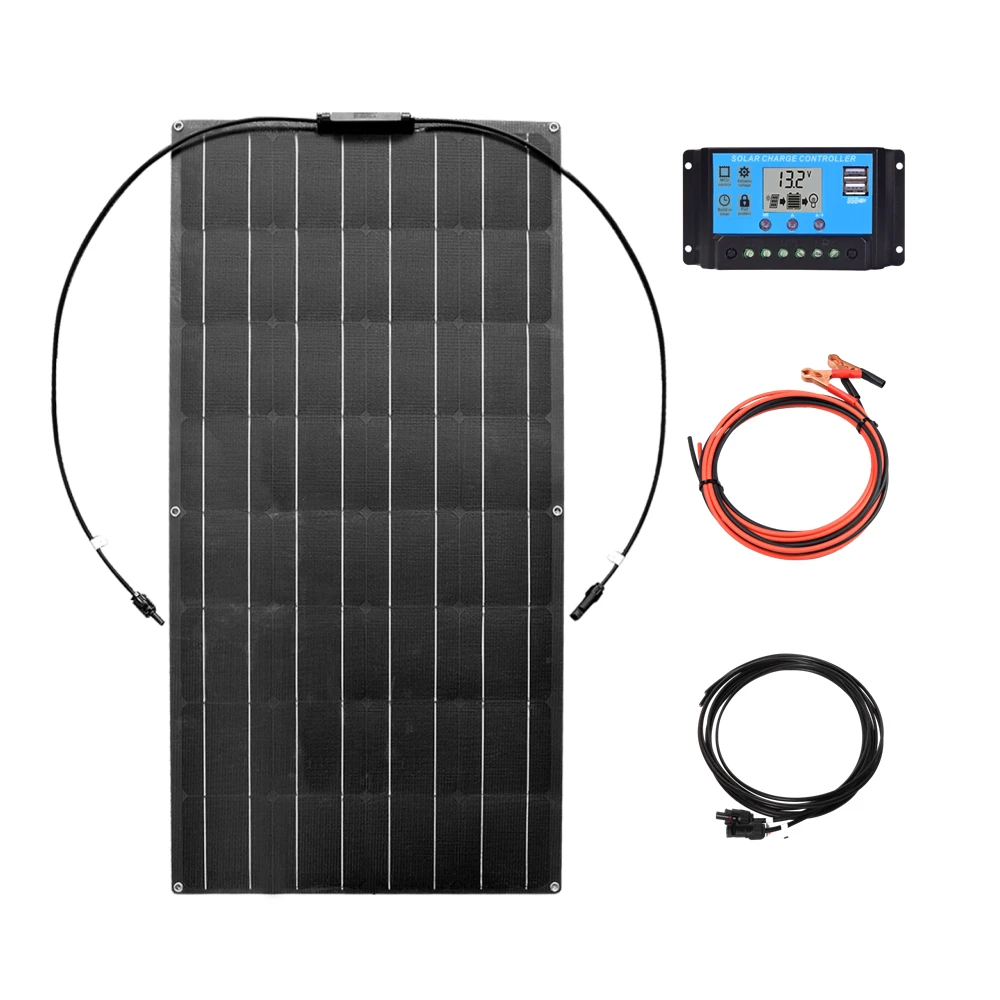

1 x 100W Solar Panel (100W Kit)

1 set 3m cable with PV connector

1 set 3m cable with Alligator clip

1 X 10A Controller

or

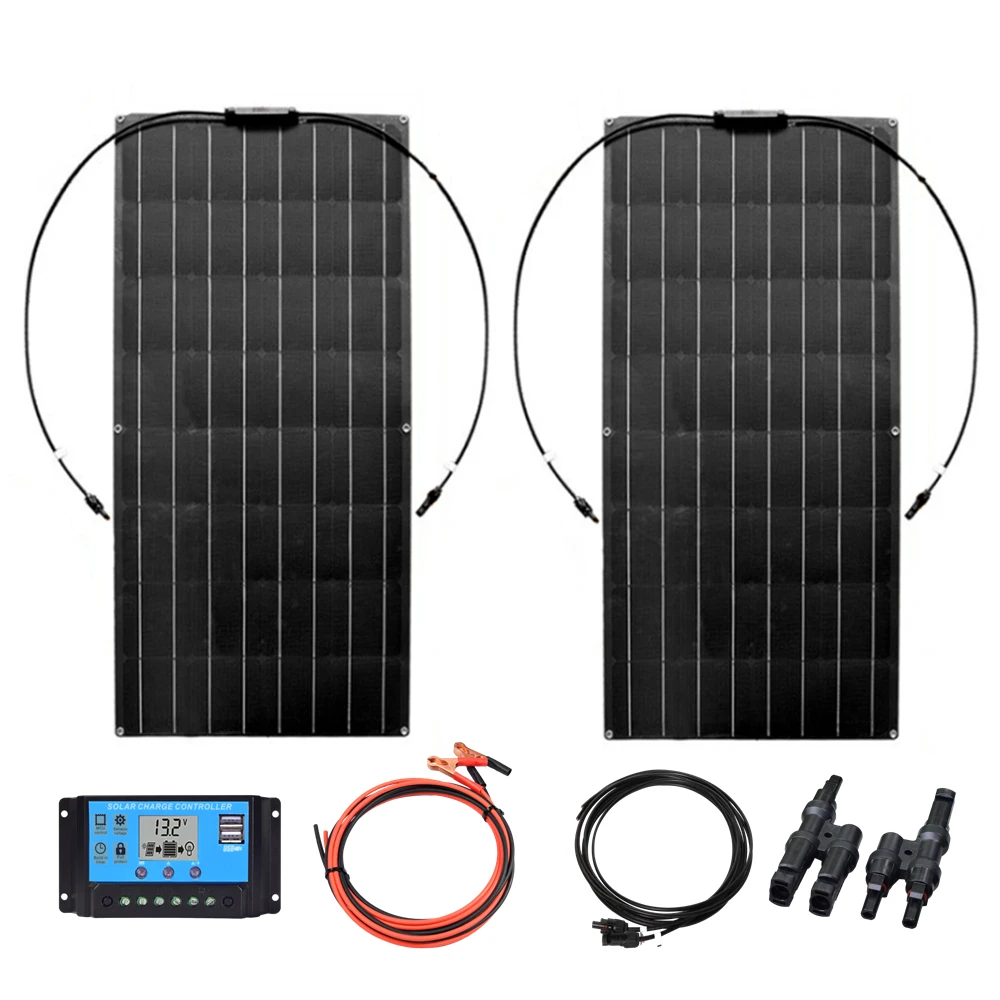

2 x 100W Solar Panel (200W Kit)

1 set 3m cable with PV connector

1 set 3m cable with Alligator clip

1 X 20A Controller

1 X 2 in 1 adapter
