body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 1. Good quality: This product is made of high-quality materials, fine workmanship, very good quality and long service life.

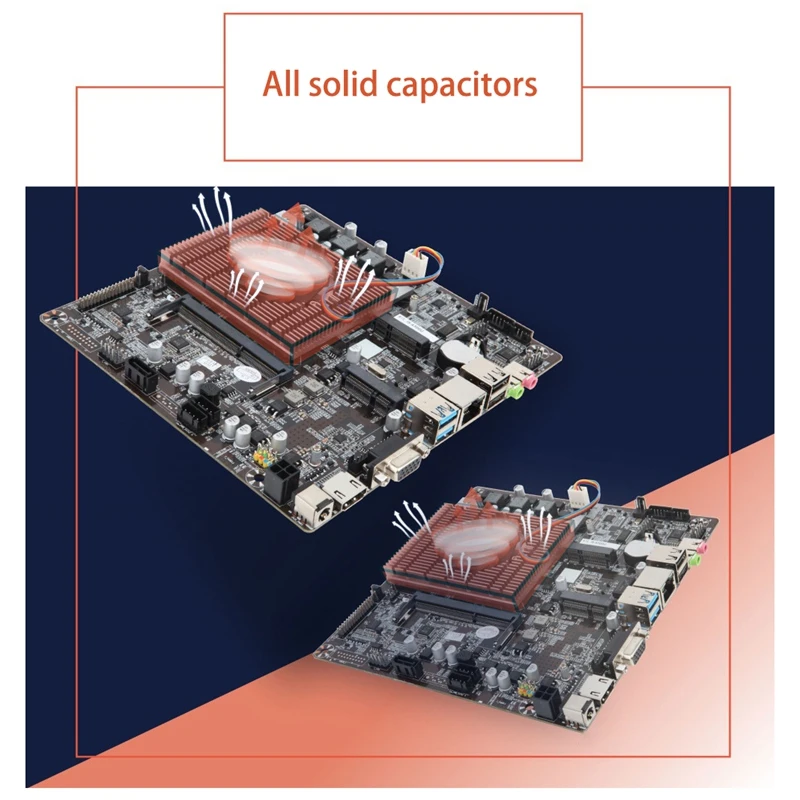

2. The design of all solid capacitors, compared with ordinary capacitors, is more stable and longer lasting, with a thinner and lighter board, and good heat dissipation.
3. DDR3 SO-DIMM slot, maximum support 8GB, can be equipped with cost-effective host
4. Portability: This product is small in size and light in weight, very convenient to carry around.
5. Easy installation: This product is very easy to install, no additional tools are needed, and the installation process is very convenient.

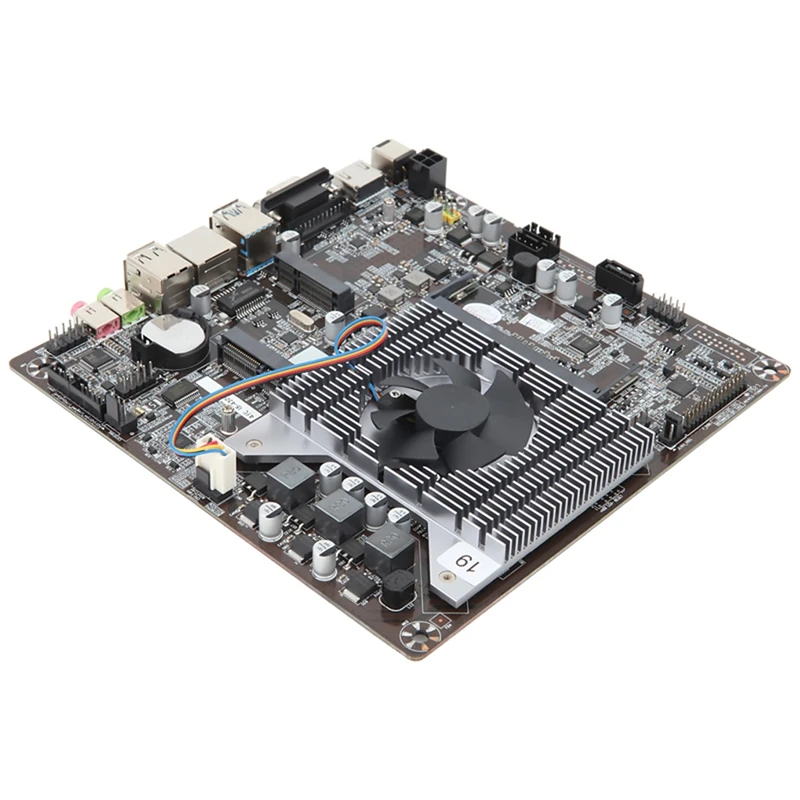

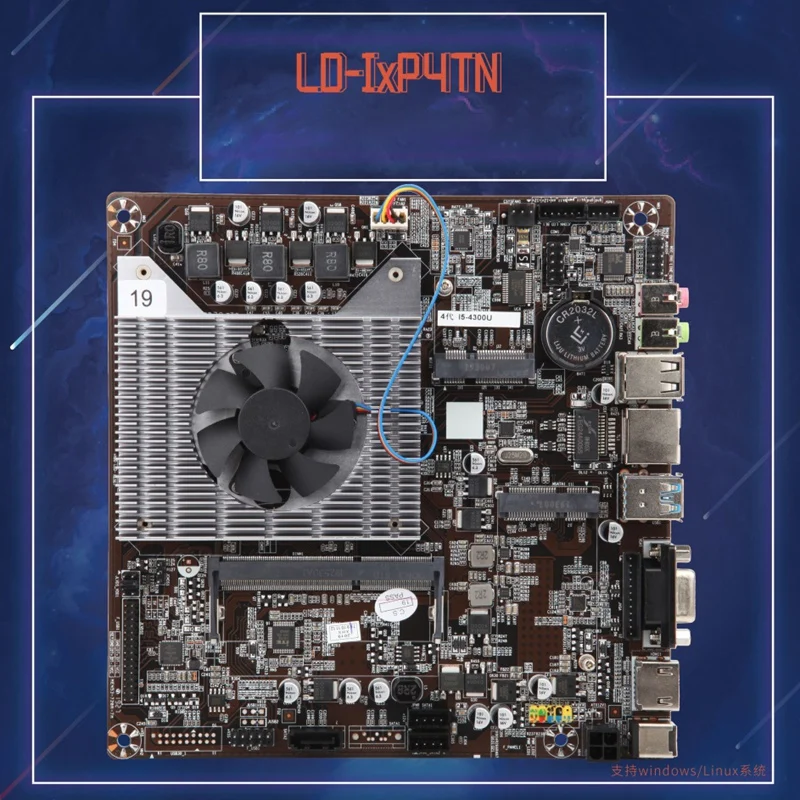

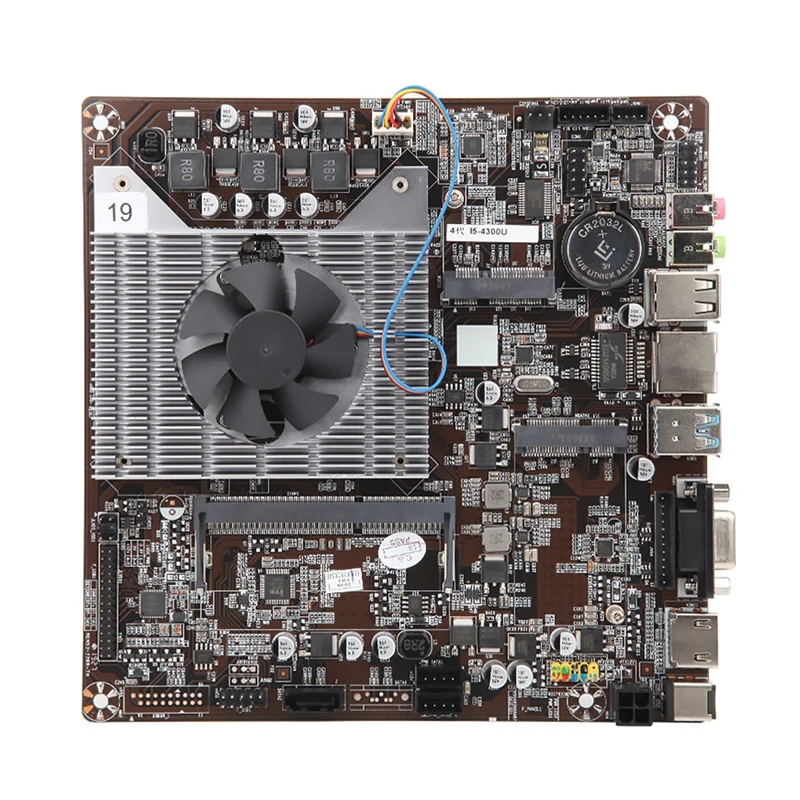

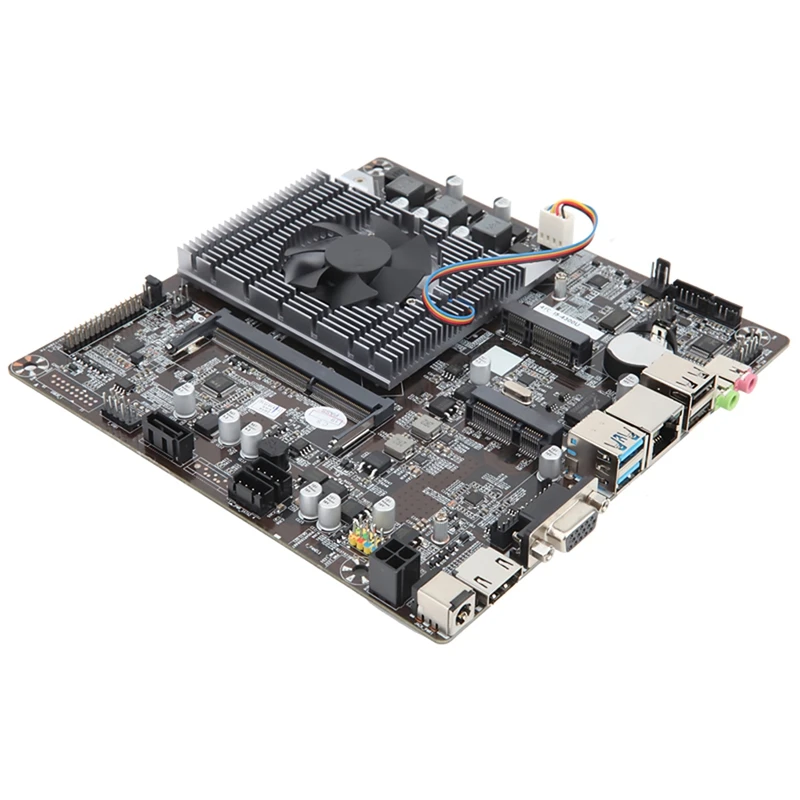

Product Name: Industrial Control Motherboard
CPU: for Core i3-4100U
Memory: 1xDDR3 SO-DIMM slot, only supports 1.35V DDR3 1333/1600MHz memory, maximum support 8GB
Storage: 1xSATA SSD/HDD
Audio: Onboard ALC662 6-channel high-fidelity audio controller
Network: 1xRTL8111E Gigabit Ethernet chip

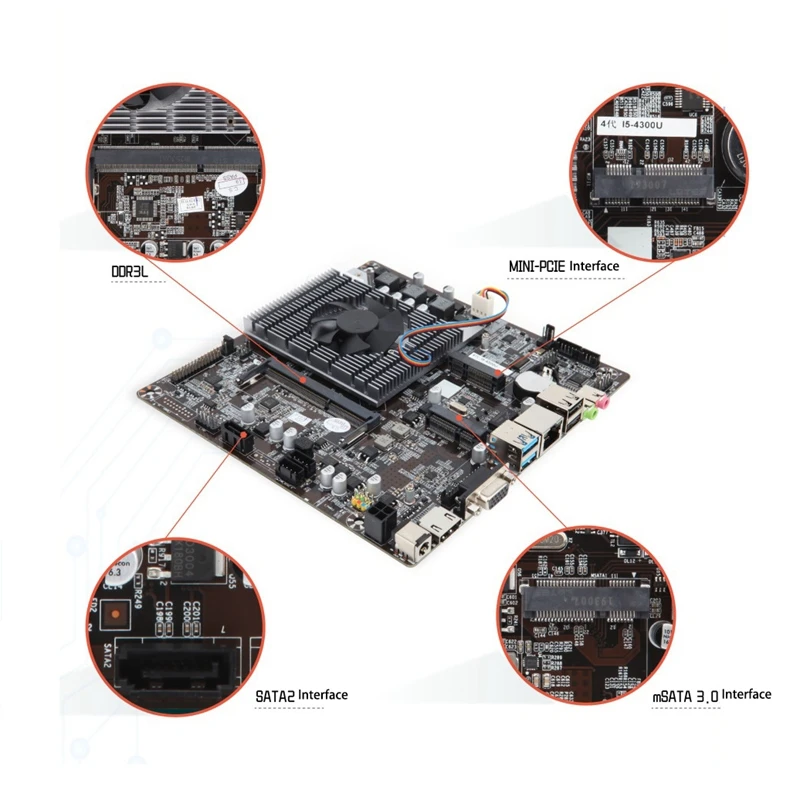

Expansion interface: 2xMini-PCI-E slot, (Mini-PCIE slot and standard PCIE 2.0, support wireless and BT module and MSATA card)

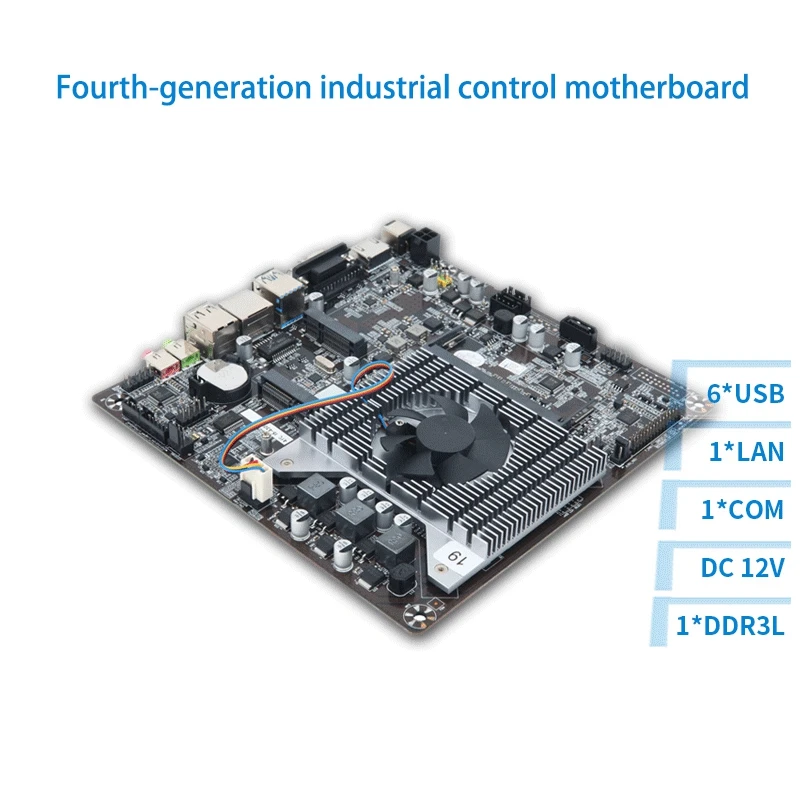

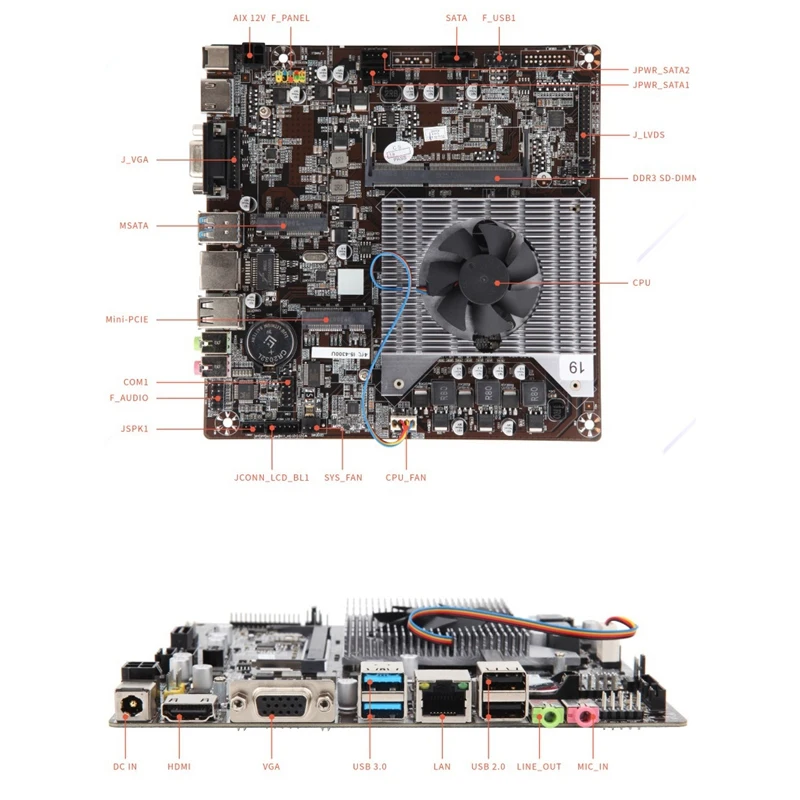

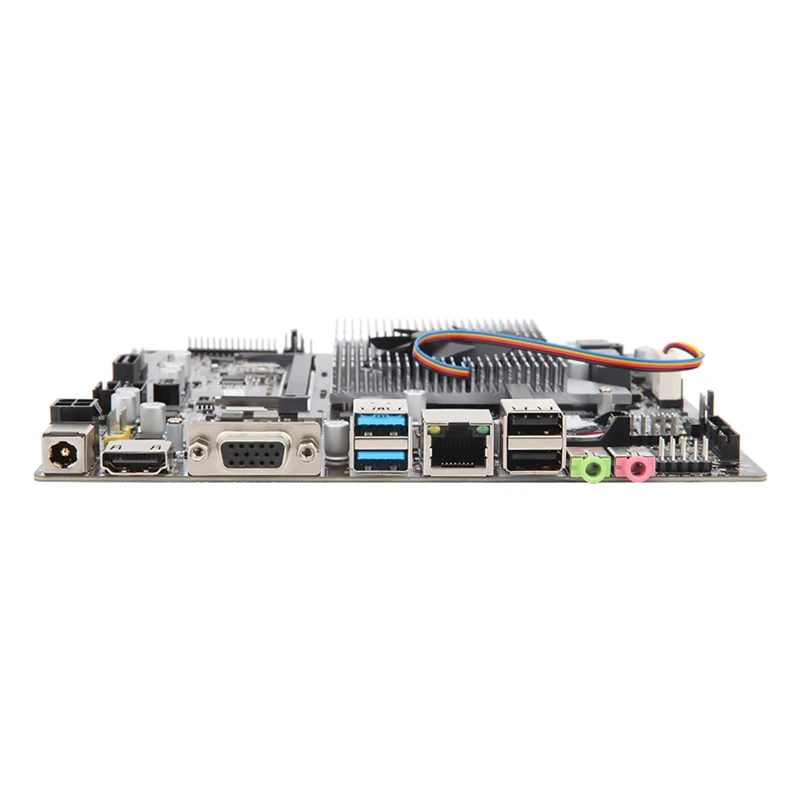

Backplane I/O interface:
1xHDMI-compatible interface
1xVGA interface
1xRJ-45 network interface
2xUSB2.0 interface
2xUSB3.0 interface
1xLine out (green)
1xMic (red)
1x12V DC-IN
Built-in I/O interface:
1xJ-LVDS interface
1xJCONN-LCD-BL1
1xJVGAI
2xUSB2.0 interface
1xFront audio interface
1xSPK speaker amplifier interface
1xF-PANEL
2xJPWR-SATA
1xATX12V power interface
1xCOM interface
Fan interface: 1xCPUFAN fan interface; 1xSYSFAN fan interface
BIOS: AMI 64mb Flash ROM
Power supply type: 12V direct plug power input
Colour:Black
Material:PCB+metal
Size:170 x 170mm

Package Contents:
1 x Embedded Industrial Control Motherboard

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
