FY107C/FY107B Voltage Meter digital Multimeter AC/DC Resistance Capacitance Frequency NCV Test Temperature Measurement | Инструменты

FY107C/FY107B Voltage Meter digital Multimeter AC/DC Resistance Capacitance Frequency NCV Test Temperature Measurement | Инструменты

The 6000 counts handheld digital multimeter features fast response, easy-to-read large LCD display, lightweight and portable, which is very suitable for using in school, home, factory, and for the professions and hobbyists.

Features:

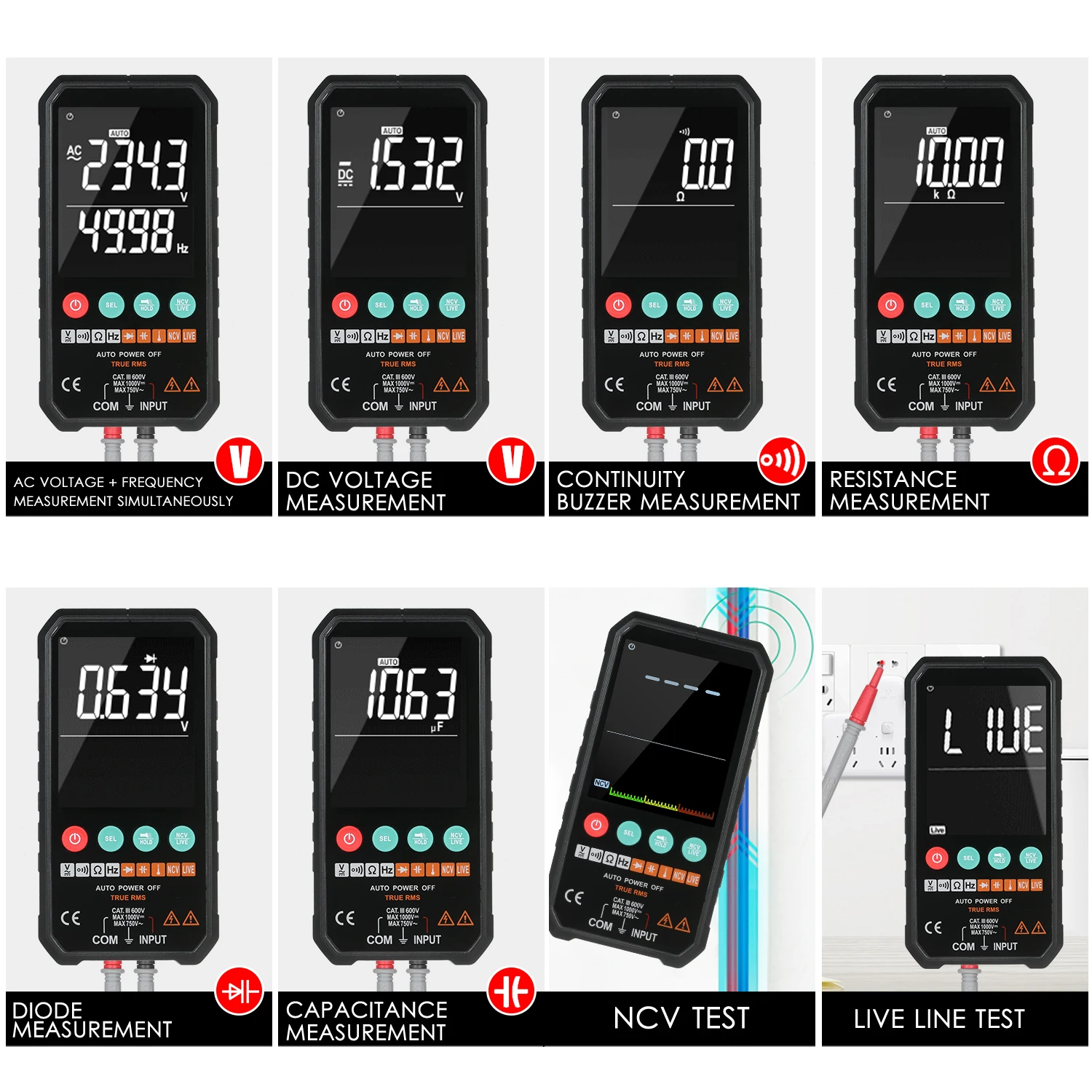

Wide Measurement Range: can be used to measure AC/DC voltage, resistance, capacitance, frequency, diode and continuity, NCV test, temperature(FY107C Model Only), etc.

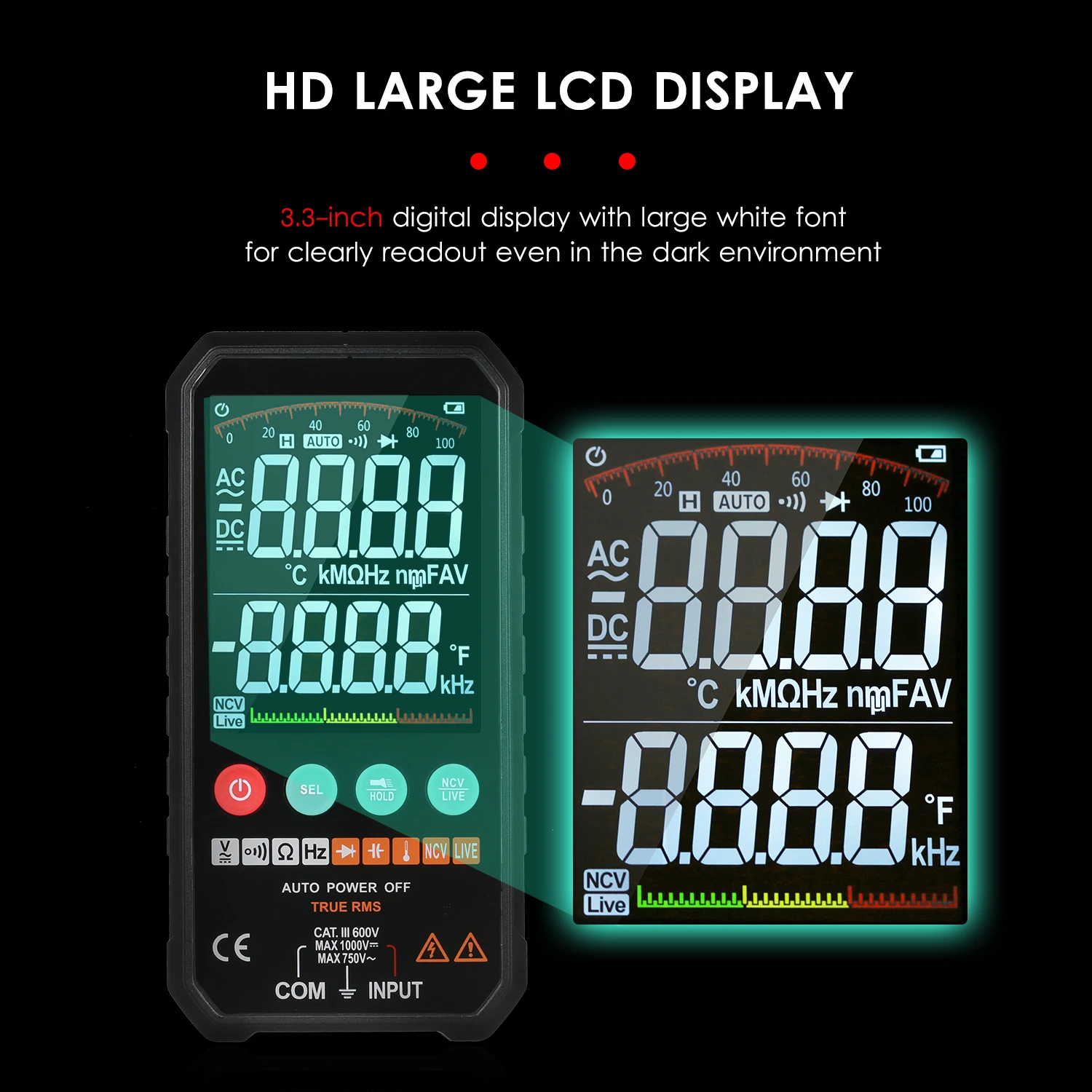

HD Large LCD Display: multifunctional large screen 3.3-inch digital display with large white font for clearly readout even in the dark environment.
Measurement Data Retention: hold the display after you take the measurement, convenient for writing down the measured data or enter it into a spreadsheet.
Compact Pocket Size: as small as a smart phone and powered by 2pcs AAA battery(NOT included), the multimeter is convenient for carrying around. Comes with a storage zipper bag for effectively protect the multimeter from damage.
Smart Anti-burning Design: the multimeter automatic recognize the tested objects, and has 250V DC/AC overload protection.

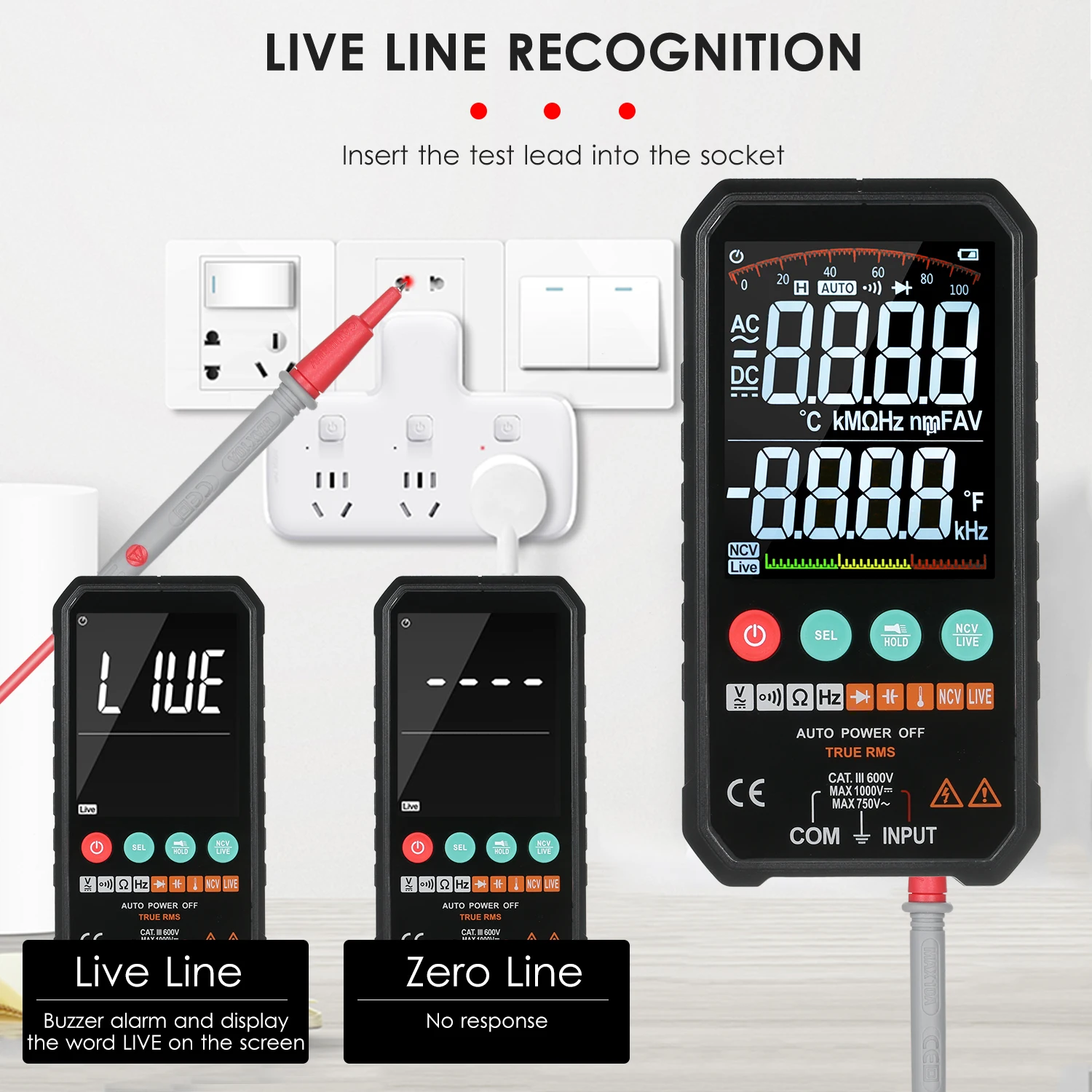

4 Measurement Modes: auto measurement(DC/AC voltage, resistance, and continuity can be measured), NCV test, LIVE test, and diode test.
NCV Test: high sensitivity voltage probe measurement, 3 colors analog bar and buzzer to indicate the signal strength.

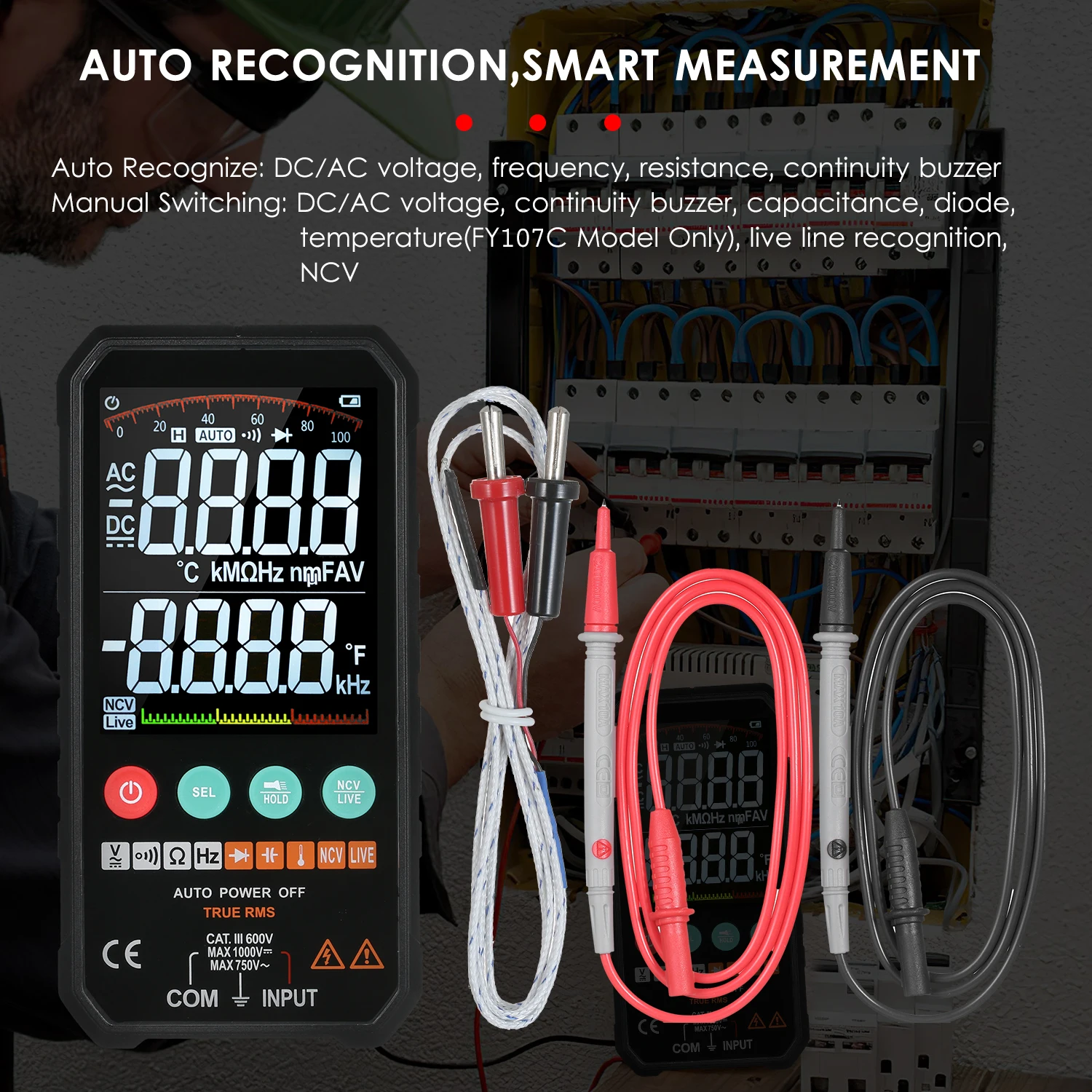

Smart Measurement: it can automatically recognize the DC/AC voltage, frequency, resistance, continuity buzzer without manual switching.
More Features: flashlight, true RMS, 15 minutes auto-off, low battery indication, live line indication, continuity buzzer.

Specifications:
Model: FY107B / FY107C (Optional)
DC Voltage Range: 6V/60V/600V/1000V
AC Voltage Range: 6V/60V/600V/750V
Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Capacitance Range: 6nF/60nF/600nF/6μF/60μF/600μF/60mF
Frequency Range: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz
Temperature Range: -20~1000℃ / -4~1832℉ (FY107C Model Only)
Continuity: 100Ω
Material: ABS
Display: 6000 counts LCD
Safety Level: 600V CAT III
Pollution Level: 2
Over Range Indication: OL
Sampling Time: 3 times/second
Operating Temperature: 0~40℃
Storing Temperature: -10~60℃
Operating Altitude: <2000m
Power Supply: 2 * 1.5V AAA battery (NOT included)
Item Size: 142 * 70 * 20mm / 5.59 * 2.76 * 0.79in
Item Weight: 189g / 6.69oz(FY107B), 202g / 7.14oz(FY107C)
Package Weight: 293g / 10.35oz(FY107B), 305g / 10.77oz(FY107C)
Package Size: 19.5 * 11.5 * 4cm / 7.68 * 4.53 * 1.57in

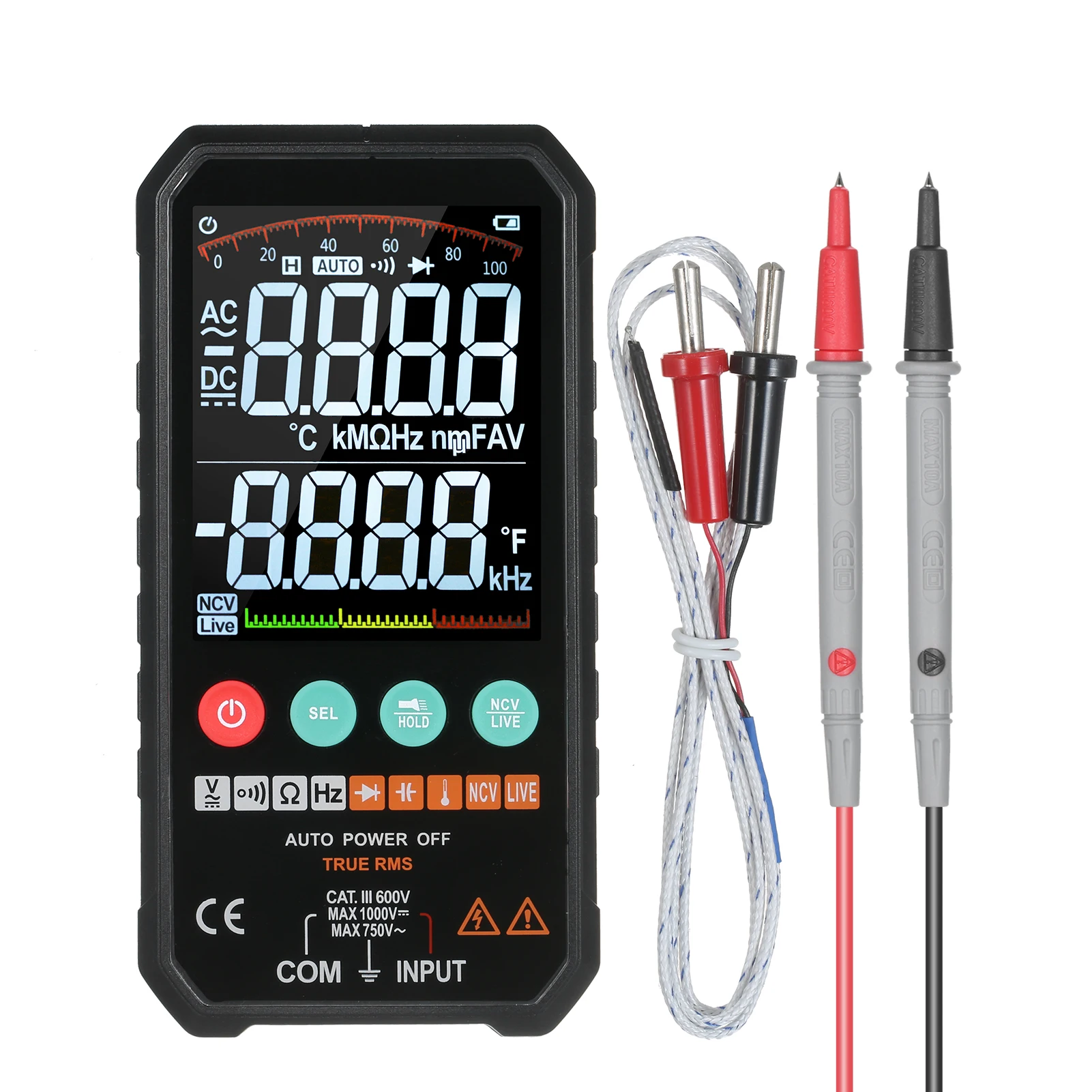

Packing List:
1 * Multimeter
1 * Pair of Test Lead
1 * Storage Bag
1 * Temperature K-type Probe (FY107C Model Only)
1 * Manual (English)

Note:
It is normal that you can't read the measured data clearly at some angle for the super large LCD display is not a full-view angle screen. Please tilt the meter to find a clearly angle to read the display, thanks.
