Φ 5 1900MHz RF радиочастота вверх и вниз преобразование частоты Пассивный RMS 11

Φ 5 1900MHz RF радиочастота вверх и вниз преобразование частоты Пассивный RMS 11

Features:

1.The RMS-11 provides a +24 dBm third-order intercept point: for -10 dBm LO power consumption without the need for a high-power LO driver and without the corresponding shielding and isolation issues, resulting in improved performance over passive mixers System performance, reduce system cost.
2.The mixer is designed for single-supply operation: RF, IF and LO ports with DC isolation capacitors, easy to use. RF and LO inputs operate up to 1900MHz. The IF output is a single-ended voltage output. With 250 MHz output bandwidth. A single resistor connected between pins OUT and FB is used to set the gain.
3.The amplifier has low DC offset characteristics: which can be used for DC-base band frequency conversion and quadrature amplitude demodulation and other DC-coupled applications.
4.The mixer's output amplifier and the best source impedance: the mixer SSB noise figure at 70 MHz 10.3 dB. Unlike passive mixers, the RMS-11 does not have insertion loss, eliminates the need for an external duplexer, and requires no passive termination .
5.There is no insertion loss: no external duplex device.

Descriptions:

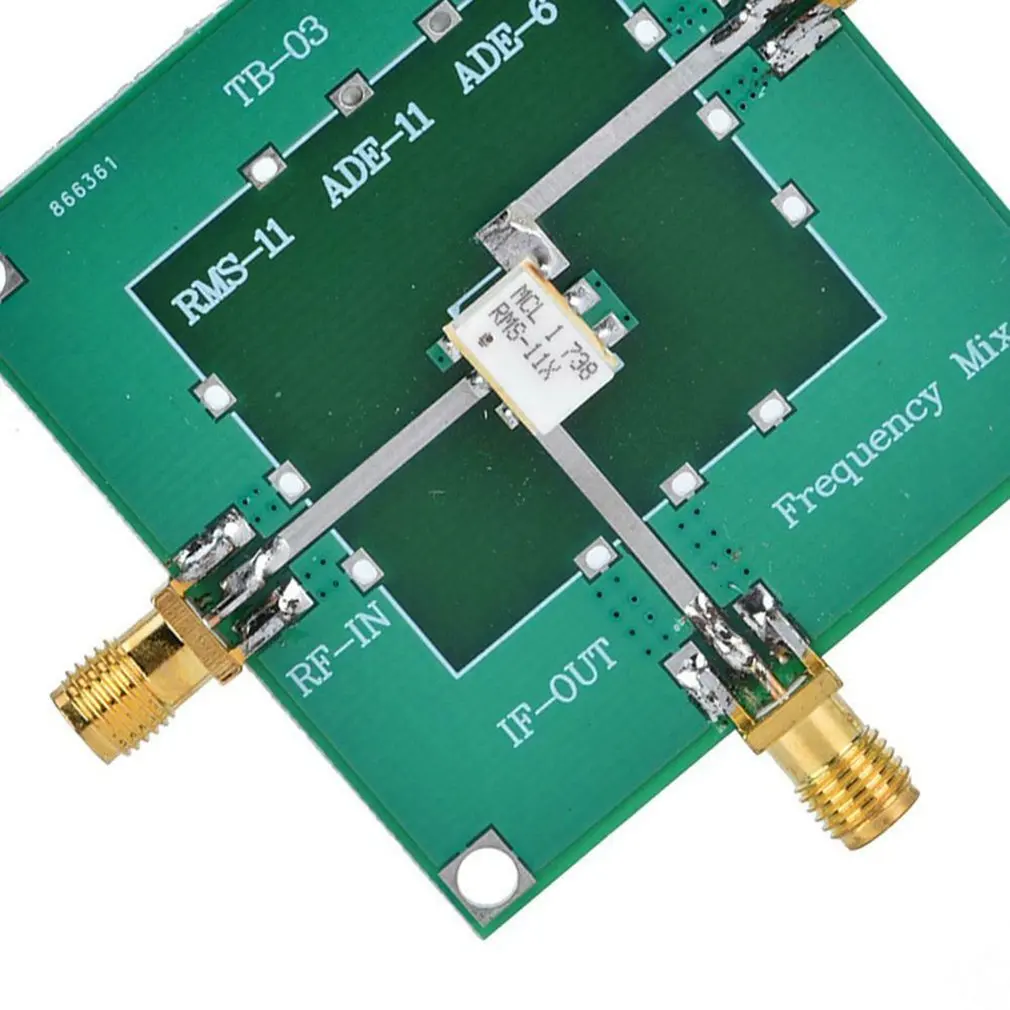

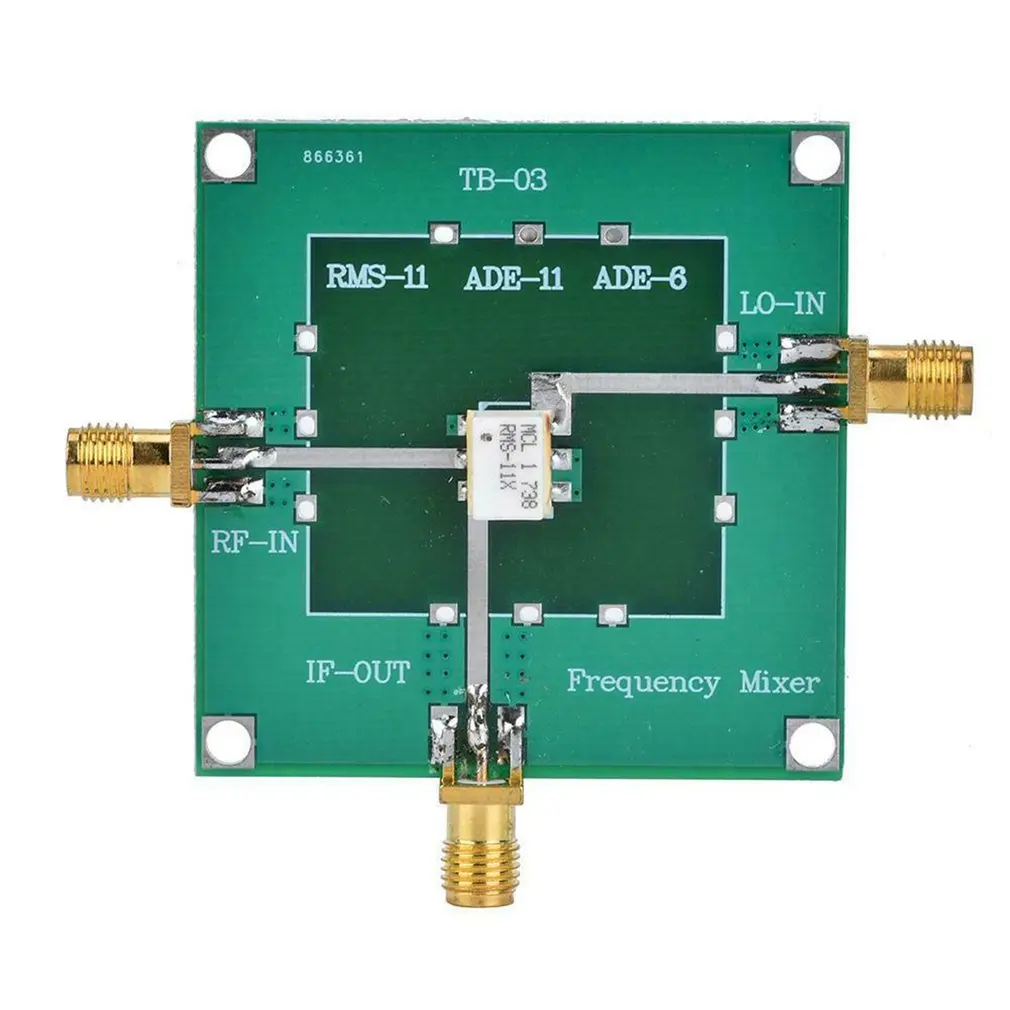

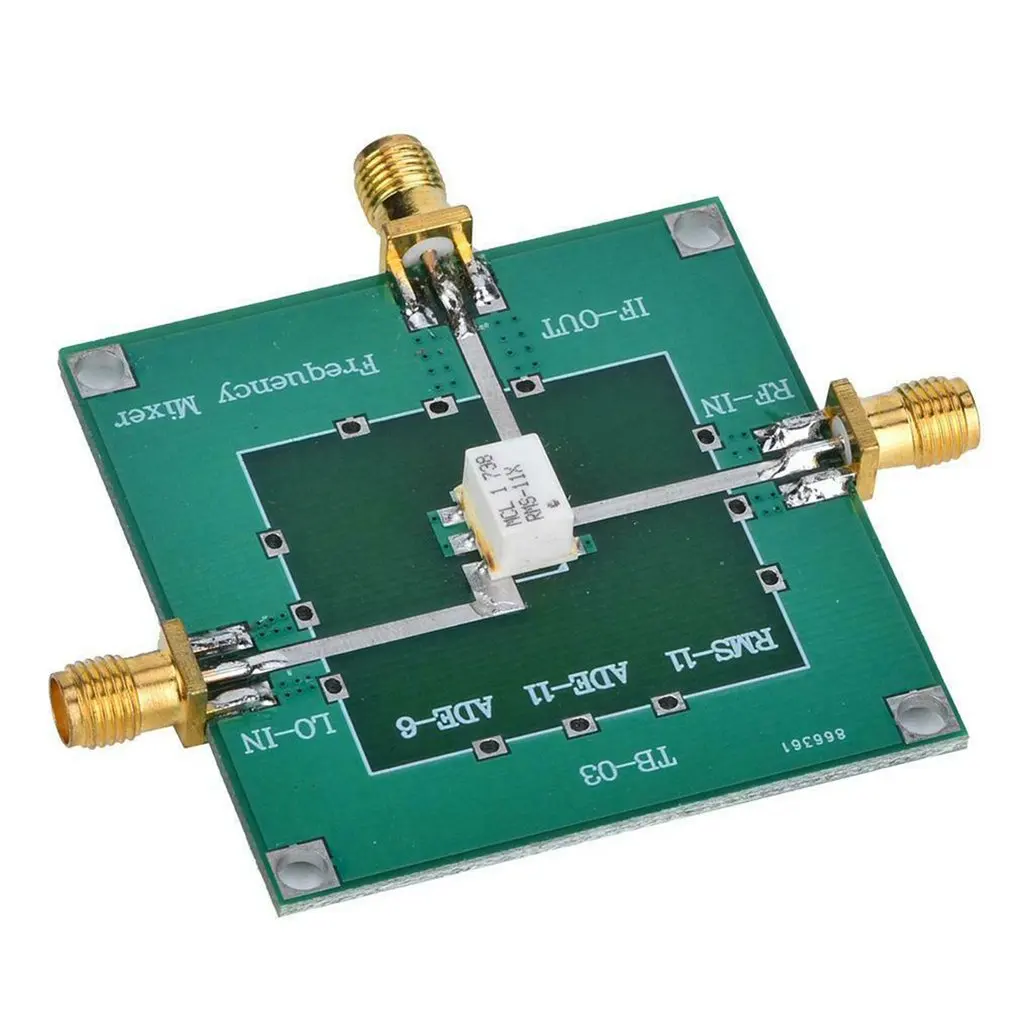

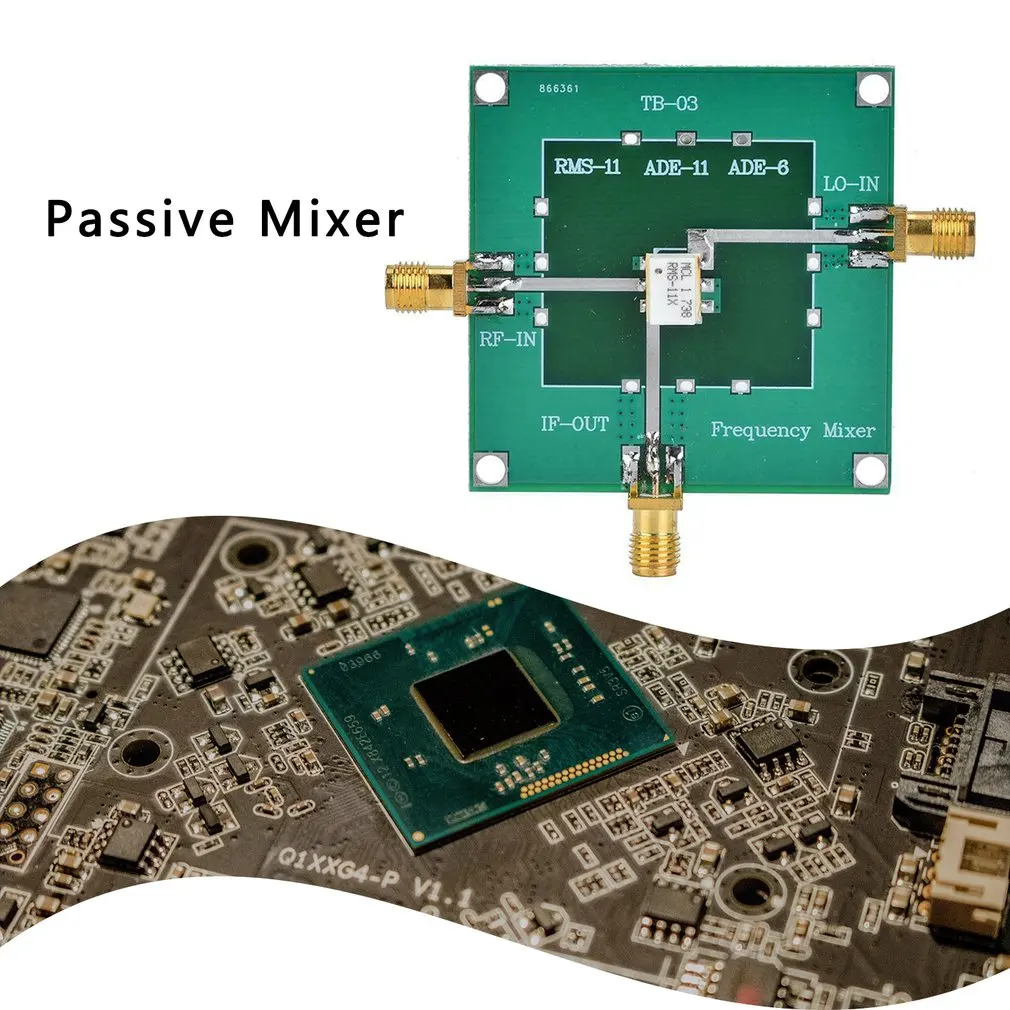

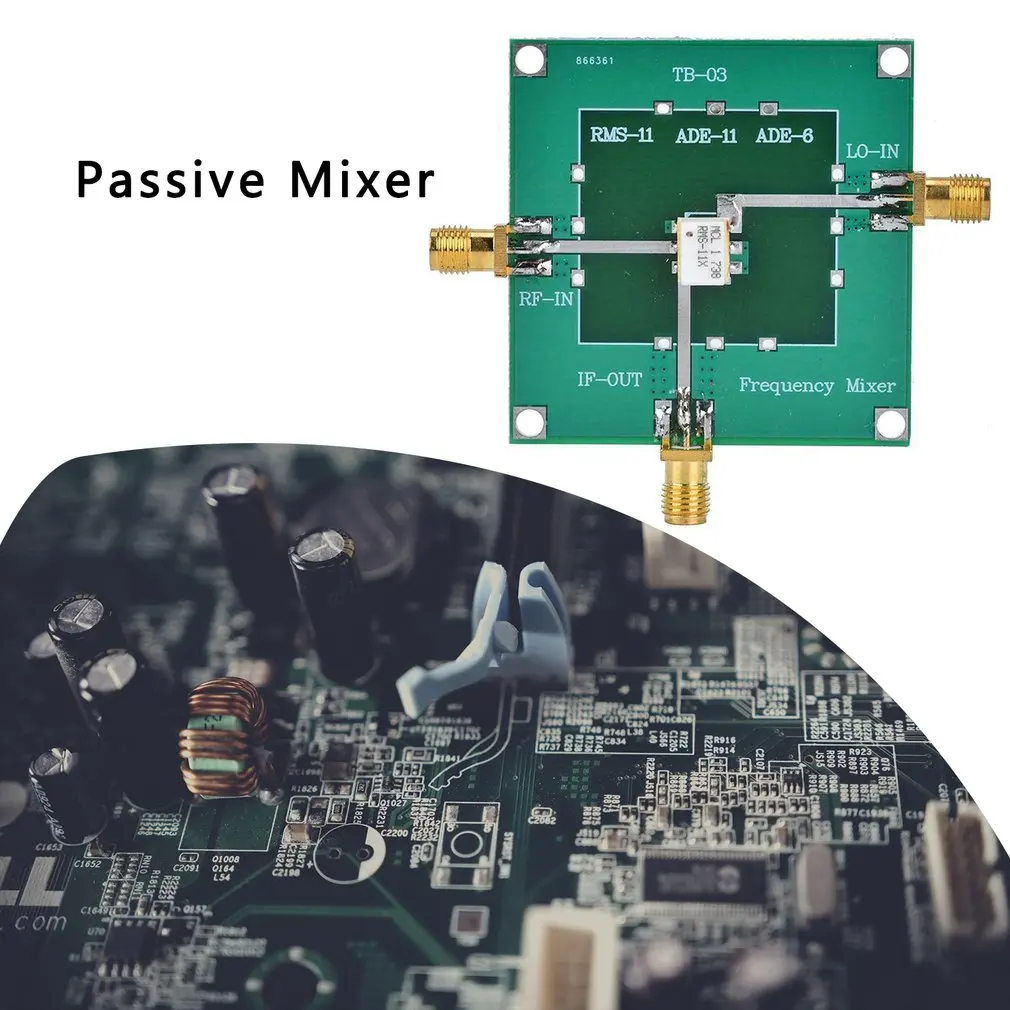

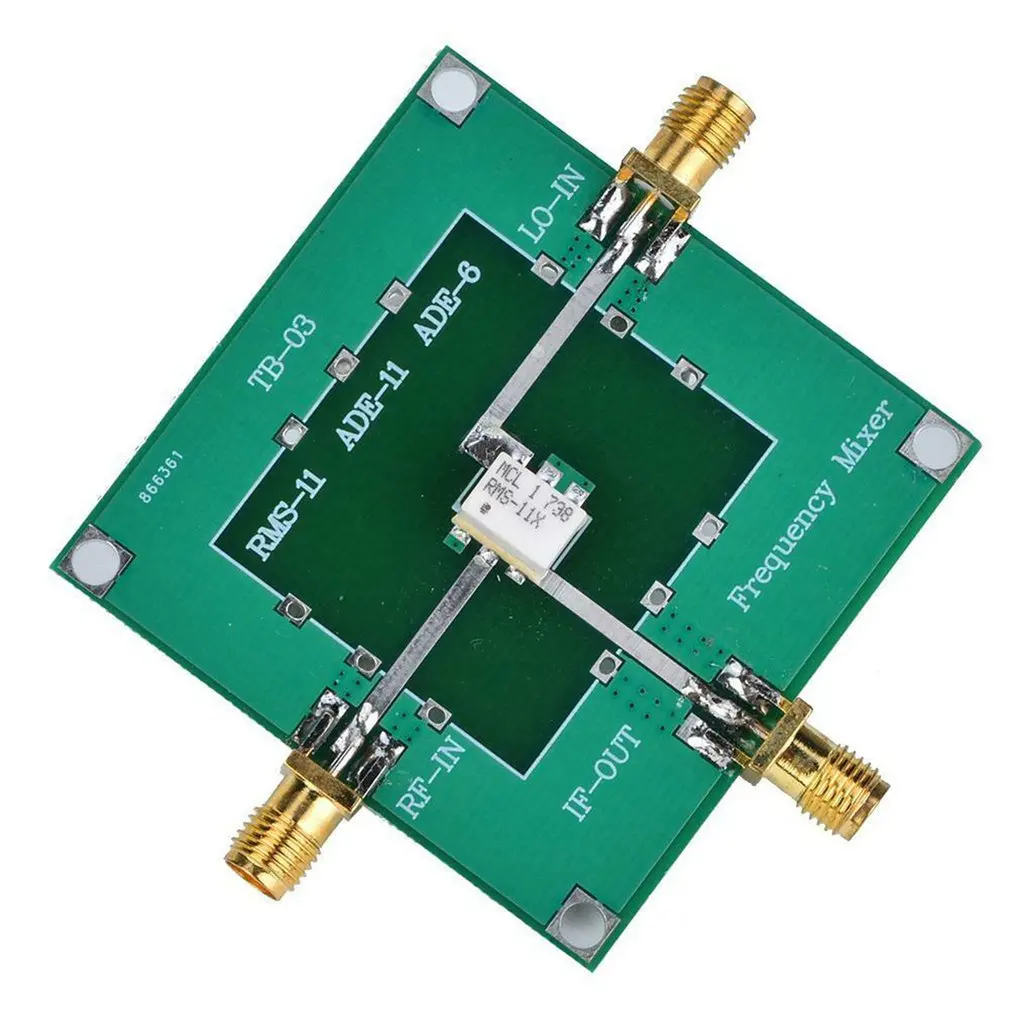

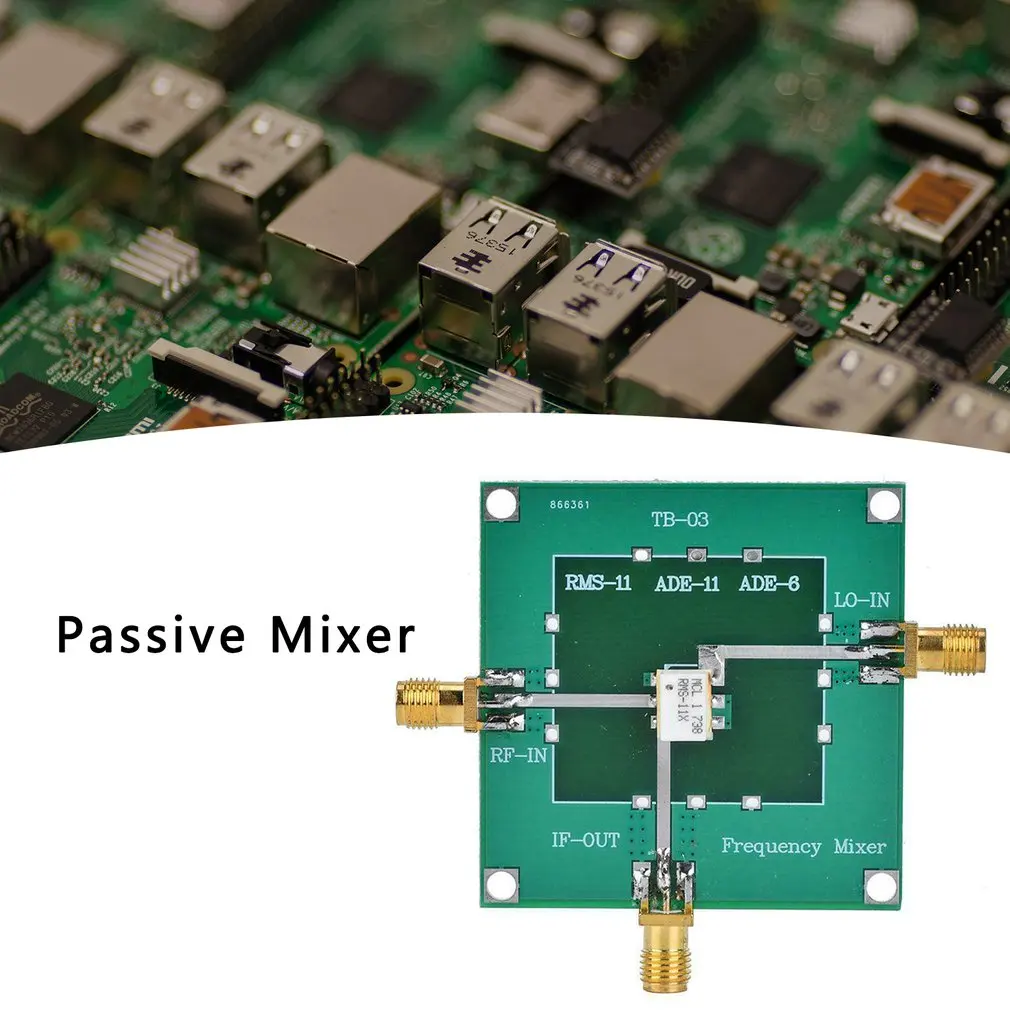

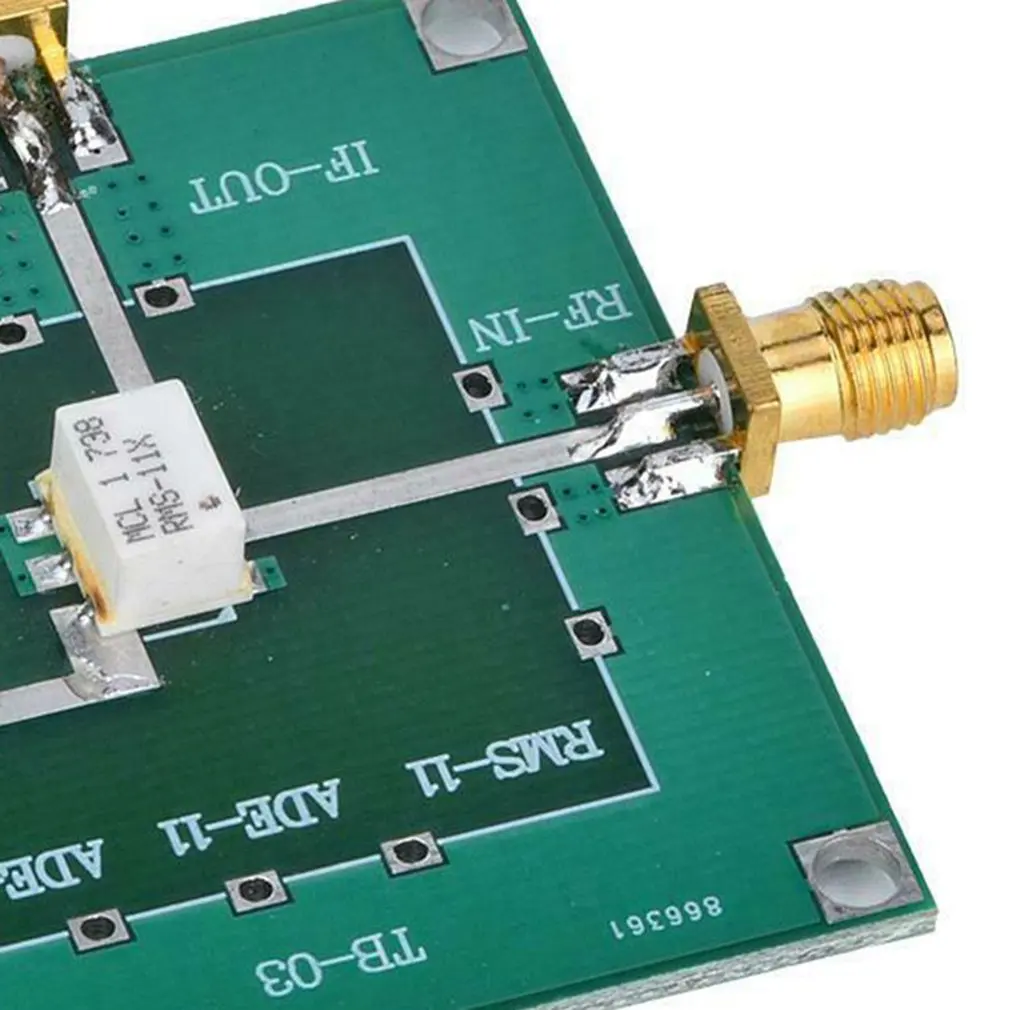

1.The is a RMS-11 5-1900MHz RF Radio Frequency Up And Down Frequency Conversion Passive Mixer Module.
2.Compact design, easy to install.

Specifications:

Color:Green
RF: 5-1900MHz
Down: RMS-11
Size: 45 * 45mm

Package included:
1 x RMS-11 5-1900MHz RF Mixer

Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Please allow slight dimension difference due to different manual measurement.
