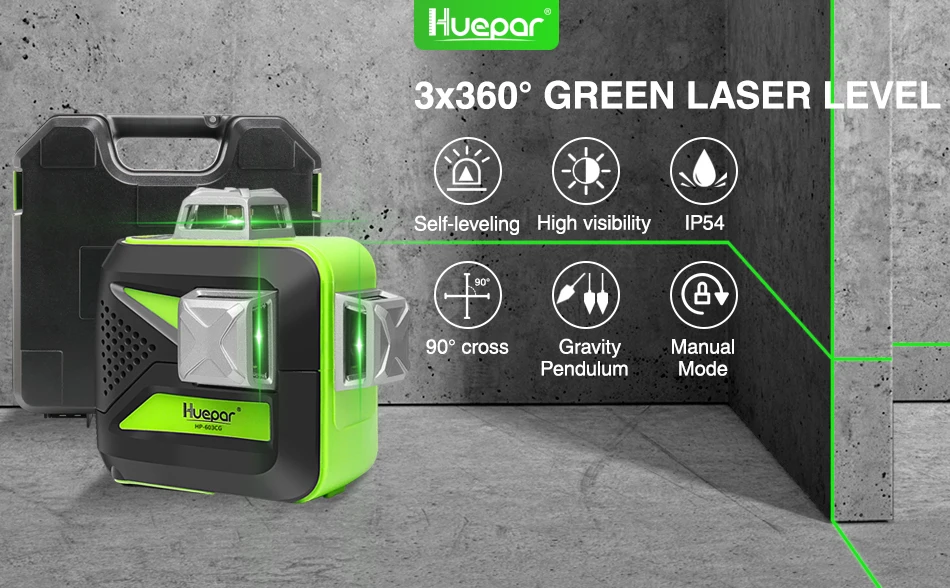

Huepar 12 Lines Cross Line 3D Green Beam Laser Level 360° Self-leveling Horizontal Vertical with Li-on Battery & Hard Carry Case |

Huepar 12 Lines Cross Line 3D Green Beam Laser Level 360° Self-leveling Horizontal Vertical with Li-on Battery & Hard Carry Case |

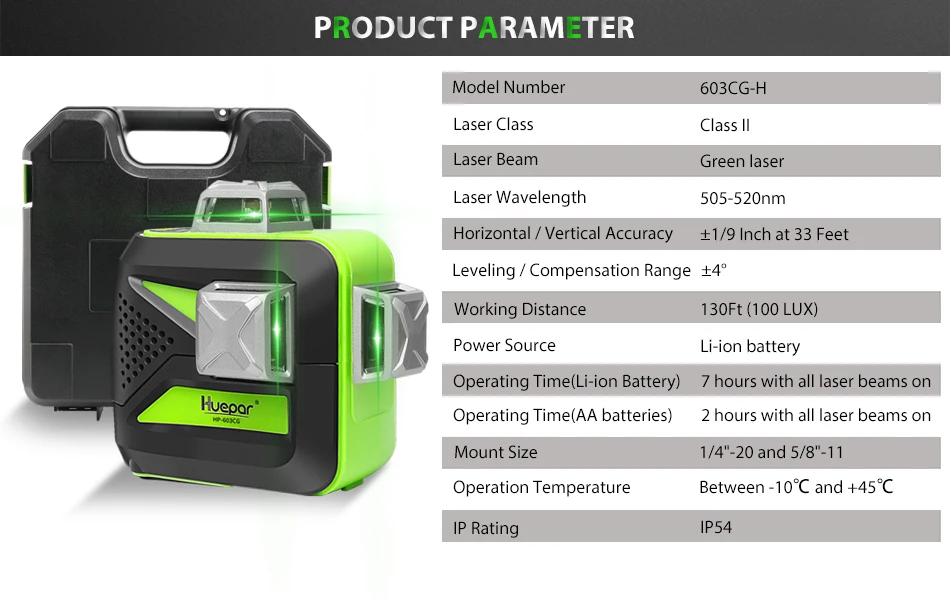

603CG 3D Green Laser Level Specifications:

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

Laser Wavelength: 505-520nm

Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft

Leveling/Compensation Range: ±4°

Working Distance (Line): 130Ft (100 LUX), 200Ft with Huepar Line Laser Receiver

Operating Time with Lithium Battery: 7 hours with all laser beams on

Operating Time with AA Batteries: 2 hours with all laser beams on

Power Source: Li-ion battery&4×˝AA˝ (LR6) batteries

IP Rating: IP54

Operation Temperature Range: 14℉ ~ 113℉ (-10℃~ 45℃)

Mount Size: 1/4"-20 and 5/8"-11

WARNING:

Avoid direct exposure of the laser beam to the eyes.

Package Contents:

1 x Huepar 603CG 3D Green Laser Level

1 x Magnetic Pivoting Base

1 x Rechargeable Li-ion Battery

4 x AA Batteries

1 x AA Battery Holder

1 x Power Adapter

1 x Laser Target Plate

1 x User Manual

3 x 360° Multiple Line Switching Functions

* This laser level allows users to line up level, align, square and plumb by generating three 360° laser planes –one horizontal and two vertical lines.

* The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications.

* Multiple Line Switching Modes can be Selected Freely Accordingly: 360° Horizontal Line mode, one 360° Vertical Line mode, Two 360° Vertical Lines mode, 360° Horizontal&360° Vertical Lines mode.

Self-leveling mode & Manual mode

Self-leveling mode:

When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously when the tool is beyond self-leveling range (4°±1°).

Manual mode:

When the pendulum locked, you can place the laser tool at any angle to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

Pulse Mode

Turn ON pulse mode: After power on, short press the button besides the power button to turn on the pulse mode. The indicator will light up in red.

Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.

When use with a receiver, it’s necessary to turn on the pulse mode.

It is compatible with Huepar LR-6RG Line Laser Receiver only.

Multiple Installation Methods

The laser tool offers 1/4"-20 and 5/8"-11 mounting threads to suit different tripod threads. Equipped with a magnetic pivoting bracket, the laser tool can be rotated at 360°randomly. Strong magnets on the bracket allows for quick positioning to metal surfaces, helping hang the laser level for wall applications. A nail hole in the bracket enables to be fixed firmly on the wall.

The fine-tuning knobs on the base help adjust and lock the height within 3.54".

The optional strap design makes the installation much firmer, ideal for any jobsite.

Triple Power Supply

This laser tool utilizes the included large capacity lithium battery which is compatible with Samsung SB-L110 battery.

This laser tool comes with an holder for installing AA battery for using the tool.

Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.

Charging protection help prevent the tool from overcharge.

Durable Design & Easy to Use

Metal Top Design: Over-molded metal laser window withstands hazardous job site conditions.

IP54 water/dust resistance ensures you work well in hazardous working conditions.

Green Target Plate: Increases the visibility of the laser beam.
