Light Intelligent Remote Control Switch 110V 220V Digital Smart Wall Teleswitch Wireless Receiver With Three Controls | Обустройство

Light Intelligent Remote Control Switch 110V 220V Digital Smart Wall Teleswitch Wireless Receiver With Three Controls | Обустройство

Please note: this order doesn't contain battery!

product description

Applicable appliances: chandeliers, crystal lamps, modern low-voltage lights, ceiling lamps, ceiling lamps, fluorescent, energy saving lamps, exhaust fans and so on.

Scope of application: suitable for household, stairs, corridor, corridor, toilet, warehouse, garage, factory, workshop lighting and so on the right place.

Product parameters:

1. Input voltage: AC90V-120V 50Hz / 60Hz

2. emission battery: 12V 23A battery

3. Remote distance: theoretical data: Indoor greater than 20 m; 50 m outdoor open area, away from the actual use and the installation environment, and so there are some interference load error, the actual results prevail

4. load power: 1.resistive load: maximum single output power of 500W (such as ordinary incandescent bulb type); 2. inductive load: maximum single output power of 200W (as with energy-saving lamp ballasts class bracket , ceiling lamps and small appliances, etc.).

Note: Inductive load can not be more than 5 lamps per channel

Product Features:

1. This product can replace mechanical switch function, can truly move control, comprehensive, 360-degree, conveniently and freely.

2. This product uses the microcomputer (MCU) as the core circuit design, precise to ensure the quality of the product. Switch with relay control output, a good security durability and insulation, the use of radio frequency (RF) work mode, regardless of direction, ignoring the barrier wall, full control, easy to use and fast.

3. This product uses digital encryption, multiple sets at the same time one can work independently without disturbing each other, not the string of code

Use instructions:

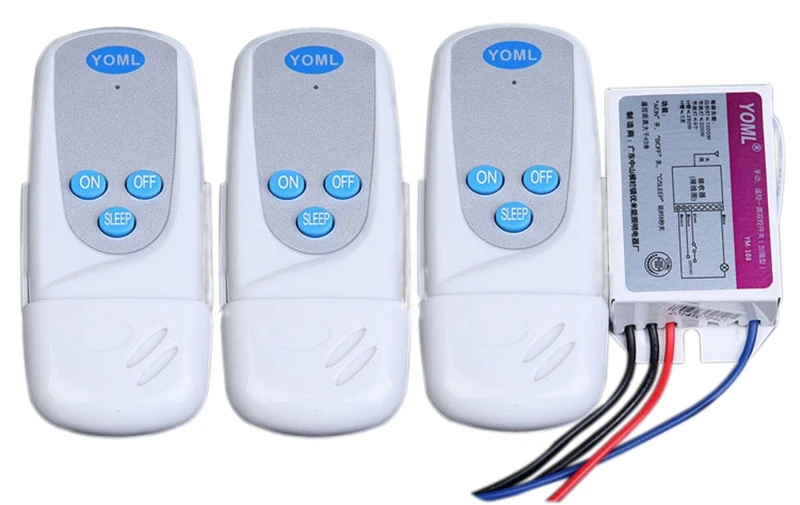

1 way: "ON" is on, "OFF" is off; "SLEEP" is when the light is on, press it, don't press any button again, it will automatically close after 8 seconds.

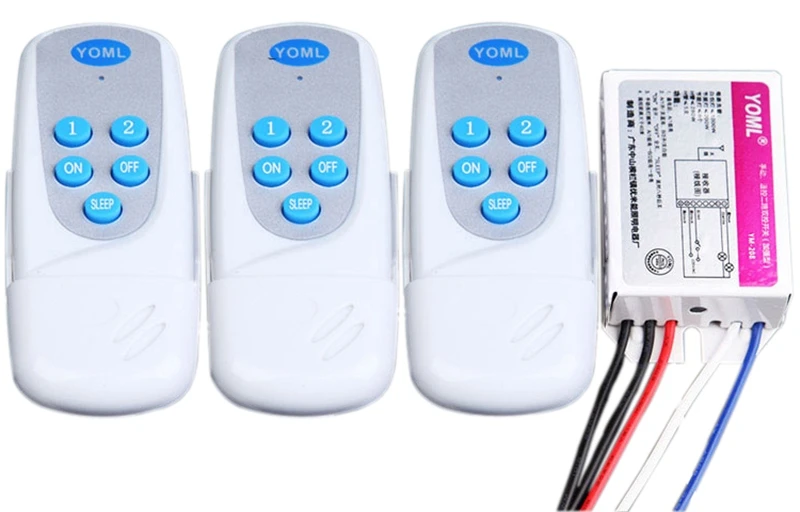

2 ways: "1" is the blue line output on and off (press it to open, press again to turn off); "2" is the white line output on and off (press it to open, press again to turn off); ON is total on, press to open all, OFF is the total off, press to close all; "SLEEP" is when the light is on, press it, don't press any button again, it will automatically close after 8 seconds.

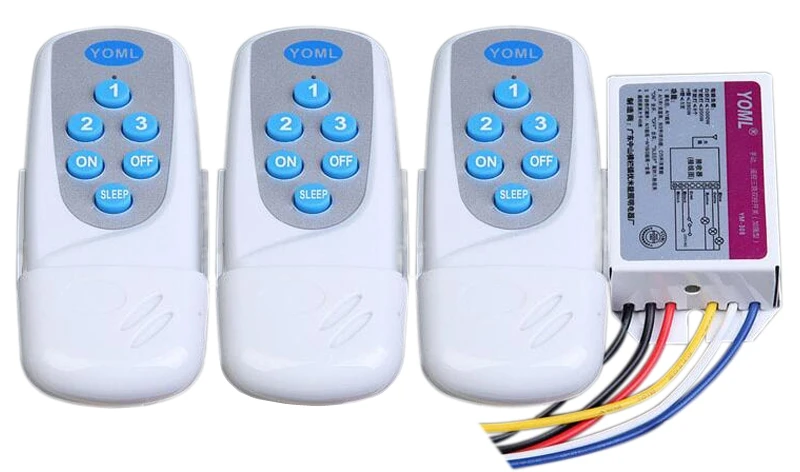

3 ways: "1" is the blue line output on and off (press it to open, press again to turn off); "2" is the white line output on and off (press it to open, press again to turn off); "3" is the yellow line output on and off (press it to open, press again to turn off);

ON is total on, press to open all, OFF is the total off, press to close all; "SLEEP" is when the light is on, press it, don't press any button again, it will automatically close after 8 seconds.
