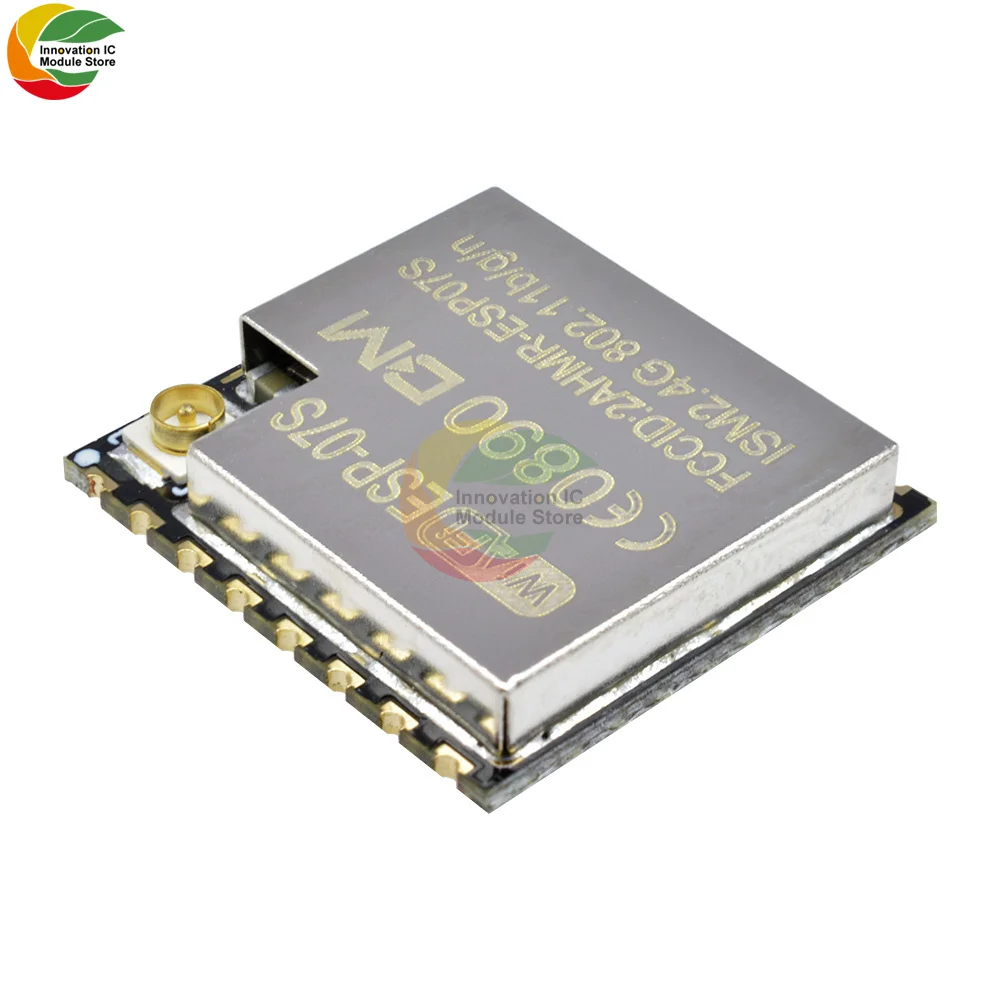

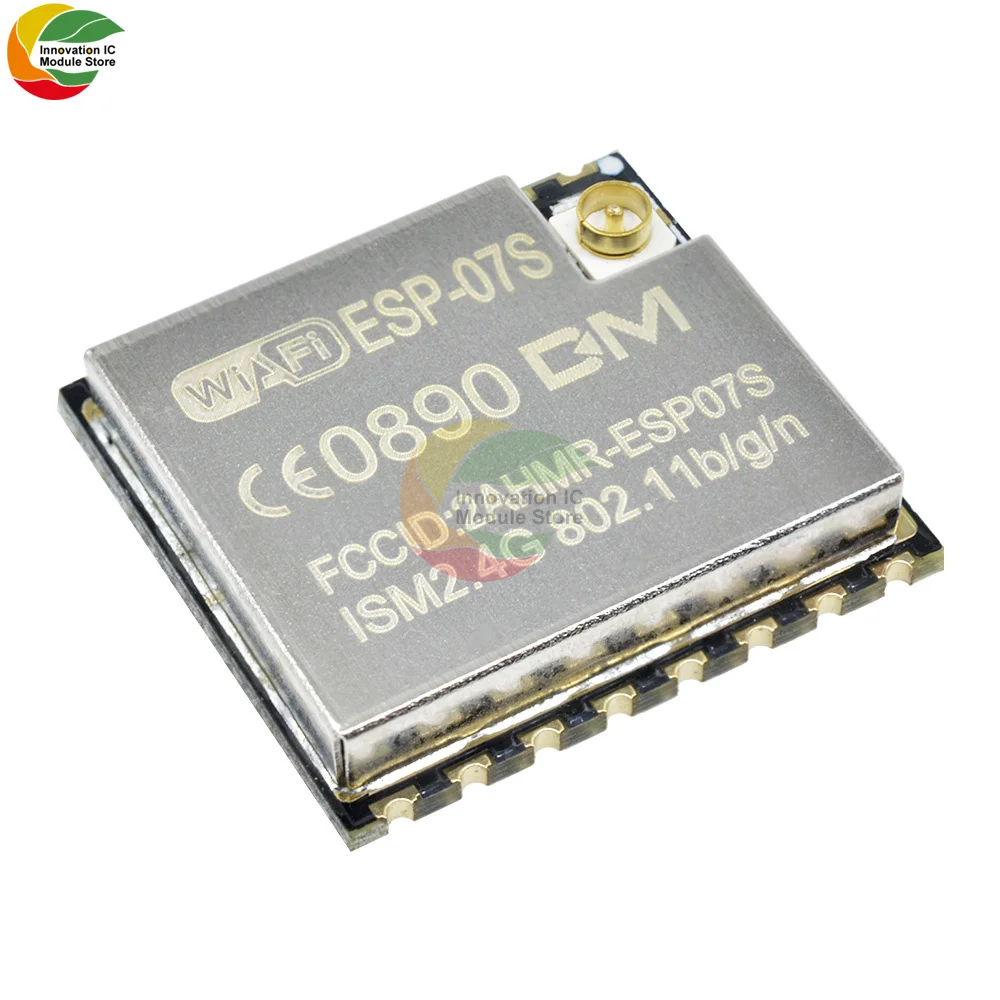

ESP8266 ESP-07S

Parameter:

Wireless standard: 802.11 b / g / n

Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)

Data interface: UART / HSPI / I2C / I2S / Ir remote control

Working voltage: GPIO / PWM 3.0-3.6V

Working current: 80mA (average)

Working temperature: -40 ℃ ~ 125 ℃

Storage temperature: normal temperature

External interface: N / A

Wireless network mode: station / softAP / SoftAP + station

Security mechanism: WPA / WPA2

Encryption type: WEP / TKIP / AES

Upgrade firmware: local serial port download / cloud upgrade / mainframe download

Software development: Support client server, provide SDK for client secondary development

Network protocols: IPv4, TCP / UDP / HTTP / FTP

User configuration: AT instruction set, cloud server, ndroid / iOS APP

Size: 17 * 16 * 3mm

Feature:

Supports 802.11 b / g / n standards

Built-in Tensilica L106 low-power 32-bit MCU, main frequency supports 80 MHz and 160 MHz, supports RTOS

Built-in 10-bit high-precision ADC

Built-in TCP / IP protocol stack

Built-in TR switch, balun, LNA, power amplifier and matching network

Built-in PLL, AVR and power management components, 802.11b mode + 20dBm output power

A-MPDU, A-MSDU aggregation and 0.4s guard interval

WiFi 2.4 GHz, support WPA / WPA2 security mode

Support AT remote upgrade and cloud OTA upgrade

Support STA / AP / STA + AP operation mode

Support smart configuration function (including Android and iOS devices)

HSPI, UART, I2C, I2S, infrared remote control, PWM, GPIO

Sleep holding current is 10uA, power-down current is less than 5uA

Connect and transmit packets after 2ms wake up

Standby power consumption is less than 1.0 mW (DTIM3)

Operating temperature range: -40 ° C to 125 ° C
