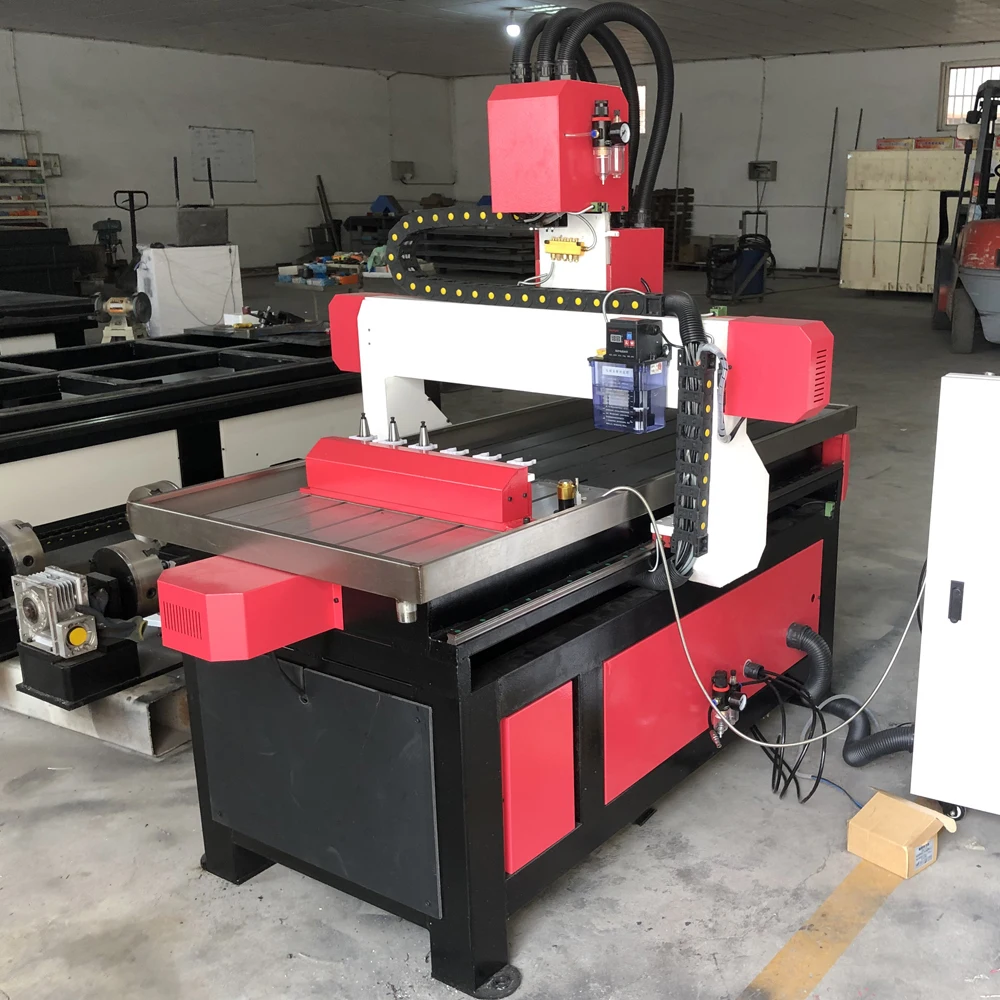

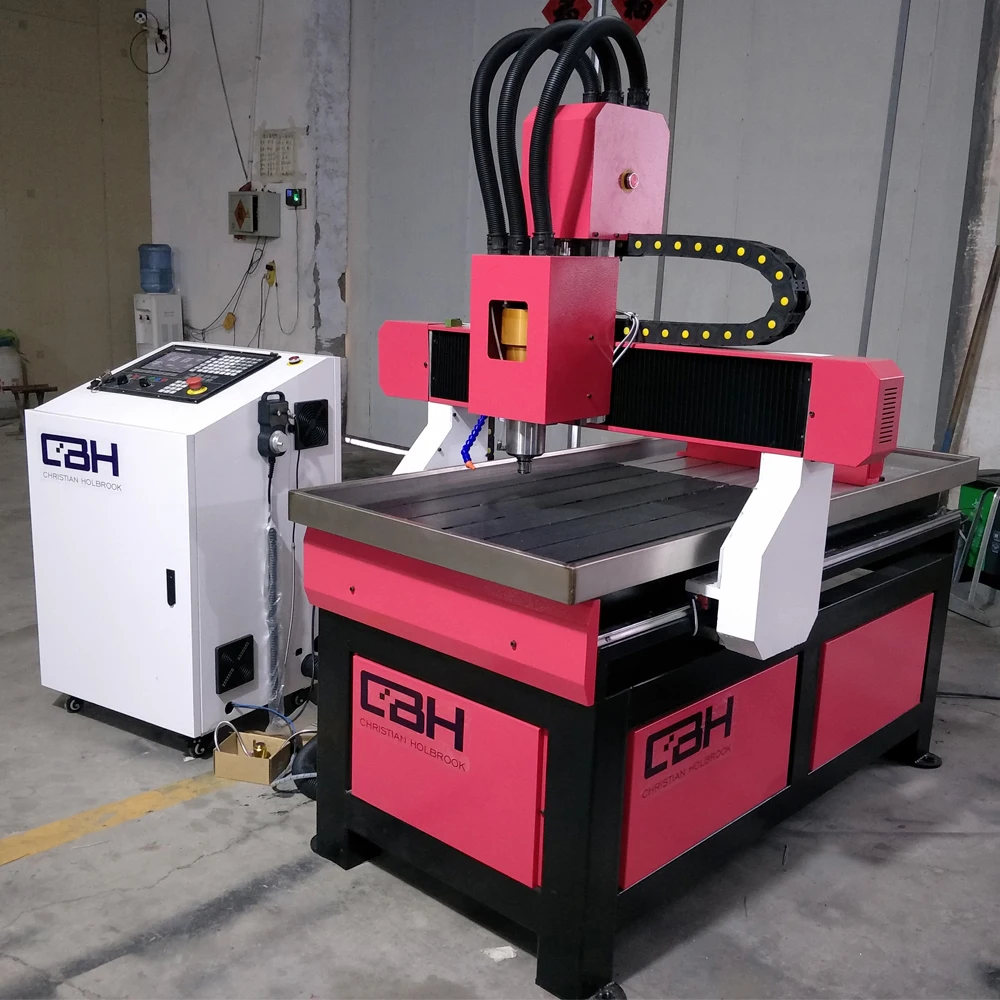

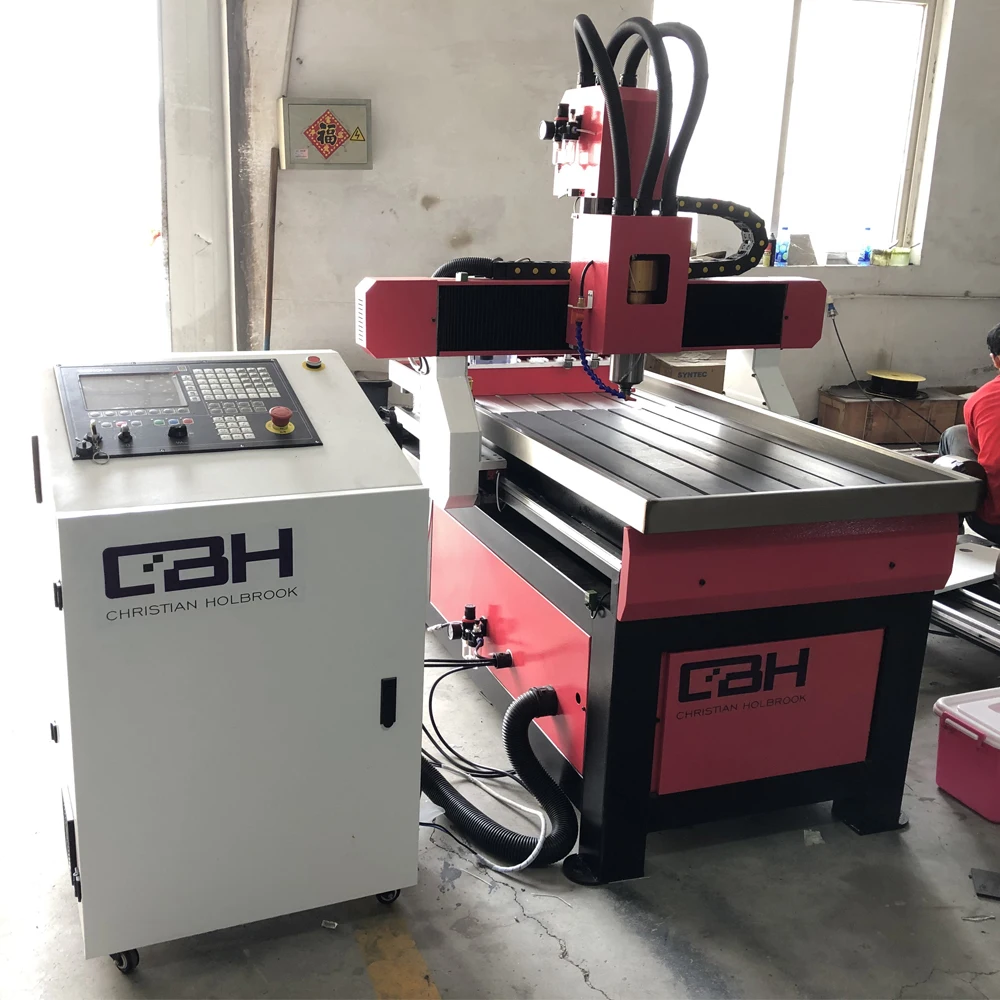

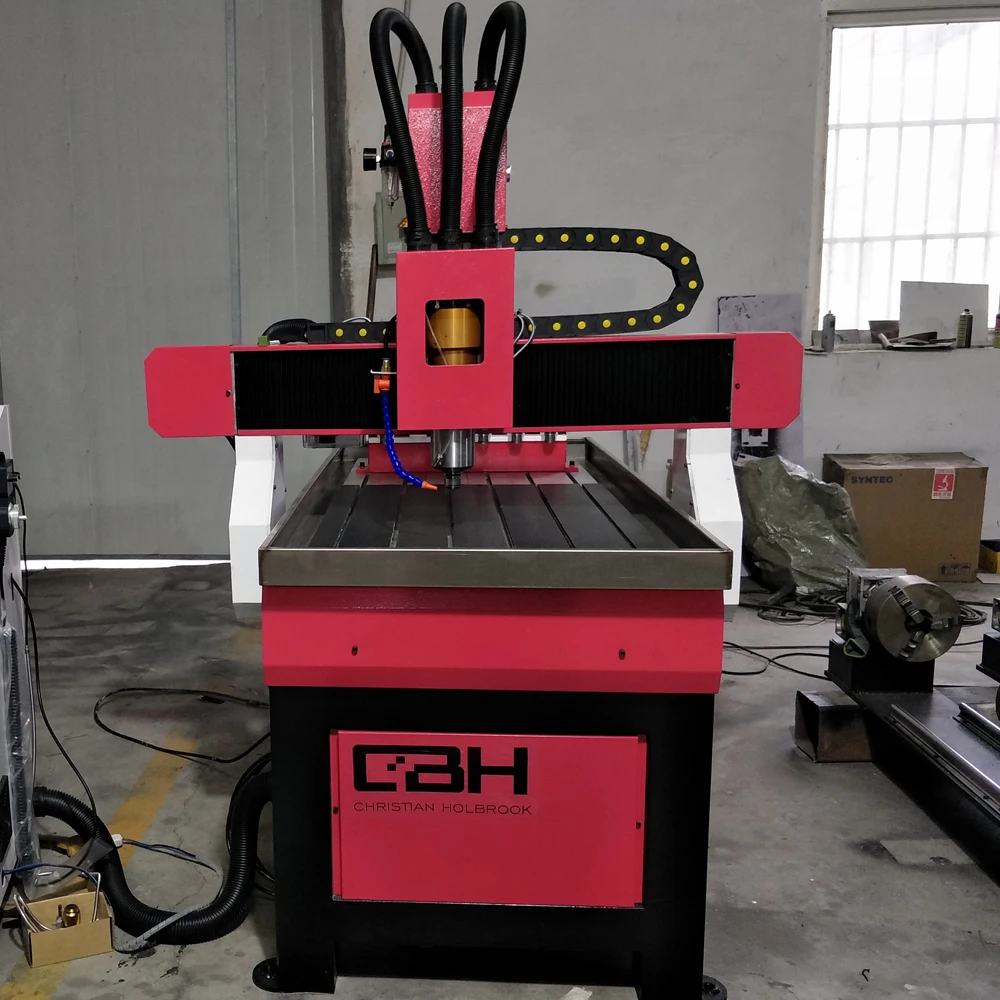

Верстак с ЧПУ High Speed 6090 с 4-ой осью/Деревообрабатывающий ЧПУ-верстак ATC CE стандарт/Станок для фрезерования дерева с автоматической загрузкой инструментов.

Верстак с ЧПУ High Speed 6090 4-ой осью/Деревообрабатывающий ЧПУ-верстак ATC CE стандарт/Станок для фрезерования дерева автоматической загрузкой инструментов.

Model

RTM-6090H

X,Y Working Area

600*900mm

Z Working Area

200mm

Table Size

1000*1400mmmm

Resolution

0.01mm

Lathe Structure

Seamless welded steel structure, better than cast iron one

X,Y Structure

Rack and pinion, gear drive,

Taiwan Hiwin H25 square guide rails

Z Structure

Taiwan TBI ball screw,

Taiwan Hiwin 25 square guide rails

Max. Idling Speed

60m/min

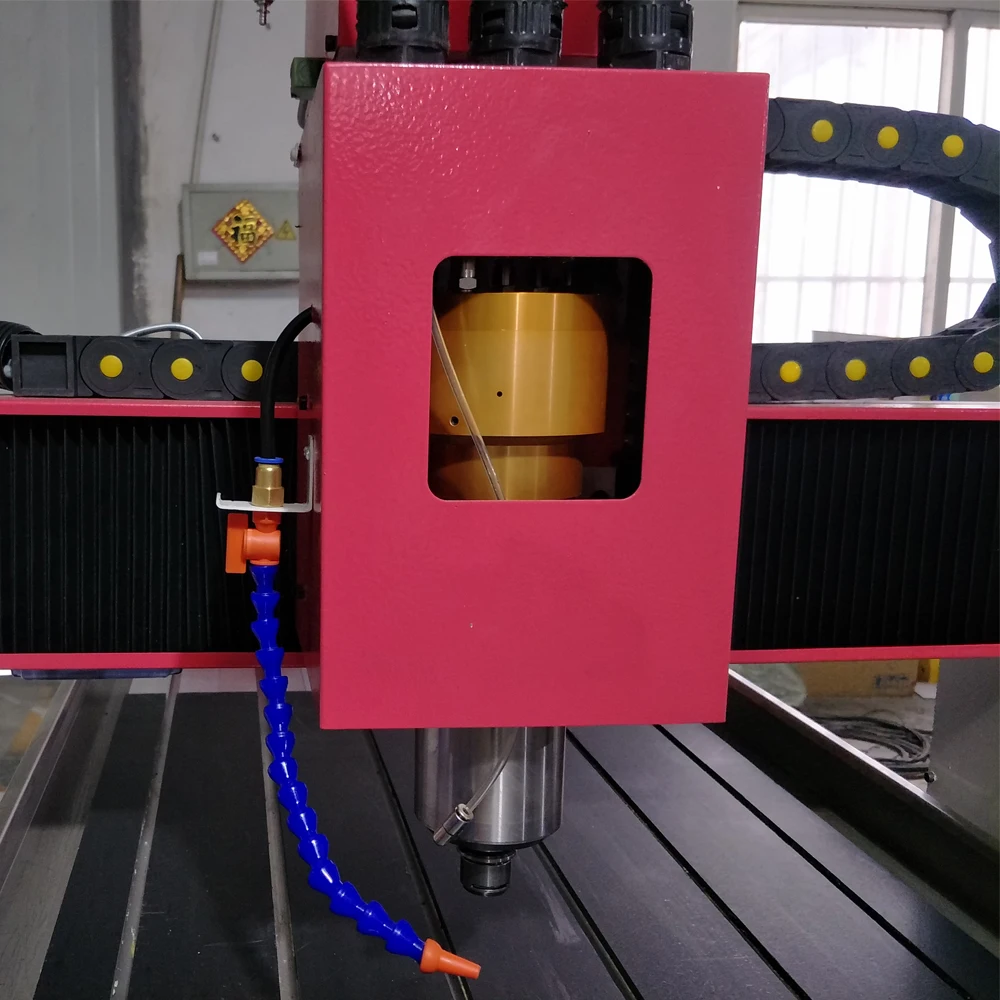

Spindle

2.2 KW air-cooling Italy HQD spindle(HSD optional)

Spindle Speed

0-24000r/min, variable speed

Working Voltage

AC380V/50Hz

Motor and driver

Leadshine(YASKAWA optional)

Working Mode

Servo

Command

G code (HPGL,U00, mmg, plt)

Operating System

SYNTEC control system

Diameter of Cutter

φ3.175-φ12.7

Cooling Mode

Air-cooling

Dust-collect Function

Yes

Work Holding

By suction or clamp

Tool Magazine

Linear-style auto-tool changer system with 8 pieces of tools

Net Weight

1500KG

>>Applicable Material:Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

>>Applicable Industry:Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.

ATC CNC ROUTER Packaging And Shipping:

1.Service before order:our salesman will try to know more about your demands ,  including the max

working size, main processing materials and the thickness , so we will offer you suit machine.

2.Service during production: we will send the production the machine pictures for customer in time,

customer can know more the detailed machine parts.

3.Service before shipping: the machine parts will be installed and tested by our professional.

technician, send the test video according to customer’s processing materials for customer confirmations.

4.Service after shipping: we will check when the machine arrive your sea port or the approximate arrival

date, so that the customer can know the arrival date and to prepare to pick the machine up

5.Service of training: the English manual and operating video will be sent to customers with the machine

together, it will help customer how to operate the machine , it there is any question about the operation,

we will have the professional technician to help them how to operate by online ,until the customer can use

it freely.

6.Service of warranty: we guarantee the machine forTwo Years, some machine parts ( quality problems )

can be free charge to replace it within warranty.

Pls attention:

1. The machine is shipping by sea! Pls don't place order on aliexpress.

2. The price is FOB Qingdao, pls give me your nearest port before order.

3. Will have discount if you contact me !

Watting for your inquiry.
