Description body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } JDIAG V2.1 ELM327 HH OBD 2 OBDII Car Auto Bluetooth Diagnostic Tool Interface Scanner This mini car bluetooth diagnostic scanner works on Android Torque/PC with the latest software version V2.1 and hardware Version V1.5.
Bluetooth Password: 1234
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light).
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Vehicle Speed
Timing Advance
Fuel System Status
Fuel Pressure
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Support OBD-II protocols as follows:
1.ISO9141-2(5 baud init,10.4Kbaud)
2.ISO14230-4 KWP(5 baud init,10.4Kbaud)
3.ISO14230-4 KWP(fast init,10.4Kbaud)
4.ISO15765-4CAN(11bit ID,500 Kbaud)
5.ISO15765-4CAN(29bit ID,500 Kbaud)
6.ISO15765-4CAN(11bit ID,250 Kbaud)
7.ISO15765-4CAN(29bit ID,250 Kbaud)
Compatibility:
Works on all OBD2 petrol cars ( from 1996 in USA).
Compatible with Android Torque and Windows Smartphone, Windows PC.
Product Size: 7 * 4.5 * 2.5cm / 2.8 * 1.8 * 1in
Product Weight: Approx.47g / 1.7oz
colour:gray
Material:ABS

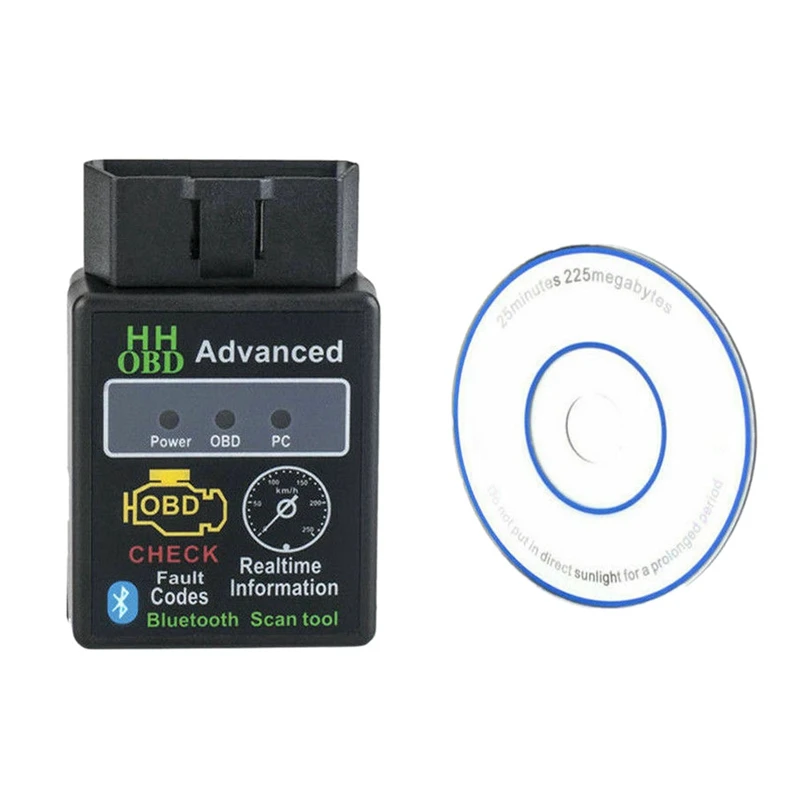

Package Contents:
1 * Car Auto Bluetooth Diagnostic Tool
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

---
