Роутер с ЧПУ Robotec 1325 для резки, гравировки и фрезеровки дерева, мебели и рекламы с функцией Smart и сертификатом CE.

Роутер с ЧПУ Robotec 1325 для резки гравировки и фрезеровки дерева мебели рекламы функцией Smart сертификатом CE.

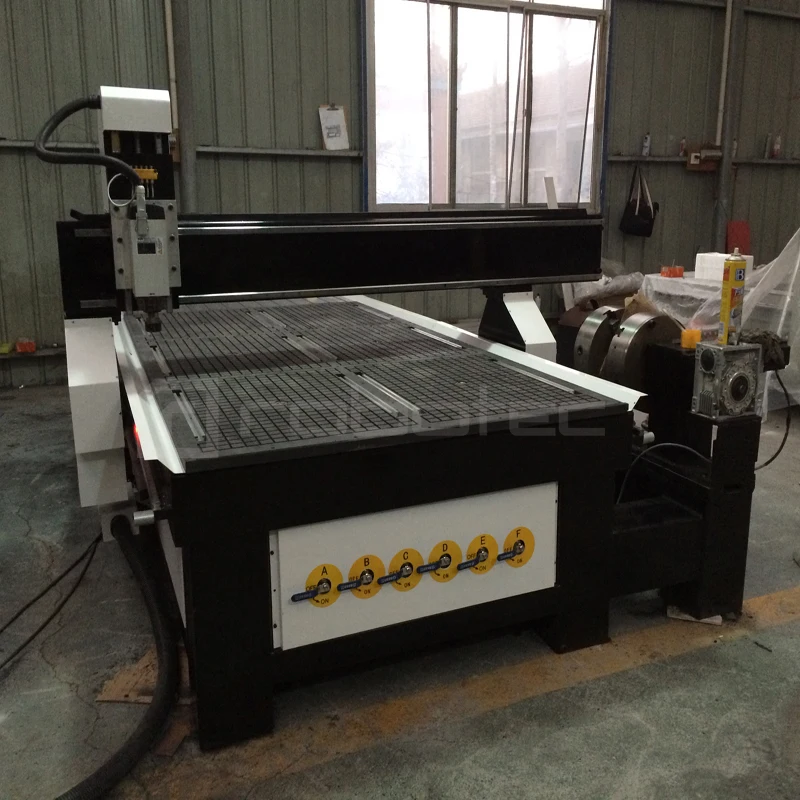

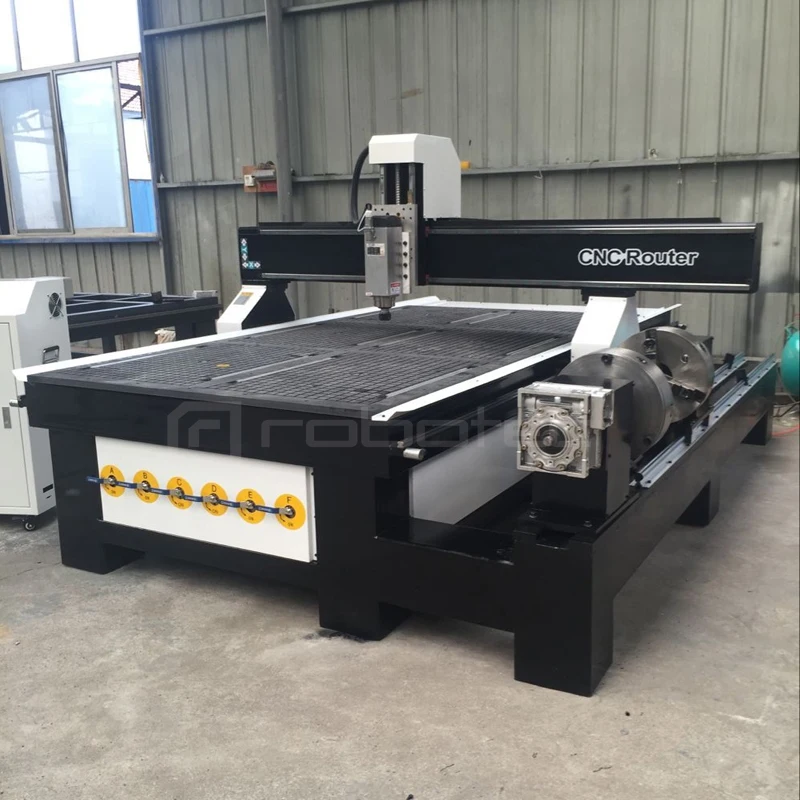

1325 4 axis wood cnc router pictures:

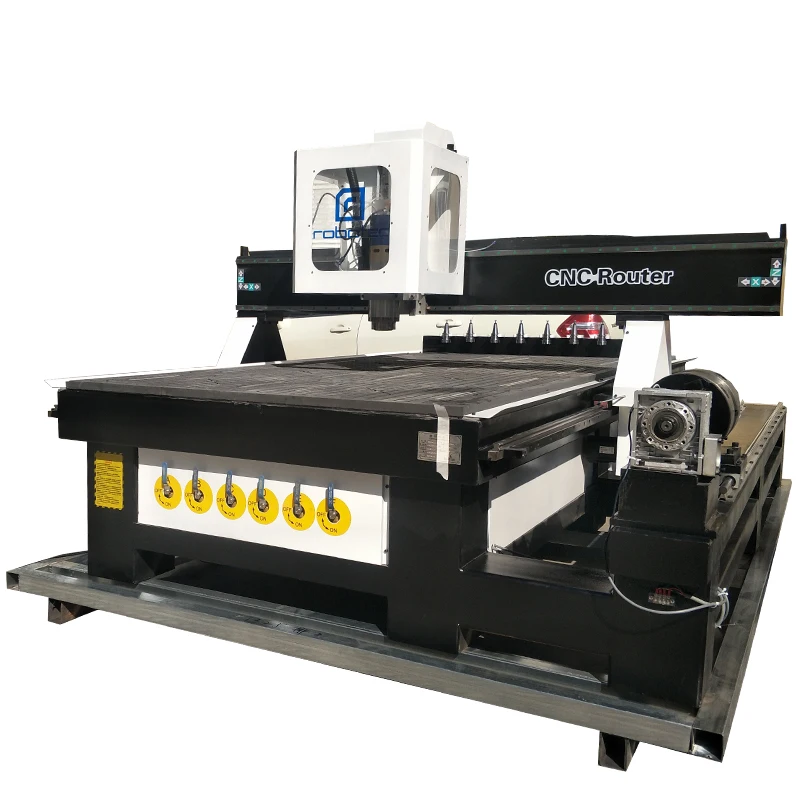

ATC 4 axis cnc router

2030 big size atc cnc router

4 axis atc cnc router with drilling head:

Product Features cnc router 1325 machine

1 Thicker square tube bed makes the operation more stable and accuracy.

2 Our machines adopt the vacuum  or  T-slot dual-use table, you can use the clips to fix the small-scale materials, which can save the vacuum pump electricity, and you can adopt the vacuum adsorption to fix large-scale material.so the processing is convenient, simple and efficient.

3 High quality Taiwan imported Linear guide has much longer life 10 times of life-time than round guide; It is stable and hard to distort.

4 3KW top brand water cooling spindlehas much powerful strength; So for processing your softmetal it will have higher efficiency.It will have a better effect .

5  the Mach3 control system is a very popular control system with high quality. Its with USB port.

6 Double motor for Y axis make the cnc machine work with more strength ;

1325 wood cnc router parameters:

Model

RTM-1325BR 4 axis cnc router

Working Area

1300*2500*200mm/1500*3000*200mm

Traveling Positioning Accuracy

±0.03/300mm

Repositioning Accuracy

±0.01mm

Table

vacuum  or  T-slot Table

Frame

Welded Structure

Z Structure

Taiwan TBI ball screw

X, Y axis

Hiwin Rail 20# Linear Bearing & Taiwan TBI Ball Screw

Max. Power Consumption

(Without Spindle)  2.5kw~3Kw

Max. Rapid Travel Rate

33000mm/min

Max. Working Speed

25000mm/min

Spindle Power

0-24000RPM

Drive Motors

stepper or servo motor

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

Command Language

G Code

Operating System

DSP / NC-STUDIO / Mach3 controller

Computer Interface

USB

Flash Memory

128M(U Disk)

Collet

ER25

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9/Artcam Software

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

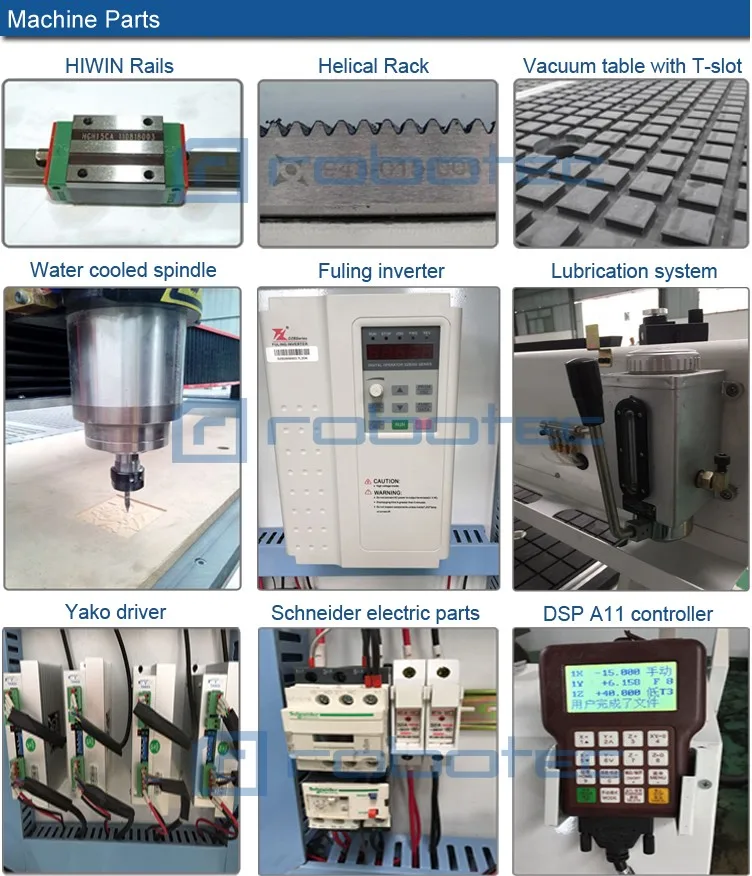

1325 wood cnc router parts:

>>Standard Configuration cnc router 1325 cnc router machine:

1) DSP control system:Popular and easy operation, with USB port to transfer program;

2) Italian HSD Air-cooling Spindle:Long working life, easy maintenance;

3) Big Stepper Driving Moto:With highly control precision and high speed, reliable and stable;

4) Taiwan Hiwin Guide and Block:Guaranteed genuine rail with good quality, realizing smooth movement;

5) Taiwan TBI ball screw:linear motion with high precision and and in high speed

6) Helical rack and pinion:quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates, longer lifetime because of smaller wearing force.

7) Taiwan Delta Inverter:Guaranteethe variety working speed and protect the spindle very well;

>>Applied Industries cnc router 1325 machine
1.Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal mold s, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object

1.Service before order:our salesman will try to know more about your demands ,  including the max working size, main processing materials and the thickness , so we will offer you suit machine.

2.Service during production: we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts.

3.Service before shipping: the machine parts will be installed and tested by our professional.

technician, send the test video according to customer’s processing materials for customer confirmations.

4.Service after shipping: we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up

5.Service of training: the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.

6.Service of warranty: we guarantee the machine for1.5 Years, some machine parts ( quality problems ) can be free charge to replace it within warranty.cnc router 1325 machine
