Цифровой ЖК-вольтметр амперметр DC 0-600V 10A 20A 100A 200A ток напряжение амперный панельный измеритель детектор тестер монитор.

Цифровой ЖК-вольтметр амперметр DC 0-600V 10A 20A 100A 200A ток напряжение амперный панельный измеритель детектор тестер монитор.

Note:

<1>This meter needs to be connected to a load to display the current , otherwise the current area is black screen.

<2>This meter come with a shunt(20A , 50A , 100A, 200A) , if current below 20A(2A , 10A) , you can only get a meter without shunt , because their shunt is built-in.

Technical Indicators

Model:  D85-3051AG

Accuracy: 1%±2 words

Voltage Measure range:    <1>DC 0-1.999V , 0-19.99V , 0-199.9V , 0-600V (need supply another working power between 5-30V DC)

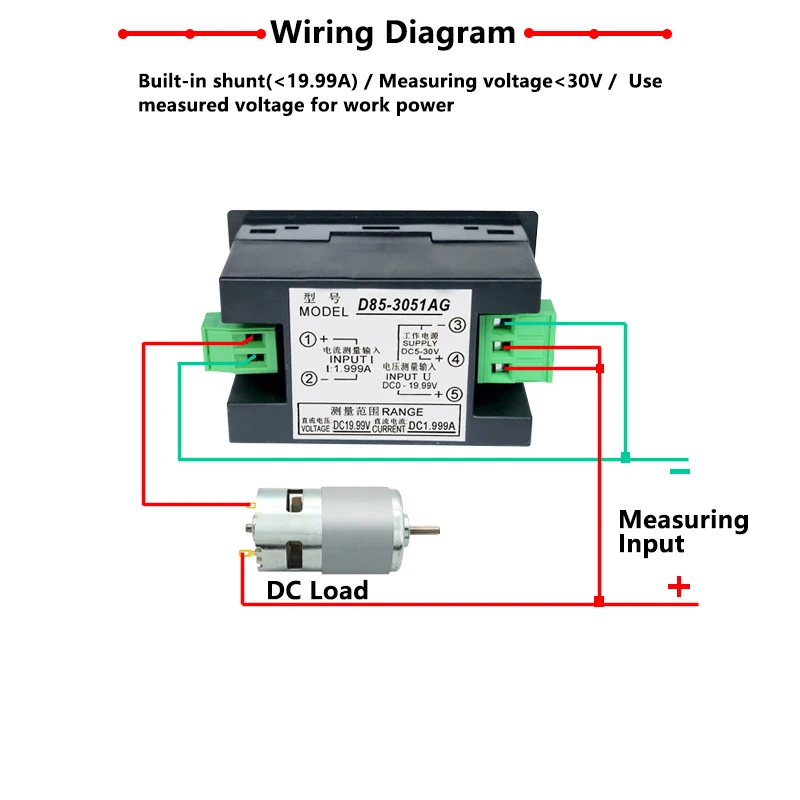

<2>DC 3-19.99V , DC 5-30.0V (measured voltage can supply as work power, so the meter do not need another working power)

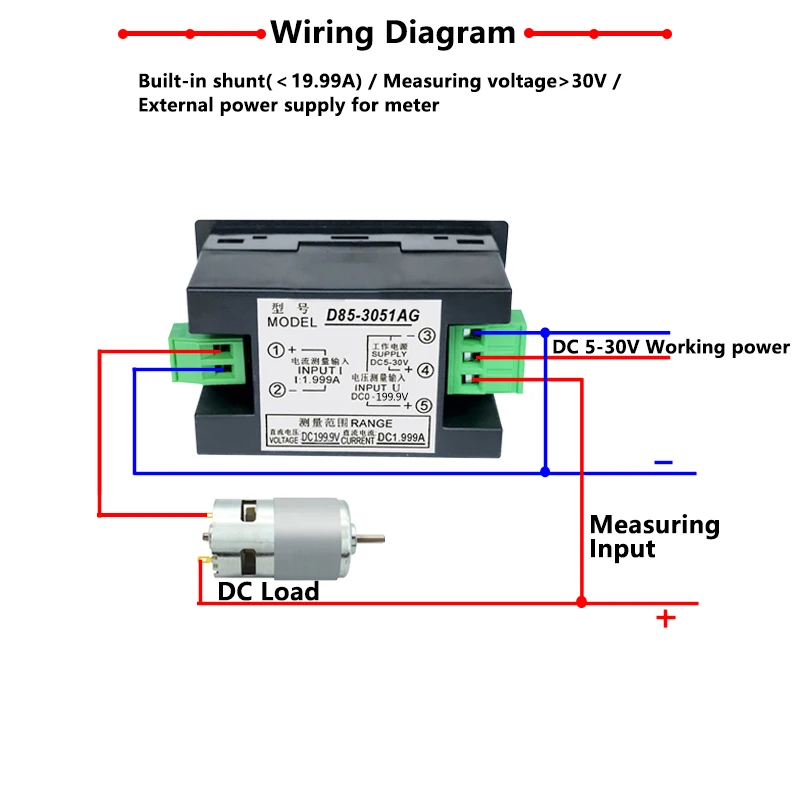

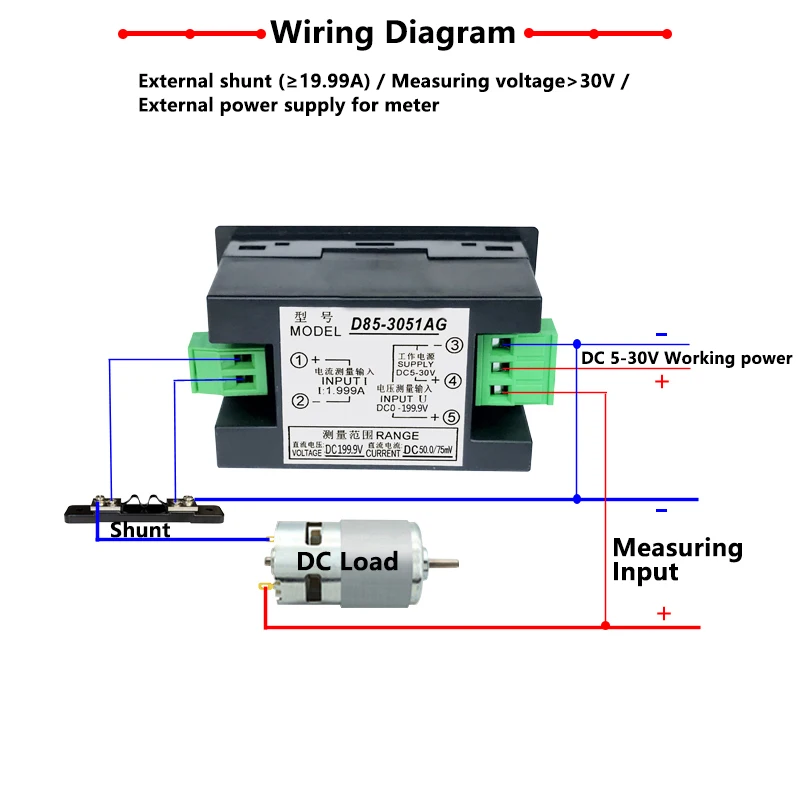

   (when let measured voltage to supply as working power, the meter measure range only from 5V to 30V, if you want the measure range start 0V or higher than 30V, you should supply another working power between 3-30V)

Current Measure range: DC 0-1.999A , 0-10A , 0-19.99.A ,50A/75mV , 100A/75mV , 200A/75mV

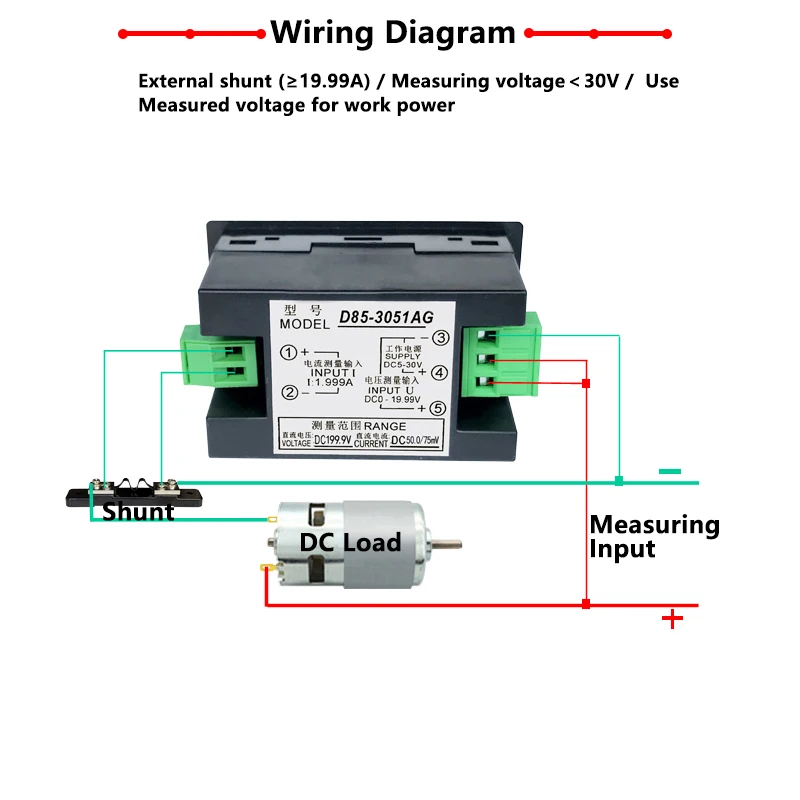

          (if current is higher than 10A, you should order the extra shunt)

Product measurement range can be customized, if there is need, please contact seller.

Package includes:

1 * DC voltage current meter (if measured current ≥20A, you will get an shunt)

1 * User guides
