Product Package：

1 x stepper motor drive

Overview:

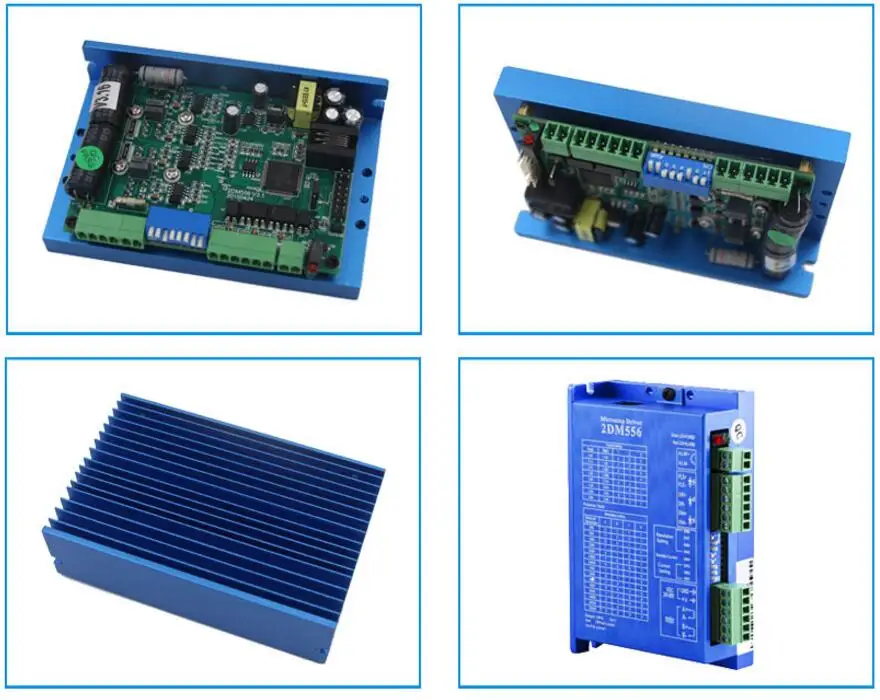

2DM556 is a digital stepping motor driver newly launched by JMK. It adopts the latest 32-bit DSP technology. Users can set the subdivision within 25600 and any multiple current values within the rated current, which can meet the application needs of most occasions. . Due to the use of built-in micro-segmentation technology, even under the conditions of low-segmentation, the effect of high-segmentation can be achieved. The low, medium and high speed operation is very stable, and the noise is ultra-low. The drive has integrated parameter auto-tuning function, which can automatically generate optimal operating parameters for different motors and maximize the performance of the motor.

Features:

New 32-bit DSP technology
Optically isolated differential signal input (26LS32)
Ultra low vibration and noise
The subdivision setting range is 2-128
Built-in high subdivision
Can drive 4, 6, 8 wire two-phase stepper motor
The current setting can be arbitrarily selected between the rated values
The current is automatically halved at rest
Impulse response frequency up to 250KHz
With protection functions such as overvoltage, undervoltage, and short circuit
Alarm output function I/O port
Alarm clear input ENA
RS232C interface can be used to download parameters through PC

Electrical indicators:

Input DC voltage range 24~60V (36V typical value)
Output current 1.4~5.6A
Input pulse frequency 250KHZ
Logic input 10MA
Pulse low time 2.5US

Use environment:

Occasion: Try to avoid dust, oil mist and corrosive gas
Working temperature: 0~+50℃
Storage temperature: -20℃~+80℃
Humidity: 40~90%RH
Cooling method: natural cooling or forced air cooling

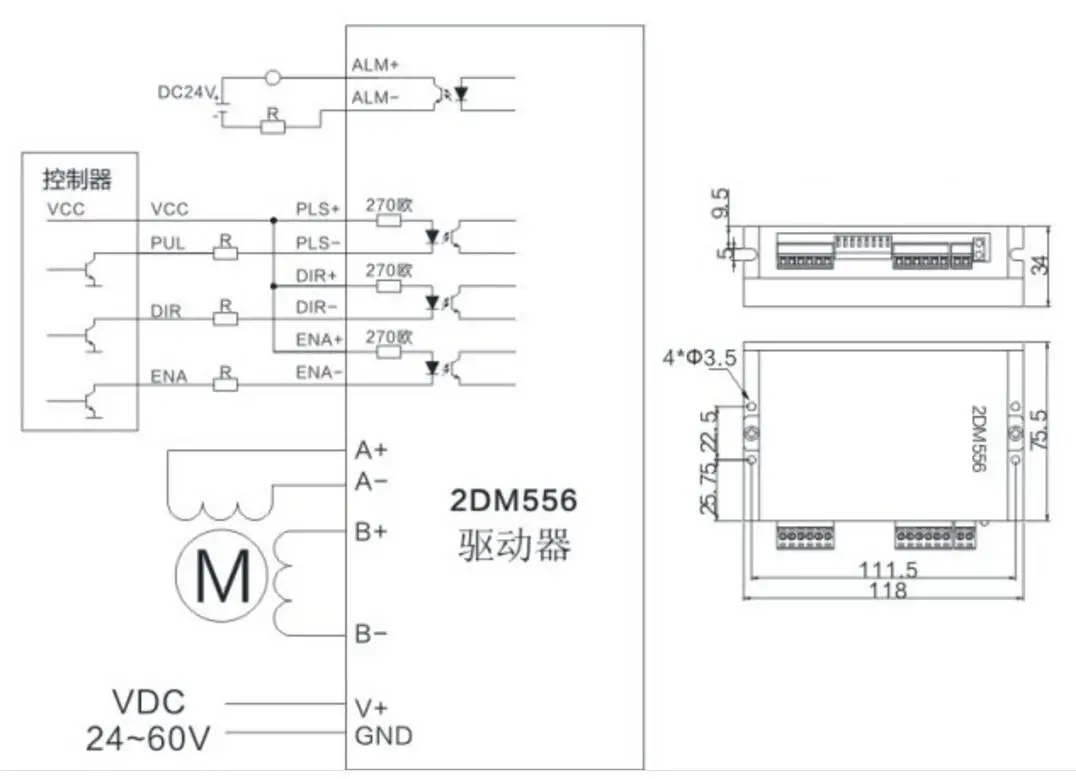

Dimensions and wiring diagram：
