Poe injector Video surveillance DC12V/15V/24V/48V plug EU/US Plug Optional For camera Power Adapter | Лампы и освещение

Poe injector Video surveillance DC12V/15V/24V/48V plug EU/US Plug Optional For camera Power Adapter | Лампы и освещение

POE power supply mode: 4.5 positive electricity 7.8 negative electricity, 1.2.3.6 is transmission.

Notice:

Please notice there is EU/US Plugs Optional Please kindly remark the plug when you order, Thank you!

Introduction:

This Non standard active PoE injector is a simple and convenient power supply equipment for PoE or Non PoE devices via only an Ethernet cable, which will save your trouble about power line cabling and save cost, while it does not have auto detection function and directly supply power to the network devices by force as soon as you connect them, please confirm your device carefully when you use it.

Features:

1. Power Output

Rated voltage: DC12V

Rated current: 2A

Power pin: 4&5(+), 7&8(-);

Data Pin: 1236

2. Power Input

Rated Voltage range: 100~240VAC

Frequency range: 50~60Hz

1. Power Output

Rated voltage: DC48V

Rated current: 0.5A

Power pin: 4&5(+), 7&8(-);

Data Pin: 1236

Network interface: 100M;

2. Power Input

Rated Voltage range: 100~240VAC

Frequency range: 50~60Hz

3. Applications:

Non PoE Device such as Access Points, Routers, other network devices.

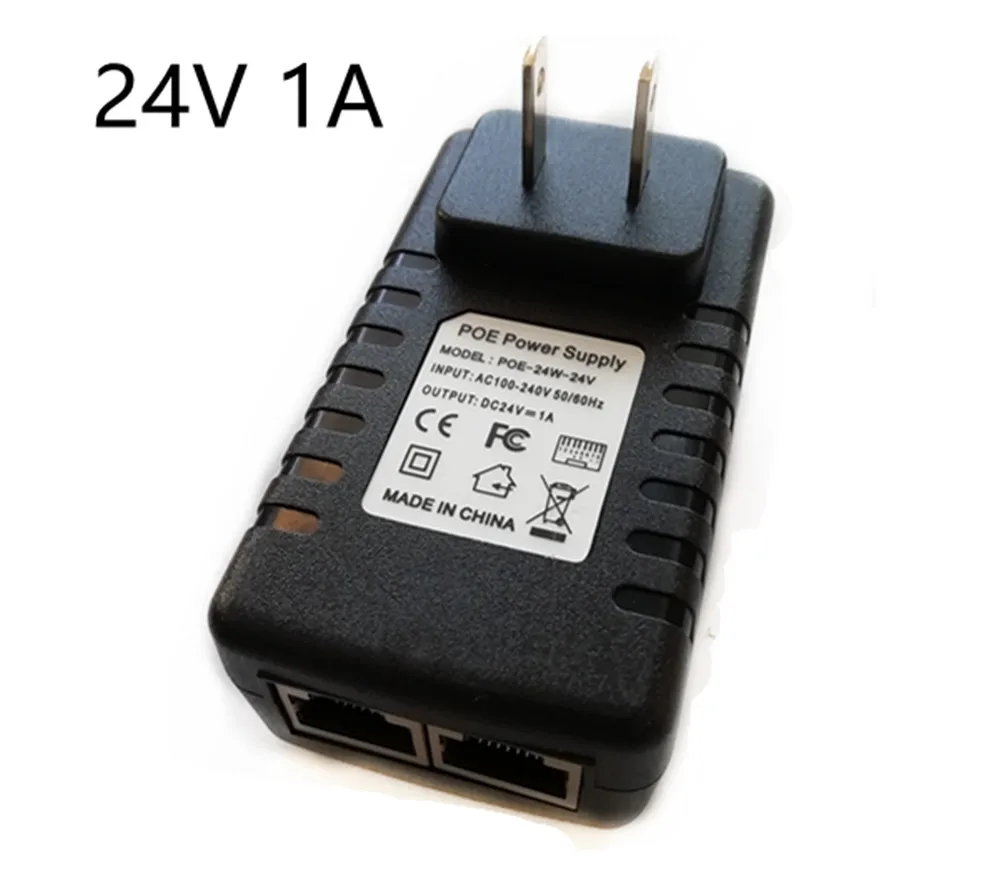

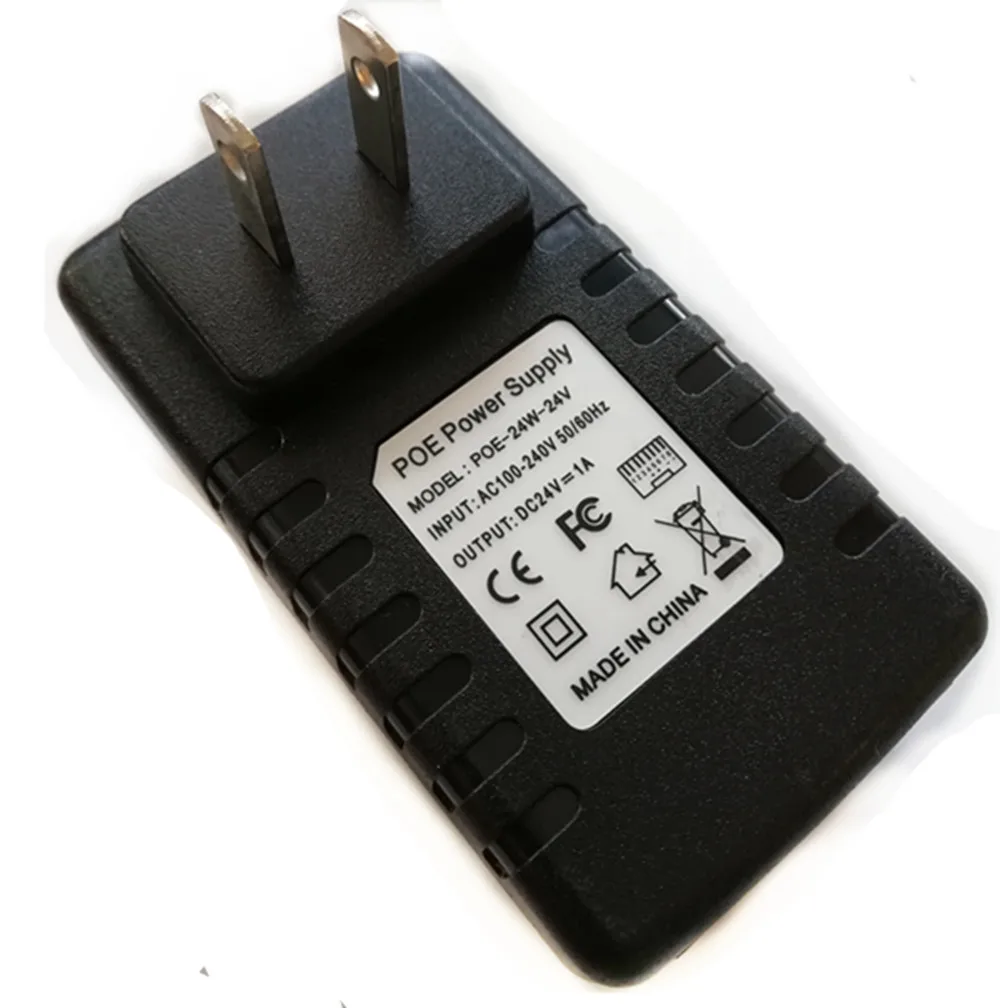

1. Power Output

Rated voltage: DC24V

Rated current: 1A

Power pin: 4&5(+), 7&8(-);

Data Pin: 1236

2. Power Input

Rated Voltage range: 100~240VAC

Frequency range: 50~60Hz

1. Power Output

Rated voltage: DC15V

Rated current: 1A

Power pin: 4&5(+), 7&8(-);

Data Pin: 1236

2. Power Input

Rated Voltage range: 100~240VAC

Frequency range: 50~60Hz
