5Megapixel hd 2592X1944 ELP Free driver autofocus industrial usb camera /web camera usb 5mp  for machine vision

Feature:

*Super high resolution 5mp USB autofocus camera module
*Can used for micro endoscope camera
*800W Auto Focus HD Lens
*5Megapixel CMOS sensor for high quality image.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate–30 fps in 1280X720 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

General Description

The HD 5Megapixel USB CMOS board camera module(model: ELP-USB500W02M serials), adopting 800W Auto Focus HD lens,
which meet those program need to see clear all kinds of distance. It is ideal for many applications like security systems, portable
video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by OmniVision OV5640,
one of the world leaders in this field of electronics.

The 5Megapixel Auto Focus USB camera are ideal for equipment manufacturers, experimenters and hobbyists.

Specification:

Optional models

ELP-USB500W02M-AFC45B  autofocus box usb camera

Sensor

1/4" CMOS OV5640

Lens size

500W, 5.0megapixel, Max. 2592(H)x1944(V)pixels

Lens

800W Auto Focus HD Lens

Max. Resolution

2592X1944

Picture format

MJPEG

USB Protocal

USB2.0 HS/FS, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

2592 (H) x 1944 (V) pixels   MJPEG 15fps      YUY2 3fps
2048 (H) x 1536 (V) pixels   MJPEG 15ps       YUY2 3fps
1600 (H) x 1200 (V) pixels   MJPEG 15fps      YUY2 3fps
1920 (H) x 1080 (V) pixels   MJPEG 15fps      YUY2 3fps
1280 (H) x 1024 (V) pixels   MJPEG 15fps      YUY2 7.5fps
1280 (H) x 720 (V) pixels    MJPEG 30fps      YUY2 7.5fps
1024 (H) x 768 (V) pixels    MJPEG 30fps      YUY2 15fps
800 (H) x 600 (V) pixels     MJPEG 30fps      YUY2 30fps
640 (H) x 480 (V) pixels     MJPEG 30fps      YUY2 30fps
320 (H) x 240 (V) pixels     MJPEG 30fps      YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

optional, can choose IR board

view angle

30 45 65 degree optional

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

Size

40*35*40mm

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.

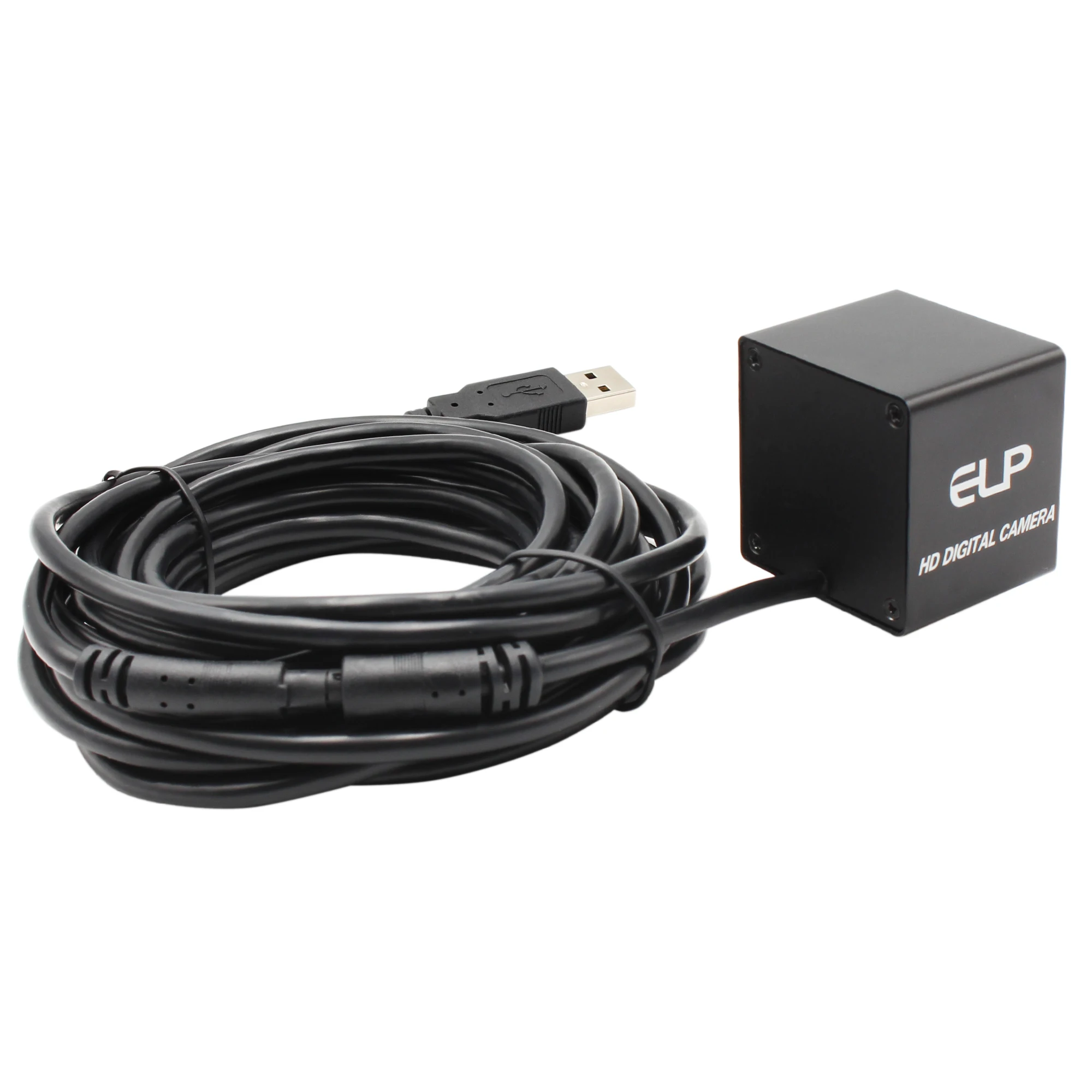

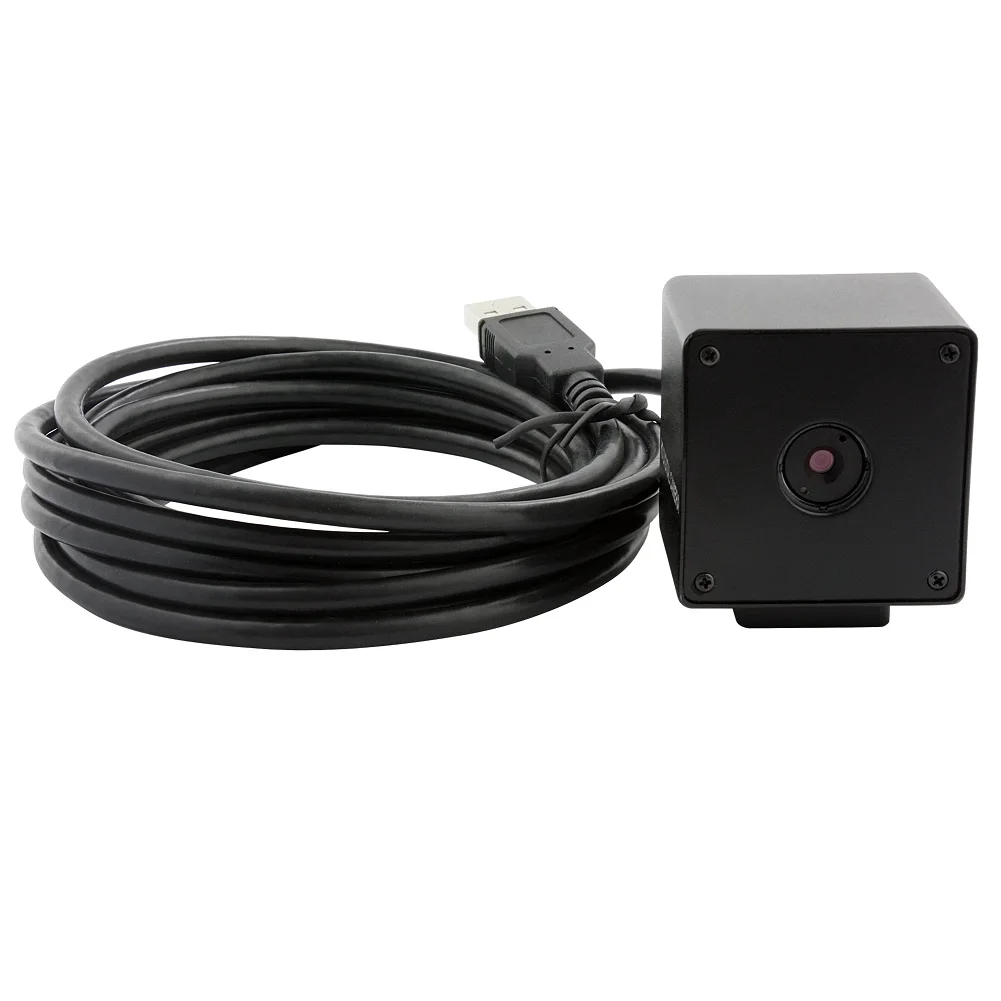

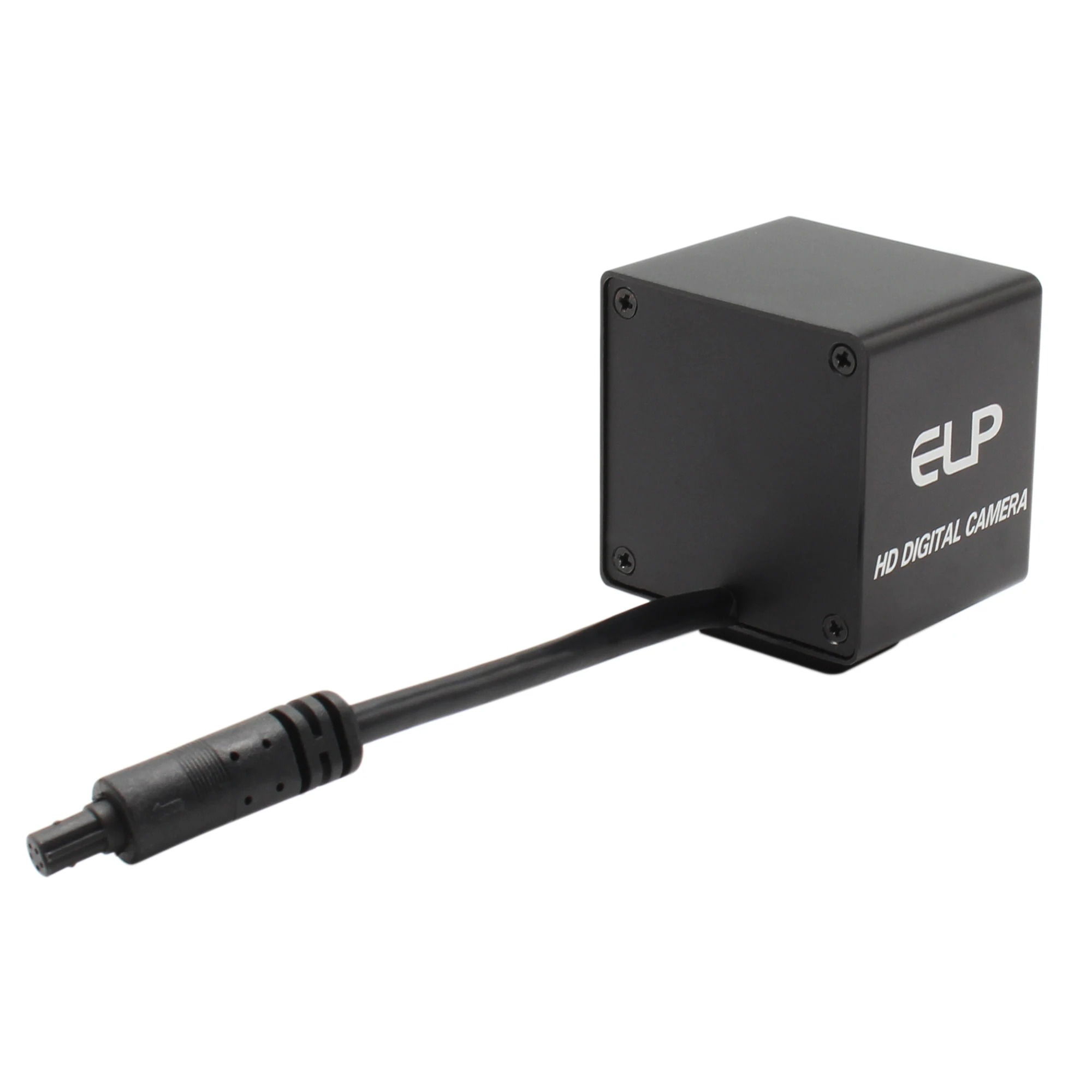

Product show:
