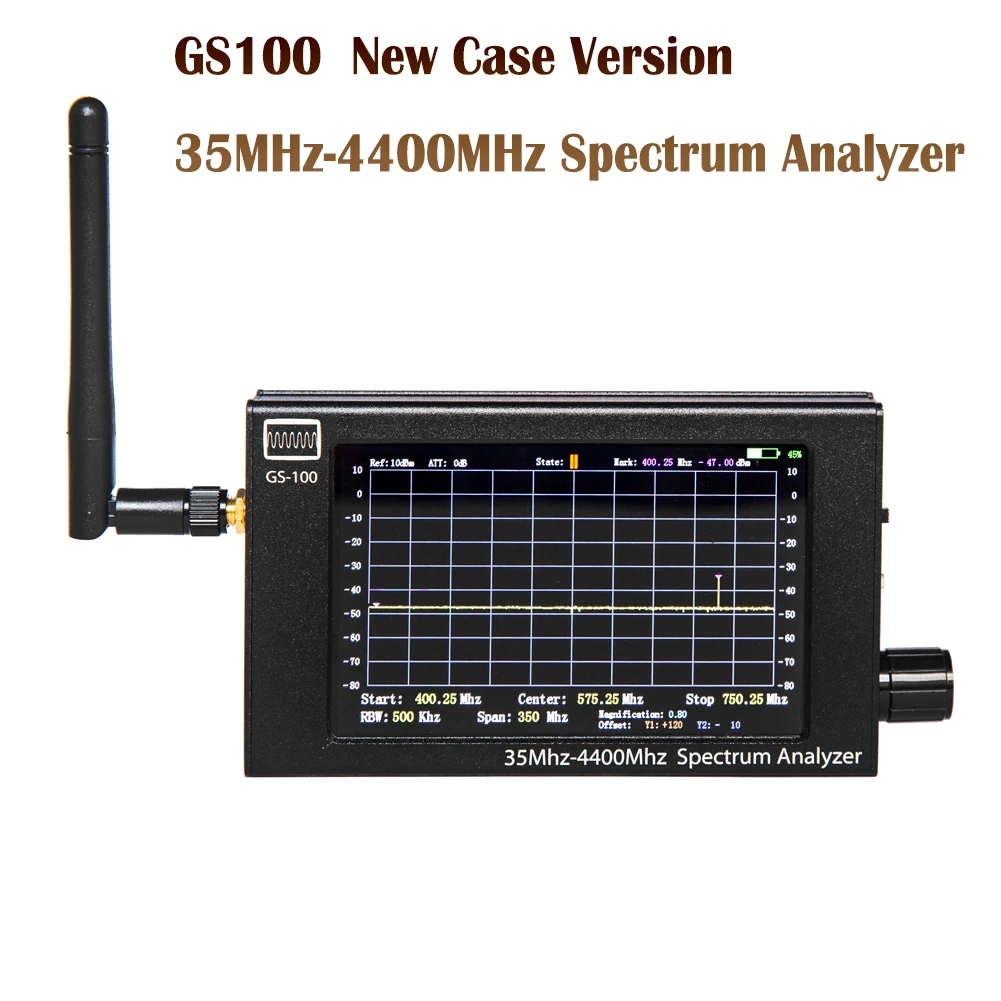

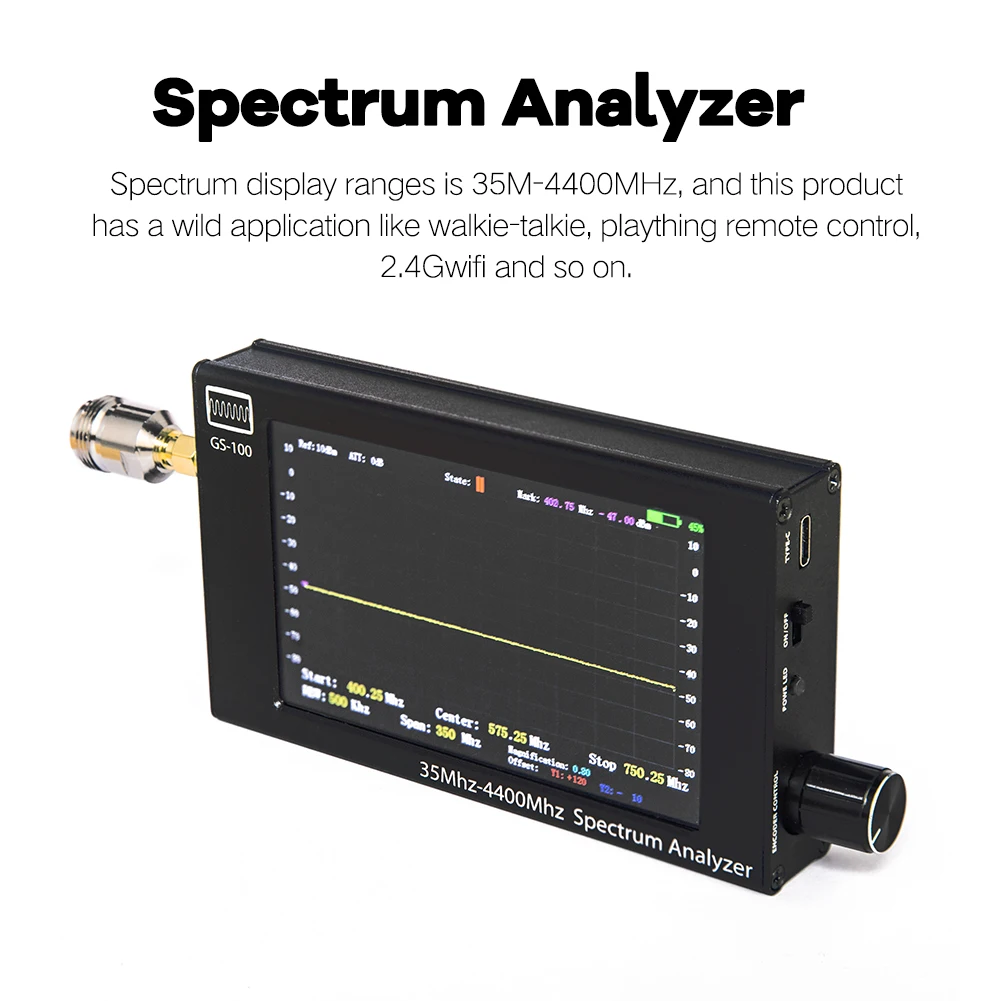

GS100 35MHz-4400MHz TFT LCD Display Screen Handheld Spectrum Analyzer Aluminum Housing Multifunction Utility Tool

Descriptions:

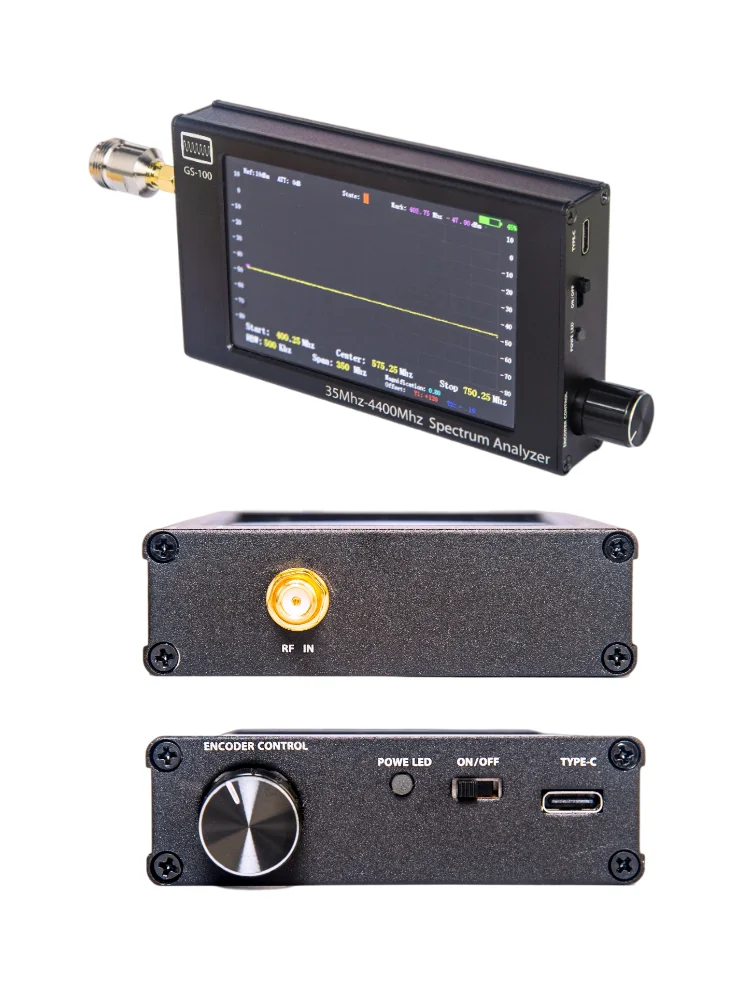

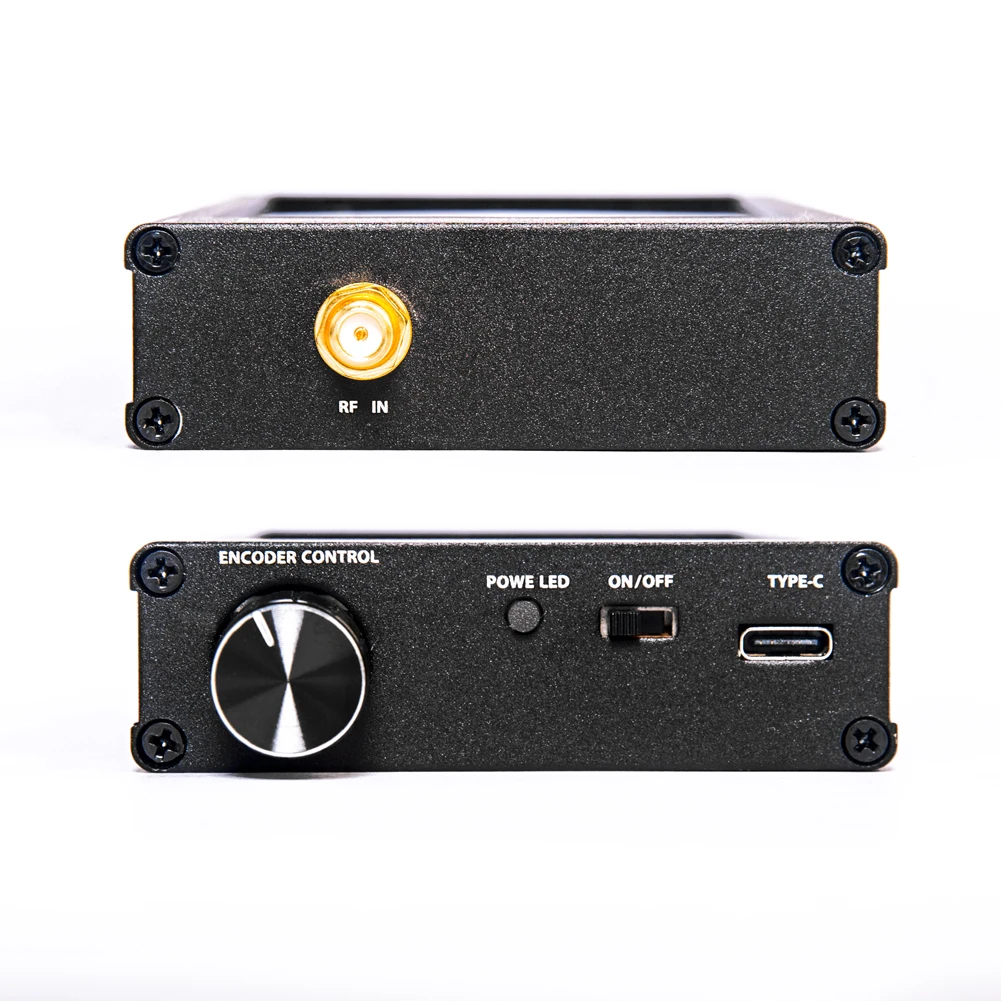

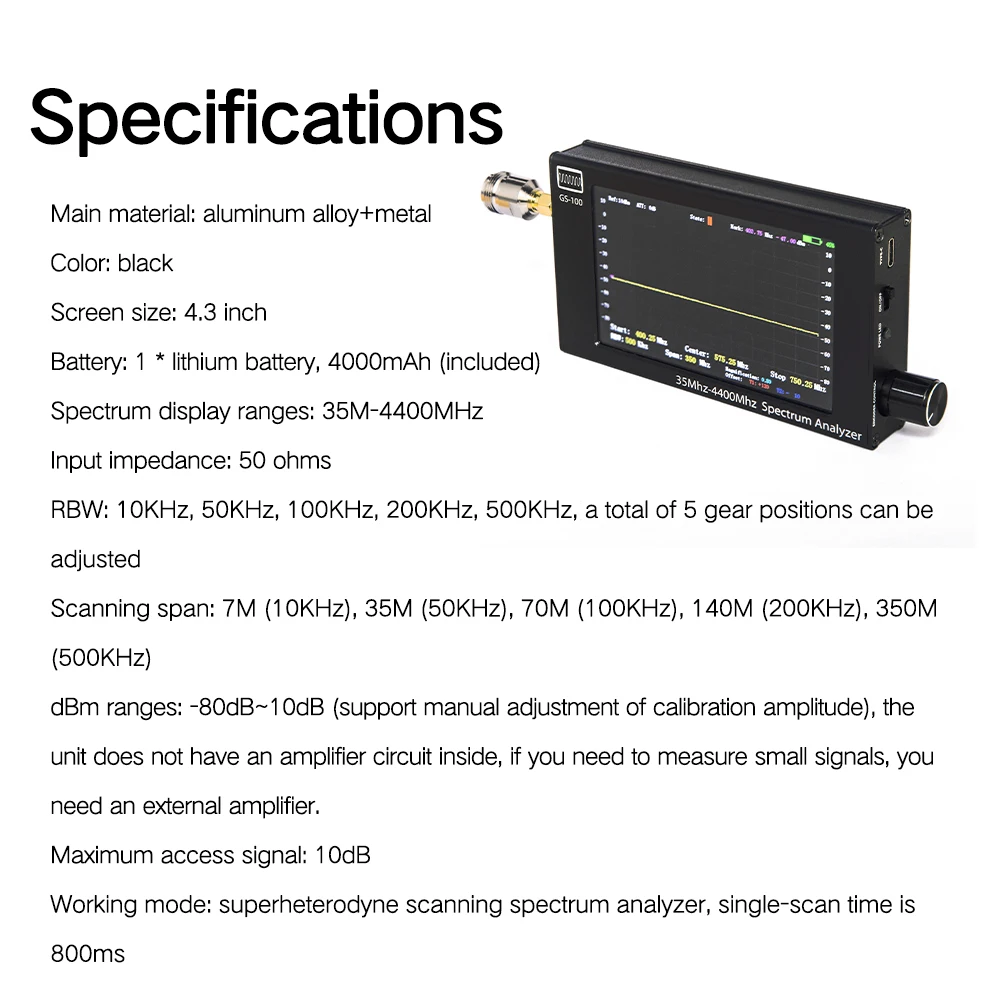

This product is an professional spectrum analyzer, which can be compatible with the professional equipment, has a wider using scope, come on and try it, it will not let you down. Features: With 4.3 inch TFT LCD display screen, which can show the data more clearly for you, give you a better using experience. Spectrum display ranges is 35M-4400MHz, and this product has a wild application like walkie-talkie, plaything remote control, 2.4Gwifi and so on. With the scientific operation settings, input RF design on the left to facilitate the use of connecting feeders. A professional N-type to SMA adapter and N/SMA-KJ connector are delivered to be compatible with all professional equipment. This product with the improved USB power su-pply interface, using a new type-c interface with higher performance and strong matching. The outer casing uses an aluminum one-time professional casing, which has a long service life, so you do not need to change it often. Specifications: Main material: aluminum alloy+metal Color: black Screen size: 4.3 inch Battery: 1 * lithium battery, 4000mAh (included) Spectrum display ranges: 35M-4400MHz Input impedance: 50 ohms RBW: 10KHz, 50KHz, 100KHz, 200KHz, 500KHz, a total of 5 gear positions can be adjusted Scanning span: 7M (10KHz), 35M (50KHz), 70M (100KHz), 140M (200KHz), 350M (500KHz) dBm ranges: -80dB~10dB (support manual adjustment of calibration amplitude), the unit does not have an amplifier circuit inside, if you need to measure small signals, you need an external amplifier. Maximum access signal: 10dB Working mode: superheterodyne scanning spectrum analyzer, single-scan time is 800ms Item size: 145 * 70 * 30mm / 5.7 * 2.8 * 1.2in Item weight: 200g / 7.1ounce Package size: 300 * 140 * 70mm / 11.8 * 5.5 * 2.8in Package weight: 280g / 9.9ounce Note: This product uses the local oscillator signal and the external test signal to obtain the difference frequency signal, and calculates the amplitude of the external test signal through the detector. Using a high accuracy VCO source, the heterodyne signal frequency can be measured very accurately. Since the scanning ranges is very large (35M-4400M), because there is no special detection circuit for the external measurement signal due to cost and other factors, the measurement amplitude may have errors. Therefore, the product increases the magnification and displacement parameters, and the user can adjust the display waveform by himself. Packing list: 1 * Spectrum Analyzer 1 * USB Cable 1 * SMA N/SMA-KJ
