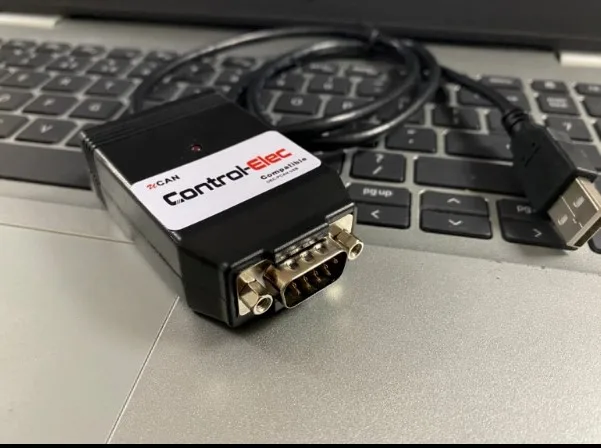

PCAN - USB interface to access the CAN network is very easy.It's small and compact plastic shell is particularly suitable for carrying.
Package also includes CAN monitor PCAN - View for Windows and PCAN - Basic programming interface.

Bit rate of up to 1 Mbit/s

Timestamp resolution about 42 mu s

Conform to the two CAN specification that is 2.0 - bit ID (11) and 2.0 B (29 - bit ID)

Through the D - Sub, 9 - pin to realize the CAN bus connection (102) abide by the CiA

NXP SJA1000 CAN controller, 16 MHz clock frequency

NXP PCA82C251 CAN transceiver

Jump through welding wire CAN connect the CAN interface 5 v power supply, such as for external transceiver

USB power supply

You can also choose to:

The fitting CAN electrical isolation is 500 v

Pin pin definition

1

No connection

2

CAN L.

3

GND

4

No connection

5

No connection

6

GND

7

CAN - H

8

No connection

9

No connection

PCAN - USB interface (plastic shell)

Device drivers for Windows 7 / Vista/XP/Linux (32/64 - bit)

Device drivers for Windows CE 6. X (support x86 and ARMv4 processor)

PCAN - View CAN monitorFor Windows

PCAN - Basic programming interfaceIncluding: an interface DLL, routines, and all the commonly used programming languages of header files.

Manual in PDF format

PCAN - USB package: Windows 7 / Vista/XP (32/64 - bit) device driver, PCAN - Basic API, PCAN ultra-light API, CAN monitor PCAN - the View, and text

PCAN - USB manual(PDF)

PCAN - Linux device driversUsed for PEAK CAN interface, since the Kernel 2.4

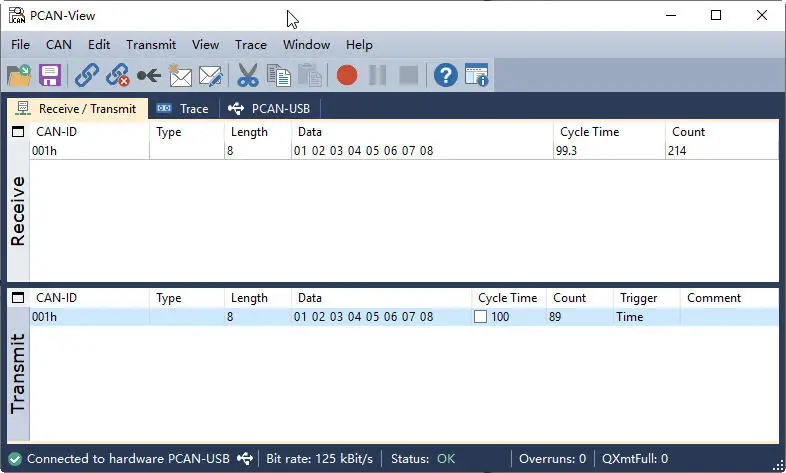

Monitoring software PCAN - View

PCAN - View is a run on the Windows operating system to check, send, and record the CAN and the CAN FD message monitoring software, real-time display errors and CAN bus hardware buffer overflow, Trace (tracer) function support record and save all the message on the bus.

PCAN - View matching PCAN PC compatible interface card, or we CAN use, CAN quickly and easily complete the hardware initialization, hardware connection dialog box lists all the available CAN card.After the selected hardware and baud rate, the user can use all the functions of the software.

Since version 4, PCAN - View support new CAN - FD standard (CAN with Flexible Data rate), CAN higher - FD main characteristic is Data transmission bandwidth.

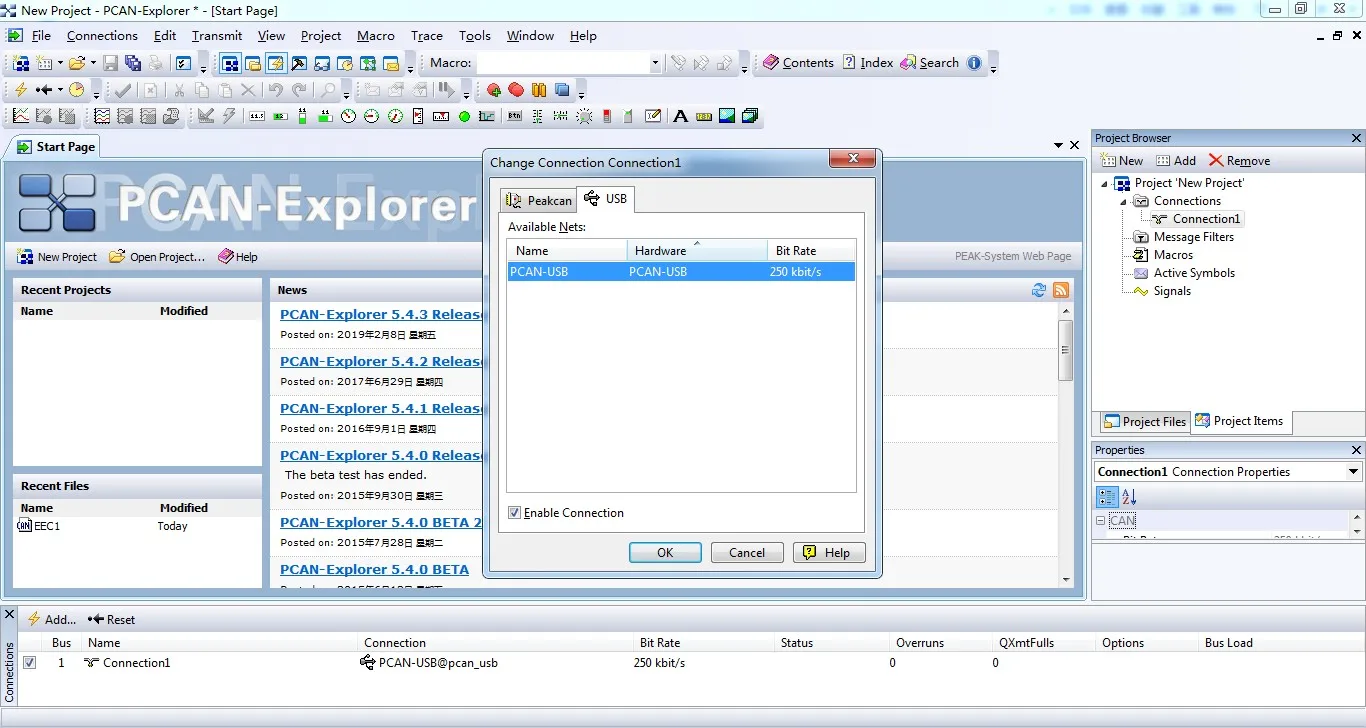

PCAN - Explorer 5 analysis software

PCAN - Explorer 5 is a comprehensive multifunctional CAN bus analyzer, support transceiver, view, record, analysis, control and simulation, CAN support the symbolic representation of a message.Integration of VBScript support to create macros automatically complete small tasks or complex tasks, integrated data recorder mean on the bus data flow can be recorded, analysis, and save.

Provide PCAN - Explorer5 software, all plug-ins and form a complete set of hardware.

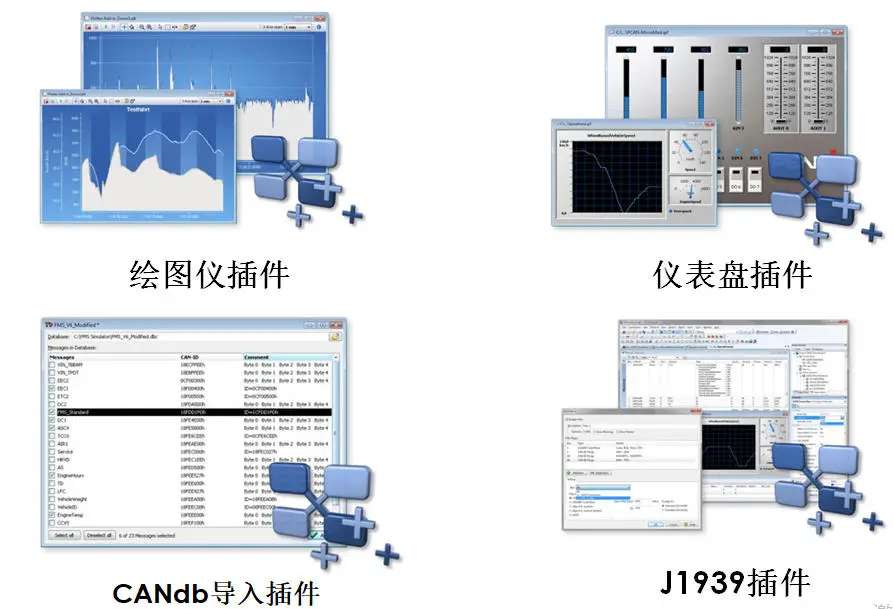

In addition, the function of the PCAN - Explorer 5 can be extended through plug-ins, we are offering a plug-in can better analyze and present data.Plotter plug-in to graphical representations of data, plug-in supports instrument board render data interface, CANdb plug-in support third-party CANdb file to import, J1939 plug-in supports J1939 protocol parsing.

Provide PCAN - Symbol Editor - CAN Symbol Editor, import CANdb file as symbolic data format, and vice versa.
