DH48JA 1-999900 Count Up Digital Counter Relay w Base AC/DC 12V 50/ 60Hz | Обустройство дома

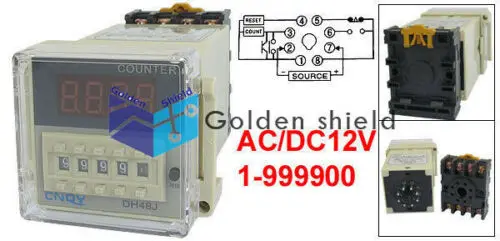

DH48JA 1-999900 Count Up Digital Counter Relay w Base AC/DC 12V 50/60Hz
Specification: Product Name Digital Counter Relay Model DH48JA Count Range 1-999900 Power Source AC/DC12V, 50/60Hz Contact AC 250V 5A ( Resistive Load) Count Speed <300cps Digit Display 4 Mounting Type Panel Mount Marerial Plastic, Electrionic Parts Color Gray Size 11 x 5.8 x 5cm/4.3'' x 2.2'' x 2'' (L*W*H) Net Weight 130g Package Content 1 x Digital Counter Relay w Base Description: This Count Relay can be used as a counting control element in the circuit control system. The cable for the input of count signal and reset signal should be a twin-cord wire, which should not too long and should grounding on the signal input end. Should not adjust the thumbwheel switch when the Counter is working. Please reset the Counter if you want to set a new value number. Should not operate in the bad environment of shaking, hitting, corrosion, dusty, static, high temperature, direct shiny. And should not use the same power supply cable with large inductive load together, such as: Motor, Electromagnet etc.
