2021 NanoVNA NanoVNA-F VNA HF VHF UHF Vector Network Antenna Analyzer + 4.3 inch IPS LCD Metal Case V3.1 Version |
Описание товара
2021 NanoVNA NanoVNA-F VNA HF VHF UHF Vector Network Antenna Analyzer + 4.3 inch IPS LCD + Metal Case V3.1 Version
This is the Push Button Switch type!!!
Newlaser typing caseis arriving, new1.5GHzmeasurement frequency on sale~~~![]()

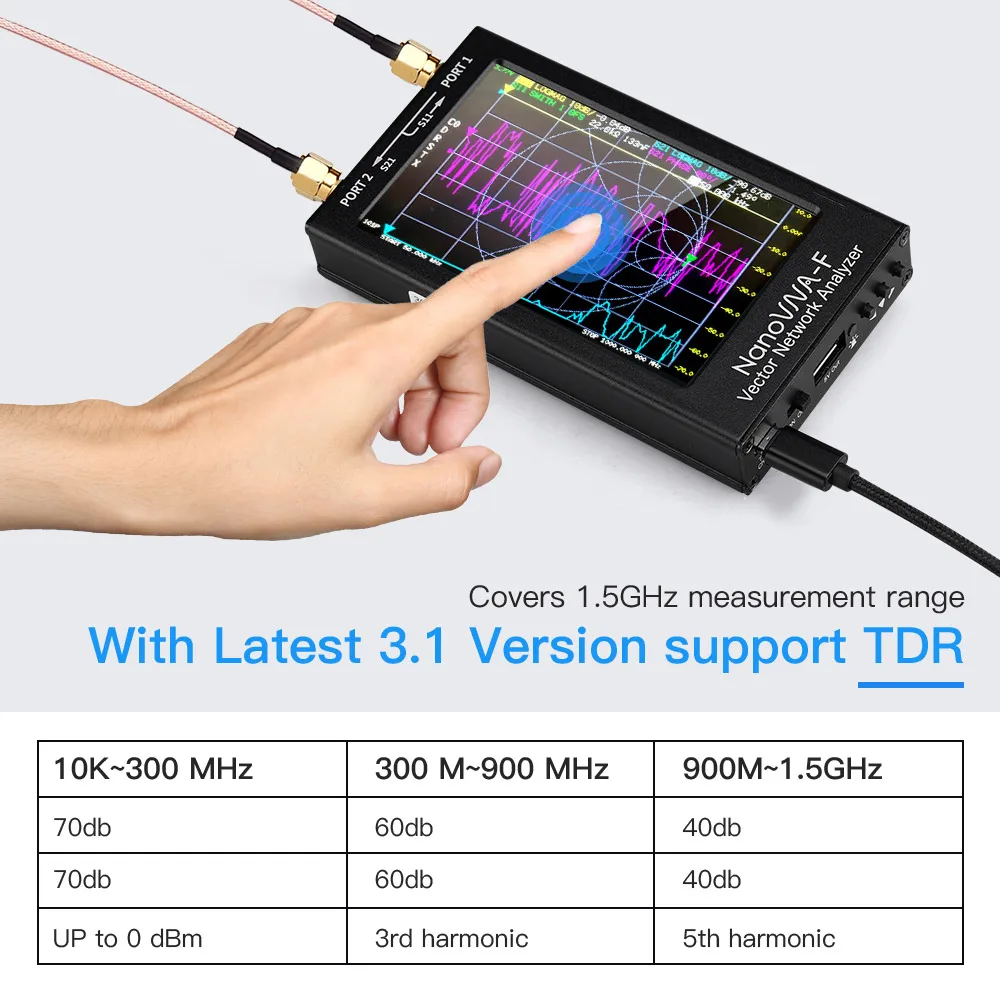

support measurable frequency to 1.5 GHz, default setting 1 GHz, accurate measurement up to 1.35GHz.
Product Description:
NanoVNA-F Mini Vector Network Analyser is a product based on the Open Source Project of NanoVNA (//ttrf.tk/kit/nanovna/). The RF part is consistent with the original version (NanoVNA-F uses harmonic spread measurementfrequency to 1 GHz).NanoVNA-F hardware functions include and are not limited to the following improvements:1. Use4.3-inch IPS TFT LCDscreen, with a larger view angle and can be seen clearly in strong outdoor light.2. Switch to large capacity5000mAh lithium battery, standby time is longer, and expand a USB interface. Usually, it can be used as a rechargeable treasure when the instrument is not used.3. The IC is charged by high current 2A, and the charging time is shorter.4. Change to larger and better operating wave wheel.5. Switch to a power switch with a greater sense of operation and a better sense of operation.6. Support Chinese and English menu switching;7. Upgrade the user program by virtual U disk.8. Standard aluminium shell to protect SMA head and reduce the interference of external electromagnetic wave to instrument.8. Software open source github.com/flyoob/NanoVNA-F
The hardware block diagram of NanoVNA-F is as follows
NanoVNA-F measurement range is50k-1GHz. The harmonic spread measurement frequency of the output signal of the clock chip SI5351 is 1000MHz. At 600M-1GHz, the dynamic range of S11 is 40dB (standing wave ratio is less than 1.02). At the same time, a metal shield is designed for the RF front-end, so that the dynamic range of S21 is better than 60dB in the whole frequency band.
This is the V3.1 Version

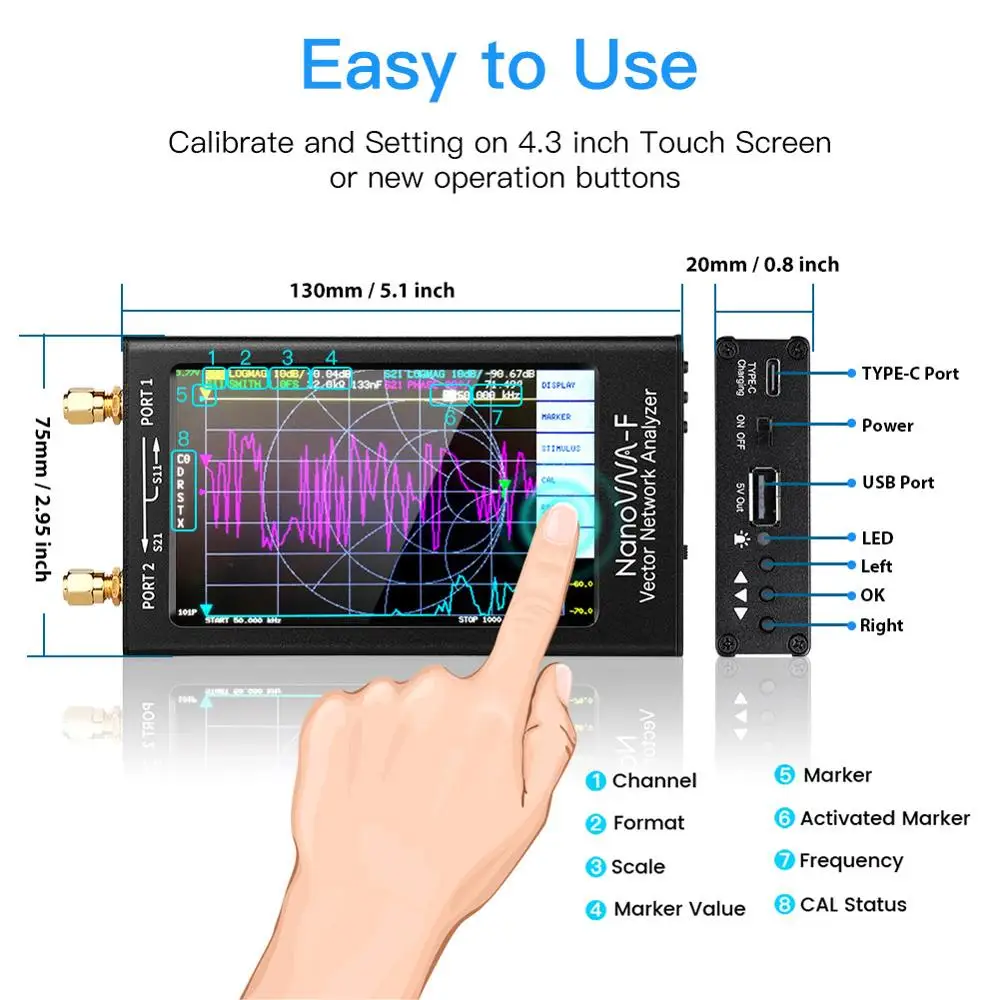

Features:Dimensions: 14CM * 7.5CM * 2CM (length, width and height)Measuring Frequency: 50kHz ~ 1000MHzRF output: - 13 DBM (maximum - 9 dbm)Frequency accuracy: < 0.5 ppmPort SWR: < 1.1Display: 4.3 inch IPS TFT (800x480)USB Interface: USB Type-C Communication Mode: CDC (Serial)Power consumption: USB 5V 200mA, built-in 5000mAh battery, theoretical life of 18 hours, maximum charging current 2AOutput capability: 5V/1A, supporting Android and Apple phonesNumber of calibration points: 101Number of scanning points: 101Display Tracking: 4, Mark: 4, Settings Save: 5Scanning time: about 1.9s/time (50kHz-1000MHz full frequency band)Measurable S parameters, voltage standing wave ratio SWR, phase diagram, group delay, Smith circle diagram... ;19.0Wh (about 5000mAh after conversion) large capacity lithium battery
Designing a metal shield for the RF front end, allowing the S21 to have a dynamic range better than 60dB over the full frequency rangepower bank fuction: 5V/1A ,Supporting Android and Apple Mobile
Open route length test:

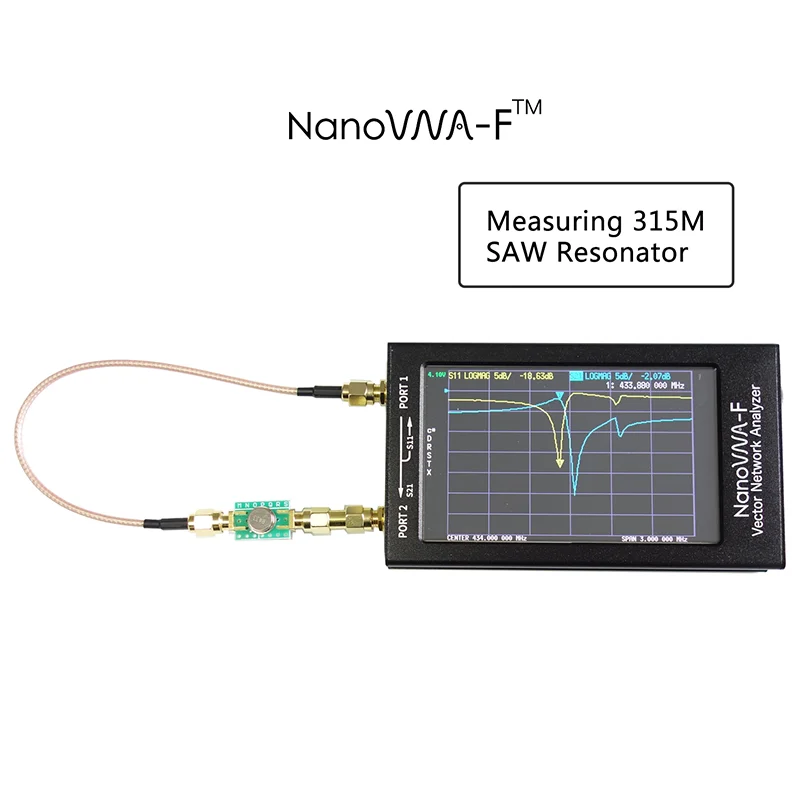

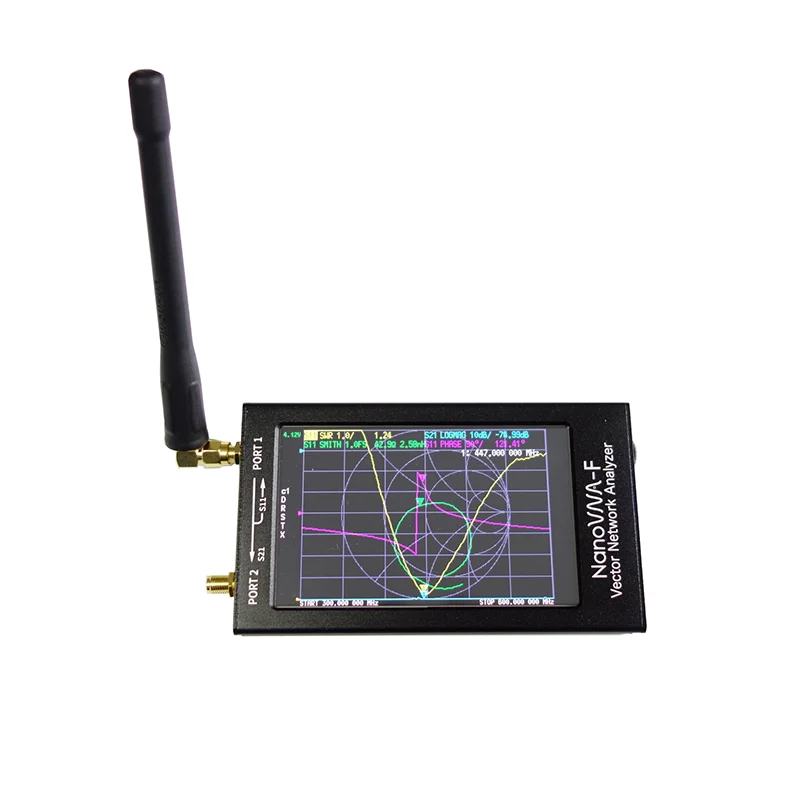

NanoVNA-F S11 parameter, SWR standing wave ratio testUV9D antenna U-band standing wave ratio measurement, starting frequency: 300M, termination frequency: 600M, standing wave minimum frequency 441.000000MHz, SWR = 1.03.S21 insertion loss measurement, low pass, high pass, band pass filter measurementMeasuring 6.5M Ceramic Notch with NanoVNA-FMeasuring 10.7M ceramic filter using NanoVNA-FA self-made low-pass filter was measured using the NanoVNA-F with a 3dB bandwidth of approximately 400MHz.Performance comparison, E5071C four-port vector network vs NanoVNA-F
This item can use as a Power Bank, but it can work with Android Phone only!Package list;
This is the Push Button Switch type!!!
Newlaser typing caseis arriving, new1.5GHzmeasurement frequency on sale~~~
support measurable frequency to 1.5 GHz, default setting 1 GHz, accurate measurement up to 1.35GHz.
Product Description:
NanoVNA-F Mini Vector Network Analyser is a product based on the Open Source Project of NanoVNA (//ttrf.tk/kit/nanovna/). The RF part is consistent with the original version (NanoVNA-F uses harmonic spread measurementfrequency to 1 GHz).NanoVNA-F hardware functions include and are not limited to the following improvements:1. Use4.3-inch IPS TFT LCDscreen, with a larger view angle and can be seen clearly in strong outdoor light.2. Switch to large capacity5000mAh lithium battery, standby time is longer, and expand a USB interface. Usually, it can be used as a rechargeable treasure when the instrument is not used.3. The IC is charged by high current 2A, and the charging time is shorter.4. Change to larger and better operating wave wheel.5. Switch to a power switch with a greater sense of operation and a better sense of operation.6. Support Chinese and English menu switching;7. Upgrade the user program by virtual U disk.8. Standard aluminium shell to protect SMA head and reduce the interference of external electromagnetic wave to instrument.8. Software open source github.com/flyoob/NanoVNA-F
The hardware block diagram of NanoVNA-F is as follows
NanoVNA-F measurement range is50k-1GHz. The harmonic spread measurement frequency of the output signal of the clock chip SI5351 is 1000MHz. At 600M-1GHz, the dynamic range of S11 is 40dB (standing wave ratio is less than 1.02). At the same time, a metal shield is designed for the RF front-end, so that the dynamic range of S21 is better than 60dB in the whole frequency band.
This is the V3.1 VersionFeatures:Dimensions: 14CM * 7.5CM * 2CM (length, width and height)Measuring Frequency: 50kHz ~ 1000MHzRF output: - 13 DBM (maximum - 9 dbm)Frequency accuracy: < 0.5 ppmPort SWR: < 1.1Display: 4.3 inch IPS TFT (800x480)USB Interface: USB Type-C Communication Mode: CDC (Serial)Power consumption: USB 5V 200mA, built-in 5000mAh battery, theoretical life of 18 hours, maximum charging current 2AOutput capability: 5V/1A, supporting Android and Apple phonesNumber of calibration points: 101Number of scanning points: 101Display Tracking: 4, Mark: 4, Settings Save: 5Scanning time: about 1.9s/time (50kHz-1000MHz full frequency band)Measurable S parameters, voltage standing wave ratio SWR, phase diagram, group delay, Smith circle diagram... ;19.0Wh (about 5000mAh after conversion) large capacity lithium battery
Designing a metal shield for the RF front end, allowing the S21 to have a dynamic range better than 60dB over the full frequency rangepower bank fuction: 5V/1A ,Supporting Android and Apple Mobile
Open route length test:
NanoVNA-F S11 parameter, SWR standing wave ratio testUV9D antenna U-band standing wave ratio measurement, starting frequency: 300M, termination frequency: 600M, standing wave minimum frequency 441.000000MHz, SWR = 1.03.S21 insertion loss measurement, low pass, high pass, band pass filter measurementMeasuring 6.5M Ceramic Notch with NanoVNA-FMeasuring 10.7M ceramic filter using NanoVNA-FA self-made low-pass filter was measured using the NanoVNA-F with a 3dB bandwidth of approximately 400MHz.Performance comparison, E5071C four-port vector network vs NanoVNA-F

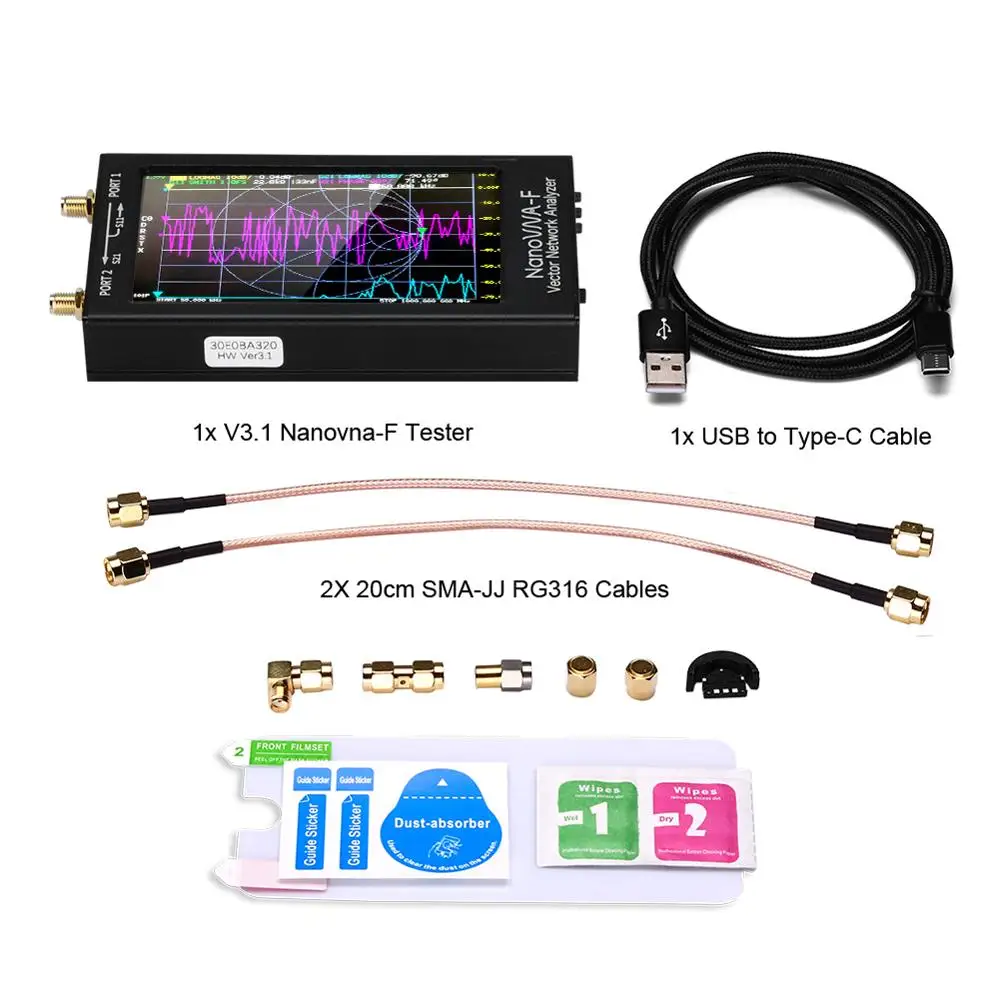

This item can use as a Power Bank, but it can work with Android Phone only!Package list;Nanovna meter x1
SMA-JJ RG316 cable 20CM x2 (NanoVNA-F is a standard SMA female connector, which is used to switch to M head and N head to better protect SMA female)
1 set of calibration parts (50Ω standard load x1, open circuit calibration piece x1, short circuit calibration piece x1, use the included calibration piece, the instrument can be calibrated to get good measurement result data)
SMA-JJ double needle x1
SMA elbow external screw inner hole to inner screw inner needle x1
Type-C data cable x1
