Please note: this refrigerating film has high power. Do not buy this refrigerating film if you change the water dispenser or car refrigerator! ! ! ! If you don’t consult and buy, you can’t use it and refuse to return!

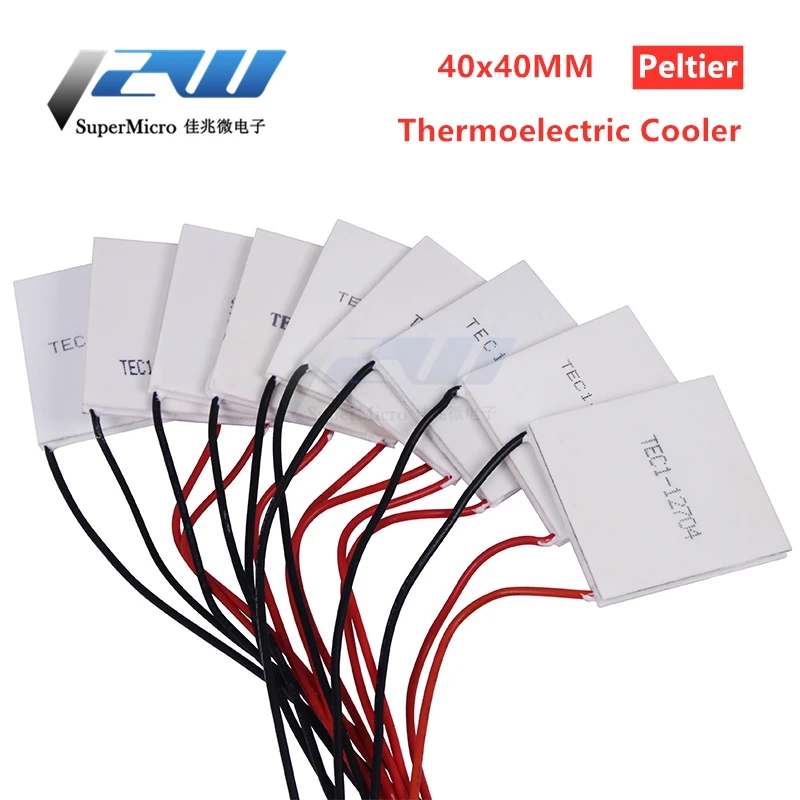

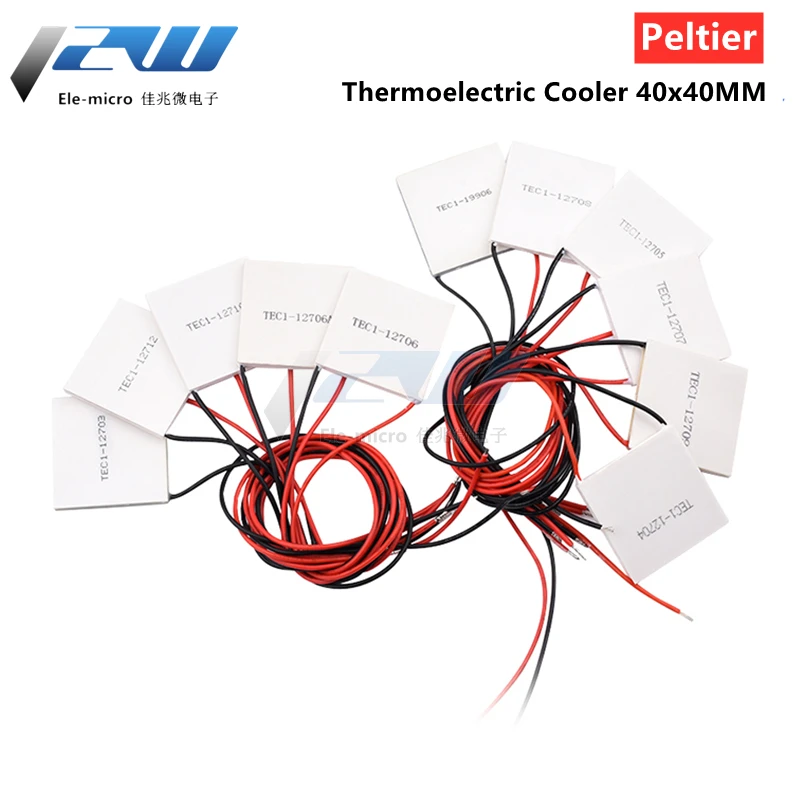

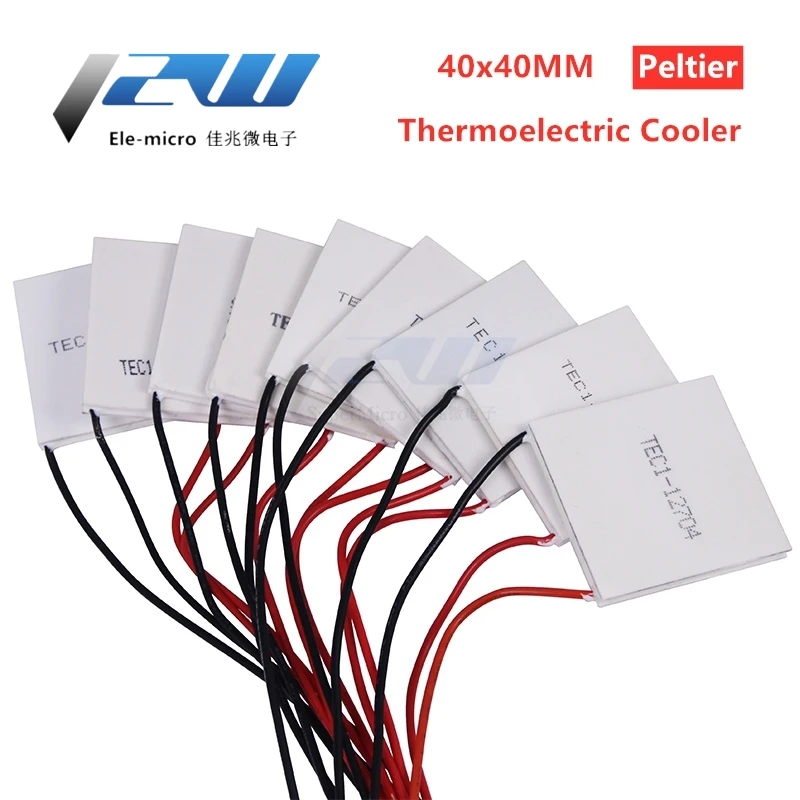

TEC1-12703 40 * 40 12V3A Model: TEC1-12703 Rated voltage: 12V Rated current: 3A Cooling capacity: 29.7 W Maximum temperature difference: 65 ° Dimensions: 40 * 40 * 4.6 Positive and negative: positive red, negative black TEC1-12704 40 * 40 12V4A Chip Type: TEC1-12704 Overall dimensions: 40 * 40 * 4.0mm item 127 Cable specification: Cable length 300 + 5mm RV standard single head cable 5mm Tin-plated Internal resistance: 3.0 ~ 3.3 ohm (ambient temperature 23-1 DEG C, 1kHZ Ac) Maximum temperature: Tmax (Qc = 0) 63 degrees C. Operating current: Imax = 4A (rated voltage) Rated voltage: DC12V (Vmax: 15.5V) Cooling power: Qcmax 36W Mounting pressure: 85N / cm2 Working Environment: Temperature range -55 degrees C to 83 C (high ambient temperature will directly affect the efficiency of refrigeration) Packing: 704 standard silicone rubber seal Packing standard: Foam packing box, storage conditions room temperature -10 C ~ 40 C Storage conditions: -40 ~ 60 TEC1-12705 40 * 40 Chip Type: TEC1-12705 Dimensions: 40 * 40 * 3.8mm item number 127 in Internal resistance: 2.5 ~ 2.8Ω (23 ± 1.1kHZ ambient temperature Ac test) Maximum temperature: Tmax (Qc = 0) more than 67. Operating current: Imax = 4.3-4.6A (nominal at 12V) Rated voltage: 12V (Vmax: 15V starting current 5.8A) Cooling power: Qcmax 50-60W Working environment: Temperature range -55 ~ 83 (high ambient temperatures drop directly affect the cooling efficiency) Packaging process: standard four week 704 silicone rubber seal TEC1-12706 40 * 40 Chip Type: TEC1-12706 Outside dimensions: 40 * 40 * 3.75mm Internal resistance: 2.1 ~ 2.4Ω (23 ± 1'C ambient temperature, 1kHZ Ac test) The maximum temperature difference: Tmax (Qc = 0) above 59 ° C. Operating current: Imax = 4.3-4.6A (nominal at 12V) Rated voltage: 12V (Vmax: 15V starting current 5.8A) Cooling power: Qcmax 55W Working environment: Temperature range -55'C ~ 83'C (high environmental temperature drop directly affects the cooling efficiency) TEC1-12708 40 * 40 Chip Type: TEC1-12708 Outside dimensions: 40 * 40 * 3.5mm Internal resistance: 1.5 ~ 1.8 Ω (23 + / -1 degree, ambient temperature 1KHZ Ac test) The largest temperature difference: delta Tmax (Qc = 0) more than 67 degrees Operating current: Imax = 8 (Rated voltage start) Rated voltage: DC12V (Vmax: 15.5V) Cooling power: 77w Qcmax Mounting pressure: 85 n / cm2 Operating conditions: Temperature range and 55 degrees ~ 83 degrees (high ambient temperature will directly affect the cooling efficiency) Encapsulation process: standard around 704 silicone rubber seal Packing: bubble box packing, storage conditions -10 degrees to 40 degrees ambient temperature TEC1-12709 40 * 40MM Chip Model: tec1-12709 Overall dimensions: 40 * 40 * 3.5mm Component Logarithm 127 pairs Wire specification: Long lead 300 ± 8mm RV single head standard conductor 5mm Tin-plated Internal resistance: 1.4 ~ 1.5 & omega; (ambient temperature 23 ± 1 °, 1kHZ AC test) Maximum temperature difference: 62 ° above Operating current: imax = 7.1A (maximum voltage. 5V starting 9A) Nominal voltage: literal $ (maximum voltage: 5V) Cooling power: 86W (the high temperature of the cooling surface will reduce the cooling power) Mounting pressure: 85n / cm2 Working environment: Temperature range -55 ° ~ 83 ° (high ambient temperature will directly affect the cooling efficiency) Packing process: environmental standard 704 silicone rubber seal Packaging standards: foam box packaging, storage conditions room temperature -10 ° ~ 40 ° Storage conditions: -40 ~ 60 ° Power requirements: 12V single voltage, 9A current above the Power supply works (series and parallel use) Device characteristics: Positive red line, negative black line (there is cooling surface, no literal heat dissipation surface)

TEC1-12710 40 * 40 Chip: TEC1-12710 Dimensions: 40 * 40 127 * 3.4mm logarithmic components Cable Specifications: 300 +/- 5mm long, single head RV lead wire, 5mm tin plated Internal resistance value: 1.2 ~ 1.5 Ω (23 +/- 1 degree, ambient temperature 1KHZ Ac test) Maximum temperature difference: delta Tmax (Qc = 0) above 60 degrees. Operating current: Imax = 10 at voltage (vmax 15 start) Rated voltage: DC12V (Vmax: 15.5V) Cooling power: 92w Qcmax Mounting pressure: 85 n / cm2 Operating conditions: Temperature range and 55 degrees ~ 83 degrees (high ambient temperature will directly affect the cooling efficiency) Encapsulation process: standard around 704 silicone rubber seal Packing: bubble box packing, storage conditions -10 degrees to 40 degrees ambient temperature Storage conditions: - 40 ~ 60 degrees TEC1-12712 40 * 40 Type: TECI-12712 Couples: 127 Imax (a): 12 Umax (V): 15.4 Qcmax (w) T = 0: 109 Tmax (°) Qc = 0: 68 Size: 40 * 40 * 3.4mm TEC1-12715 40 * 40 Model: TEC1-12715 Size: 40mm x 40mm x 4mm Operates from 0 ~ 15.4V DC and 0 ~ 15A Operating temperature: -40 to 90 Maximum power consumption: 165 watts

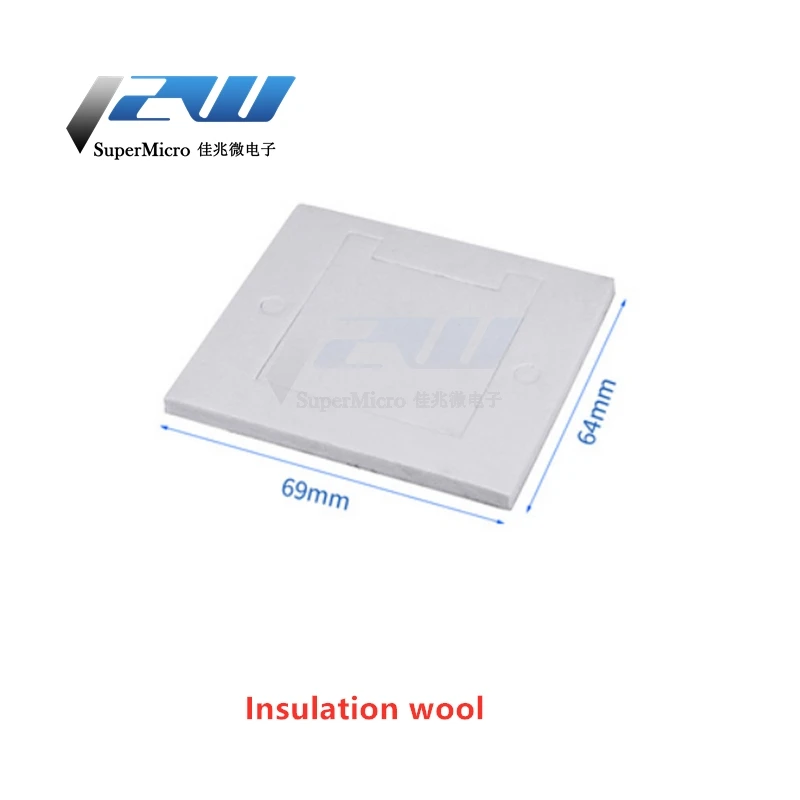

Insulating Cotton Washer for TEC1-12706 Peltier Thermoelectric Cooler

Product Features: Insulating Cotton Washer for TEC1-12706 Peltier Thermoelectric Cooler with Side Stickers Dimensions: 40mm x 40mm x 3.8mm

Description:

Get ice cold in minutes or hot to boiling by simply turning the polarity, used for numerous applications from CPU coolers to alternate power sources, or even your own Custom car beverage warmer / cooler. Since it is mainly semiconductor material Sandwiched between ceramic plates and have no moving parts These devices must be used in conjunction with a heat sink to avoid burns Every device is fully inspected and tested
