Description:

It is a learning code wireless remote control switch (receiver), the output way /working way can be changed as you like, it is easy to match the transmitter. It has 4 Relays which can make the equipment turn or reverse, on/off and so on come true. The volume is small and the performance is stable and reliable, high receive sensitivity.

Features:

100% brand new and high quality. 1. It covers application ranging from simple domestic remote control to autonomous control, like auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security etc. 2. These remote controls are designed to control a wide variety of electronic devices with a wireless signal. 3. Extremely easy to set up and use. 4. Compatible with 2262 / 2260 / 1527 / 2240 etc chip and several code wireless remote control.

Package 1 Included:

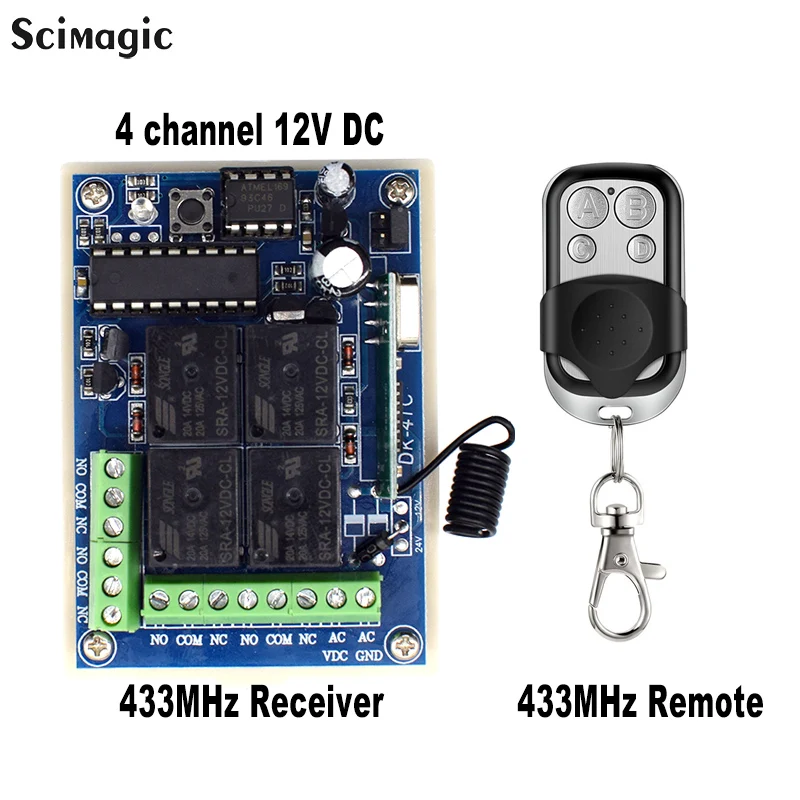

1pcs 4ch 12V DC 433MHz receiver

Package 2 Included:

1pcs learning code remote control

Package 3 Included:

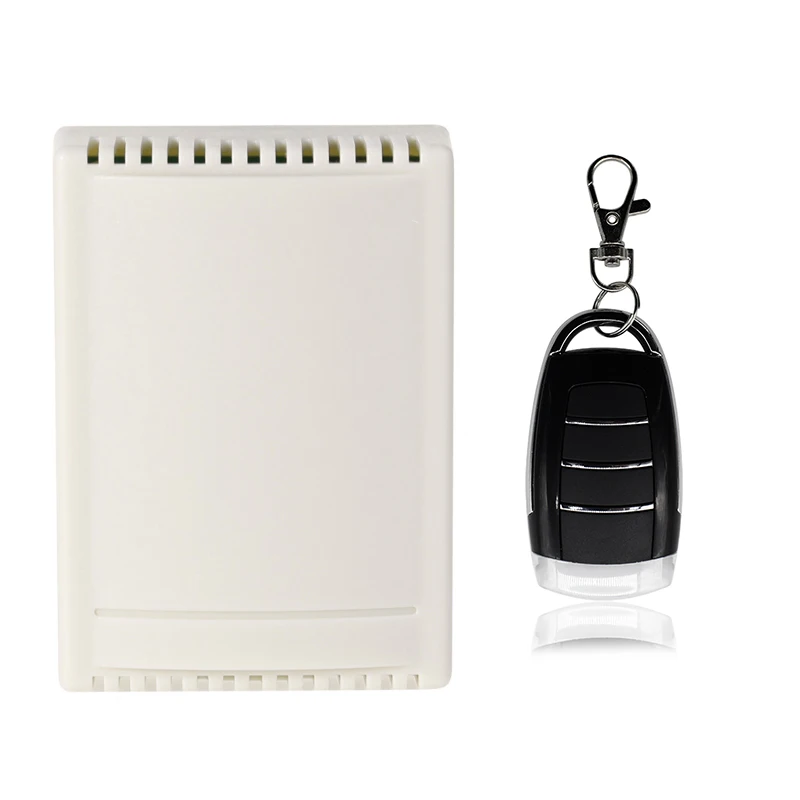

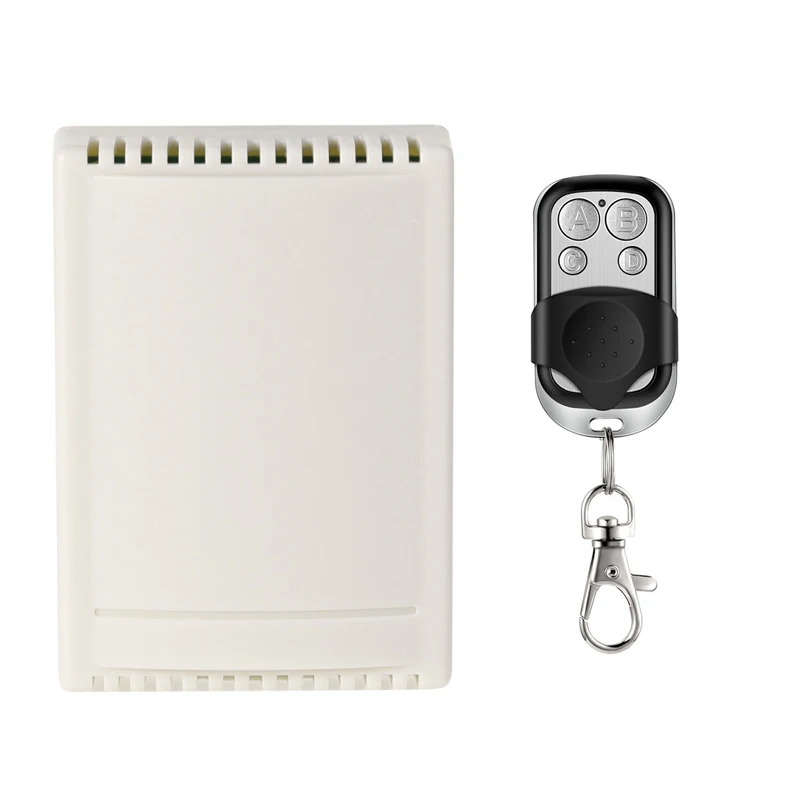

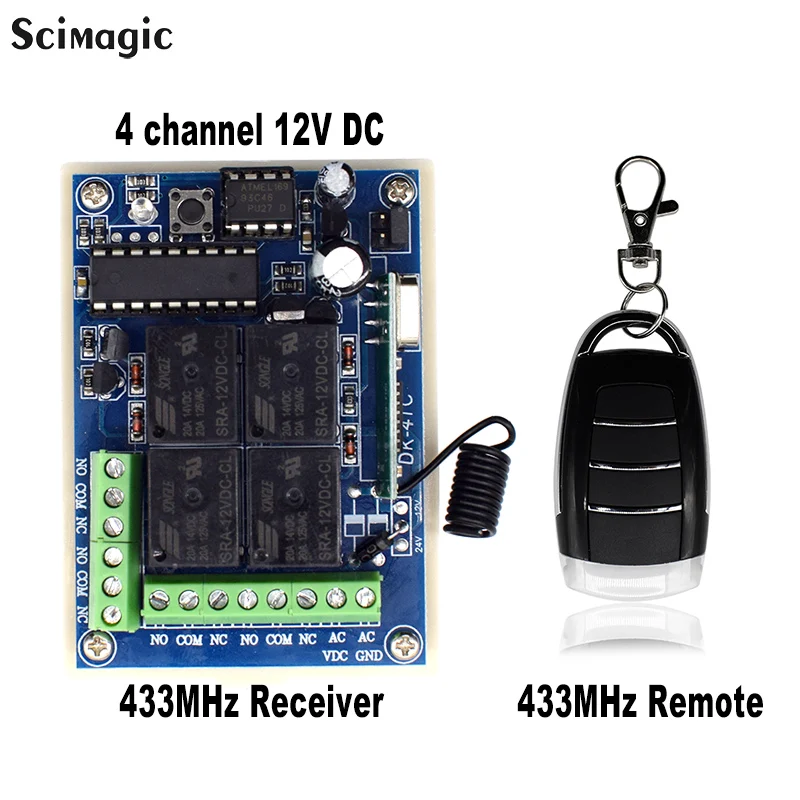

1pcs 4ch 12V DC 433MHz receiver; 1pcs learning code remote control

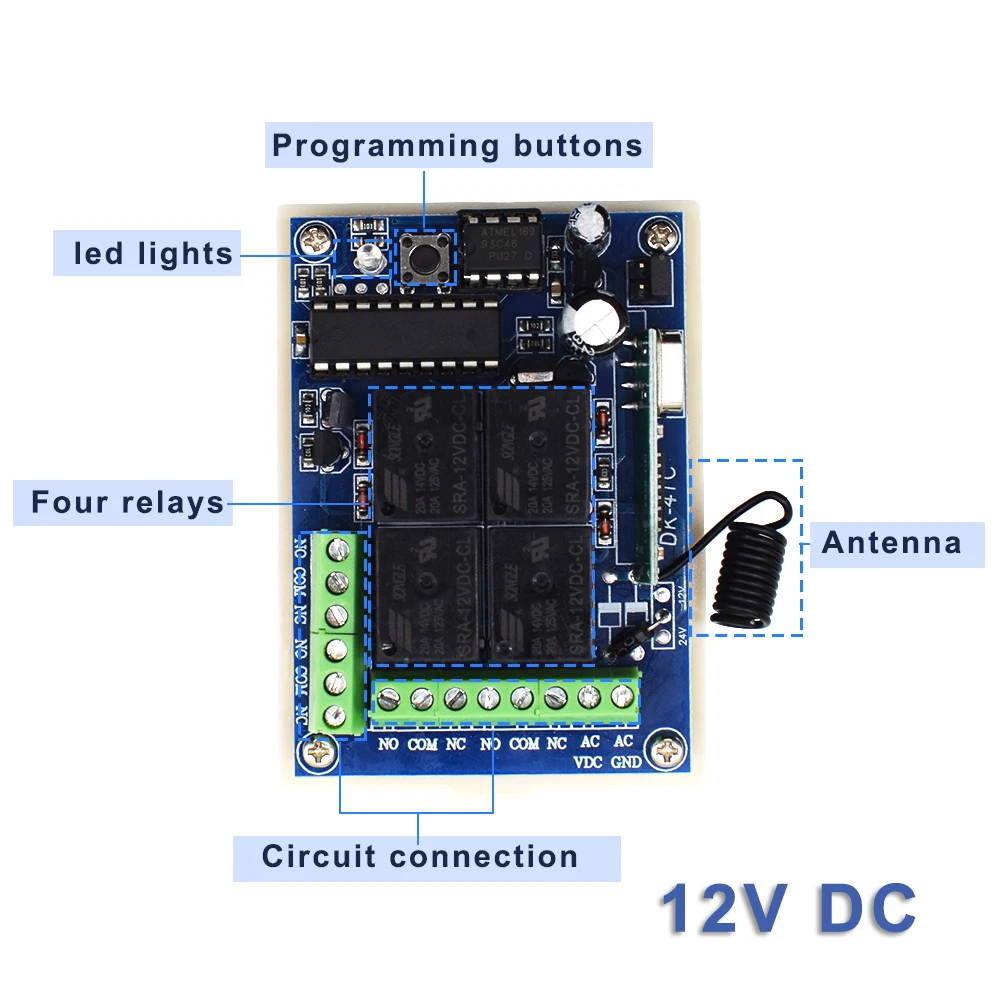

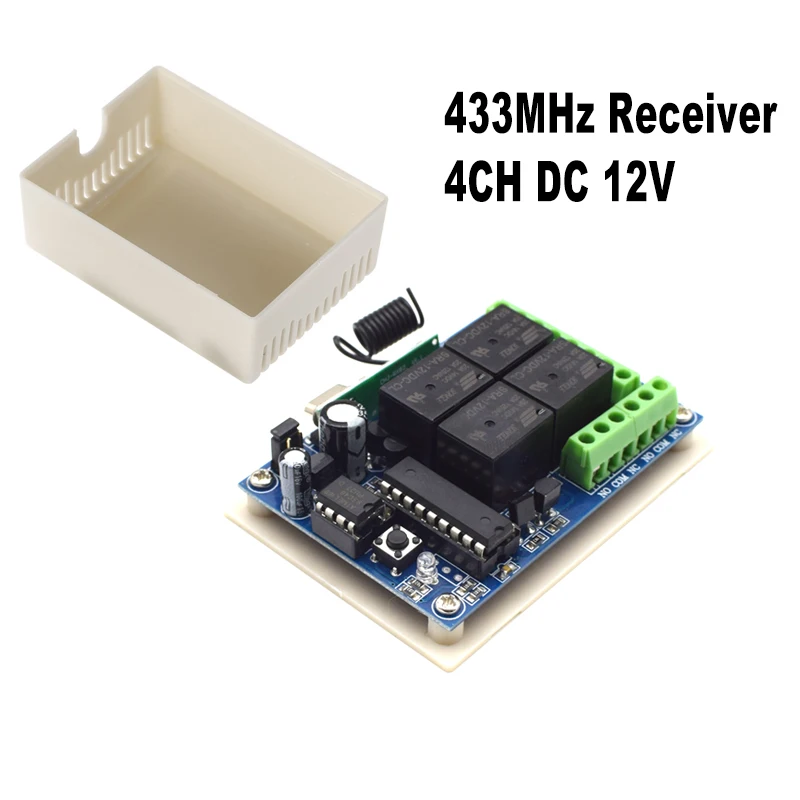

About Receiver:

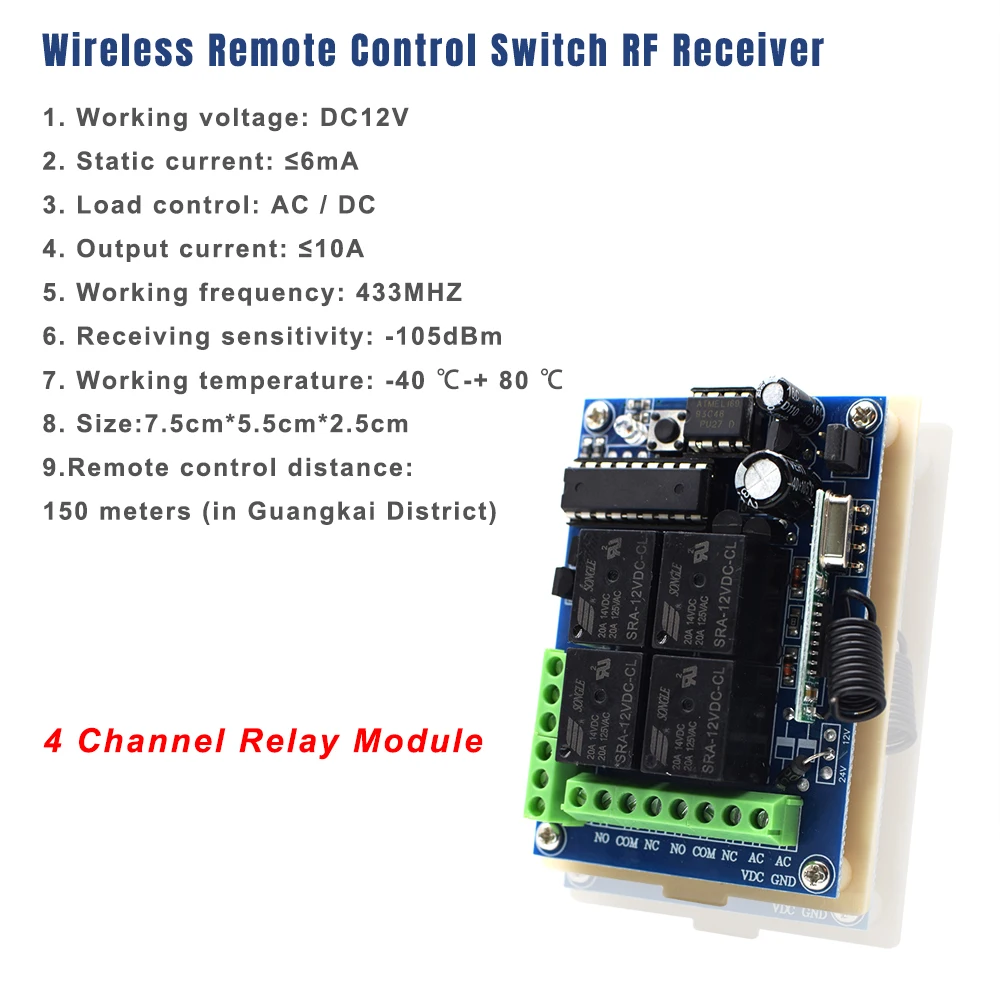

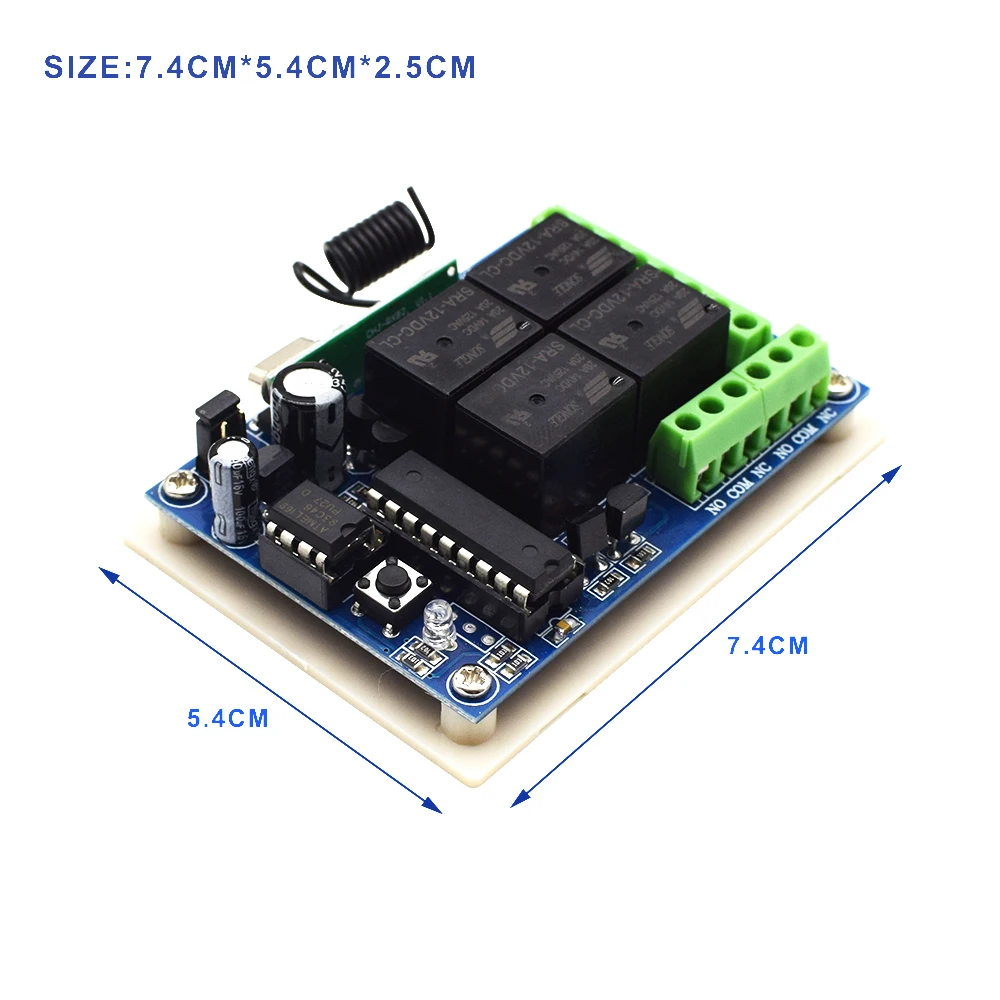

Working voltage: DC12V Quiescent condition: less than 7mA Working temperature: -40℃ to +80℃ Receiver sensitivity: more than -105dBm Working frequency: 433MHz Output voltage: for DC and AC is optional Output current: less than 3A Max load current: 10A Material: Plastic + Metal Color: Gray Size: 72×52×26mm/2.83×2.05×1.02in (Approx)

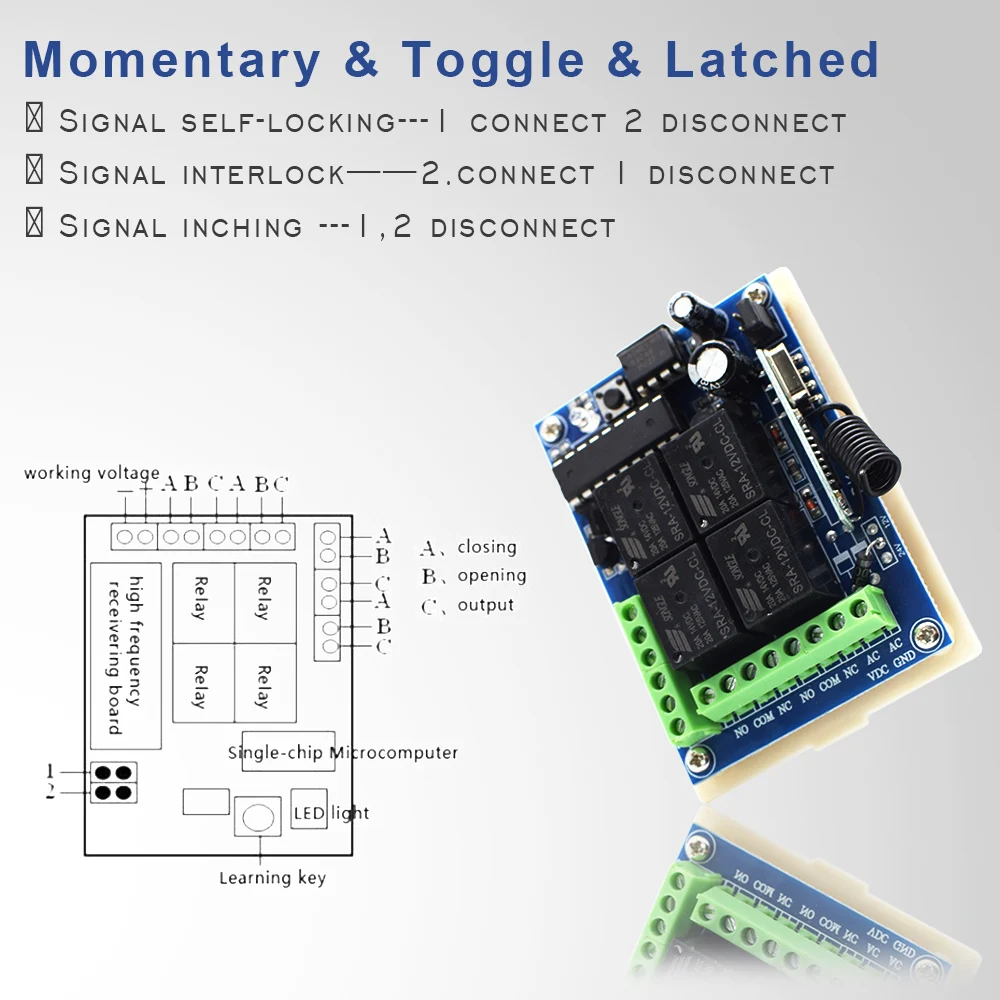

About Working mode:

Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects. Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects . Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Learning the code :(Momentary)

The cutting-out cap is non-occupation, JP1 and JP2 do not connect either.

Learning the code : ( Toggle )

connect the JP1 with the cutting out cap.

Learning the code :( Latching )

Connect the JP2 with the Cutting out cap.

Clearing the code:

Delete memory message Press the learning button of the receiver about 7 second until the LED light is extinguished, which indict success to delete the memory message.

NOTE:

The system can store for 12 pcs of remotes , if the remote get more than 12 pcs , the initial remote control will be lost .

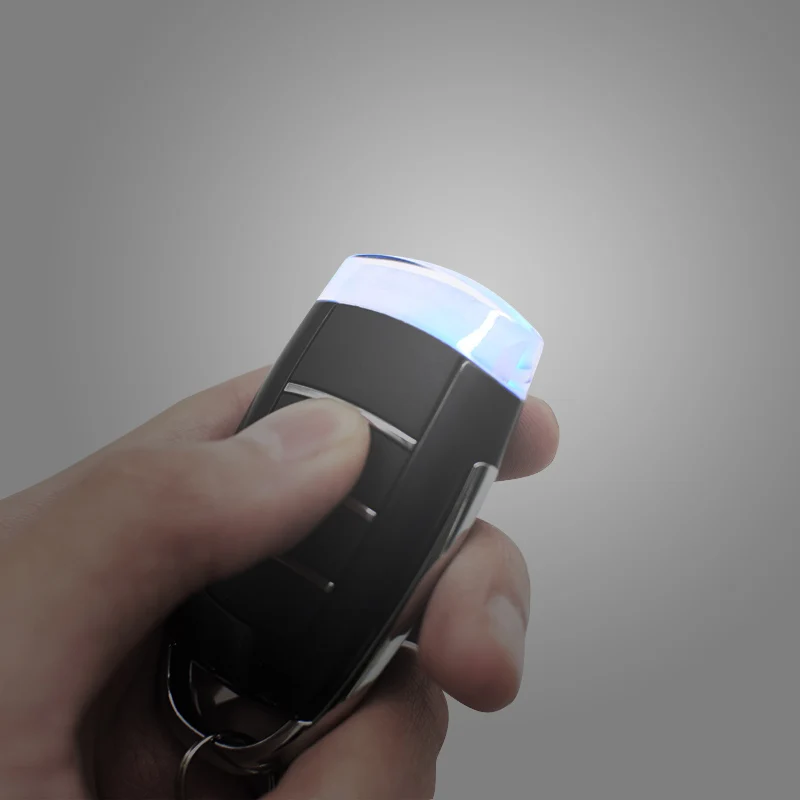

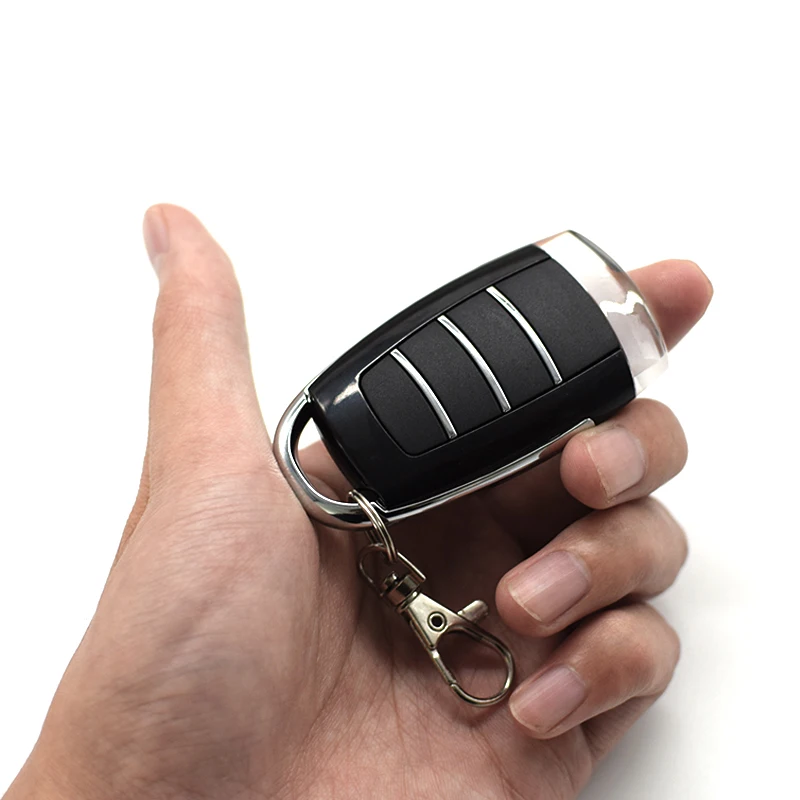

About remote control (transmitter):

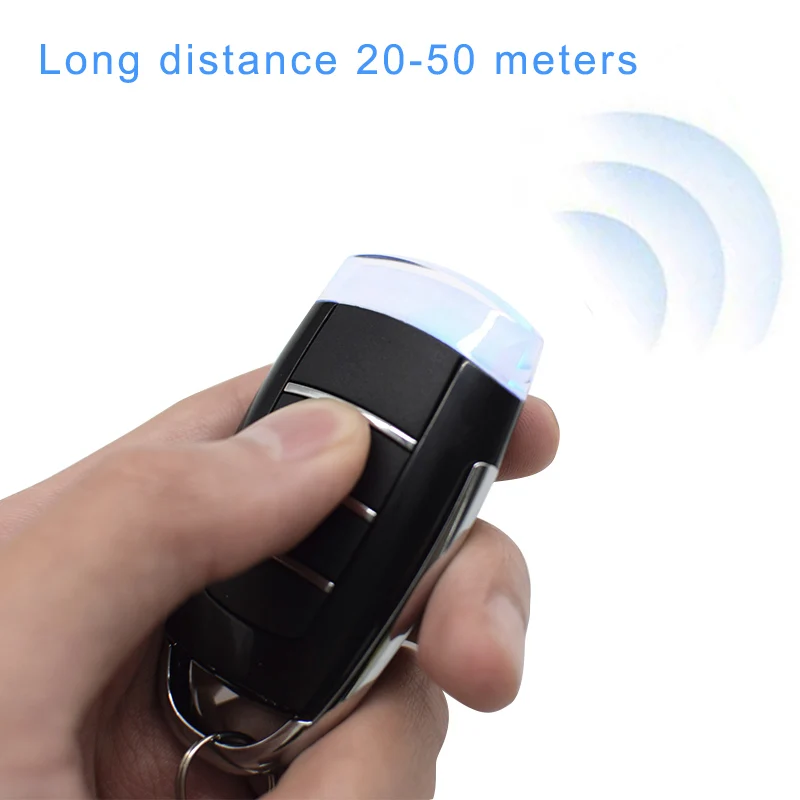

Material: Plastic + Metal Color: Black Size: 56×30×12mm (Approx.) Battery: 27A 12V Frequency: 433MHz Code Type: Fixed code / Learning code Remote Distance: About 50M (at barrier-free place) Note: It is not a cloned remote control.Please don't buy it when you don't know the features of the product.
