High Current and Varialbe parameters 2-Quadrant Brushless DC motor driver, BLDC motor controller

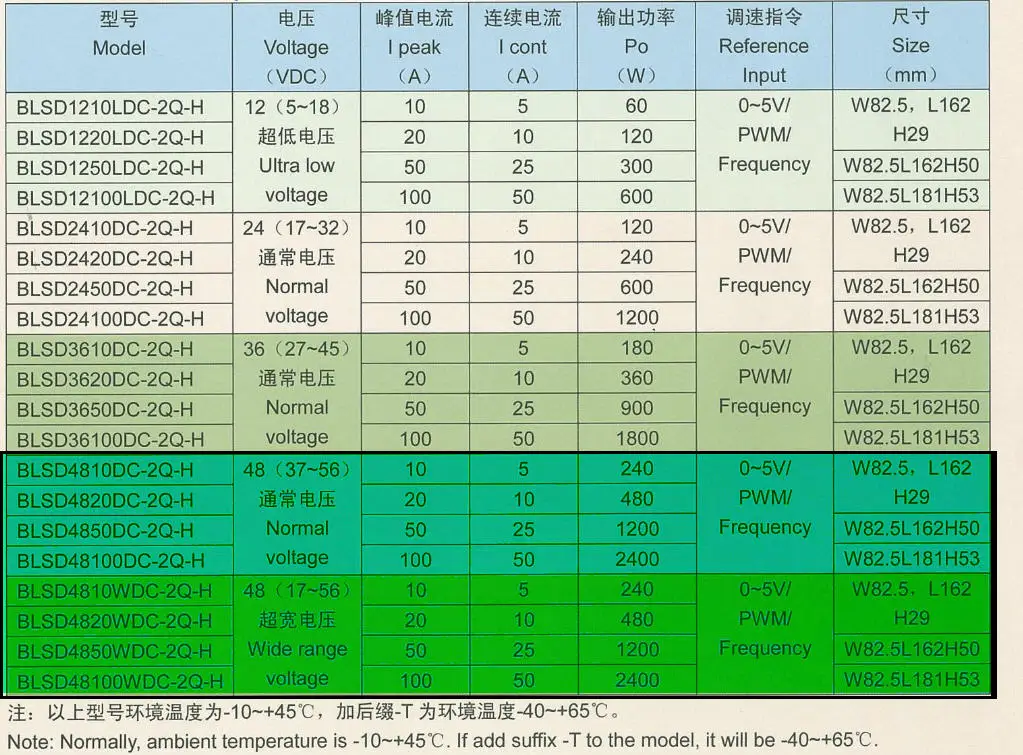

Description: H series is High current speed driver with variable parameters and PI close-loop of speed and current . the refernce can be 0~5Vanalog voltage or 0~100%PWM.Also it can be 0~3KHz frequency by adding a F-V unit on PCB.Parametes can be set by DIP switches and potentiometers such as pole number. max speed ramp time, loop filter time and peark current etc. Protective functions such as short circuit, safe start, safe direction reserval etc are presented. Voltage grades are 5~18,24,36,48,17~56VDC.Peak current grades are 10,20,50,100,200A.Ambient temperature grade are-10~+45℃. Features: ♦Surface-mount technology small size,high current. ♦2-Quadrant PI close-loop control of speed with good linearity. ♦Variable parameters setting for different motors and easy use. ♦Control functions of safe reverse, safe start, enable,brake,speed referenceand output functions of speed pulse(PG),Short circult and over temperature protection,alarm. ♦Three kinds of reference inputs:analog voltage,PWM,frequency. ♦The user can get motor accurate speed through output functions of speed pulse ♦Suitable for 3-phase BLDC motors with hall sensors. ♦Use of industrial grade chips Model and specification:

Notes: other current please contact with us confirm the price.

products pictures:
