7 inch 1920*1200 Retina Touch screen CVBS 4K IP 5MP AHD 8MP CVI TVI Camera Tester 5 in 1 cctv tester support wifi,cable tracer

7 inch retina touch screen ,1920x1200 resolution H.265 mainstream test;4K video display via mainstream HDMI signal input,support 1080P IP+Analog+AHD+CVI+TVI five in one IP discovery; video level test,cable trace, Rapid ONVIF,by one key to activate Hikvision,auto login and view images DC 12A 2A power output/ USB 5V 2A power output/ PoE power output HDMI output,Built in WIFI.

Main Function:

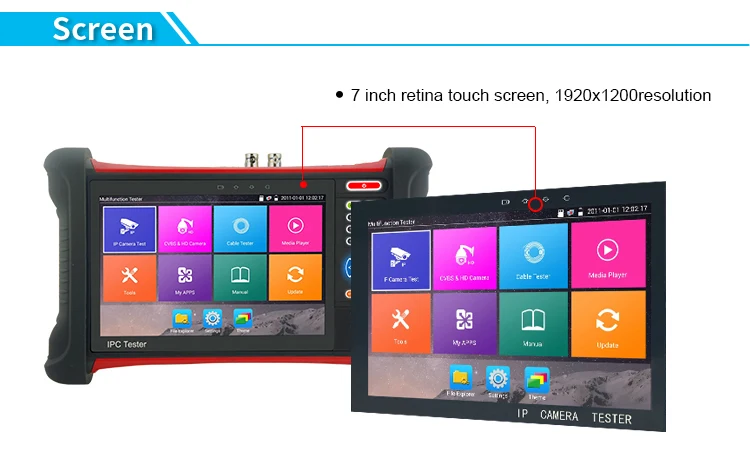

(1) 7 inch retina touch screen ,1920x1200 resolution. HDMI signal input, support 1080p;

(2) IP Camera test: Support H.265 mainstream test, 4K video display via mainstream ,4K IP Camera test(Max),  IP discovery, IPC Test, ping IP, Rapid Onvif, RTSP play /Client APK;

(3)  Coxial HD Camera test:

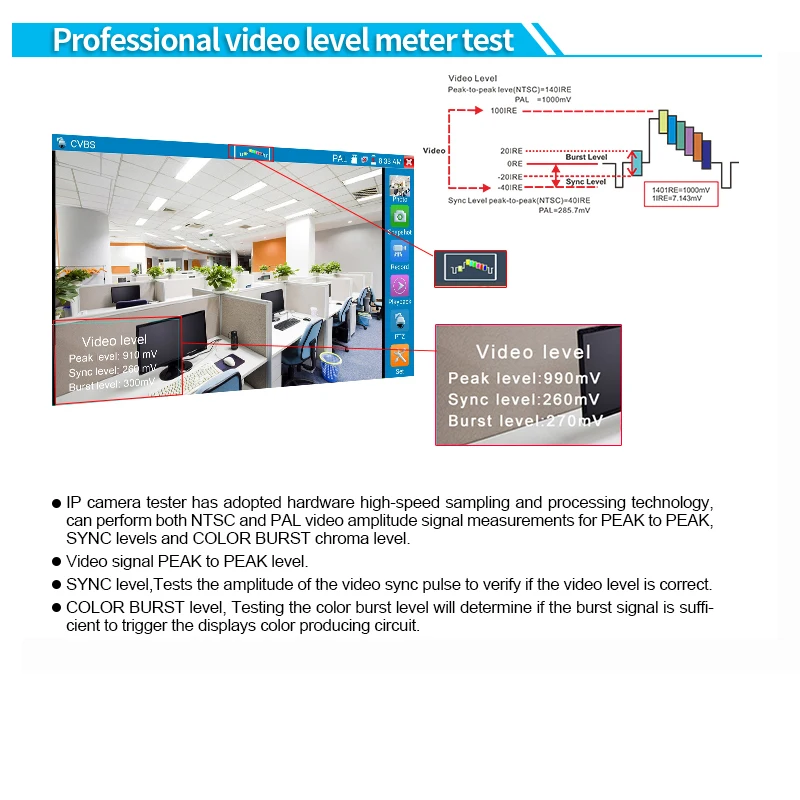

(4) Video level meter :PEAK ,SYNC signal level, color burst chroma level measurement;

(5)  IP& CVBS test at the same time ,converter test from analog to digital with dual test window;

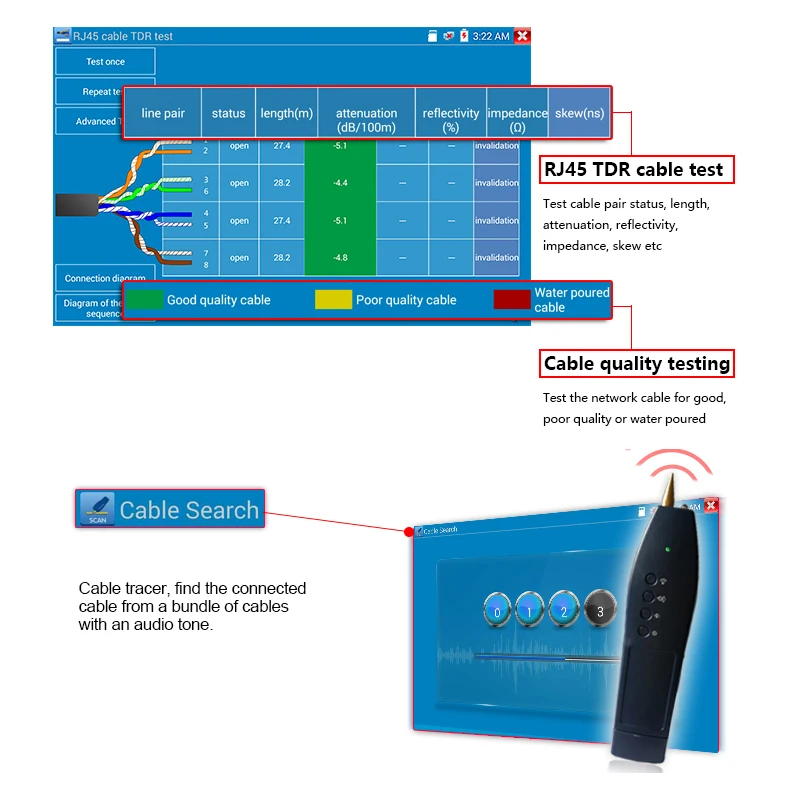

(6) RJ45 cable TDR test: test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range is 180M.

(7) UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen;

(8) Cable tracer :search BNC cable, network cable and telephone cable from the mess cable;

(9) Rapid ONVIF,by one key to activate Hikvision,auto login and view images .

(10) Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back,

(11) PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc, Support  IP+Analog +CVBS camera test. Color bar test;  1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt);

(12) Can install your own Android APK, Like whatsapp, skype etc.

(13) TesterPlay: screen projection:tester, mobile phone and PC display at the same time (For android version mobile phone);

(14) DC 12A 2A power output/ USB 5V 2A power output/ PoE power output /HDMI output,Built in WIFI.

(15) Language support: English, Chinese, Korean, Russian, Italian , Polish ,Spanish, French or Japanese;

Notice:

Custom duty

For the weight of the item is more than 2.8KG, It would be shipped by DHL or EMS,  When you choose DHL shipping way, DHL might charge custom clearance fees, please confirm whether you have the clearance ablity.

Due to customs duties ,buyers refuse to get the goods, the buyers should pay all the resulting freight.

Import duties ,taxs and charges are not included in the price or shipping charges, These charges are the buyers' responsibility, please check the custom clearance fees of your country before you place an order.

Specification

(1) 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt),

(2) Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement;

(3) PTZ control,RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc;

(4) CVBS loop test: the tester send and receive color bar generator signal, check BNC cable

(1) IPC test /IPC viewer /Rapid Video/RTSP /ONVIF;

(2) Rapid Video: can create testing report;

(3) Hik test tool: pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters;

(4) Dahua test tool: Dahua camera test, modify the user name, password and IP parameters;

(1) Output DC12V/2A power out ,supply temporarily power for the camera

(2) 48V PoE power output, max power 24W

(3) USB 5V 2A power output, as a power bank

(1) Cable tracer: search BNC cable, network cable and telephone cable from the mess cables;

(2) UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen;

(3) RJ45 cable TDR test: test cable pair status, length, attenuation, reflectivity, impedance, skew etc

Product Overview

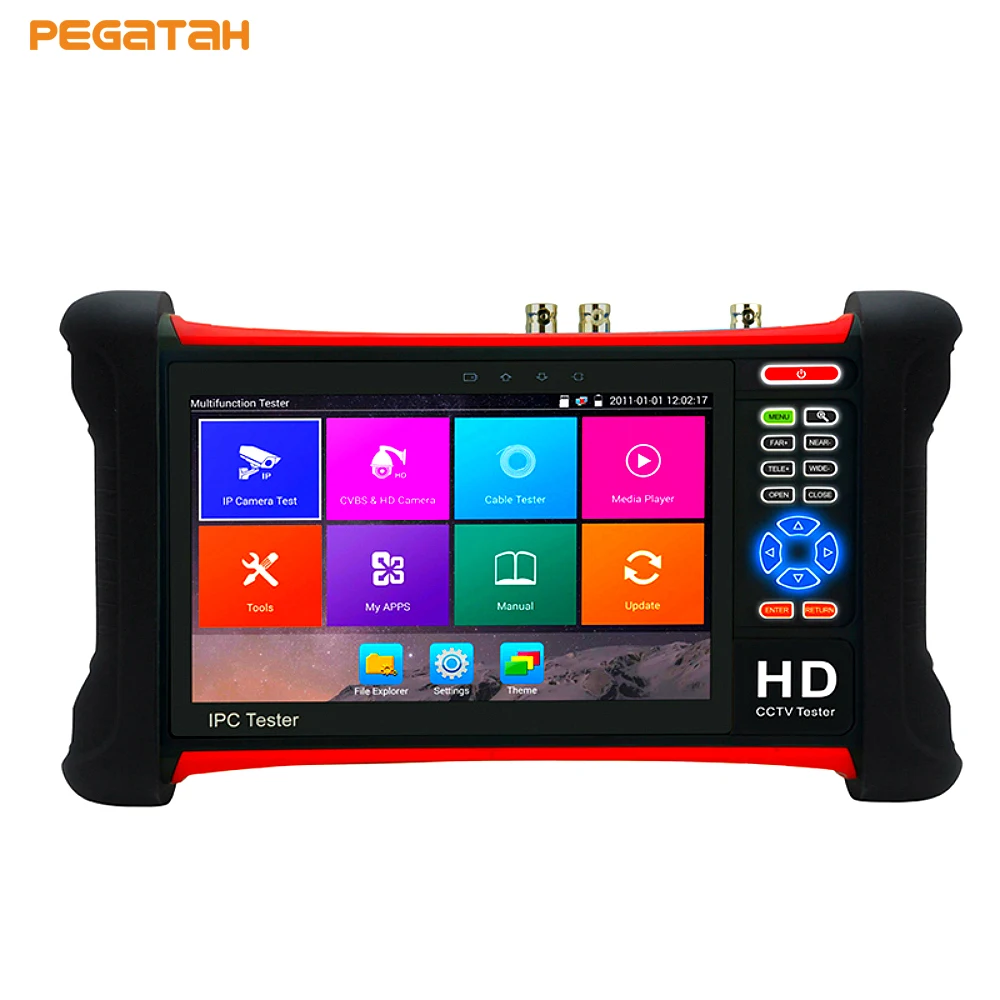

The 7 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920x1200 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions RJ45 TDR cable test, , UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

Application

●CCTV system installation and maintenance

●Network cabling project installation and maintenance

●Dome camera, IPTVI CVI AHD 4K H.265 camera testing

●Video transmission channel testing

●PTZ controller

Features

1. New -7 inch retina touch screen ,1920*1200 resolution

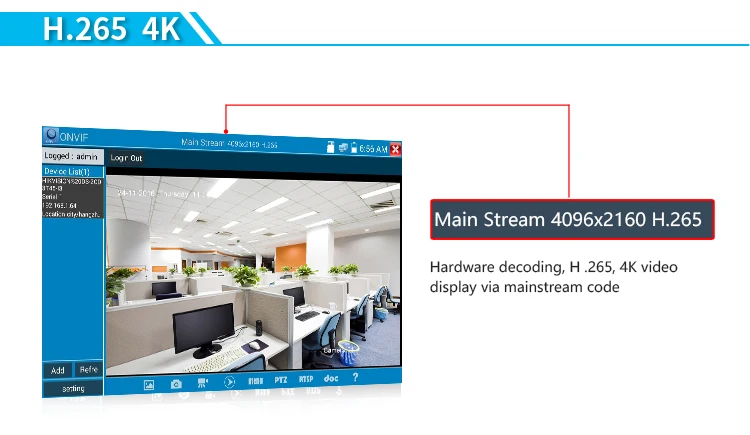

2. H.264 & H .265 ,4K video display via mainstream

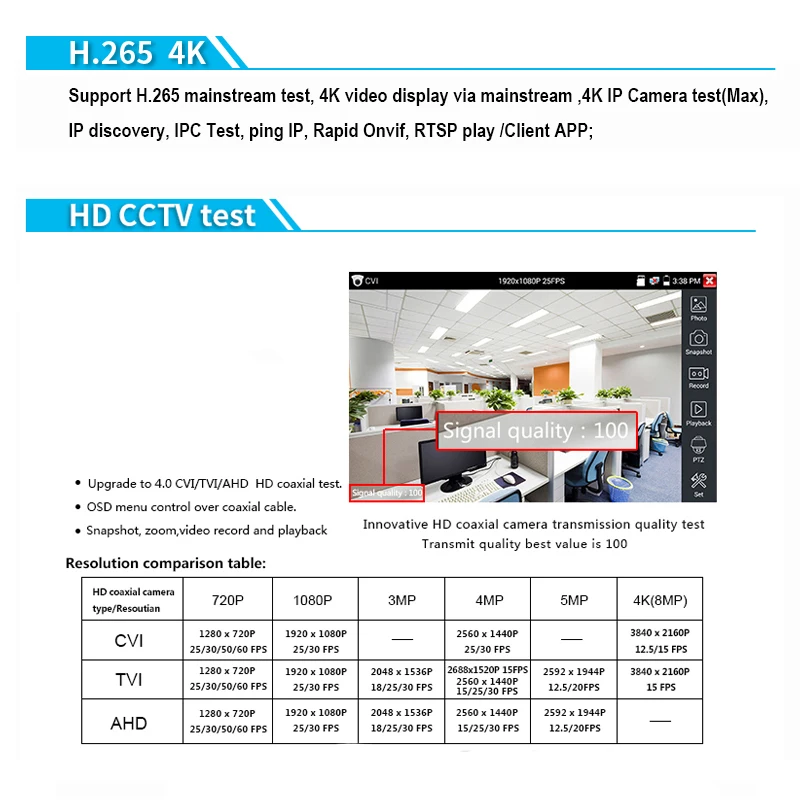

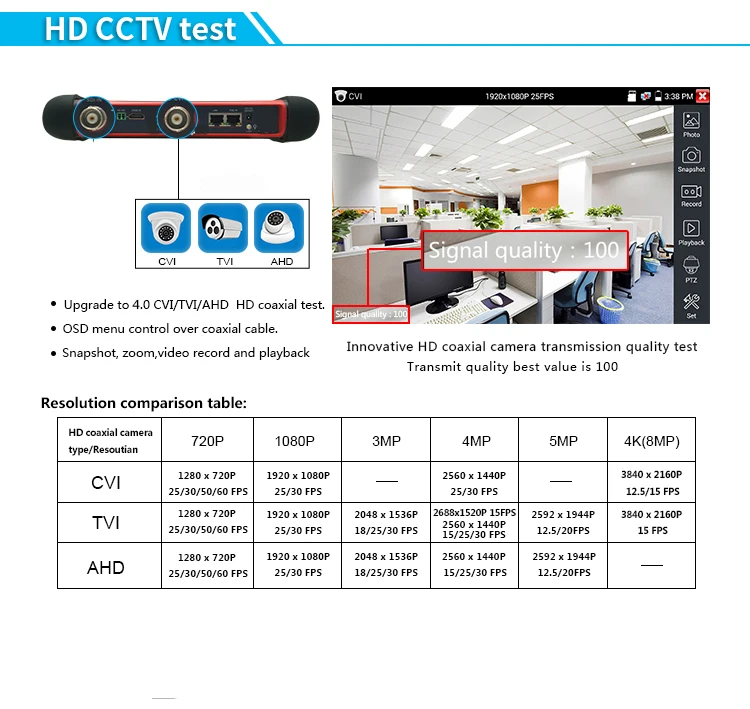

3. 8MP TVI test,2560x1944P 12.5FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

4. 5MP AHD test, 2560x1440P 15F/25F/30FHD,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

5. 8MP CVI test,2560x1440P 25F/30F, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu

6.IP camera test ;

7. IP & CVBS camera test ,PTZ controller

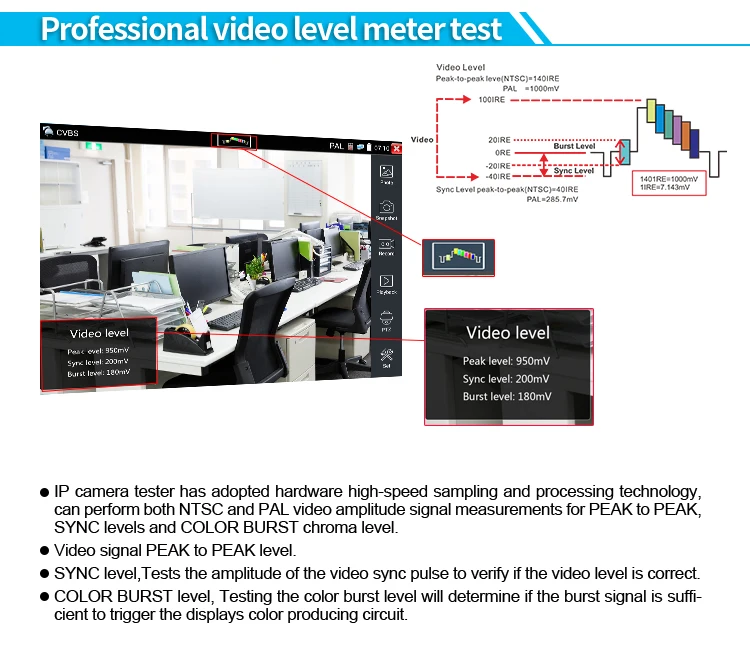

8. Video level meter :PEAK ,SYNC signal level, color burst chroma level measurement

9. Cable tracer :search BNC cable, network cable and telephone cable from the mess cable

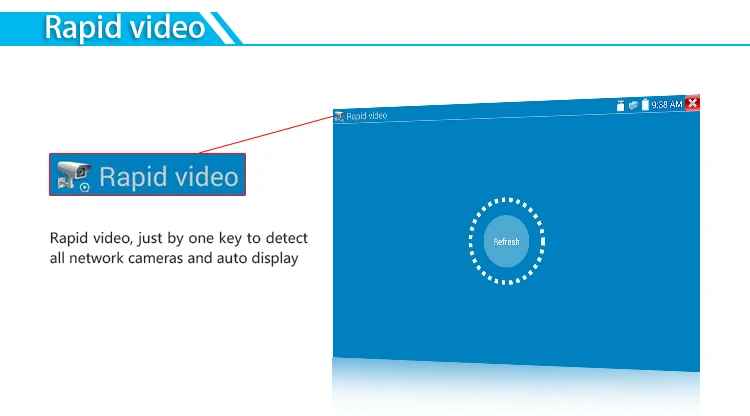

10.New- Rapid video, just by one key to detect all network cameras and auto display

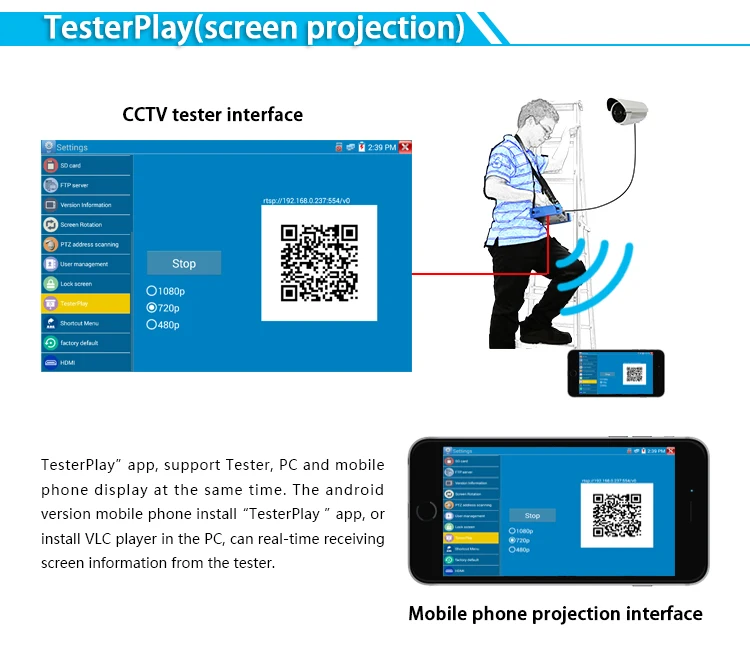

11. TesterPlay (screen projection): tester, mobile phone and PC display at the same time (For android version mobile                      phone)

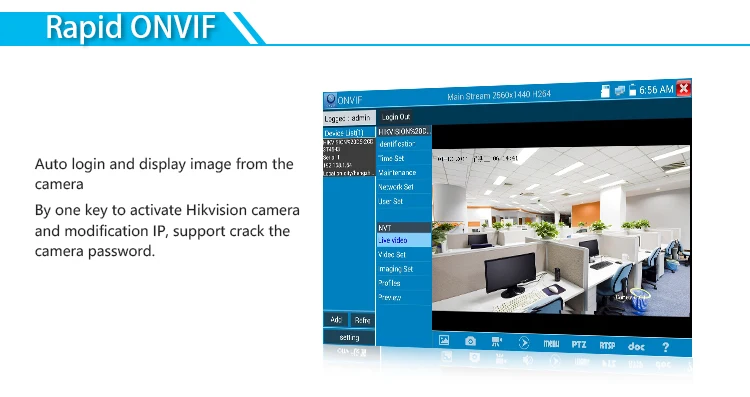

12. Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report

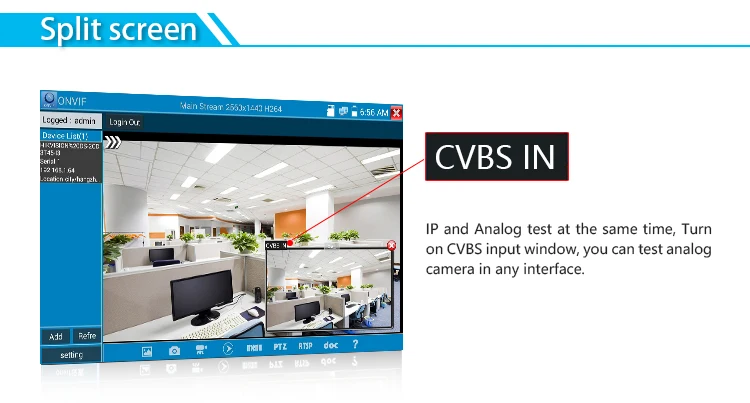

13. New- IP and analog testing at the same time ,converter test from analog to digital with dual test window IP & CVBS

14. New- In HDMI in mode, It can converter test from analog to digital with dual test window IP & HDMI in or Analog & HDMI in

15.New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

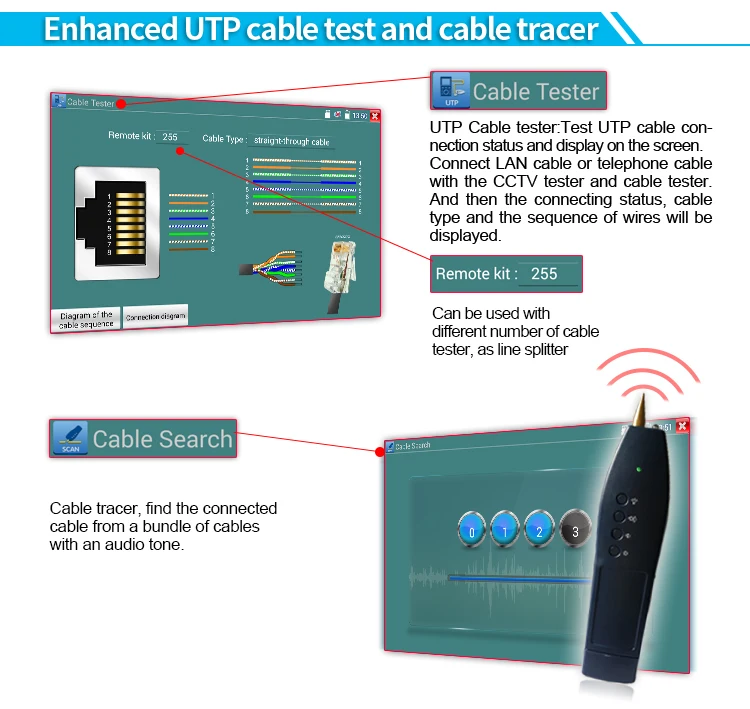

17.  Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if                       special number, need to customize

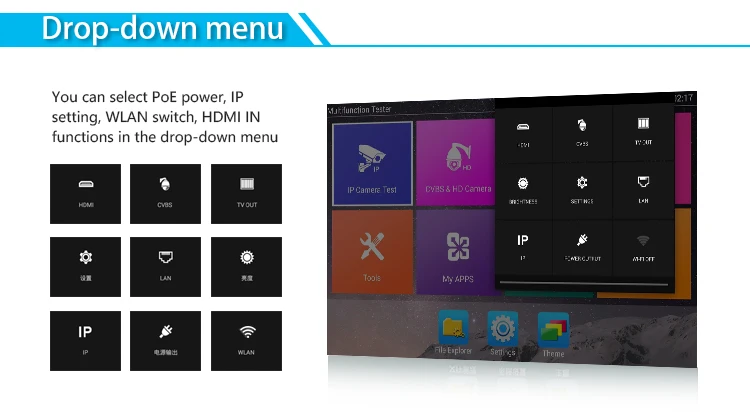

18. New- Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch, HDMI IN functions etc in any interface

19.New- Screen lock, password lock and pattern lock are optional

20. New- HDMI signal in and out , support 1080P

21. NEW- Backlit buttons.

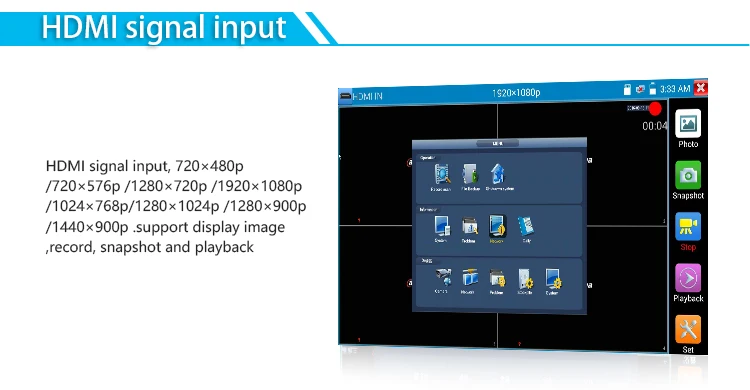

22.  New- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p                    display image ,record and snapshot

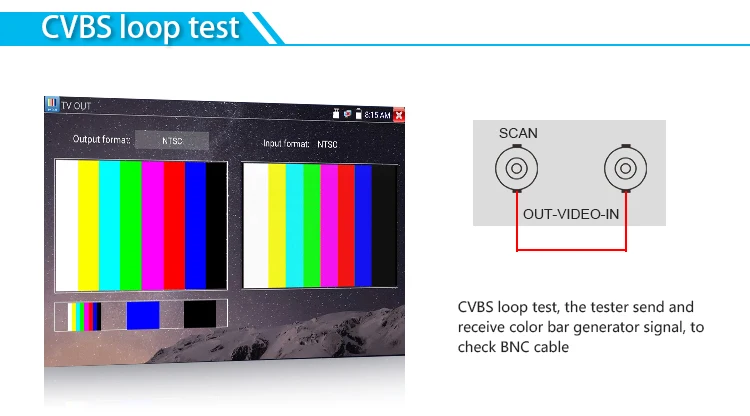

23. New- CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable

24. New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds                 and other network parameters

25. New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc

26. ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)

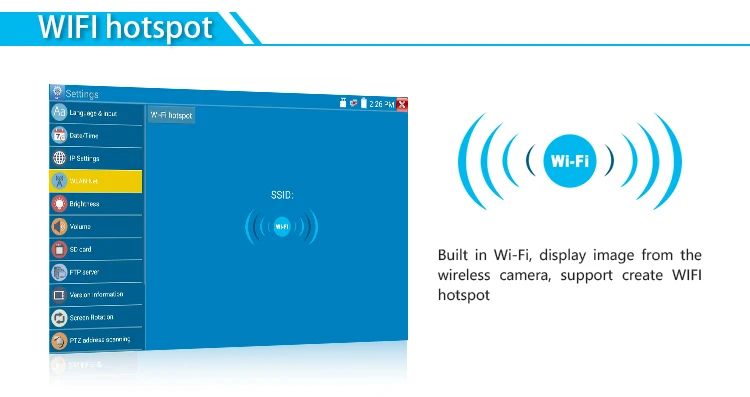

27.  Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot

28. New- 4K video files and MKV/MP4 media files play

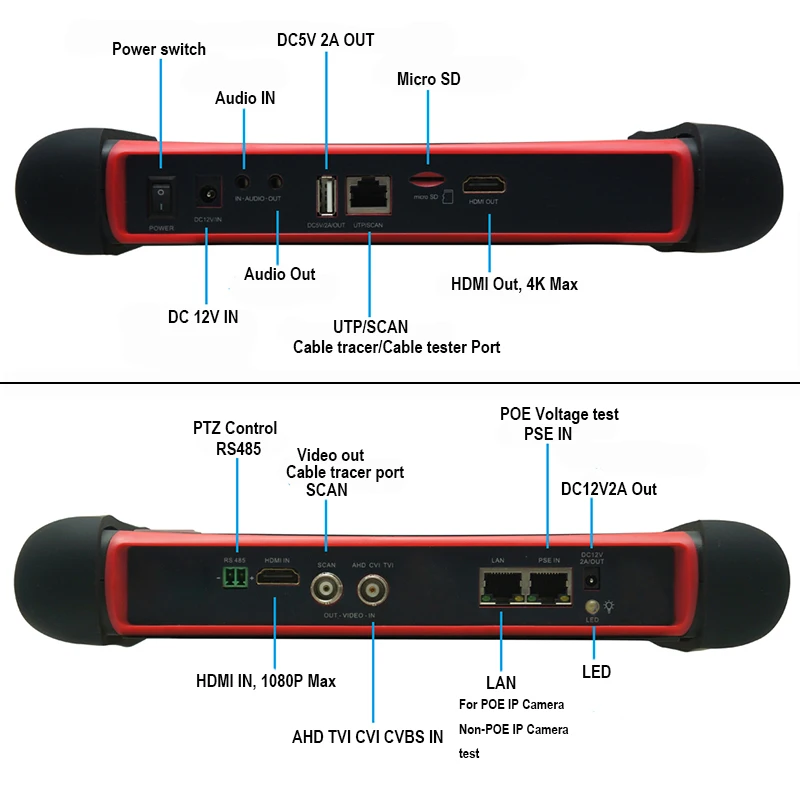

29.PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank

30.New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable

31.8GB SD card including

32.IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester's IP address

33.Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

35.Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

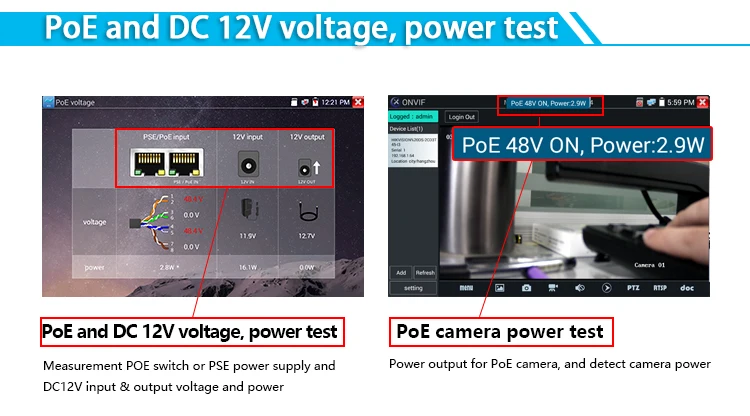

36.POE voltage measurement, PING test ,IP address scan, port flashing etc

37.Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools

38.7.4 V /5000mAh Lithium Ion Polymer Battery, after 6-7 hours charging , working time lasts 10 hours

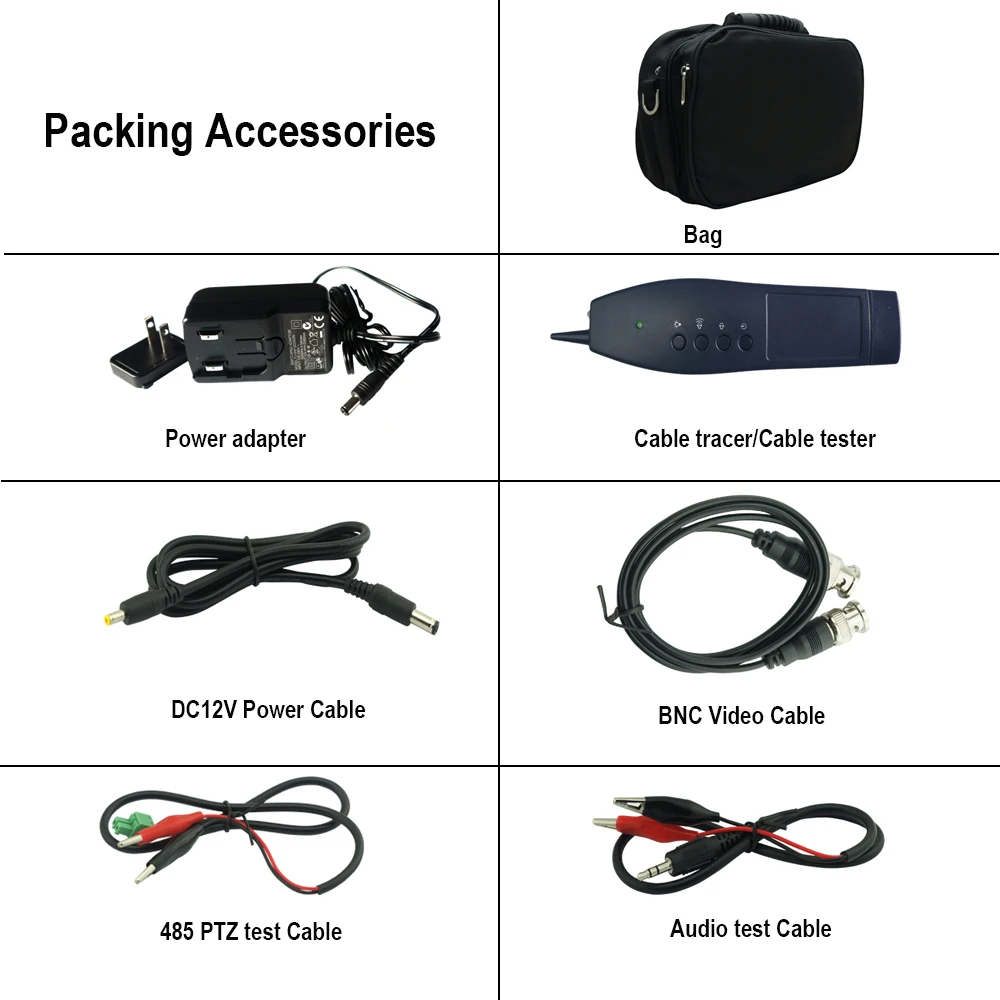

1). Tester

2). Adaptor DC12V 2A

3) Network cable tester

4) Polymer lithium ion battery (7.4V DC 5000mAh)

5). BNC cable

6). RS485 cable

7). SC,ST connector(Only for optical power meter)

8). Multi-meter test leads one pair of red and black (only for the Multi-meter models)

9). Output Power cable

10). Audio cable

11). TDR alligator clamp (only for TDR models)

12). Safety cord

13). Tool bag

14). Manual

15).8GB SD card
